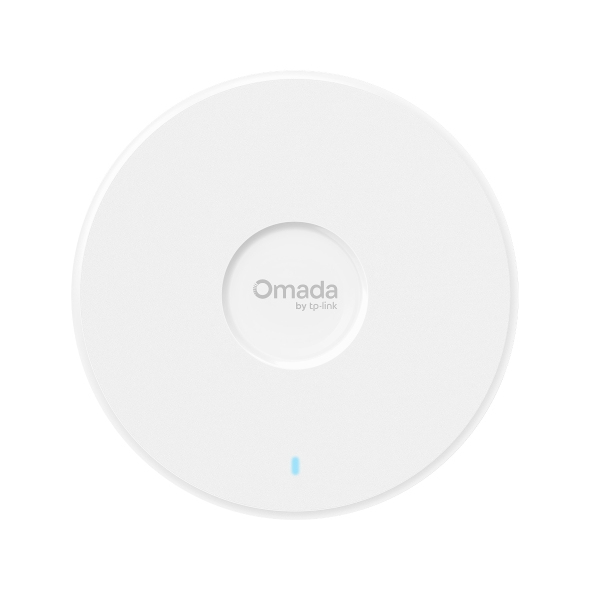

Access Point Omada Eap787 Tri-band Ceiling Mount Be15000 Wi-Fi 7
ITCurry #: P6044104 | Article #: EAP787-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
- Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.§
- Maximized 6 GHz Coverage with AFC: Unlock stronger signals and extended 6 GHz range performance#
- Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 8648 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.†
- 1× 10G Port: Ensures fast connectivity throughout the network
- Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.?
- More Capacity and Wider Coverage: Supports 510+ concurrent clients** and covers up to 1750 ft² (160 m²)* for reliable and extensive wireless connectivity
Dedicated Spectral Analyzer Radio for Higher Efficiency in O&M
Optimized Wired Performance with 10G PoE++ Port
With a 10 Gigabit Ethernet Port, EAP787 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3bt PoE is ideal for flexible deployment.
Empowering Businesses
with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 8648 Mbit/s |
| Maximum data transfer rate (6 GHz) | 5765 Mbit/s |
| Frequency band | 2.4 - 6 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Coverage area | 1750 mý |
| Number of users | 510 user(s) |
| Bluetooth | Yes |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| VLAN support | Yes |
| Rate limiting | Yes |
| Flow control support | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Security | |
| Security algorithms | WPA, WPA2, WPA3 |
| Access Control List (ACL) | Yes |
| Ports & interfaces | |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 12 V |
| Input current | 2.5 A |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna | |
| Antenna type | Internal |
| Certificates | |
| Certification | CE, FCC, RoHS, IC |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 220 mm |
| Height | 38.8 mm |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Storage relative humidity (H-H) | 5 - 90% |
| Warranty | |
| Base Warranty | Non Non |
