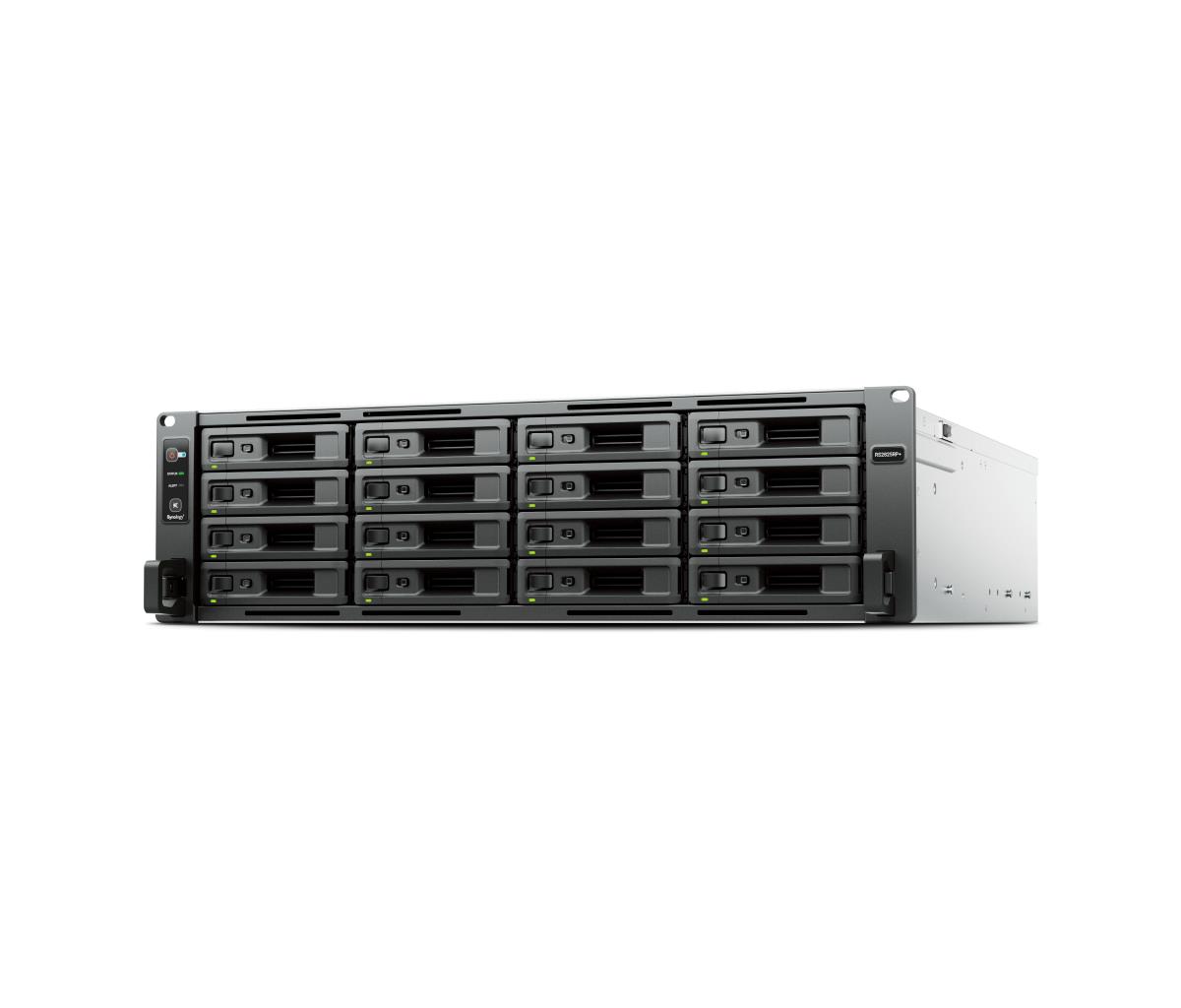

Rack Station Rs2825rp+ 3u 16bay Nas Server Bareborn With Redundant Power
ITCurry #: M6055204 | Article #: RS2825RP+-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Built for reliability
Redundant power
Redundant power supplies ensure maximum server uptime by preventing single-point power failures.
High-availability
Pair two identical devices with Synology High Availability and enable automatic minute-level failover between both devices in the event one server fails
Network redundancy and load balancing
Built-in 1x 10GbE and 2x 1GbE ports can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Intuitive storage for on-site and remote teams
Provide secure and convenient cross-platform tile access, sharing, and synchronization across multiple locations.
Centralized monitoring and management
Monitor and manage your Synology fleet from a central interface, on-prem or in the cloud.
Hard drives designed for Synology
See how Synology hard drives deliver reliability, consistent performance, and simplified system management through deep hardware-software integration.
| Storage | |
| Storage drive interface | Serial ATA |
| Storage drives installed | No |
| Number of storage drives supported | 28 |
| Supported storage drive types | HDD & SSD |
| Processor | |
| Processor manufacturer | AMD |
| Processor model | V1780B |
| Processor frequency | 3.35 GHz |
| Processor boost frequency | 3.6 GHz |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 32 GB |
| Memory slots | 2 |
| Memory form factor | SO-DIMM |
| ECC | No |
| Network | |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| Design | |
| Chassis type | Rack (3U) |
| Cooling type | Active |
| Product colour | Grey |
| Number of fans | 3 fan(s) |
| Fan diameter | 8 cm |
| LED indicators | Alarm, Status |
| Performance | |
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud |
| Noise level | 49.6 dB |
| Reset button | Yes |
| Software | |
| Operating system installed | Synology DSM |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 482 mm |
| Depth | 656.5 mm |
| Height | 132.3 mm |
| Weight | 17.3 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 øC |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage temperature (T-T) | -20 - 60 øC |
| Storage relative humidity (H-H) | 5 - 95% |
| Other features | |
| Compliance certificates | BSMI, CCC, CE, Federal Communications Commission (FCC), RCM, UKCA, VCCI |
| Warranty | |
| Base Warranty | Non Non |
