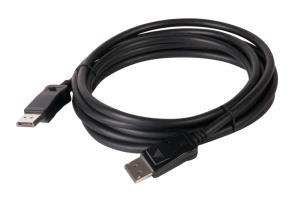

Vesa Certified DisplayPort 1.2 Cable, 4k 60hz, 21.6gbps, Latching Dp Connectors, Dp 1.2 DisplayPort Cable, Dp Monitor Cord, M/m 3m White
ITCurry #: 7564C098 | Article #: DP12-CABLE-10FTW-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Enable seamless 4K 60Hz video using this VESA-Certified DP 1.2 Cable
Connect a 4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 1.2 Cable. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked DP cables. Eliminate guesswork and always choose the appropriate cable to support full DP 1.2 capabilities.
Seamless Compatibility
For seamless operation between DisplayPort-enabled devices, the DisplayPort 1.2 Cable is VESA Certified for guaranteed DP 1.2 and backward compatibility. Certified cables provide consistent, reliable performance across multiple resolutions and refresh rates.
Durable Design
This DisplayPort cable features a flexible TPE outer jacket that routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection.
Supported DisplayPort 1.2 Features:
This DisplayPort cable supports full DP 1.2 features:
• Resolutions up to 4K 60Hz using a compatible DP source and display
• 21.6Gbps bandwidth supports high refresh rates including 1440p 144Hz and 1080p 240Hz
• High-Bandwidth Digital Content Protection (HDCP) 1.3 for a secure connection between source and display
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• Up to 8 Uncompressed Digital Audio Channels
• 3D Stereo support for 3D video formats
• Backward compatible with previous DP versions
This DP 1.2 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
The StarTech.com Advantage
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| DisplayPort version | 1.2 |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 2560 x 1440, 4096 x 2160, 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p, 1440p, 2160p |
| Maximum refresh rate | 240 Hz |
| HDCP | Yes |
| HDCP version | 1.3 |
| Cable length | 3 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Latching connectors | Yes |
| Product colour | White |
| Cable shielding | Aluminum mylar foil |
| AWG wire size | 28 |
| Data transfer rate | 21.6 Gbit/s |
| Channels quantity | 7.1 channels |
| Multi-Stream Transport (MST) | Yes |
| Number of conductors | 19 |
| Fire-resistance rating | VW-1 |
| Cable type | Round cable |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Operating relative humidity (H-H) | 5 - 85% |
| Weight & dimensions | |
| Cable diameter | 7.5 mm |
| Weight | 192 g |
| Packaging data | |
| Package width | 220 mm |
| Package depth | 200 mm |
| Package height | 20 mm |
| Package weight | 200 g |
| Logistics data | |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 210 mm |
| Products per master (outer) case | 40 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
