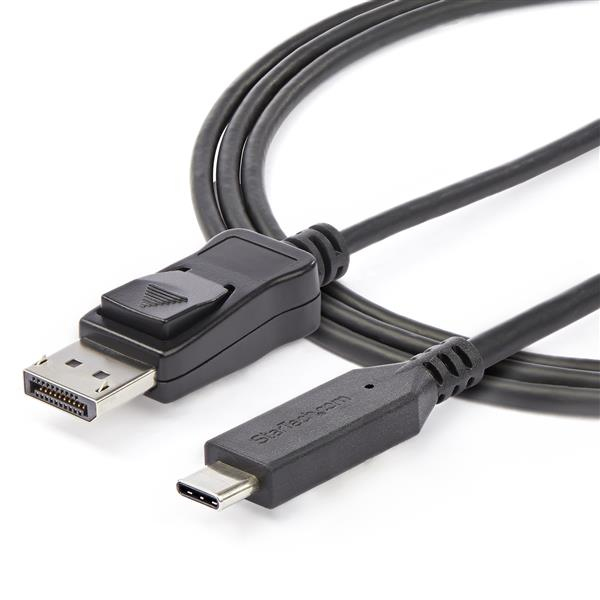

USB-C Video Adapter Cable | Thunderbolt 3 Compatible | HBR3
This USB-C to DisplayPort 1.4 cable lets you connect your USB Type-C device to a DisplayPort monitor with just one cable, providing you with a convenient, clutter-free solution.
Incredible Picture Quality
Supporting four times the resolution of 4K, this 8K DP 1.4 adapter cable delivers the stunning quality of UHD at resolutions up to 7680×4320, and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps.
With cutting-edge picture quality, this cable is ideal for:
Displaying crisp digital signage walls
Creating eye-catching visuals for photography and videography
The USB-C to DP cable is backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.
Resolution
Frequency
Support without DSC
Support with DSC
HDR10 without DSC
HDR10 with DSC
1080p (1920x1080)
60
P
P
P
P
120
P
P
P
P
240
P
P
P
P
4K (3840x2160)
60
P
P
P
P
120
P
P
O
P
240
O
P
O
P
8K (7680x4320)
30
P
P
O
P
60
O
P
O
P
120
O
O
O
O
Clutter-Free Installation
At 6 ft. (1.8 m) in length, this DisplayPort adapter cable delivers a direct connection that eliminates excess cabling, ensuring a tidy installation. For installations requiring a shorter length, we also offer a 3.3 ft. (1 m) DisplayPort cable, enabling you to customize your connection needs.
Hassle-Free Setup
To ensure easy operation, this DisplayPort converter cable supports plug-and-play installation, removing the need for additional software or drivers.
CDP2DP146B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note:
Your USB-C device must support DP Alt Mode to work with this adapter cable.
To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.
The StarTech.com Advantage
- HIGH PERFORMANCE: USB-C to DisplayPort 1.4 (32.4Gbps) adapter cable compatible w/ HDR/DisplayHDR, HBR3, Display Stream Compression (DSC), HDCP 2.2/1.4; 8K 60Hz (7680x4320), 5K 60Hz, 4K 120Hz & 1080p
- EXPERIENCE 8K: USB C to DisplayPort 1.4 cable was tested w/ 8K monitors, displays & compliance test hardware/software for optimal performance & color depth for high res imaging & content creators
- INTEGRATED VIDEO ADAPTER CABLE: This USB-C to DP cable minimizes signal loss & potential failure points with a latching DP connector, level 4 Air/Contact ESD immunity/protection & EMI shielding
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 1.8 m |
| Connector 1 | USB Type-C |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3860 x 2160, 4096 x 2160, 7680 x 4320 |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Chipset | STM32F072CBY6TR |
| Supported audio channels | 7.1 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 80 - 90% |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC, REACH |
| Weight & dimensions | |
| Weight | 57 g |
| Width | 200 mm |
| Depth | 1800 mm |
| Height | 11 mm |
| Packaging data | |
| Package width | 220 mm |
| Package depth | 200 mm |
| Package height | 17 mm |
| Package weight | 100 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 335 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 220 mm |
| Products per master (outer) case | 60 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
