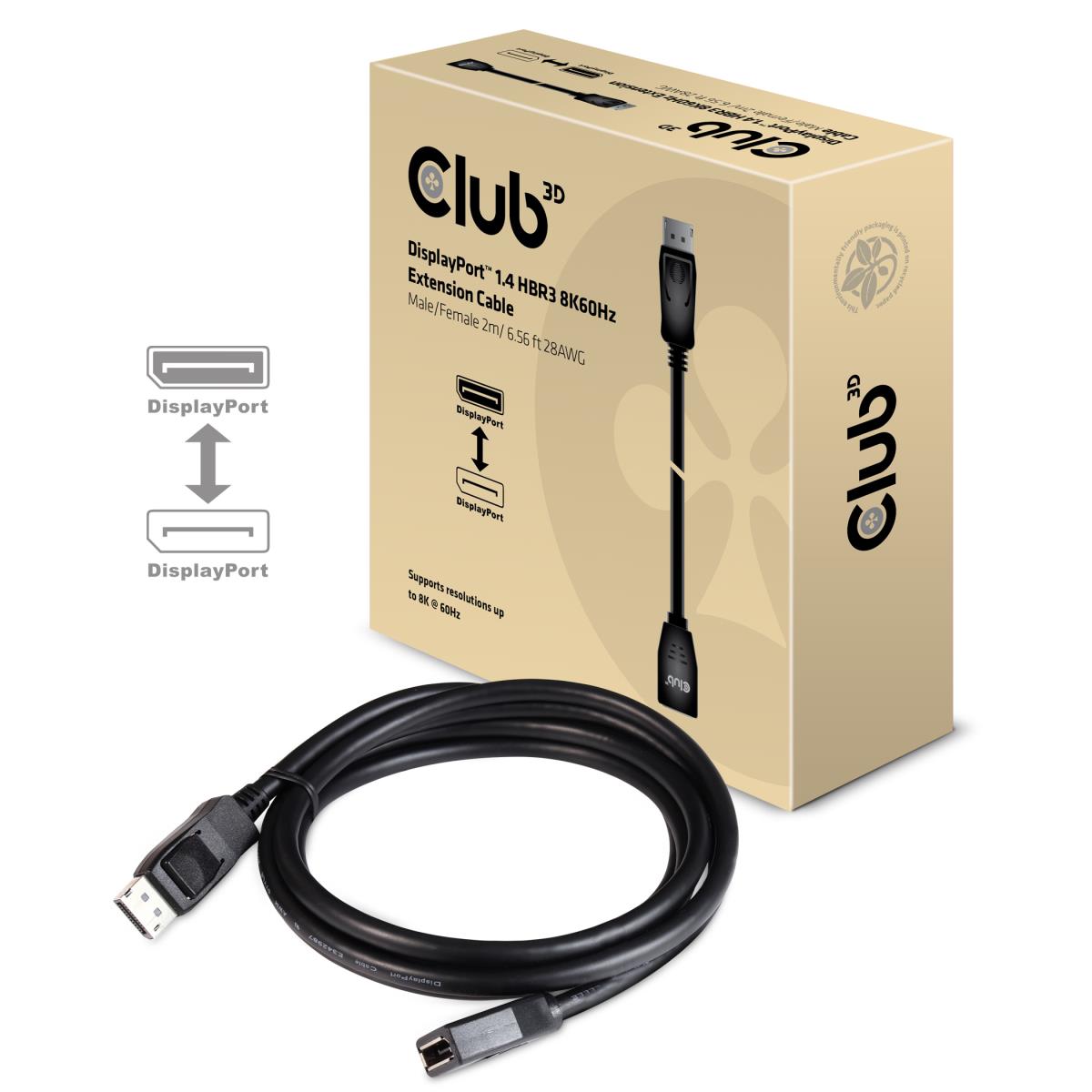

CAC-1022 - The Club 3D DisplayPort™ 1.4 HBR3 Male/Female, 2m/6.56ft. Cable enables the extension of your connection to your DisplayPort™ supported (Gaming) PC or Laptop to an (Ultra) High Resolution Monitor or other DisplayPort™ supported device. DisplayPort™ 1.4 adds support for Display Stream Compression 1.2 (DSC), Forward Error Correction, and extends the maximum number of inline audio channels to 32.
It features locking DisplayPort™ connectors providing a secure, dependable connection. Simply press the built-in one-touch latch button to unlock the connector.

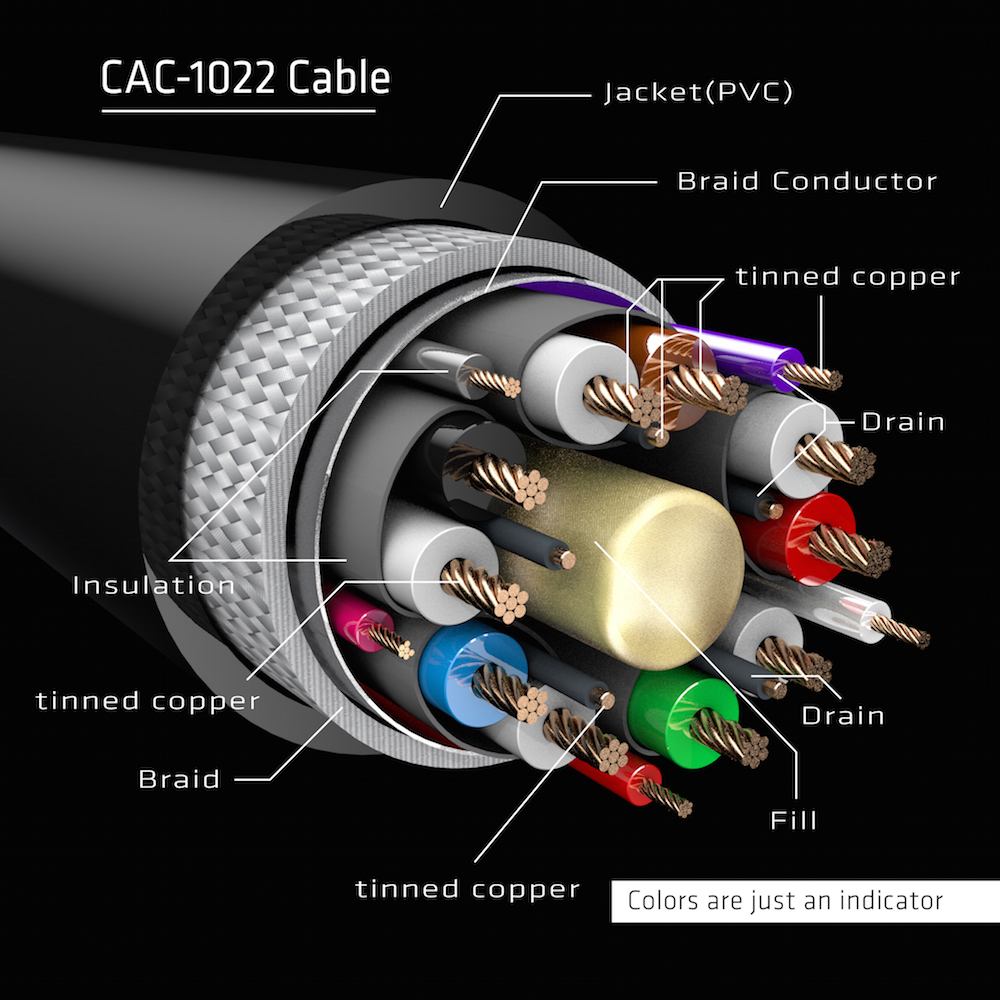

The soft UltraFlex jacket protects the cable from bends and deformation damage. The Cable is 28AWG and fully Bi-Directiona
Features | |

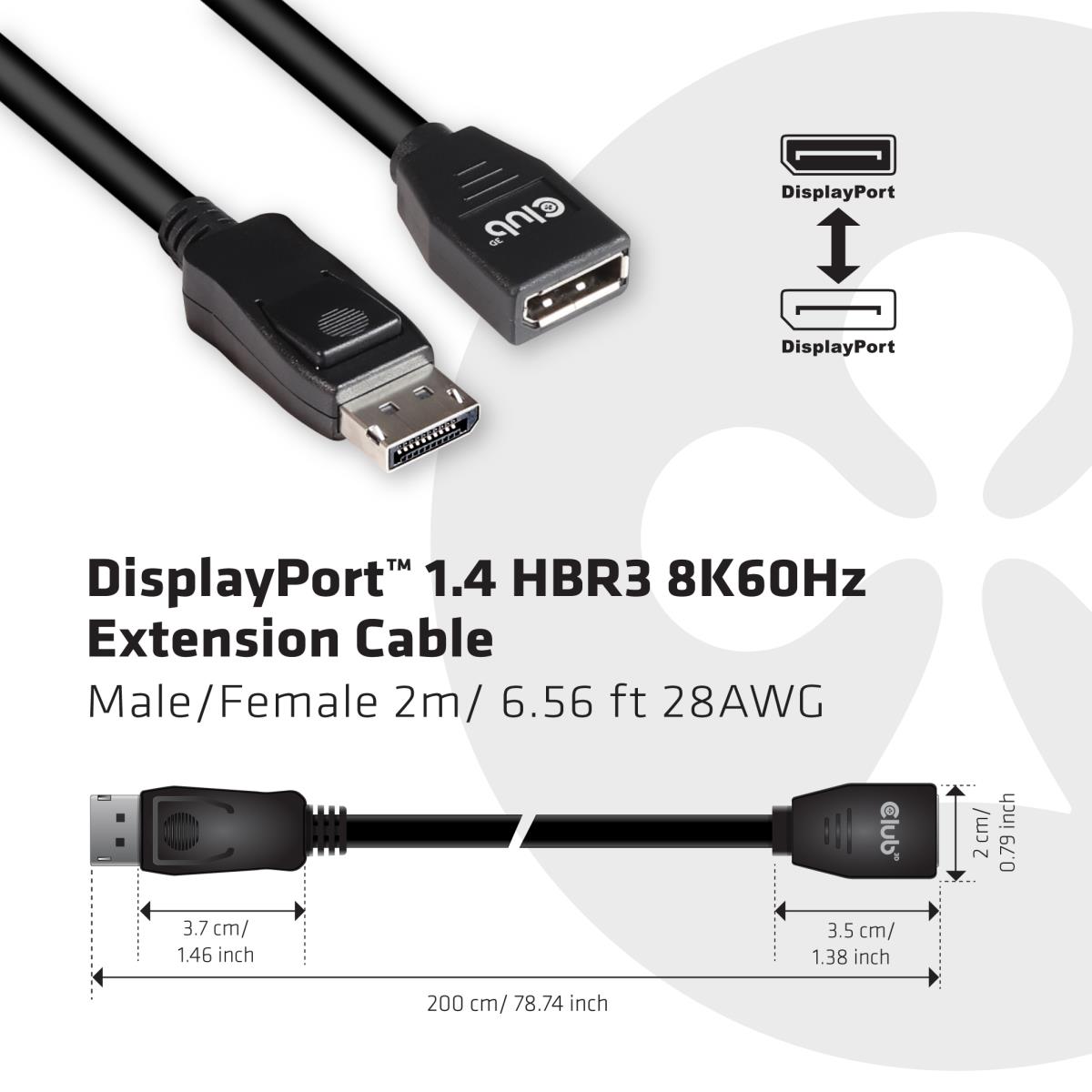

Cable length | 2 m |
Connector 1 | Displayport 1.4 |
Connector 2 | Displayport 1.4 |
Connector 1 gender | Male |
Connector 2 gender | Female |
DisplayPort version | 1.4 |
Maximum resolution | 7680 x 4320 pixels |
Data transfer rate | 32.4 Gbit/s |
Maximum refresh rate | 144 Hz |
Product colour | Black |
AWG wire size | 24/28/30 |
Plug and Play | Yes |
Certification | Meets ROHS, FCC, and CE EMI requirements |
Weight & dimensions | |
Weight | 134 g |
Width | 2000 mm |
Depth | 20 mm |
Height | 10 mm |
Packaging data | |
Package width | 1450 mm |
Package depth | 1450 mm |
Package height | 45 mm |
Package type | Box |
Package weight | 188 g |
Package volume | 946.125 cmü |
Logistics data | |
Harmonized System (HS) code | 84733080 |
Other features | |
Compatible products | Downwards compatible to older DisplayPort standards |
Warranty | |
Base Warranty | Non Non |
