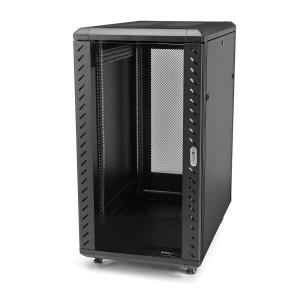

Server Rack Enclosure With Hinge 18u - Wall Mount Network Rack
ITCurry #: 75647424 | Article #: RK1820WALHM-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
IT Cabinet | 16” Deep | EIA-310 | 4 Post | Weight Cap. 200 lbs. | Lockable | Assembled
This feature-rich 18U server room rack cabinet is ideal for optimizing equipment storage in network closets edge centers and technology shops with limited space, where there is a need for mountable equipment. It features adjustable mounting rails, mesh doors and panels as well as options for active cooling.
You can access your equipment and cabling from all four sides of this data center rack including the back with a rear hinge that swings the enclosure away from the wall.
Premium Equipment Protection
This wall mount equipment rack features premium-quality steel construction, with secure lockable front and back doors as well as lockable side panels. It features a grounding lug to prevent the build-up of static electricity which can result in electrostatic discharge (ESD), keeping your equipment protected from surges.
This rack also offers dependable protection through both passive and active cooling. The mesh front doors and side panels along with the vents in the top offer passive cooling while the top offers placement support for 120mm fan mounts for an additional active cooling option.
Mount All Types of Equipment
This 4-post server room cabinet has a weight capacity of up to 200 lbs. (90kg) and with a mounting depth from 2 to 16 inches, it can hold a variety of equipment. The mounting rails on the rack can be switched between both square cage nut hole or tapped 12-24 threaded hole styles. For non-mountable equipment, this rack also includes a 1U shelf.
For hassle-free cable management, the rack includes a 3-meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.
Comprehensive Product Testing & Expert Technical Support
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
The RK1820WALHM is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- CONVENIENT & SECURE ACCESS: Wall mount network cabinet w/ 180° hinged design provides easy lockable access to rear of mounted devices. Flexible enclosure also features removable doors & side panels.
- ACCESORIES INCLUDED: IT Data Rack includes complete set of accessories: a shelf (CABSHELFV1U), roll of hook-and-loop fastener, 50 cage nuts and screws, & 2 pairs of keys for the front and side panels
- STURDY CONSTRUCTION: 18U 19" EIA/ECA-310-E enclosed design, 200lb weight capacity, 16" deep with a max. 16" mounting depth, removable sides, locking reversible door, dual top cable hole, optional fans
| Features | |
| Rack capacity | 18U |
| Type | Wall mounted rack |
| Maximum weight capacity | 90 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Closed |
| Product design | 4-post |
| Back door construction | Steel |
| Front door construction | Steel |
| Removable front door | Yes |
| Front door key lock | Yes |
| Adjustable mounting rails | Yes |
| Mounting hole shape | Square |
| Weight & dimensions | |
| Width | 610 mm |
| Depth | 551 mm |
| Height | 904 mm |
| Inner width | 59.7 cm |
| Inner depth | 55 cm |
| Weight | 67.7 kg |
| Mounting depth (min) | 6 cm |
| Mounting depth (max) | 40.6 cm |
| Packaging data | |
| Nuts included | Yes |
| Number of nuts | 75 |
| Screws included | Yes |
| Number of screws | 75 |
| Manual | Yes |
| Package width | 640 mm |
| Package depth | 600 mm |
| Package height | 1040 mm |
| Package weight | 68.7 kg |
| Technical details | |
| Sustainability certificates | CE, RoHS |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85381000 |
| Master (outer) case width | 1180 mm |
| Master (outer) case length | 745 mm |
| Master (outer) case height | 600 mm |
| Products per master (outer) case | 1 pc(s) |
| Other features | |
| Compliance industry standards | EIA/ECA-310-E |
| Warranty | |
| Base Warranty | Non Non |
