TRIPP LITE SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet Hinged Back
ITCurry #: 57904520 | Article #: SRW18USDP-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

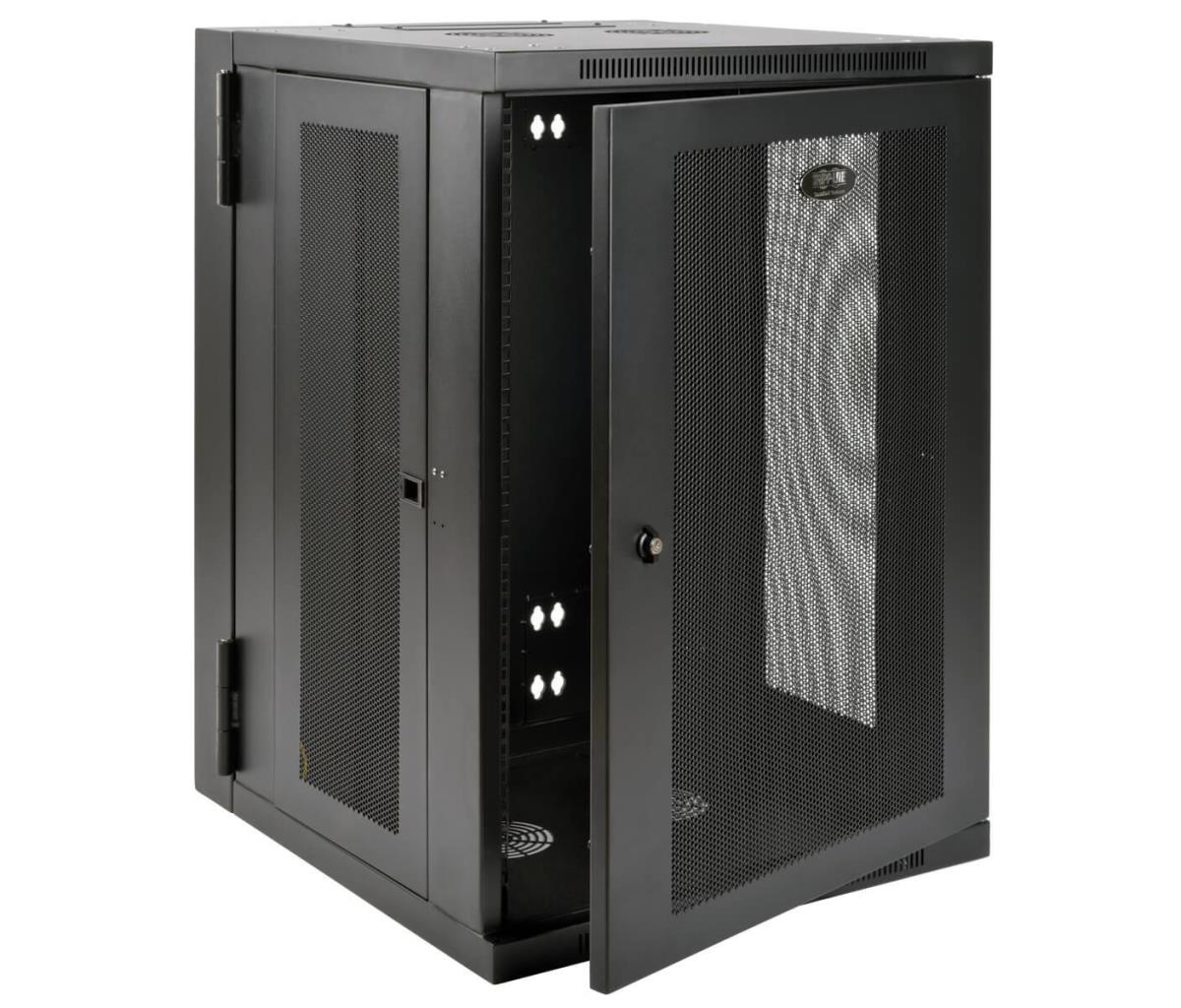

The SRW18USDP SmartRack® 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds (113.4 kilograms).

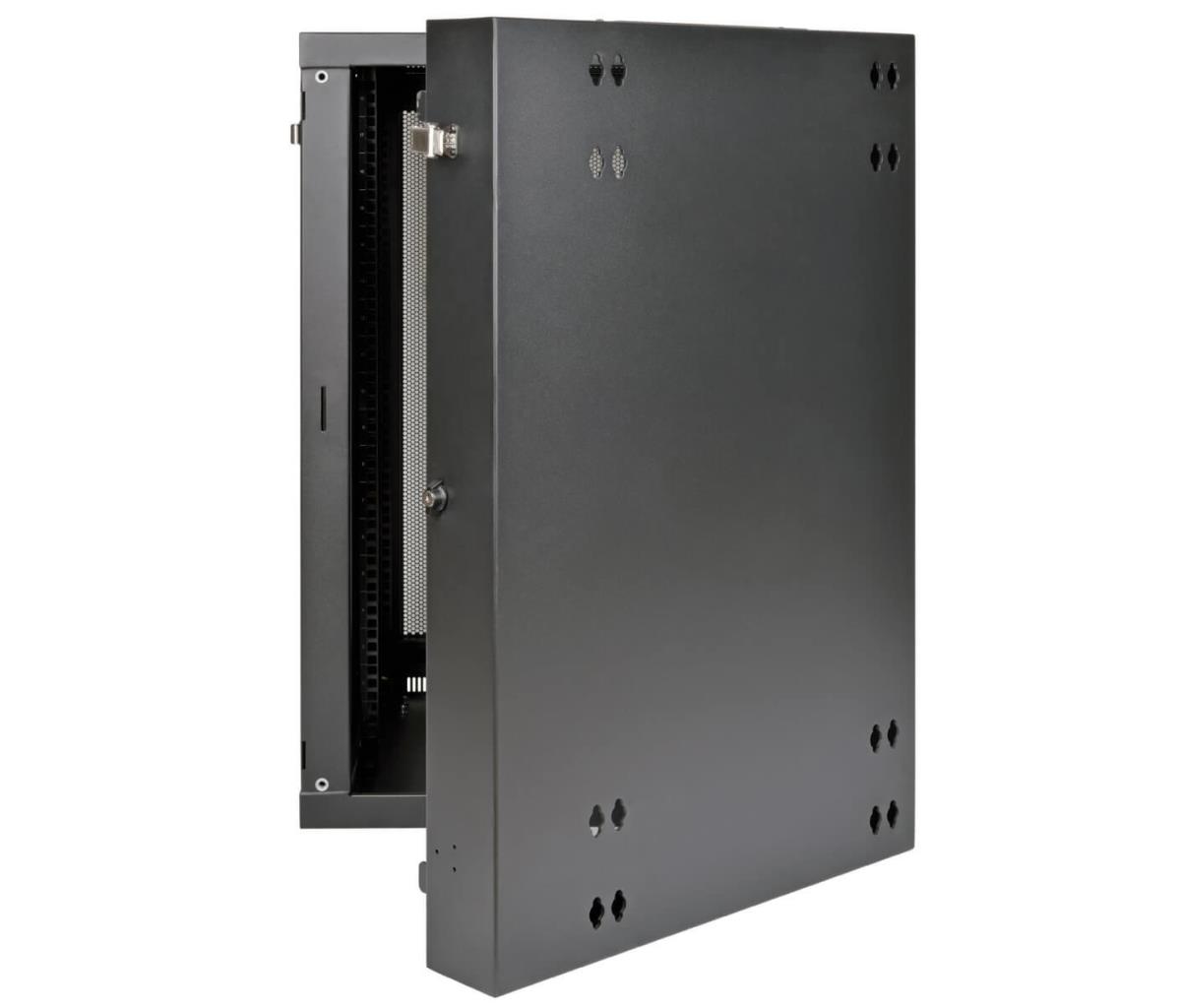

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW18USDP comes fully assembled and ready to mount to the wall, or use an optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.
| Features | |
| Rack capacity | 18U |
| Type | Wall mounted rack |
| Maximum weight capacity | 113.4 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Closed |
| Key lock | Yes |
| Certification | EIA-310-D, IEC 60297-3-100, IP20 Protection Rating, RoHS |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Size (imperial) | 48.3 cm (19") |
| Width | 596.9 mm |
| Depth | 659.9 mm |
| Height | 904.5 mm |
| Weight | 45.8 kg |
| Packaging data | |
| Wall mounting kit | Yes |
| Mounting kit | Yes |

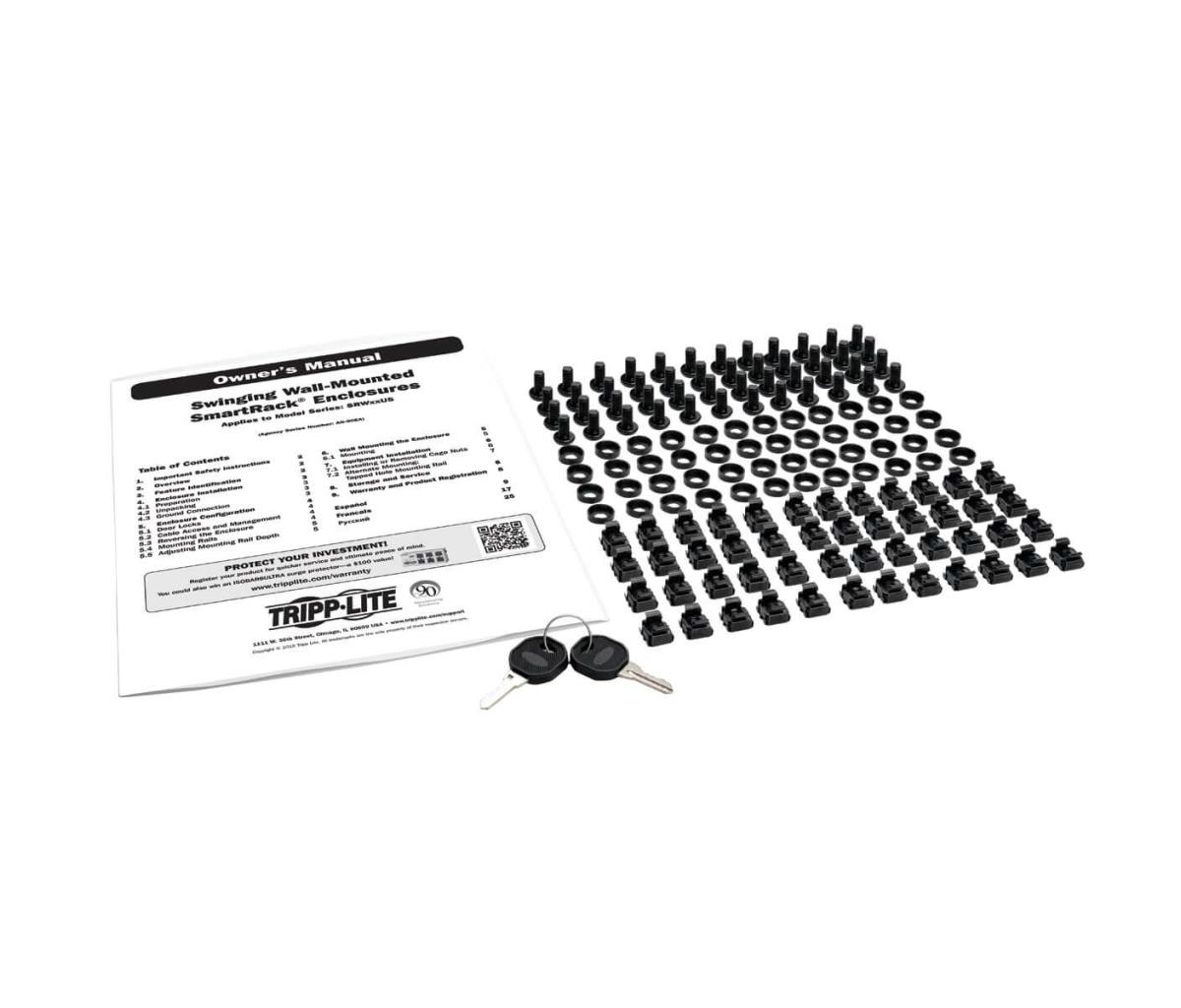

| Manual | Yes |
| Package width | 762 mm |
| Package depth | 1046.5 mm |
| Package height | 711.2 mm |
| Package weight | 57.6 kg |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
| Master (outer) case width | 762 mm |
| Master (outer) case length | 1046.5 mm |
| Master (outer) case height | 711.2 mm |
| Master (outer) case gross weight | 57.6 kg |
| Products per master (outer) case | 1 pc(s) |
