Rackmount 17in Hd KVM Console Dual Rail 1080p KVM DVI/vga
ITCurry #: 75647960 | Article #: RKCONS17HD-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Control your server or KVM switch from a centralized HD KVM console
Providing centralized control of your single PC or dozens of servers, this HD rackmount KVM console also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet. Connected to your servers through a separate KVM switch (sold separately), the LCD console installs into 1U of rack-space, offering a space-efficient solution for complete console control.
High-Definition LCD Monitor
The 1080p KVM console’s monitor is 17.3” and LED back-lit, for low power consumption. It supports high-definition resolutions up to 1920x1080 providing sharper video performance. This HD console also provides more screen space, helping you to run multiple applications on the same screen, increasing your productivity.
Clutter-Free Monitoring

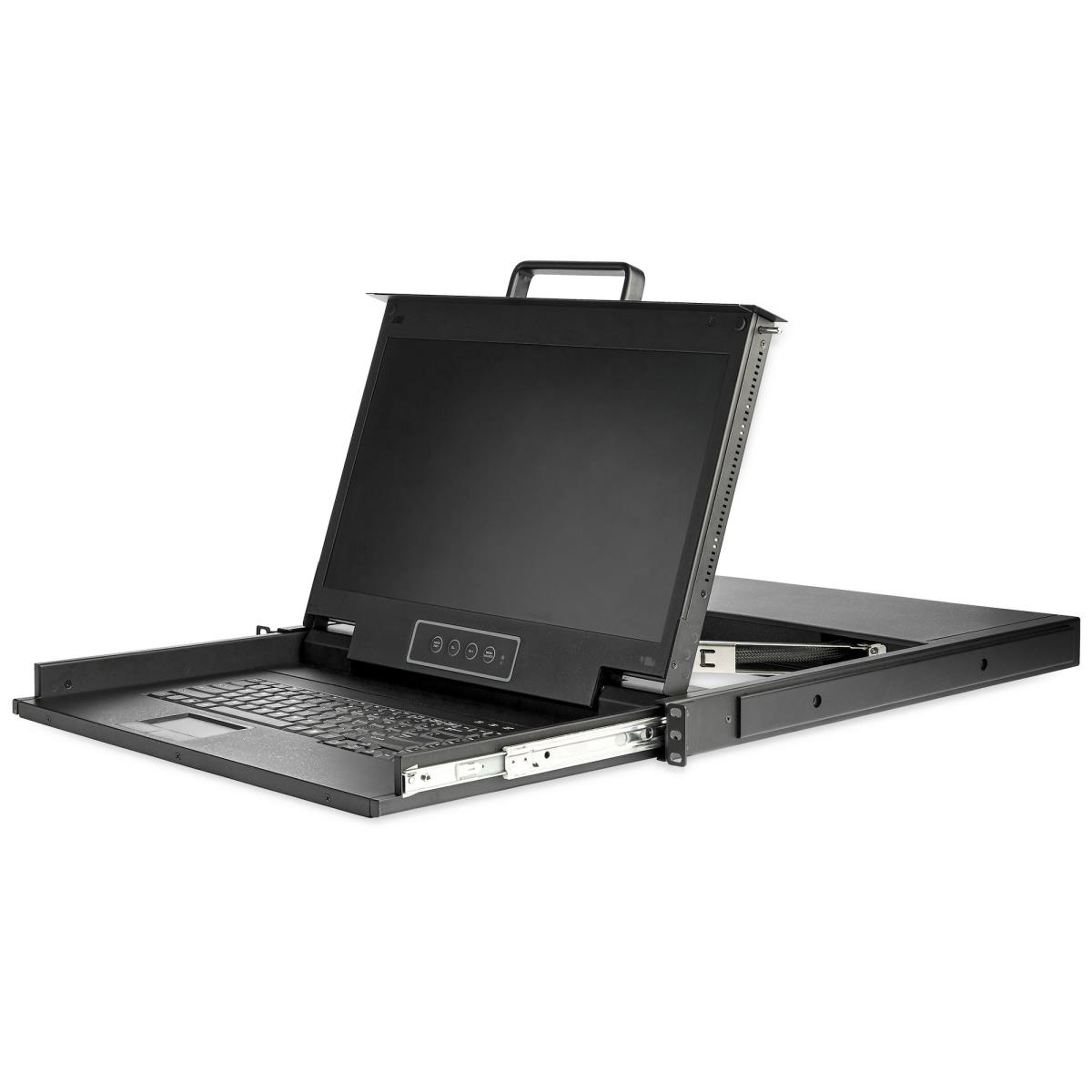

The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rackmount VGA KVM features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.
Simple Setup

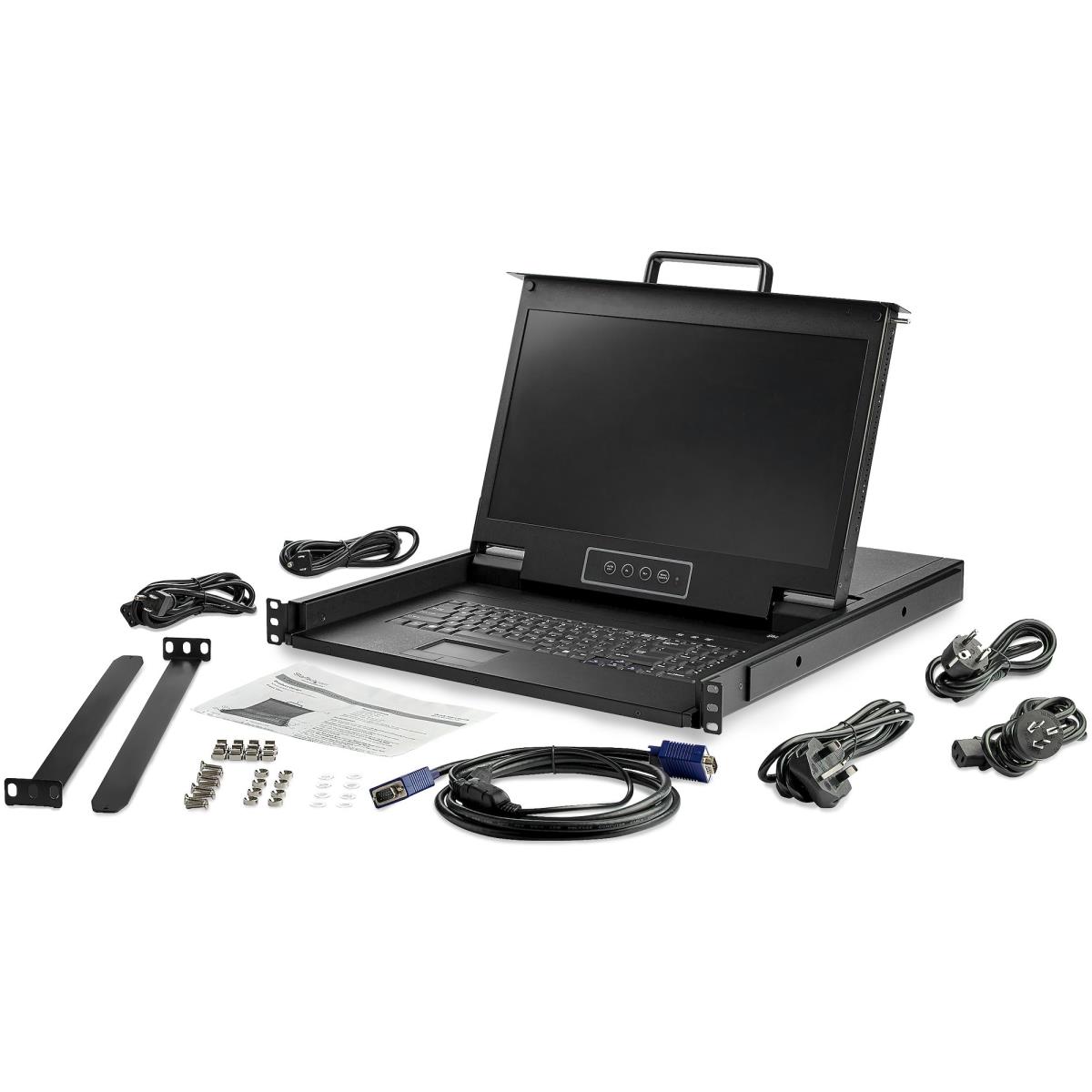

This single-port KVM console comes with everything you need to set up:
1 Audio Cable
1 Set of KVM Cables (VGA)
2 Rear Mounting Brackets
M5 Cage Nuts and Screws
Cost Effective Solution
This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as a high-definition LCD display.
StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This rackmount KVM console is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- High Definition: Rackmount KVM console w/high-resolution widescreen (16:9) 1080p LCD panel is perfect for applications needing extra detail or substantial info on one screen E.g. IP camera monitoring
- Wide compatibility: This HD KVM console drawer works with virtually any KVM switch brand or model that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
- Versatile Interfaces: Rack mount monitor with 17.3" Active Matrix TFT 16:9 widescreen
| Display | |
| Display diagonal | 43.9 cm (17.3") |
| Display resolution | 1920 x 1080 pixels |
| Display | TFT LCD |
| Display brightness | 300 cd/mý |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 170ø |
| Viewing angle, vertical | 170ø |
| Pixel pitch | 0.1989 x 0.1989 mm |
| Aspect ratio | 16:9 |
| Display type | LCD |
| Display number of colours | 262144 colours |
| Colour depth | 6 bit |
| Technical details | |
| Material | Steel |
| Mean time between failures (MTBF) | 50000 h |
| Product colour | Black |
| Operating relative humidity (H-H) | 10 - 80% |
| Rack mounting | Yes |
| Audio support | No |
| Daisy chain | No |
| IP control | No |
| LED indicators | Power, Status |
| Cable length | 1.8 m |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Rack capacity | 1U |
| Ports & interfaces | |
| Video port type | VGA |
| Keyboard | |
| Built-in touchpad | Yes |
| Power | |
| Power consumption (typical) | 13 W |
| AC adapter input voltage | 100 - 240 V |
| Input current | 1.5 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Certificates | |
| Certification | CE, FCC, PSE, UL, REACH |
| Weight & dimensions | |
| Width | 483 mm |
| Height | 565 mm |
| Depth | 43 mm |
| Weight | 11.2 kg |
| Mounting depth (min) | 51 cm |
| Mounting depth (max) | 85 cm |
| Packaging data | |
| Package weight | 16 kg |
| Package width | 615 mm |
| Package depth | 765 mm |
| Package height | 185 mm |
| Packaging content | |
| Cables included | KVM |
| Screws included | Yes |
| Number of screws | 8 |
| Cage nuts included | Yes |
| Number of cage nuts | 8 |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Quick installation guide | Yes |
| Logistics data | |
| Master (outer) case width | 615 mm |
| Master (outer) case length | 765 mm |
| Master (outer) case height | 185 mm |
| Products per master (outer) case | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
