TRIPP LITE NetDirector 8-Port 1U Rack-Mount Console HDMI KVM Switch with 17in LCD (B030-008-17-IP)
ITCurry #: 57905252 | Article #: B030-008-17-IP-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

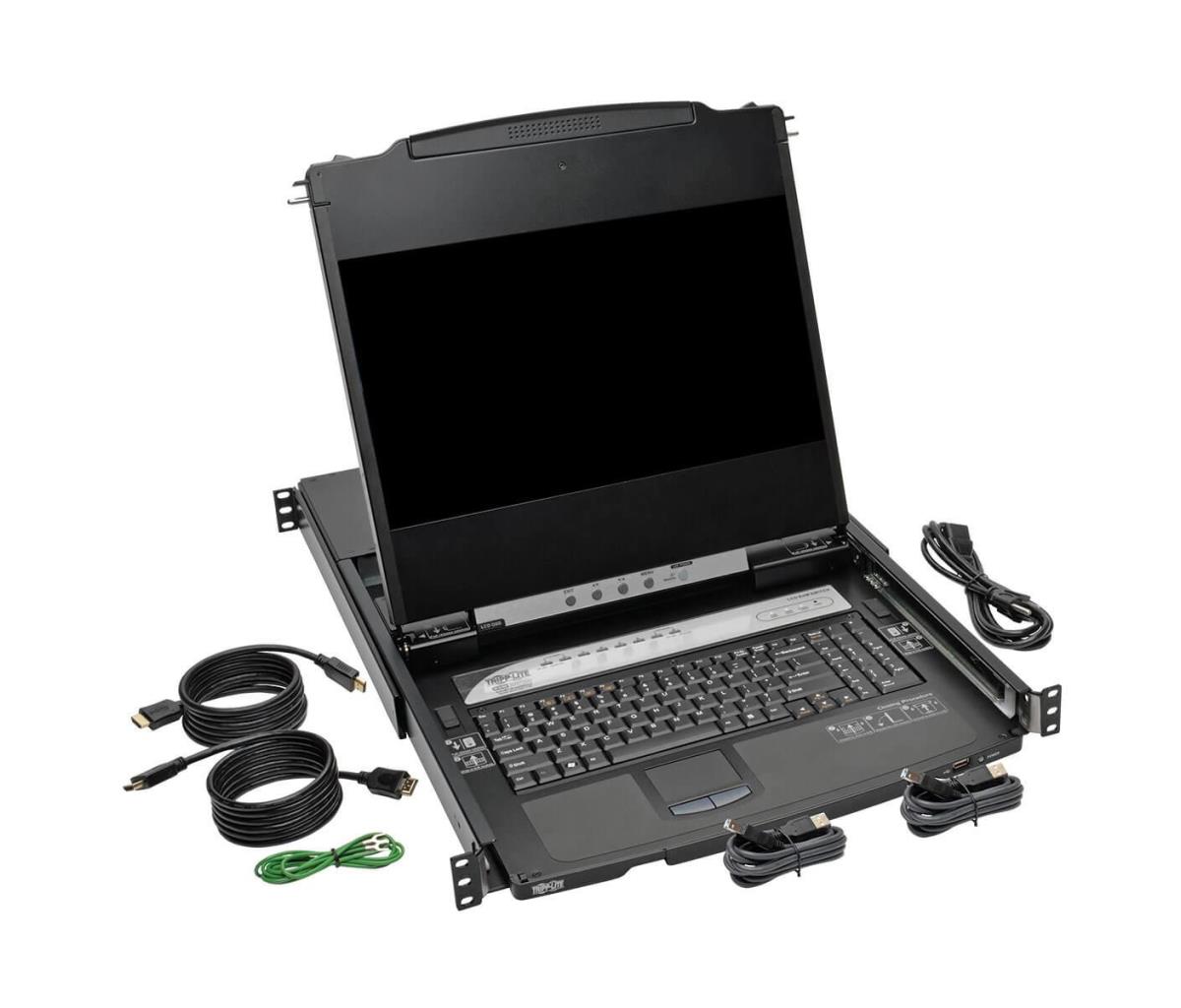

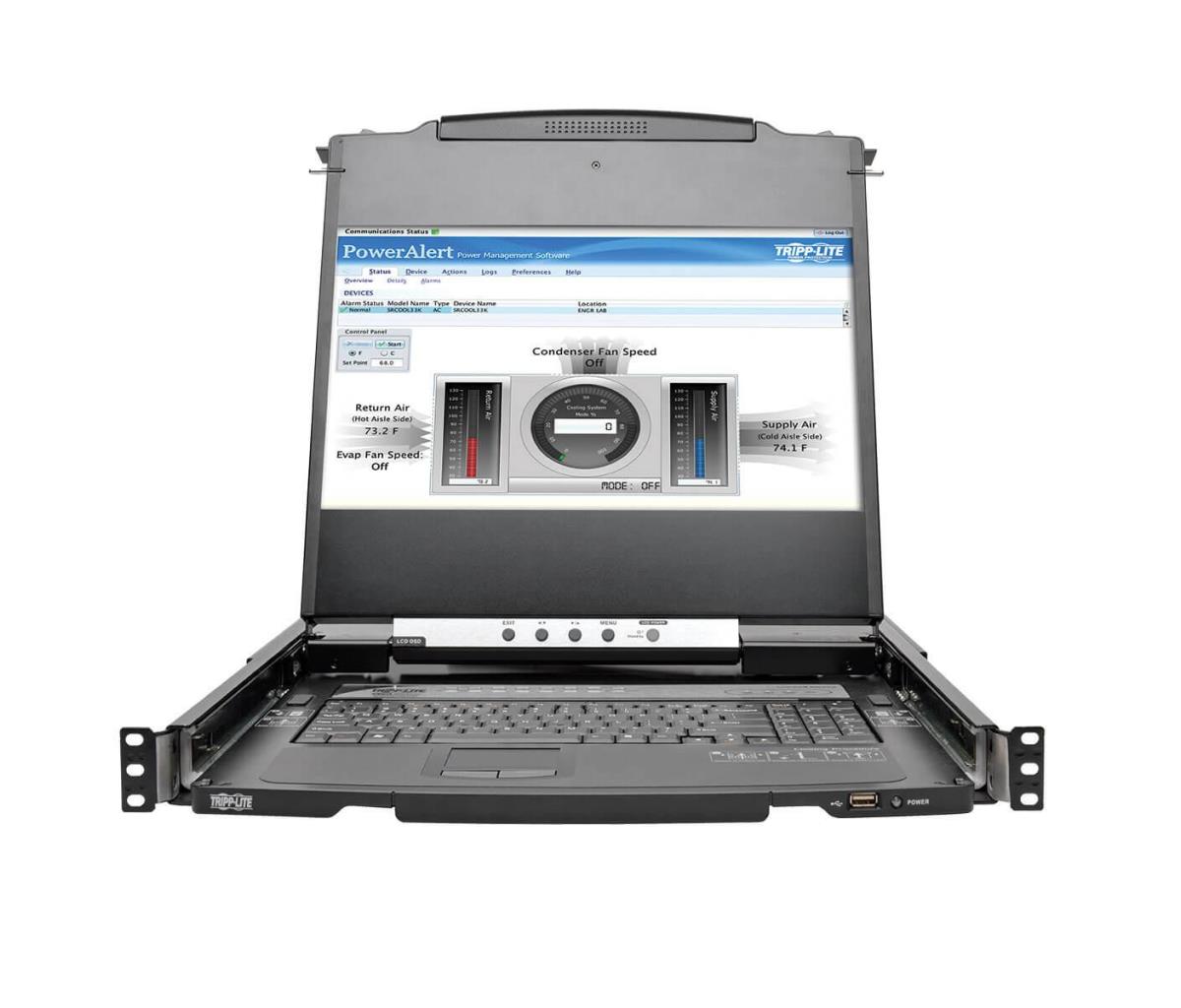

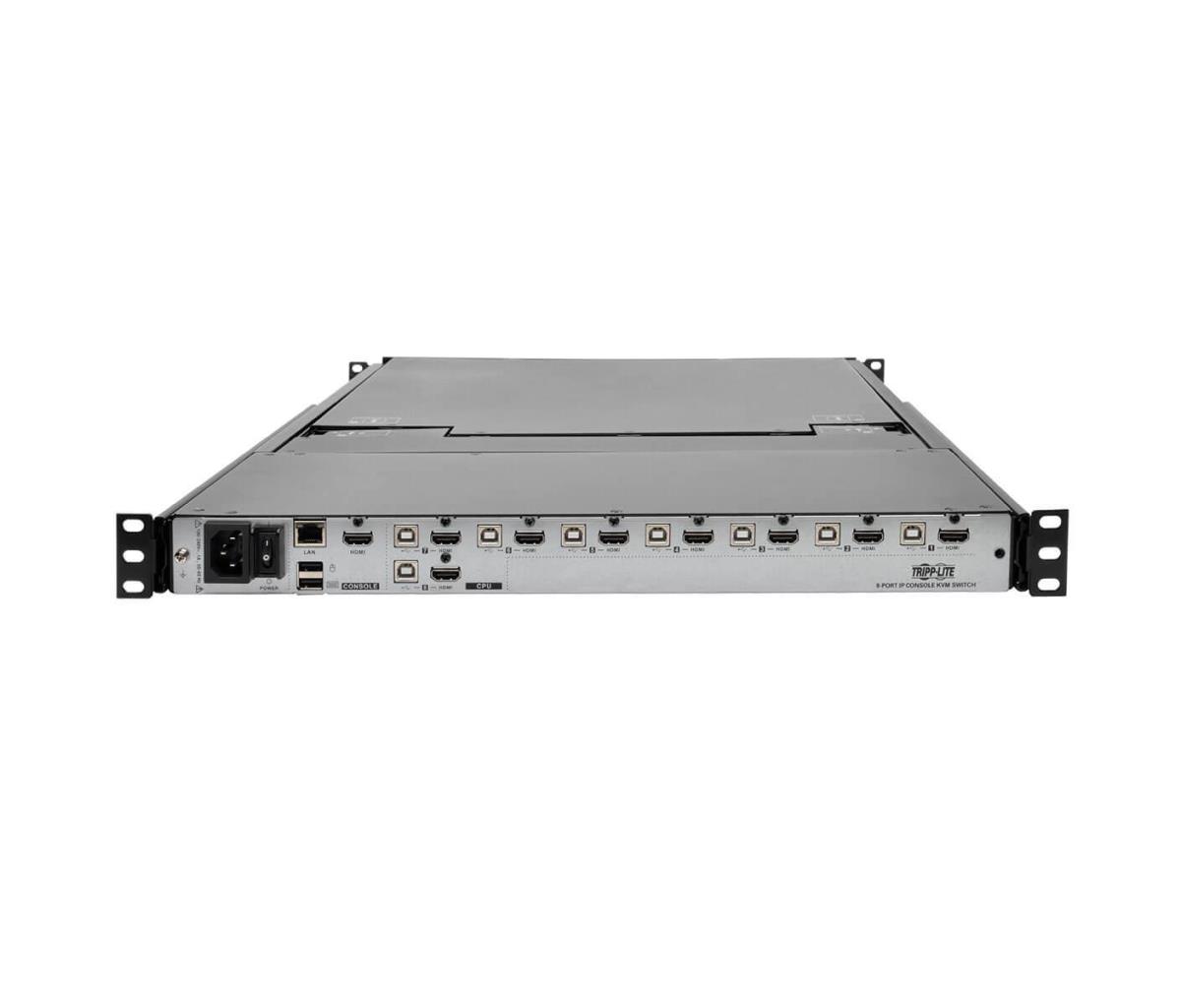

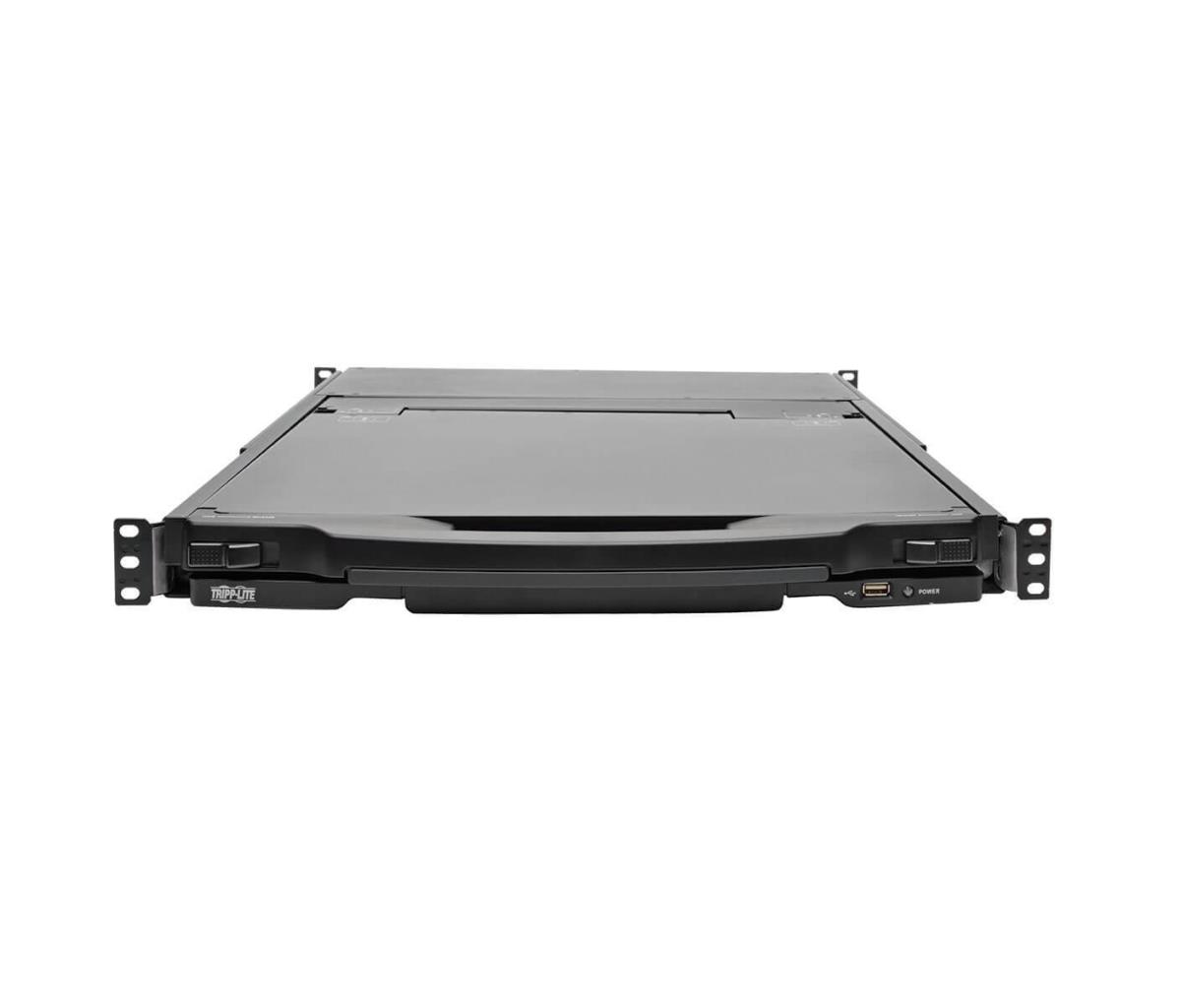

The B030-008-17-IP NetDirector® 8-Port 1U Rack-Mount Console HDMI KVM Switch combines a rack-mountable keyboard, 17-inch LCD, touchpad and built-in IP remote access into a compact housing that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, you can access up to eight connected computers or servers from any computer via LAN, WAN or Internet. Easy to install and use, the B030-008-17-IP lets you handle complex problems without needing to be on-site, which saves money and time.
The 17-inch LCD screen supports video resolutions up to 1920 x 1080. You can switch easily between ports using on-console push buttons, an on-screen display or keyboard hot key commands. Up to 64 users can be authorized and 32 remote users can be logged on concurrently with multi-level password security when multi-user operation is enabled. RADIUS and LDAP/S server authentication is supported.
The B030-008-17-IP controls USB computers/servers using a P782-XXX-DH Series KVM Cable Kit (sold separately) for each. When not in use, the KVM switch stores neatly in a rack drawer and pulls out when needed. With its dual-rail design, you can slide the keyboard into the rack, while the monitor stays visible. The B030-008-17-IP is compatible with all major operating systems and web browsers. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
| Ports & interfaces | |
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| USB 2.0 ports quantity | 8 |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
| Security algorithms | 128-bit SSL, 256-bit AES, HTTPS, SSL/TLS, WPA2-RADIUS |
| Performance | |
| Maximum resolution | 1920 x 1080 pixels |
| Scan interval | 255 s |
| Number of users | 64 user(s) |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Steel |
| Wired remote switch | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Certification | UL 60950-1 (USA), CAN/CSA, FCC Part 15 Class A, CE |
| Display | |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 43.2 cm (17") |
| On Screen Display (OSD) | Yes |
| Power | |
| Input voltage | 100-250 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Sustainability | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 43.9 mm |
| Depth | 680 mm |
| Height | 480.1 mm |
| Weight | 11.8 kg |
| Packaging data | |
| Package width | 677.9 mm |
| Package depth | 830.1 mm |
| Package height | 147.3 mm |
| Package weight | 19.1 kg |
| Logistics data | |
| Harmonized System (HS) code | 8471.80.1000 |
| Country of origin | Taiwan |
| Warranty | |
| Base Warranty | Non Non |
