Monitor Desk Mount - 27/30in Screen C-clamp/grommet
ITCurry #: 7564C069 | Article #: 1MP1ACG-MONITOR-ARM
Related products
Product Information

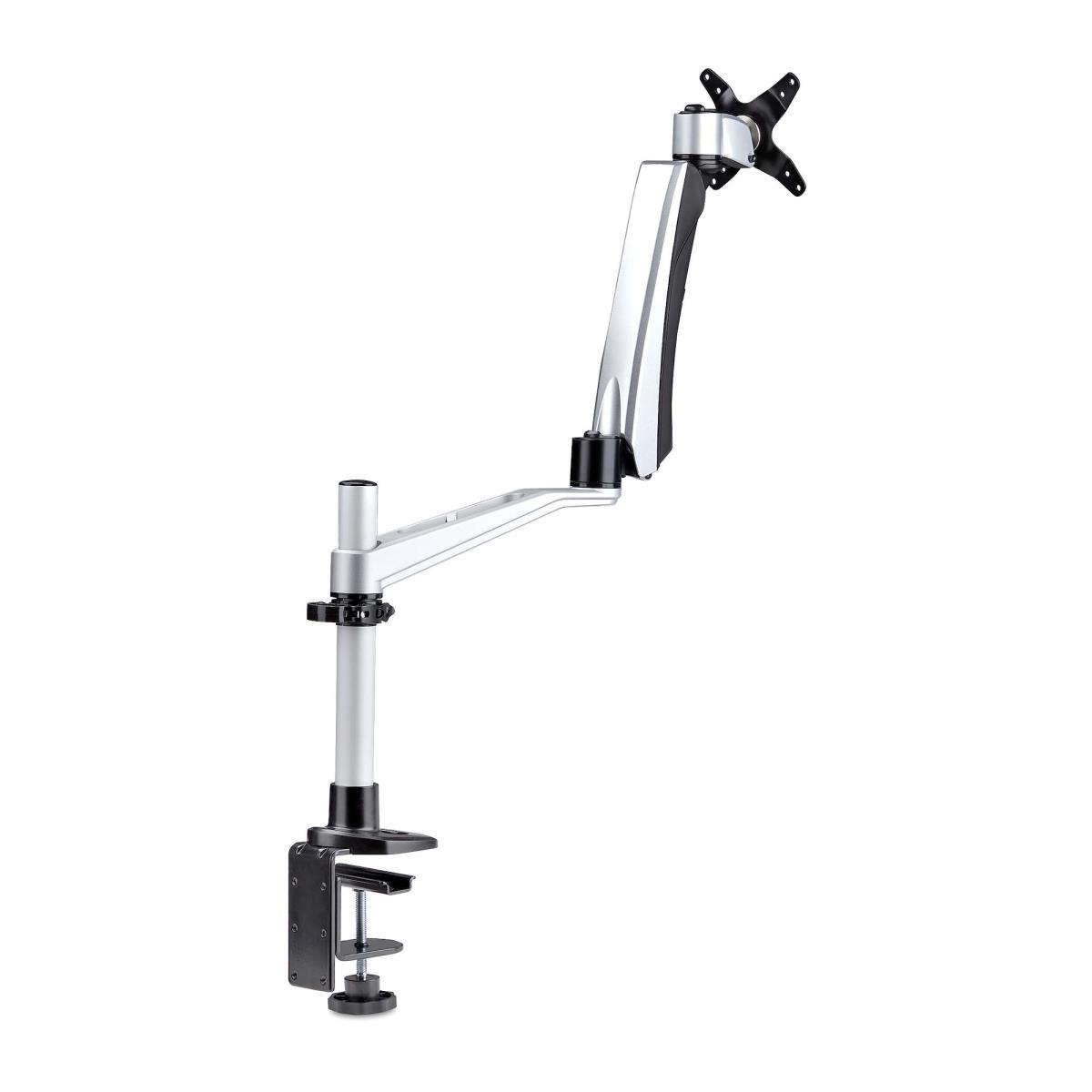

Single monitor desk mount with support up to 30" monitors and height-adjustable articulating arm

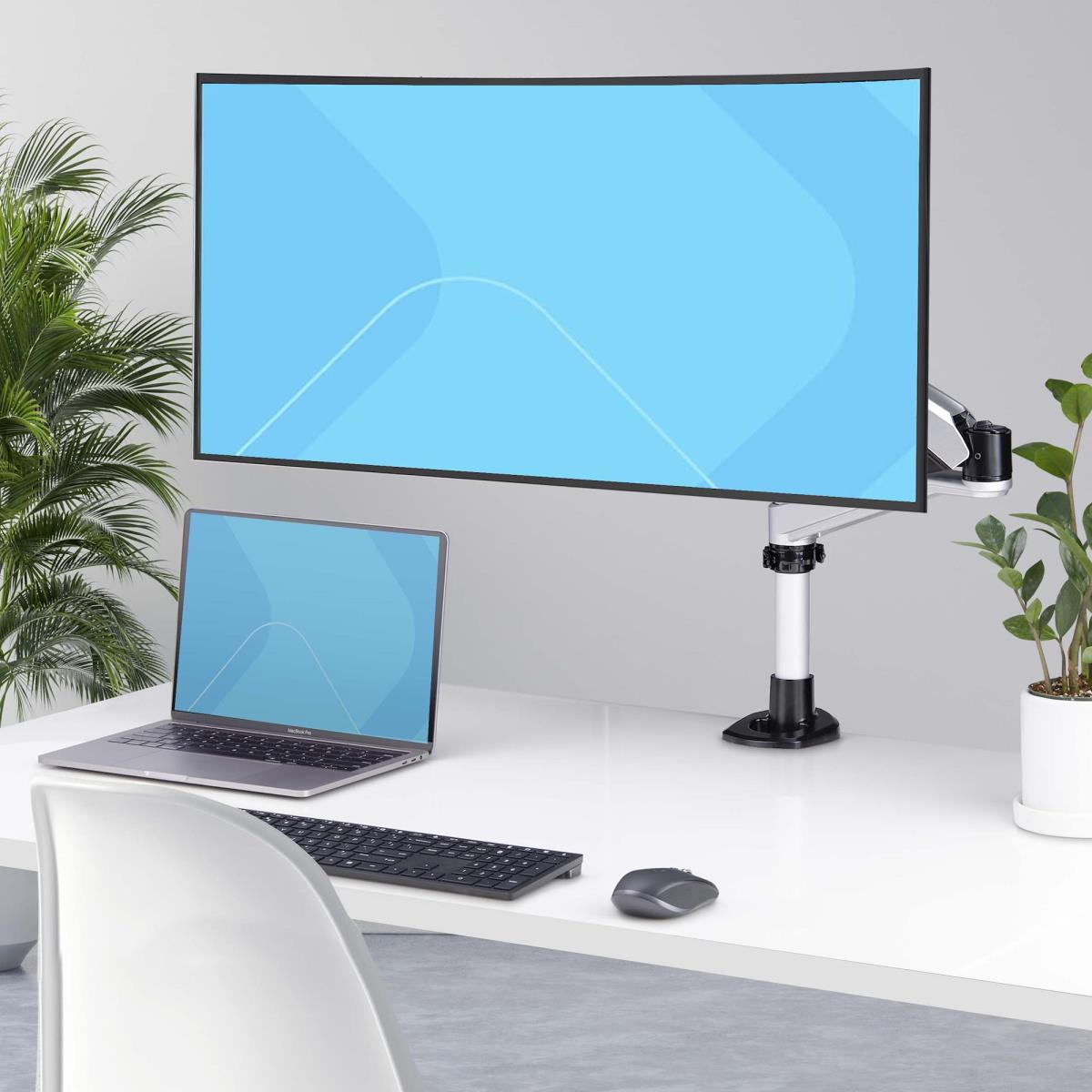

This monitor desk mount is designed to support up to 27-inch 16:9 or 30-inch 21:9 display, creating an ergonomic area for productivity. The mechanical spring-assisted arm enables multiple adjustment to suit different ergonomic needs.

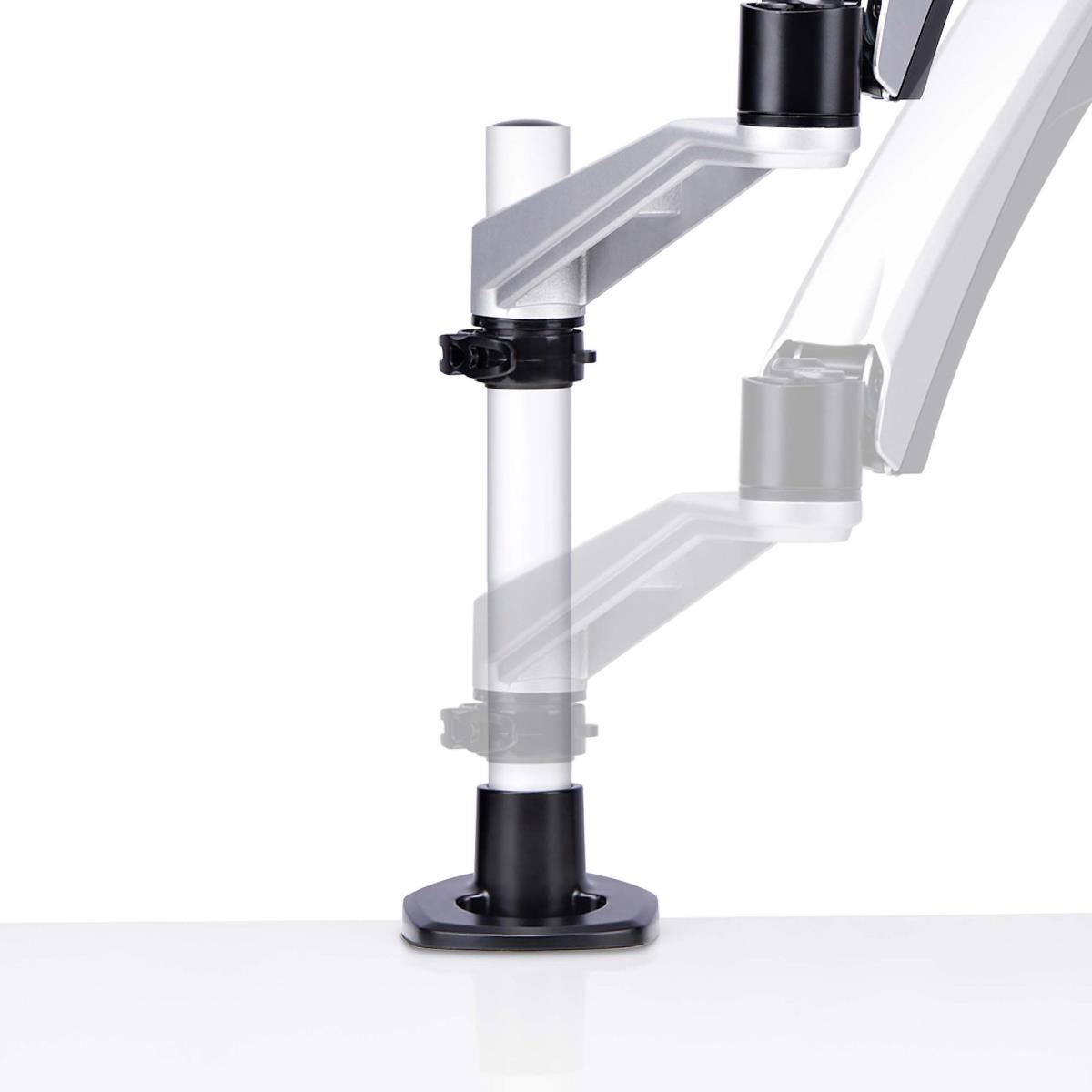

Height Adjustment with One Smooth Motion
The spring arm enables toolless height adjustment of up to 10.6in (270mm) with effortless one-touch motion. Adjust the height of the arm along the 10.2in (261mm) pole. The arm can extend up to 22.2in (590mm) from the pole.

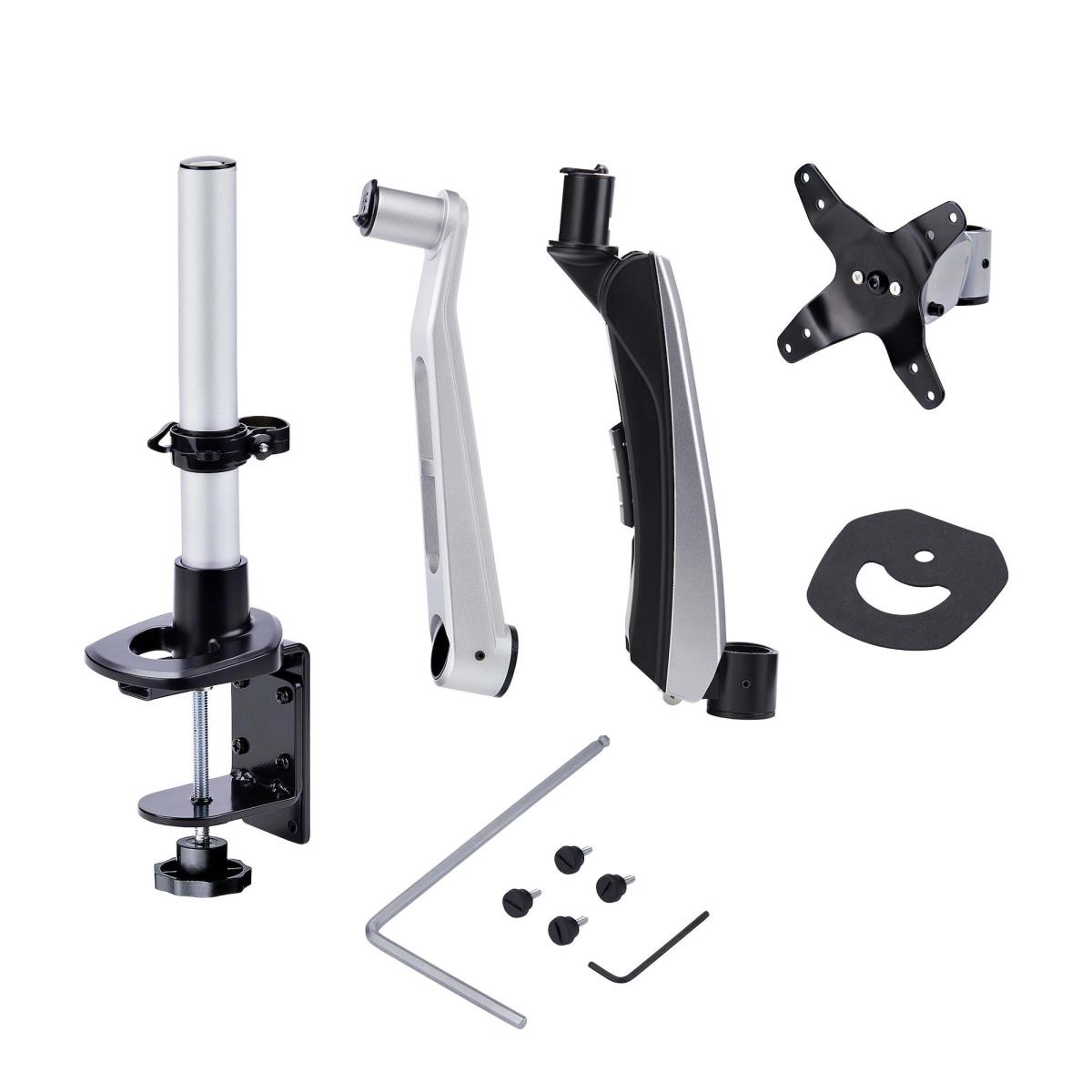

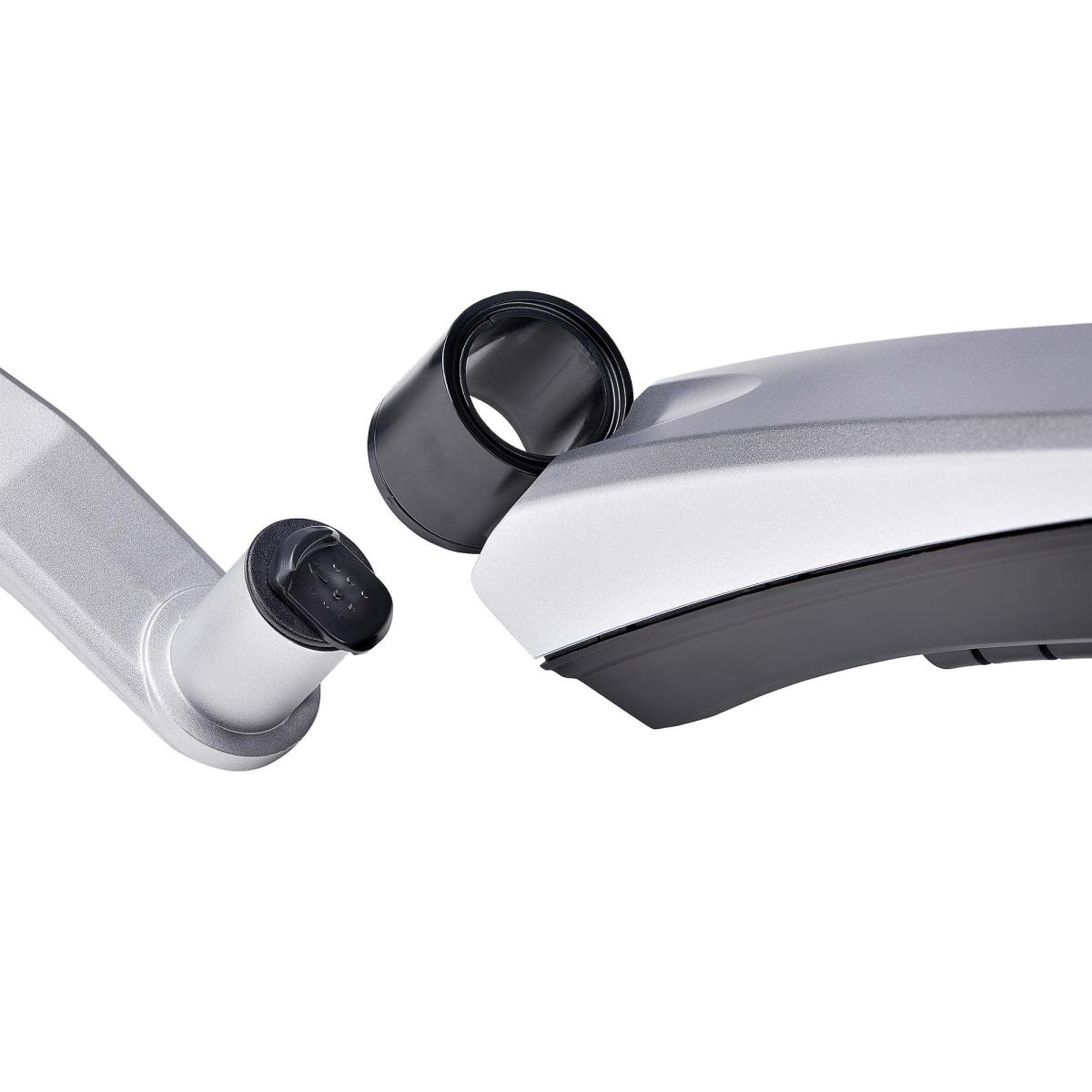

Toolless Assembly

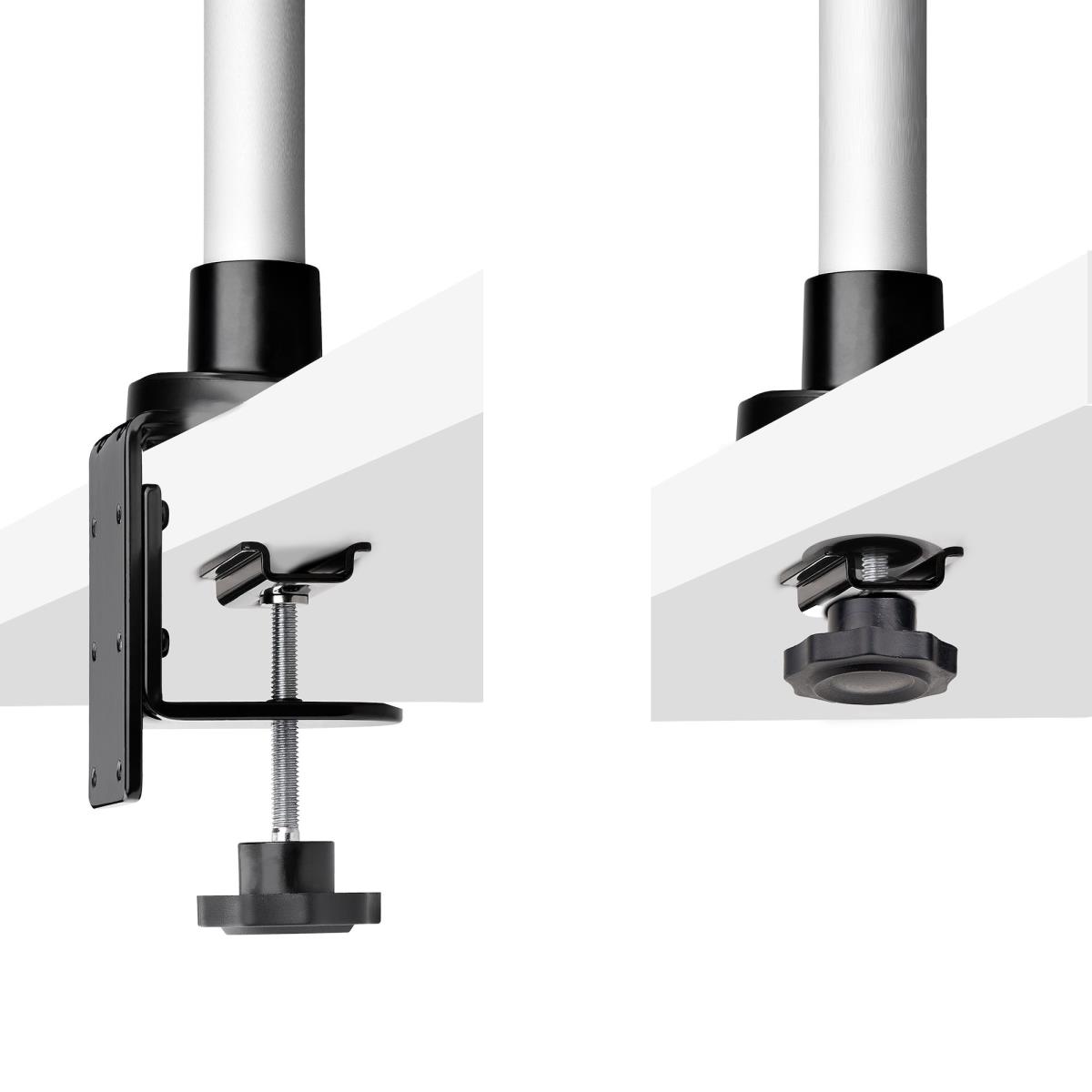

The quick toolless slide and click design makes assembly quick and simple. The pre-assembled desk clamp and pole can be easily secured by hand to the desk, saving total installation time.
Range of Motion

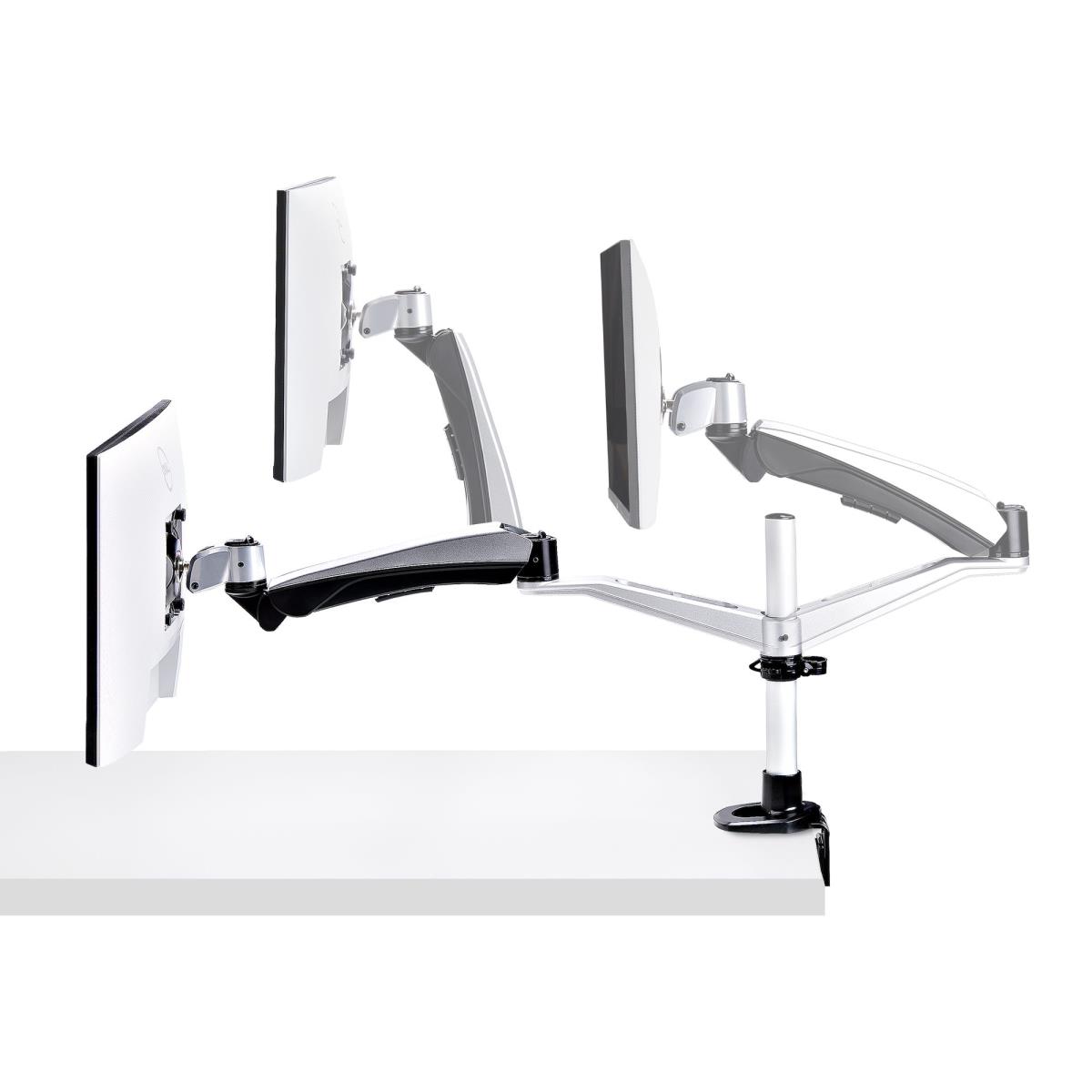

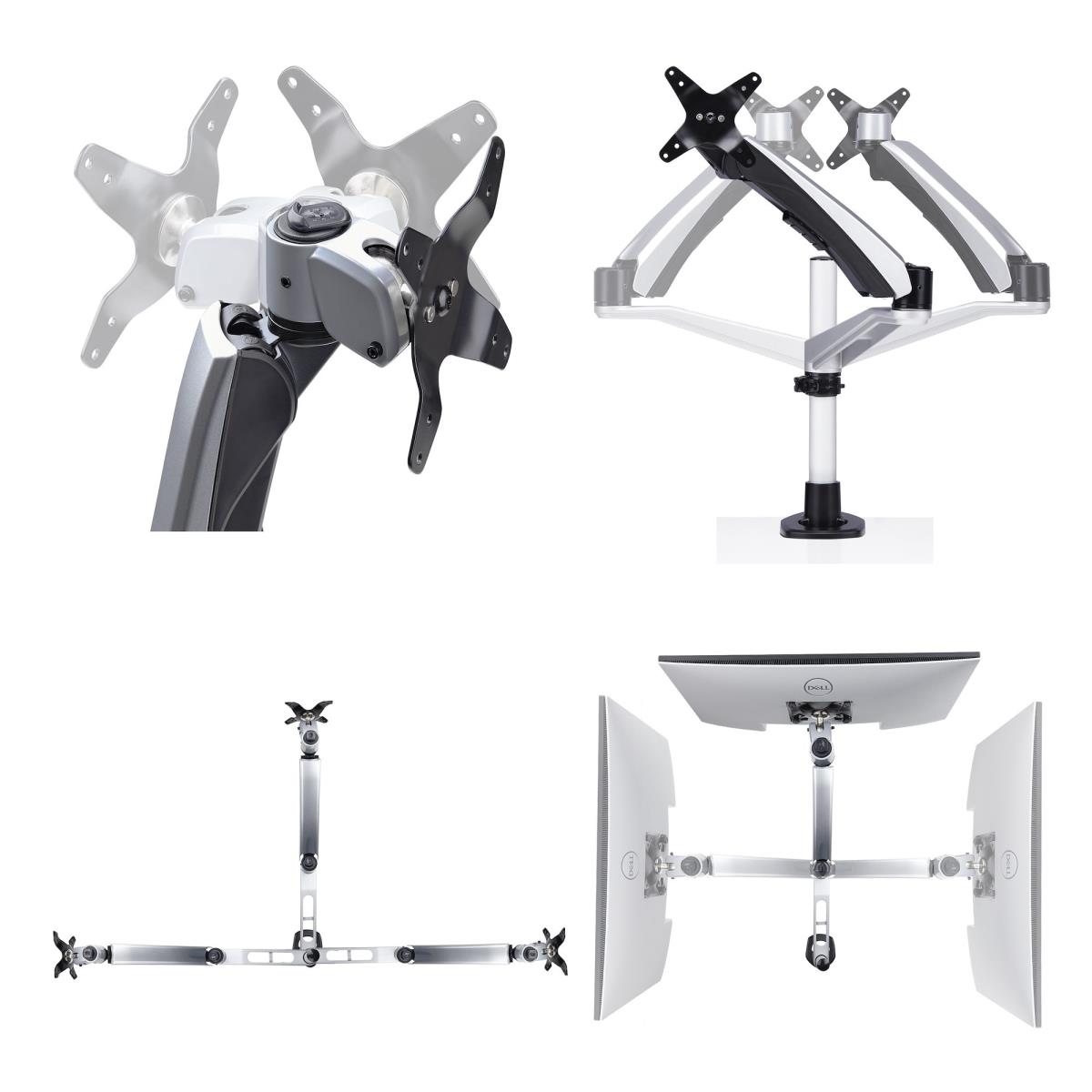

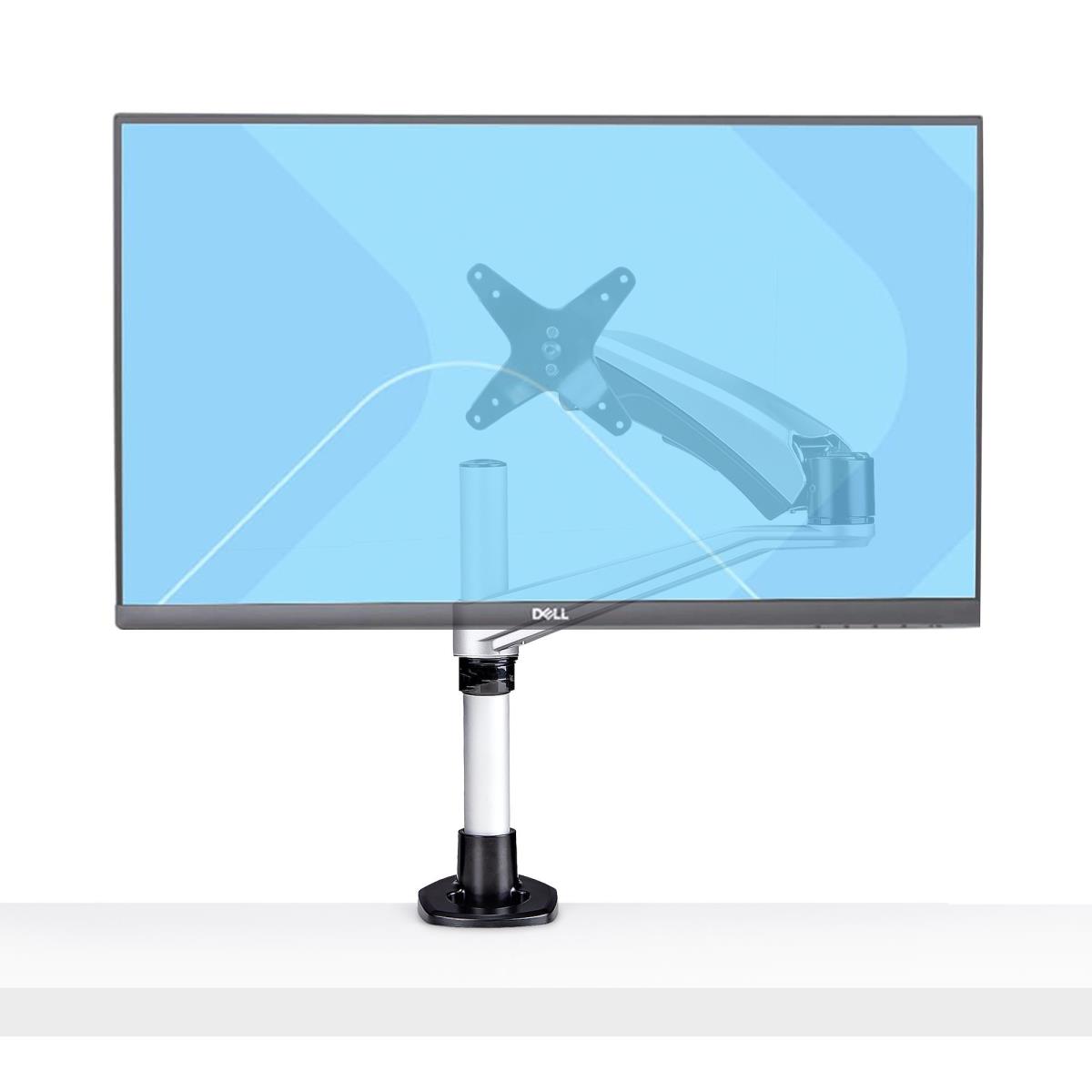

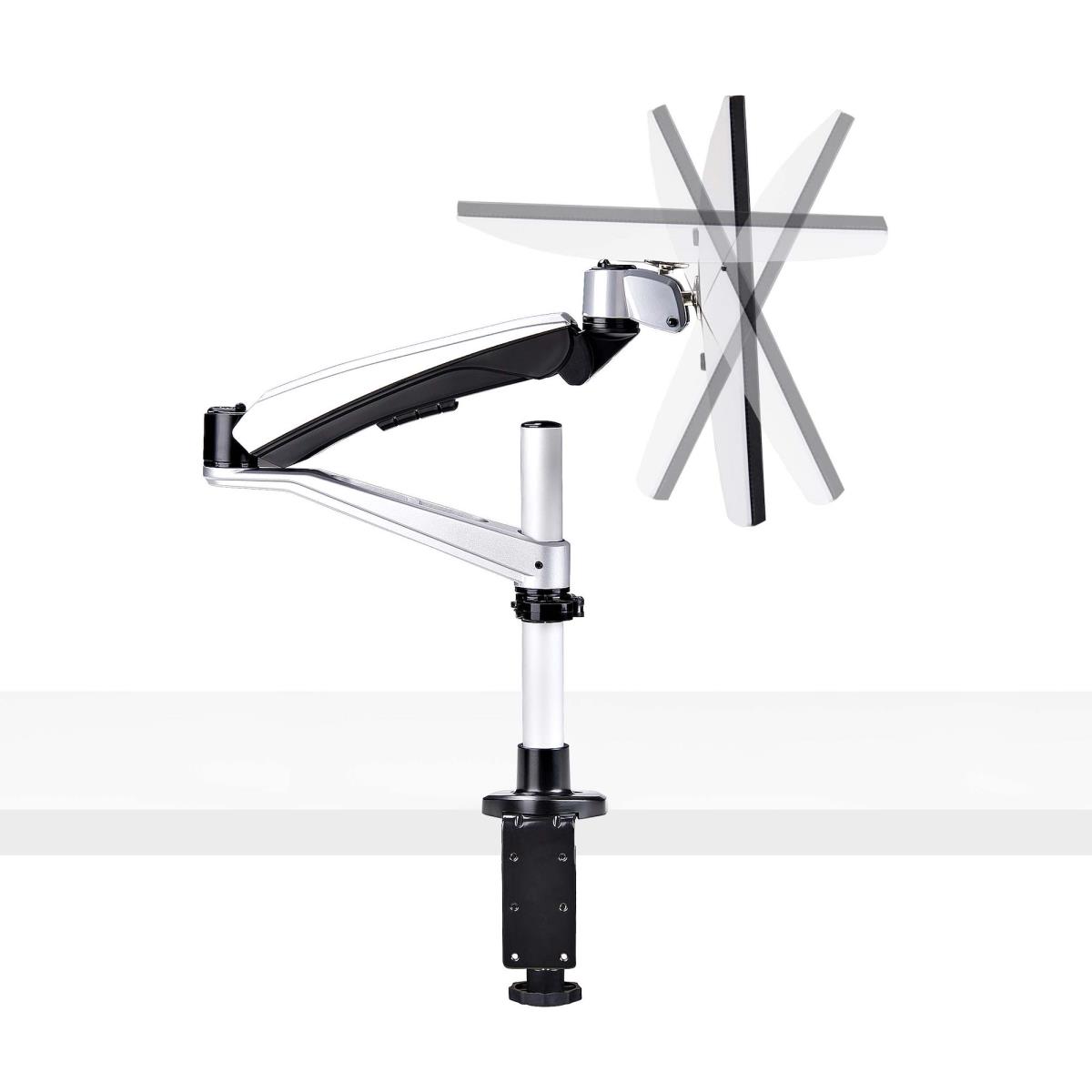

The articulating arm enables toolless adjustments of +/-180° horizontal swivel, 105° tilt, 240° pan, and 360° screen rotation on the VESA plate for portrait or landscape orientations. This flexibility enables users to customize the screen placement for maximum productivity and comfort.
Durable Construction
With its steel and aluminum construction, the premium monitor arm supports a weight capacity of 19.8 lb. (9 kg). Die-cast aluminum arms with mechanical springs that passed 10,000 cycle test and are backed for 10 years for long-lasting performance.

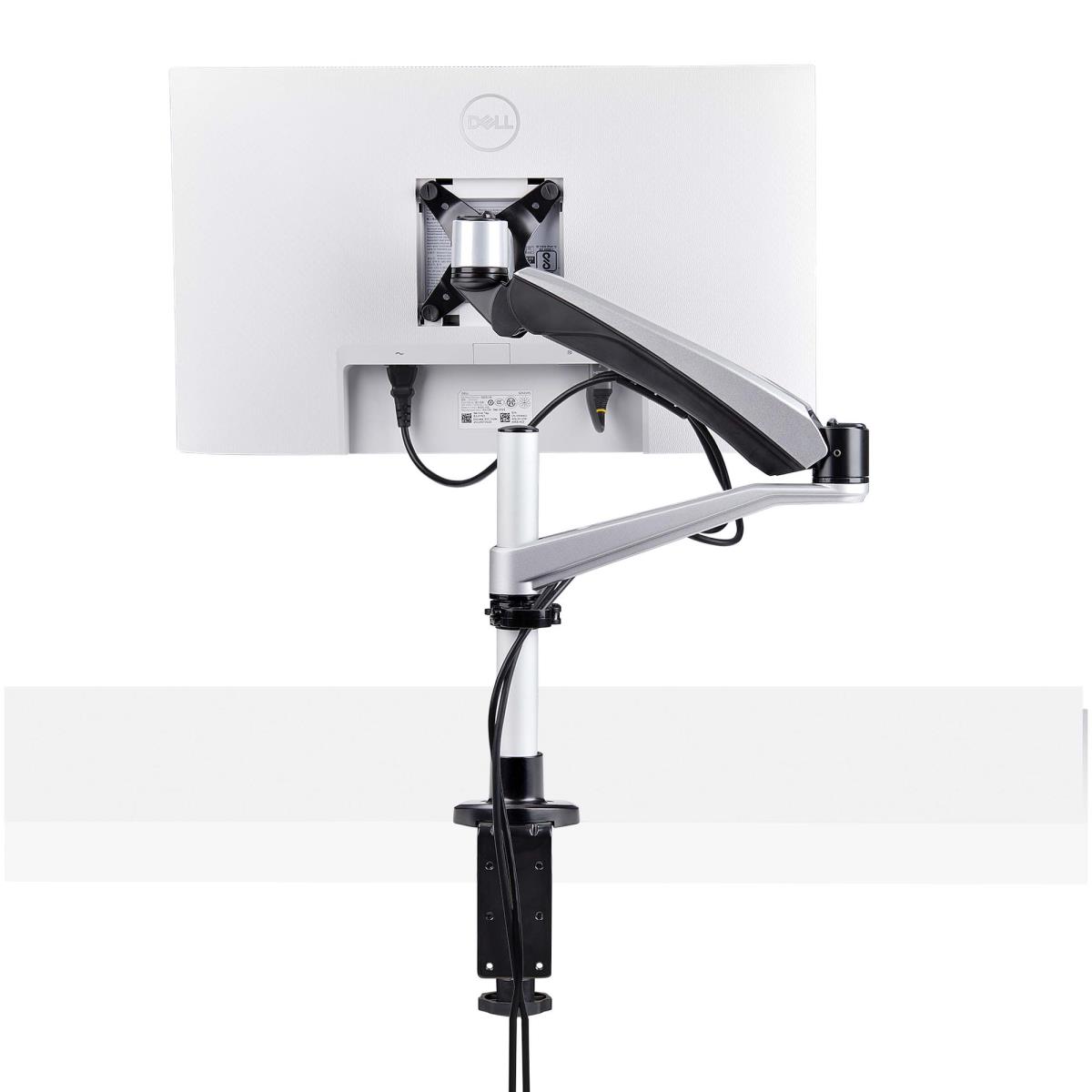

Cable Management
To maintain an organized workspace, the adjustable arm features a cable management channel along the underside to keep cables out of sight, reducing clutter and contributing to a tidy setup. A cable clip on the pole also helps maintain an organized workspace.
The StarTech.com Advantage
| Mounting | |
| Minimum screen size | 43.2 cm (17") |
| Maximum weight capacity | 9 kg |
| Maximum screen size | 76.2 cm (30") |

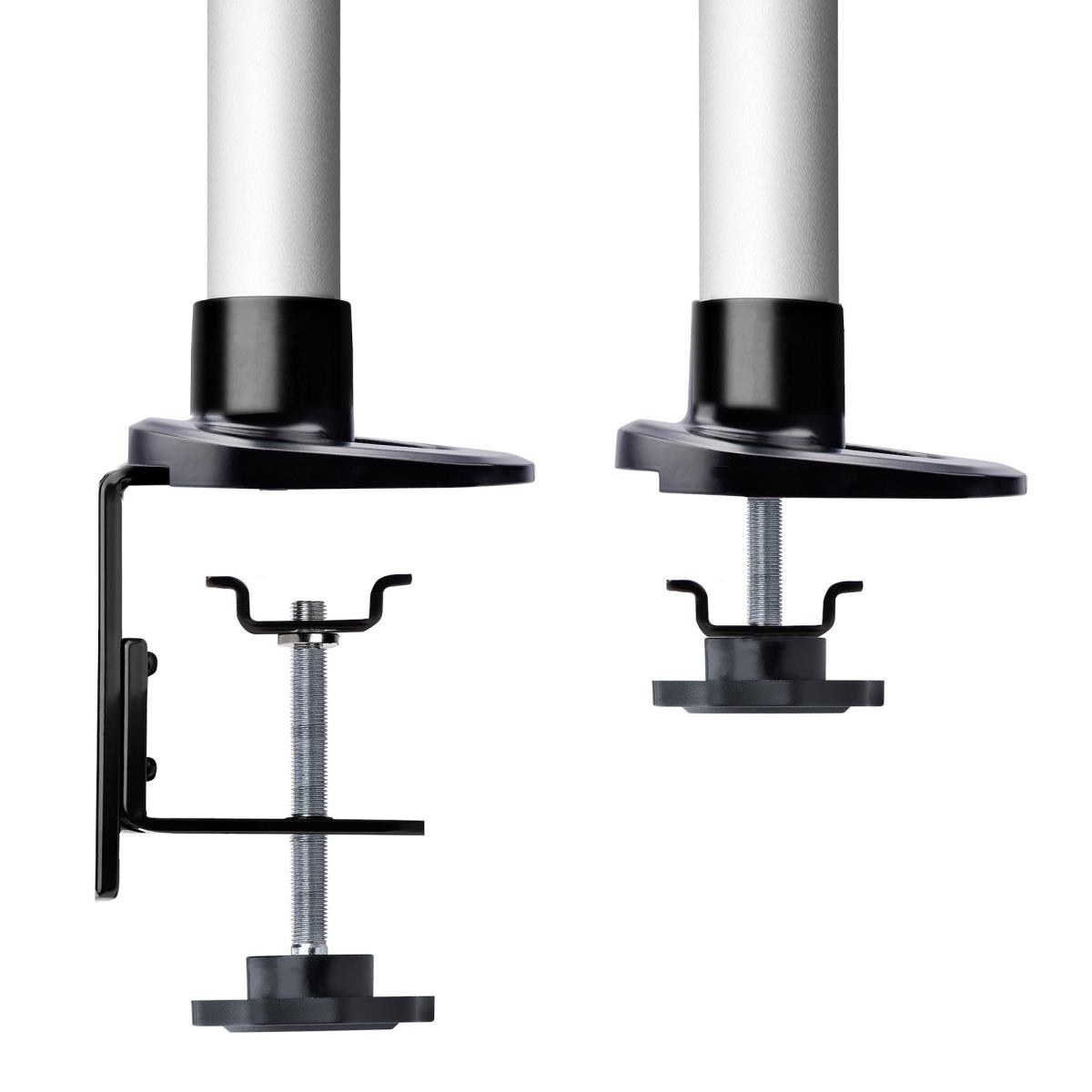

| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Number of displays supported | 1 |
| Extension arm (max) | 59 cm |
| Desk thickness (min) | 1 cm |
| Clamp mount desk thickness (max) | 11 cm |
| Grommet mount desk thickness (max) | 6 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 270 - 302 mm |
| Tilt angle range | -15 - 90ø |
| Swivelling | Yes |
| Swivel angle | 120ø |
| Rotating | Yes |
| Angle of rotation | 90ø |
| Pivot angle | -180 - 180ø |
| Cable management | Yes |
| Design | |
| Housing material | Aluminium, Plastic, Steel |
| Product colour | Black, Silver |
| Anti-theft function | No |
| Weight & dimensions | |
| Width | 674 mm |
| Depth | 103 mm |
| Height | 361 mm |
| Weight | 3 kg |
| Packaging data | |
| Package width | 290 mm |
| Package depth | 136 mm |
| Package height | 462 mm |
| Package weight | 3.8 kg |
| Packaging content | |
| Wrench included | Yes |
| Wrench type | Hexagonal wrench |
| VESA mount included | Yes |
| Number of cable clips | 1 |
| Screws included | Yes |
| Number of screws | 4 |
| Manual | Yes |
| Other features | |
| Compliance certificates | Trade Agreements Act (TAA) |
| Logistics data | |
| Master (outer) case width | 706 mm |
| Master (outer) case length | 136 mm |
| Master (outer) case height | 312 mm |
| Products per master (outer) case | 5 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
