Gigabit Ethernet Pci-e Card, 2-port

ITCurry #: M9237587 | Article #: DN-10132
Price:
27.36 Ex VAT
Shipping:
FREE Shipping on orders over 100€ Ex VAT.
Out of Stock. Contact Us!
Email us for assistance

Related products

slide 7 to 11 of 14

Product Information

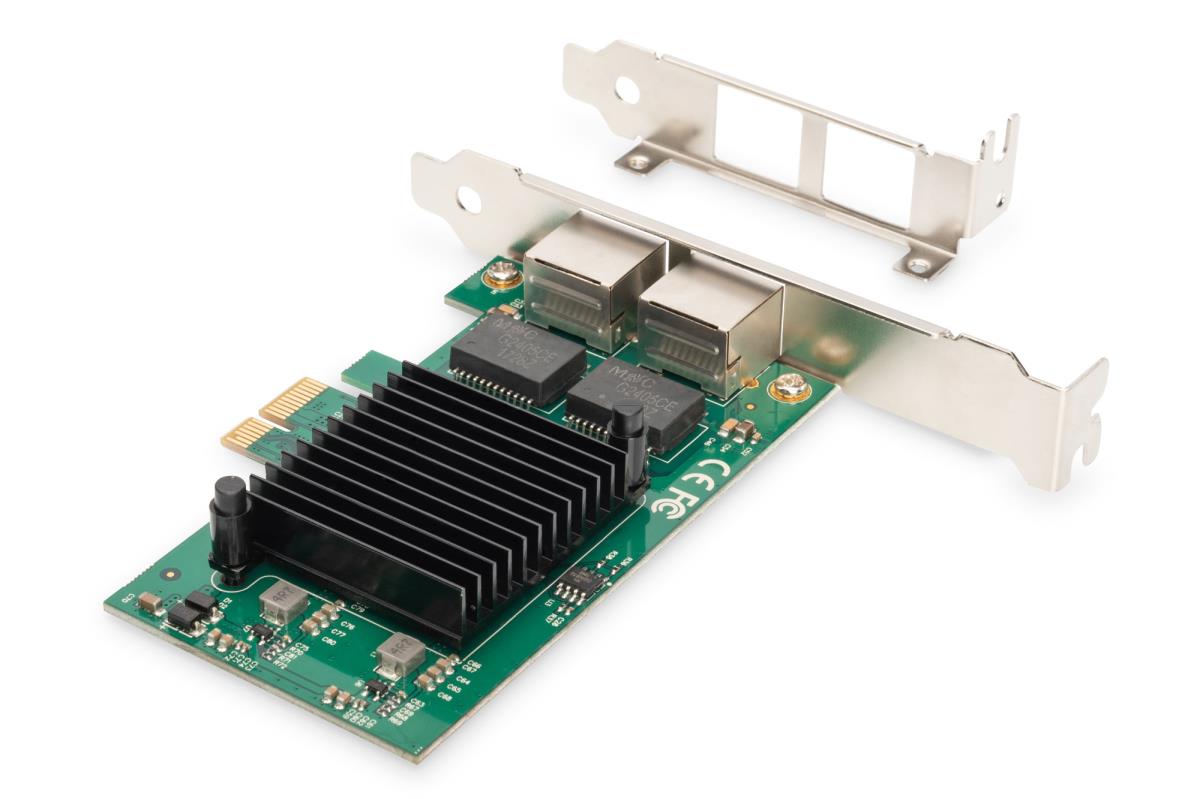

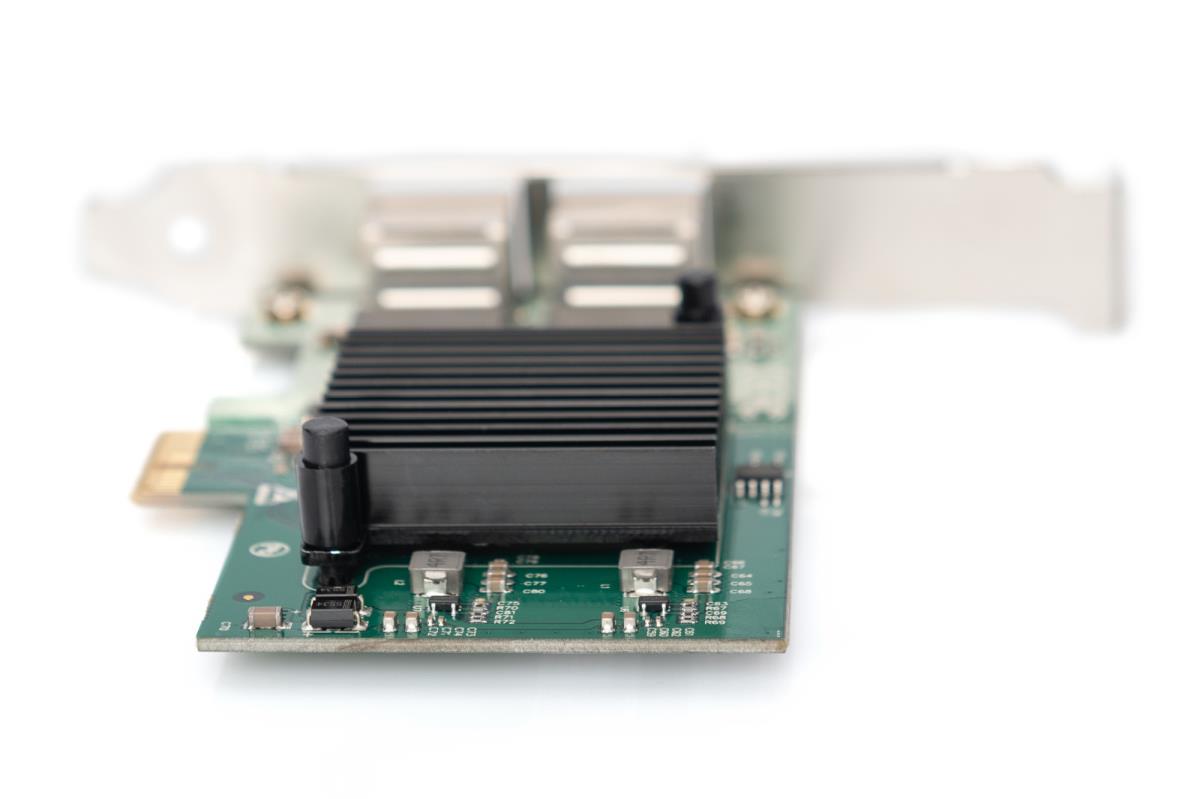

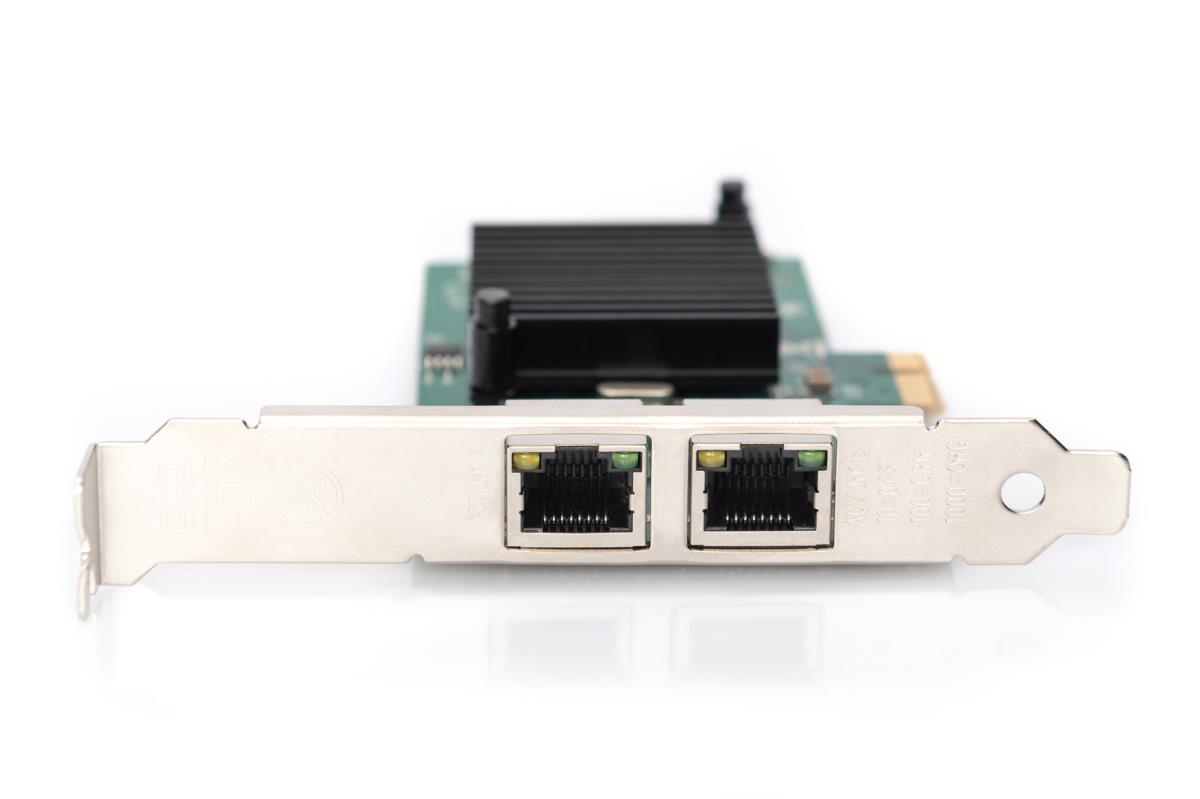

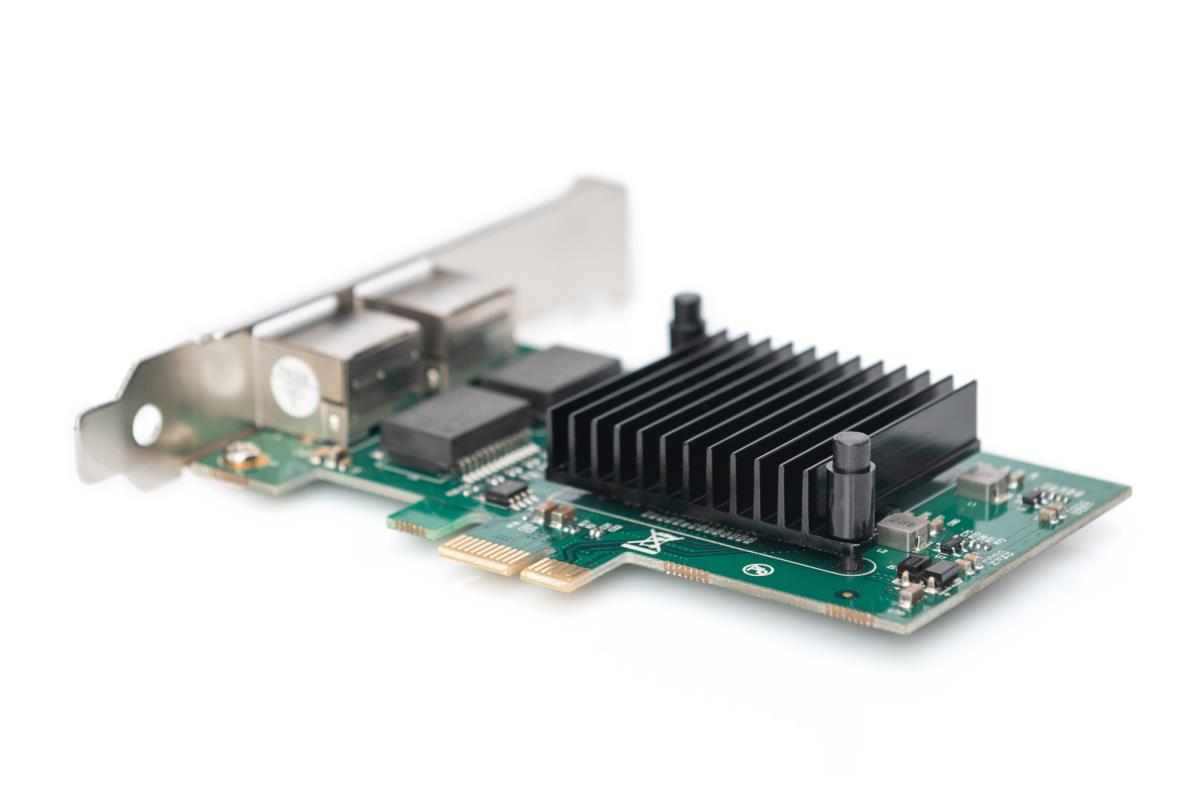

Expand your PC with PCIe slot by 2 Gigabit Ethernet ports with 1000 Mbit/s each

- Gigabit data transfer for each RJ45 port
- Suitable for standard slots & small PC case with low-profile slot
- Intel chipset 82575EB
- RSS, auto MDI/MDIX, IPv4, IPv6
- Jumbo Frames 9.5k, VMDq

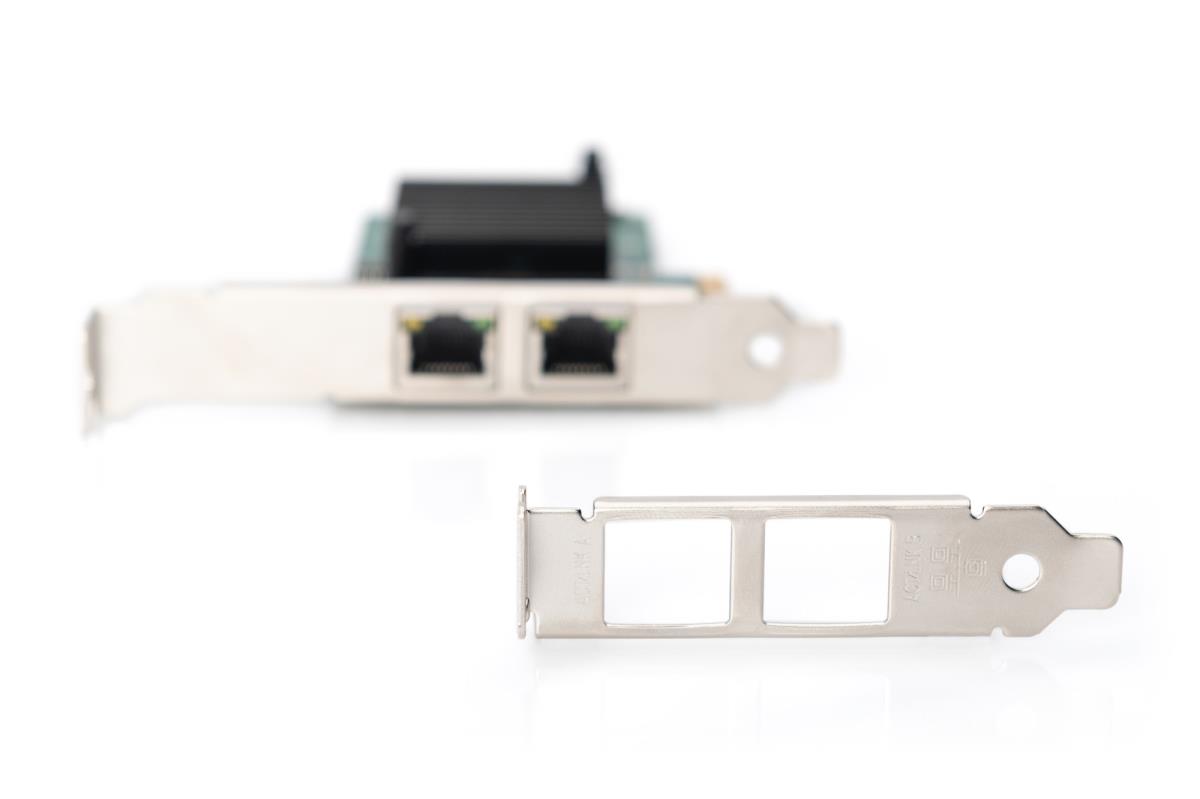

The DIGITUS® PCI Express Dual Port Gigabit Network Card with integrated Intel chipset offers the option to make two Gigabit ports for a server or a workstation available via a single PCI slot. Each port is fully compatible in accordance with IEEE802.3/u/ab standards and offers a full Gigabit connection. In addition to supporting IPv4 and IPv6 protocols, the card also supports jumbo frames as well as layer 2 . Its versatile configuration options make the card perfect for using with virtual machines or to set up a router/firewall. The low-profile slot bracket included in delivery also offers the option of integrating the card into compact computer cases in which standard slot brackets cannot be used.

Ports & interfaces
Connectivity technology Wired
Host interface PCIe
Interface Ethernet
Ethernet LAN (RJ-45) ports 2
Network
Maximum data transfer rate 1000 Mbit/s
Networking standards IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Full duplex Yes
LAN controller Intel© 82575EB
Design
Component for Server
Internal Yes
Chipset Intel© 82575EB
Country of origin China
System requirements
Windows operating systems supported Windows 10, Windows 7, Windows 8, Windows 8.1
Linux operating systems supported Yes
Other operating systems supported FreeBSD, VMware vSphere ESXi
Server operating systems supported Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019
Packaging content
Mounting brackets included Yes
Resource CD Yes
Quick installation guide Yes
Logistics data
Harmonized System (HS) code 85176990
Warranty
Base Warranty Non Non
