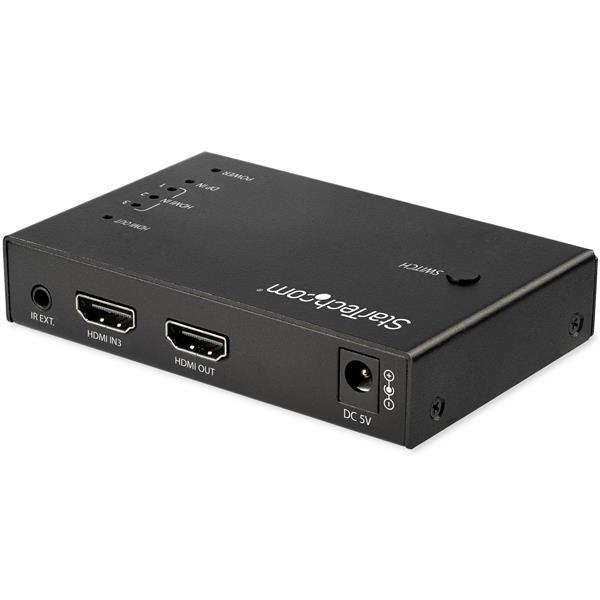

Hdmi Video Switch - 4 Port 3x Hdmi And 1x DisplayPort - 4k 60hz
ITCurry #: 75648021 | Article #: VS421HDDP-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Multi-Port HDMI Switch Box | Automatic Switcher | IR Remote Control
This 4-input HDMI video switch lets you share an HDMI 2.0 display or projector with three HDMI video sources and one DisplayPort video source.
Enjoy Astonishing Picture Quality
The multi-port HDMI switch lets you deliver the capabilities of your HDMI 2.0 video sources to your UHD 4K60 display. Unlike many 4K switches that only support a 30Hz refresh rate, this switcher box works with HDMI 2.0 displays with output resolutions of up to 4096 x 2160 at 60Hz.
With full support for HDMI 2.0 devices and 4:4:4 chroma subsampling, this 4K HDMI video switcher supports a bandwidth up to 18Gbps. As well, the switch supports DisplayPort 1.2 with HBR2, making it ideal for high-resolution computer tasks.
Flexible Input Options
This multi-port video switcher offers four input options, including one DisplayPort and three HDMI ports, enabling you to switch from one of four sources to your HDMI video display. The mix-and-match input options provide users with a flexible solution so they are not limited to one specific input.
Hassle-Free Operation with Automatic Switching
This HDMI switcher box ensures effortless operation with automatic switching that detects and selects a newly connected device. It's perfect for automatically switching to a 4K media player such as a 4K UHD Blu-ray player as soon as it's switched on.
This automatic HDMI switch also supports manual operation, using the included IR remote control or the built-in front-panel toggle switch.
VS421HDDP is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Experience astonishing picture quality with support for resolutions up to 4K 60Hz
- Hassle-free operation with automatic 4-port switching and an included IR remote control
- Unique input combination with both HDMI and DisplayPort ports
| Ports & interfaces | |
| Video port type | HDMI/DisplayPort |
| HDMI version | 2.0 |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
| DisplayPorts quantity | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| DC-in jack | Yes |
| Features | |
| Material | Metal |
| Product colour | Black |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160 |
| LED indicators | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Audio output channels | 7.1 channels |
| HDCP version | 2.2 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC adapter input current | 0.3 A |
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Power plug type | Type M |
| Certificates | |
| Certification | CE, FCC, REACH |
| Weight & dimensions | |
| Width | 66 mm |
| Depth | 100 mm |
| Height | 20 mm |
| Weight | 300 g |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 125 mm |
| Package height | 65 mm |
| Package weight | 400 g |
| Packaging content | |
| Remote control included | Yes |
| Manual | Yes |
| Mounting brackets included | Yes |
| Plug adapter type | NA/JP, UK, EU, ANZ |
| Screws included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
