Product Information

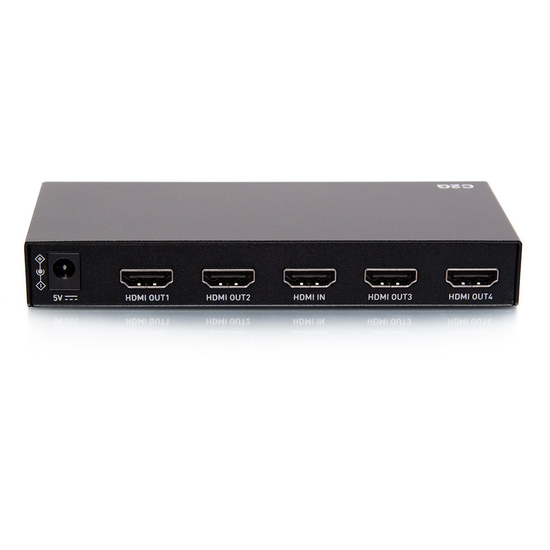

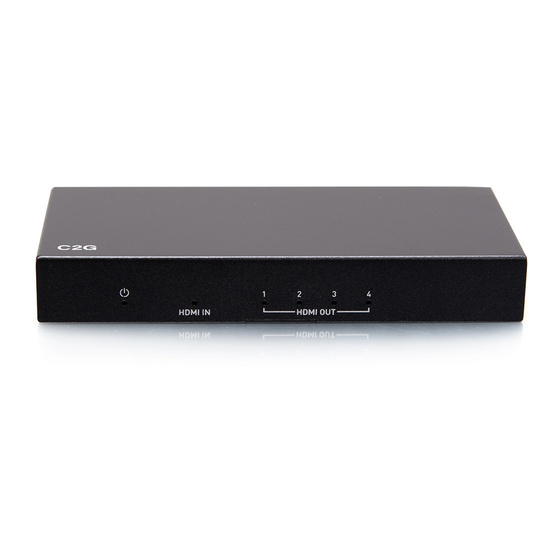

The 4-Port HDMI Distribution Amplifier Splitter is a 1-Input 4-Output splitter supporting up to 4K video. This splitter utilizes the HDMI 2.0 standard and is a perfect solution for connecting a computer, Blu-ray™ player, gaming console, media server, or A/V receiver to four HDMI displays.
The HDMI distribution amplifier splitter is HDCP 2.2 compliant and supports exceptional 4K Ultra HD resolutions up to 4096 x 2160 at 60hz, handling total HDMI data rates up to 18Gbps.
Ports & interfaces | |
Video port type | HDMI |
Video out | 4x HDMI |
Video ports quantity | 5 |
Features | |
Product colour | Black |
Maximum resolution | 3840 x 2160 pixels |
HD type | 4K Ultra HD |
Maximum refresh rate | 60 Hz |
HDCP version | 2.2 |
High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
Cable length | 1.8 m |
HDCP | Yes |
Dolby technologies | DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby TrueHD |
Power | |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Output voltage | 5 V |
Output current | 1 A |
Weight & dimensions | |
Width | 65.2 mm |
Depth | 140 mm |
Height | 20 mm |
Packaging data | |
Quantity per pack | 1 pc(s) |
Packaging content | |
Manual | Yes |

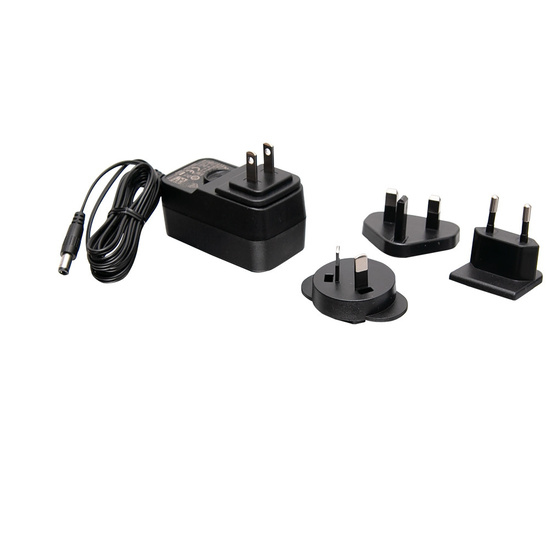

AC adapter included | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 45 øC |
Storage temperature (T-T) | -20 - 70 øC |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 10 - 90% |
Warranty | |
Base Warranty | Non Non |
