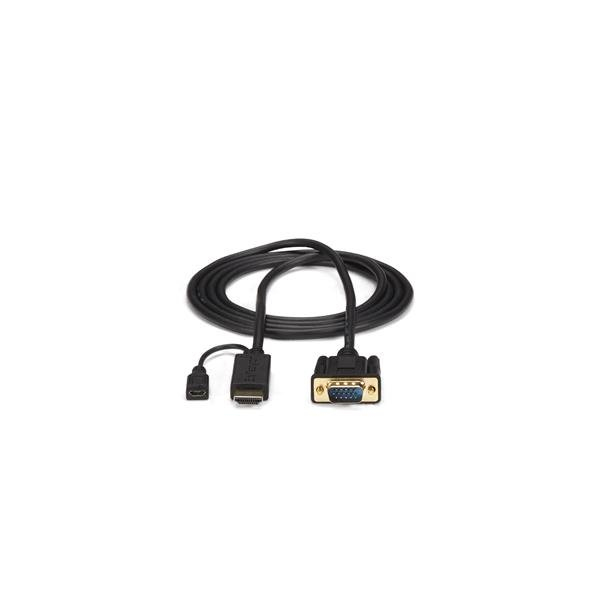

Hdmi To Vga Active Adapter Converter Cable 1m
ITCurry #: 75646465 | Article #: HD2VGAMM3-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Eliminate excess cable clutter and adapters, by connecting your HDMI source directly to a VGA monitor/projector using this short 3ft adapter cable
The HD2VGAMM3 3ft HDMI to VGA converter cable lets you connect your HDMI equipped Chromebook, laptop or desktop to a VGA monitor or projector, with no additional adapters or cables required.
The converter cable saves you the hassle of combining an HDMI to VGA adapter with a bulky VGA cable by providing an end-to-end solution for connecting your digital HDMI computer to your VGA monitor or projector.
Unlike most HDMI to VGA adapters which require a power outlet to convert the video signal, the HD2VGAMM3 doesn’t need external power in most installations. To work with Mac computers where extra power is needed, the HD2VGAMM3 features an optional integrated USB power source (USB cable not included), which makes connecting a display to your desktop or workstation that much easier, if additional power is required.
In the past, converting digital HDMI to analog VGA was a difficult and expensive task. Now, you can avoid upgrade costs by connecting your HDMI video source to your existing VGA monitor or projector using the HD2VGAMM3. Plus, because the adapter cable supports video resolutions up to 1920x1200 or 1080p, you can rest assured you can use your existing VGA display while maintaining high-definition video quality.
The HD2VGAMM3 converter cable delivers a precise 3ft connection that eliminates the clutter of excess cable length and ensures a tidy, professional installation. For longer installations, we also offer a 6 ft HDMI to VGA cable (HD2VGAMM6) and a 10 ft HDMI to VGA cable (HD2VGAMM10), enabling you to choose the right cable length for your installation needs.
Please note: Digitally encrypted content from the HDMI video source will not be displayed.
The HD2VGAMM3 is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Reduce clutter in your classroom or workstation with a precise-fitting 3-foot cable connecting your HDMI computer to your VGA display
- Hassle-free installation with cable-style adapter enabling you to connect your HDMI source directly to a VGA display with no additional video cable required
- Repurpose an existing or spare VGA display to work with your HDMI computer
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Power source | USB |
| Cable length | 0.9 m |
| Connector 1 | VGA (D-Sub) |
| Connector 2 | HDMI + Micro USB |
| Connector 1 gender | Male |
| Connector 2 gender | Male/Female |
| Maximum resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Chipset | Chrontel - 7101A |
| Plug and Play | Yes |
| Converter type | Active |
| Certification | FCC, CE, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 øC |
| Storage temperature (T-T) | -10 - 70 øC |
| Operating relative humidity (H-H) | 40 - 85% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Weight | 68.7 g |
| Width | 33 mm |
| Depth | 900 mm |
| Height | 10 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 196 mm |
| Package depth | 218 mm |
| Package height | 10 mm |
| Package weight | 88 g |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Warranty | |
| Base Warranty | Non Non |
