Extend an HDMI® video and audio over standard CAT5e cabling, with support for RS232 Serial and Infrared control
The StarTech.com HDBaseT extender kit, extends HDMI up to 330 feet (100 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility the transmitter and receiver can be used to transmit IR and RS232 serial communication over the same cable. The versatility of this video extender makes it an ideal solution for digital signage applications.
What is HDBaseT?
HDBaseT is a standardized, zero latency, video distribution technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.
Extend More with HDBaseT
The extender offers HDBaseT technology with HDMI, IR, and RS232 control in a single CAT 5e extender kit, for complete end-to-end control. Offering greater versatility than traditional HDMI extenders or HDMI cabling alone HDBaseT is the clear choice for every integrator and system designer. The IR extension enables you operate your display and an IR-enabled source device, such as a Blu-ray player or TV Set top box, from either end of your extension. While RS232 control let you to connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display.
Astonishing Picture Quality from an Impressive Distance
With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet.
With support for 4K 30Hz you’ll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 164 feet away from your video source. Plus, because the extender is still backward compatible with High-Definition 1080p displays and video sources, you can rest assured this extender will make your video source look great in any remote digital signage application.
Simplify Your Setup

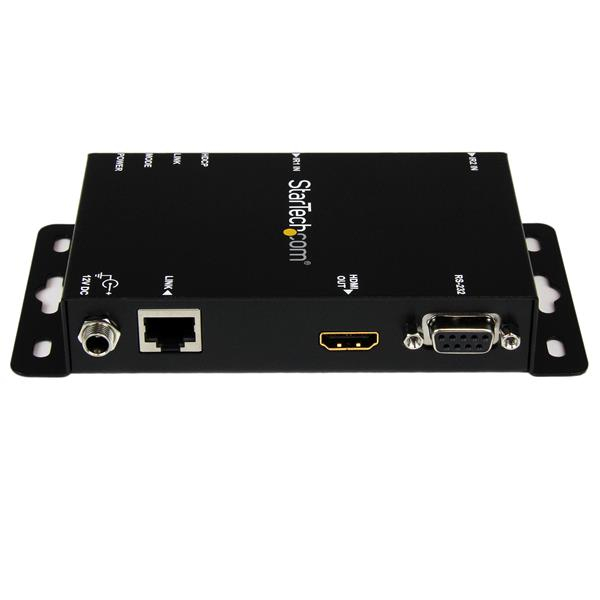

This extender has been specially crafted for a smooth, tidy installation. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Mounting hardware is also built-in to both the extender and receiver for discrete, professional mounting.
The ST121UTPHD2 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Maximum transfer distance | 100 m |
| LED indicators | LAN, Power |
| Supported video modes | 720p, 1080p, 2160p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA) |
| Remote control type | IR |
| HDCP | Yes |
| Material | Steel |
| Carrier frequency | 38 kHz |
| Baud rate | 115.2 Kbit/s |
| Plug and Play | Yes |
| Daisy chain | No |
| Product colour | Black |
| Certification | CE, FCC |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Remote (IR) input | 2 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| Power | |
| AC input voltage | 110-240 V |
| Operating voltage | 12 V |
| Input current | 0.6 A |
| Output current | 1.24 A |
| External power adapter | Yes |
| Current | 1.24 A |
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -20 - 85 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 80 x 150 x 25 mm |
| Receiver weight | 579 g |
| Transmitter dimensions (WxDxH) | 80 x 150 x 25 mm |
| Transmitter weight | 579 g |
| Packaging data | |
| Package dimensions (WxDxH) | 248 x 304 x 66 mm |
| Package width | 309 mm |
| Package depth | 254 mm |
| Package height | 67 mm |
| Package weight | 1.5 kg |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | HDMI, IR |
| Manual | Yes |
| IR receiver included | Yes |
| Technical details | |
| Audio support | Yes |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 331 mm |
| Master (outer) case length | 366 mm |
| Master (outer) case height | 291 mm |
| Products per master (outer) case | 5 pc(s) |
