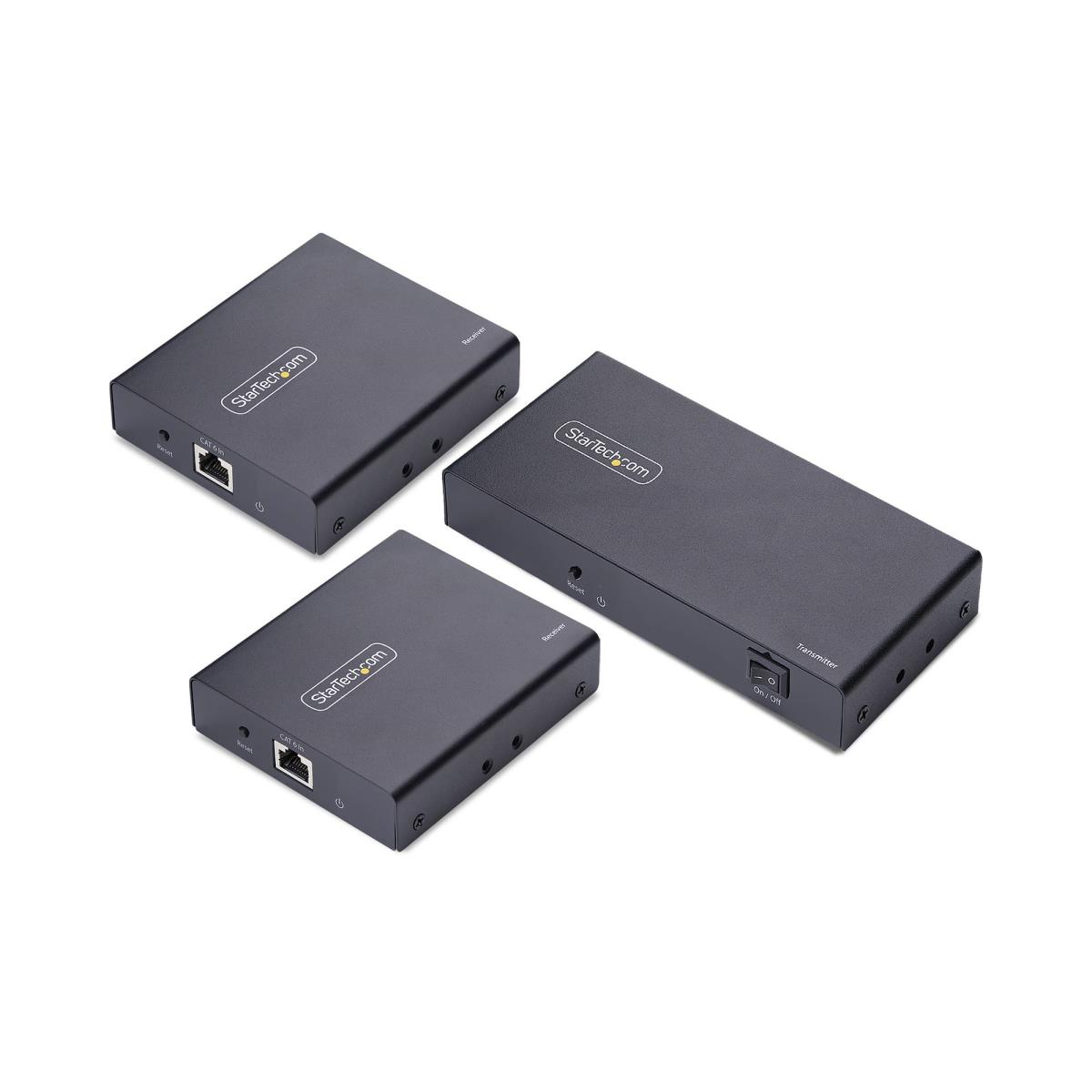

Hdmi Extender/splitter - 2-port 1x2 Hdmi Over Ethernet Kit
ITCurry #: 7564C437 | Article #: 4K7012IC-EXTEND-HDMI-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Split and extend a single 4K 60Hz HDMI signal to two HDMI displays over a distance of up to 230ft (70m) with Power over Cable
This HDMI extender and splitter delivers reliable 4K AV distribution to two displays over Ethernet cabling for professional AV installations. Enables flexible deployment using Ethernet cables for longer-range and in-wall runs. Ideal for centralized AV distribution in boardrooms, digital signage, educational facilities, and hospitality environments.
HDMI Over Ethernet Cabling
Extend HDMI signals to two remote displays over CAT6/6a cabling using a single transmitter. Transmitter features a HDMI output providing a direct connection for a local display. Supports 4K 60Hz video and 2 channel audio up to 230ft (70m). Includes IR extension support for remote control of the source device from any connected display.
Powered with a Single Power Adapter
Single power adapter connects to the transmitter; both receivers are powered directly over the CAT6/6a cables. Simplifies installation in environments with limited power access and reduces overall cable clutter.
No Drivers, Software, or IP Configuration
Plug-and-play installation with no additional drivers, software, or network setup required. Supports any operating system including Windows, macOS, and ChromeOS, and is compatible with all hardware platforms including Intel, AMD, and Apple Silicon.
Versatile Mounting Options
1x2 HDMI distribution kit includes mounting brackets for wall, ceiling, or under-table installation at both transmitter and receiver locations. Compact form factor enables discreet installation in tight spaces.
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6, Cat6a |
| Maximum transfer distance | 70 m |
| Chipset | GSV5100 |
| Maximum refresh rate | 60 Hz |
| Audio output channels | 2.0 channels |
| LED indicators | Yes |
| Rack mounting | No |
| Daisy chain | No |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 3 |
| Remote (IR) input | 2 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| Operating voltage | 12 V |
| Input current | 0.8 A |
| Output current | 2 A |
| Power consumption (typical) | 24 W |
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -10 - 70 øC |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 154 mm |
| Height | 23 mm |
| Weight | 261 g |
| Packaging data | |
| Package width | 292 mm |
| Package depth | 238 mm |
| Package height | 55 mm |
| Package weight | 1.1 kg |
| Packaging content | |
| AC adapter included | Yes |
| Included power plug types | ANZ, EU, NA, UK |
| Quick start guide | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
| Mounting kit | Yes |
| Packaging content | 1 - HDMI Transmitter 2 - HDMI Receiver |
| Logistics data | |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 300 mm |
| Master (outer) case height | 330 mm |
| Products per master (outer) case | 10 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
