Firewire 800 Card 2 Port 1394b Pci-e
ITCurry #: 75644331 | Article #: EC1394B2-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

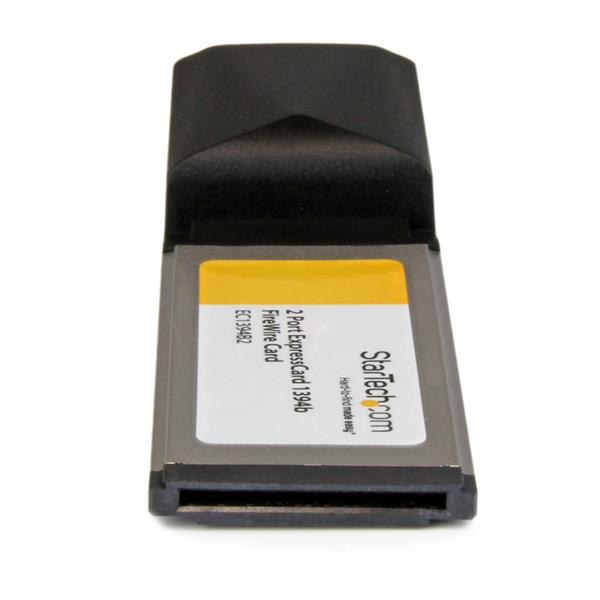

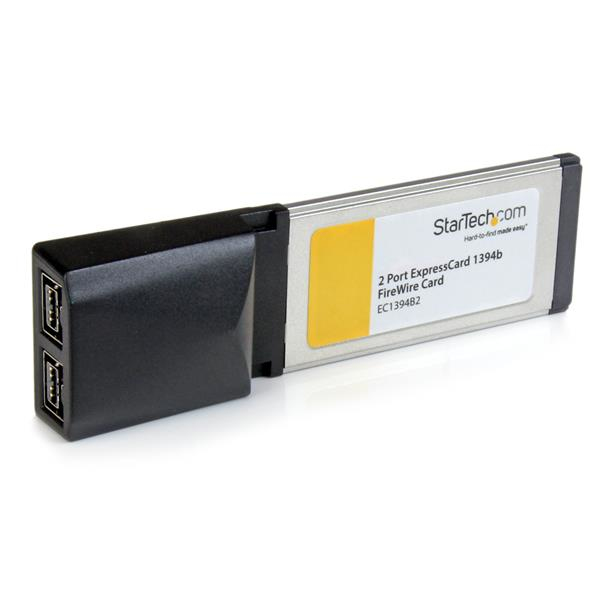

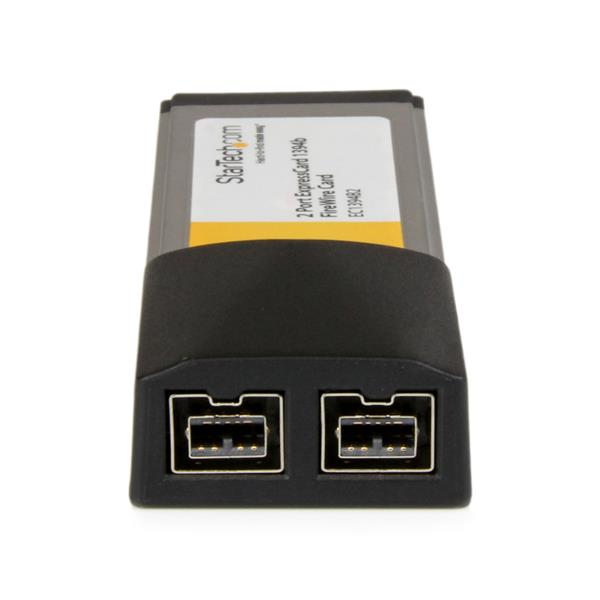

Add 2 FireWire800 ports to a laptop through an ExpressCard slot
This 2 Port ExpressCard FireWire Adapter Card adds two 1394b FireWire ports to a laptop computer, providing a cost-effective way to add IEEE 1394A and IEEE 1394B FireWire devices even if the laptop doesn’t have a built-in FireWire 400 or FireWire 800 port.
Simply insert the IEEE 1394B FireWire 800 card (EC1394B2) into an ExpressCard slot, and you’ll be able to connect a broad range of FireWire devices to your laptop, while relying on data transfer speeds of up to 800Mbps.
Plus, the card is backward compatible with 1394a devices, so you can connect both FireWire 400 and 800 devices to the notebook, using the same adapter.
The StarTech.com Advantage
- Add 2 FireWire800 ports to a laptop computer with either a 34mm or 54mm ExpressCard slot
- Optional external power connector to allow support for high powered FireWire devices
- Backed by a StarTech.com lifetime warranty and free lifetime technical support
| Ports & interfaces | |
| Host interface | ExpressCard/34 |
| Output interface | FireWire 800 |
| Firewire (IEEE 1394) ports | 2 |
| Design | |
| Product colour | Black, Silver |
| Features | |
| Chipset | Texas Instruments XIO2213A |
| Technical details | |
| Compliance certificates | RoHS |
| System requirements | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions | |
| Width | 34 mm |
| Depth | 120 mm |
| Height | 20 mm |
| Weight | 30 g |
| Packaging data | |
| Package width | 78 mm |
| Package depth | 149 mm |
| Package height | 250 mm |
| Package weight | 70 g |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Data transfer rate | 800 Mbit/s |
| Connectivity technology | Wired |
| Mac compatibility | Yes |
| Compatible operating systems | Windows XP(32/64-bit)/ Server 2003(32/64-bit)/ Server 2008 R2/ Vista(32/64-bit)/ 7(32/64-bit)/ 8 (32/64-bit) Mac OS 10.4/ 10.5/ 10.6/ 10.7/ 10.8, Linux |
