Port Replicator | Mac & Windows | 4K DP | 5 USB ports | TAA Compliant

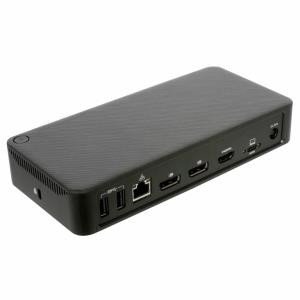

This triple-monitor docking station turns your USB 3.0 laptop into a full workstation with two DisplayPort outputs and an HDMI output. Plus, unlike some proprietary docks that only work with specific brands of laptop, this dock is universal, working with your Mac or Windows computer with USB 3.0.
Triple Display Flexibility
The USB 3.0 docking station adds triple-monitor support to your workstation, with resolution support up to 4K (3840 x 2160p) on one display and 2048x1152 on the other two. With more screens, combined with high resolution, the dock maximizes your screen real estate so you can simultaneously access multiple applications and compose on one display while referencing material on the other. You can also use your laptop screen for four displays in total, making it easy to manage several programs at once and avoid the nuisance of minimizing or rearranging windows.
Powerful Connections and Fast Device Charging
To support all of your USB peripherals, the docking station provides five USB 3.0 ports. The side-facing USB port is a USB fast-charge port (USB Battery Charging Specification 1.2), so you can charge your mobile devices faster than from standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need to stay productive.
The TAA compliant USB3DOCKH2DP is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Maximize your display capabilities with triple monitors (1 x HDMI and 2 x DP) or a dual-monitor setup
- Achieve a high resolution with up to 3840x2160p (4K) on one of the displays
- Connect your USB devices with 5 x USB 3.0 ports
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| Headphone outputs | 2 |
| Headphone connectivity | 3.5 mm |
| USB connector type | USB Type-A |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 3840 x 2160 pixels |
| Cable lock slot | Yes |
| Product colour | Black, Silver |
| LED indicators | Activity, Link |
| UASP support | Yes |
| Housing material | Plastic |
| Brand compatibility | Any brand |
| Certification | CE, FCC, DisplayLink, TAA, REACH |
| Power | |
| AC input voltage | 100-240 V |
| Input current | 1.5 A |
| Output voltage | 5 V |
| Output current | 6.5 A |
| Power consumption (typical) | 32.5 W |
| Power plug type | Type N |
| Compatible power plug types | AU, EU, UK, US |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -10 - 80 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 82 mm |
| Depth | 270 mm |
| Height | 34 mm |
| Weight | 376 g |
| Packaging data | |
| Package width | 296 mm |
| Package depth | 164 mm |
| Package height | 71 mm |
| Package weight | 1.03 kg |
| Packaging content | |
| Cables included | USB |
| AC adapter included | Yes |
| Manual | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 363 mm |
| Master (outer) case length | 373 mm |
| Master (outer) case height | 395 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Chipset | DisplayLink - DL-5910, VLI - VL812 |
| Number of microphone inputs | 1 |
| USB data transfer rates | 5000 Mbit/s |
| Warranty | |
| Base Warranty | Non Non |
