Docking Station - Hdmi DVI Vga Dual Video Universal USB 3.0
ITCurry #: 75645955 | Article #: USB3SDOCKHDV-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

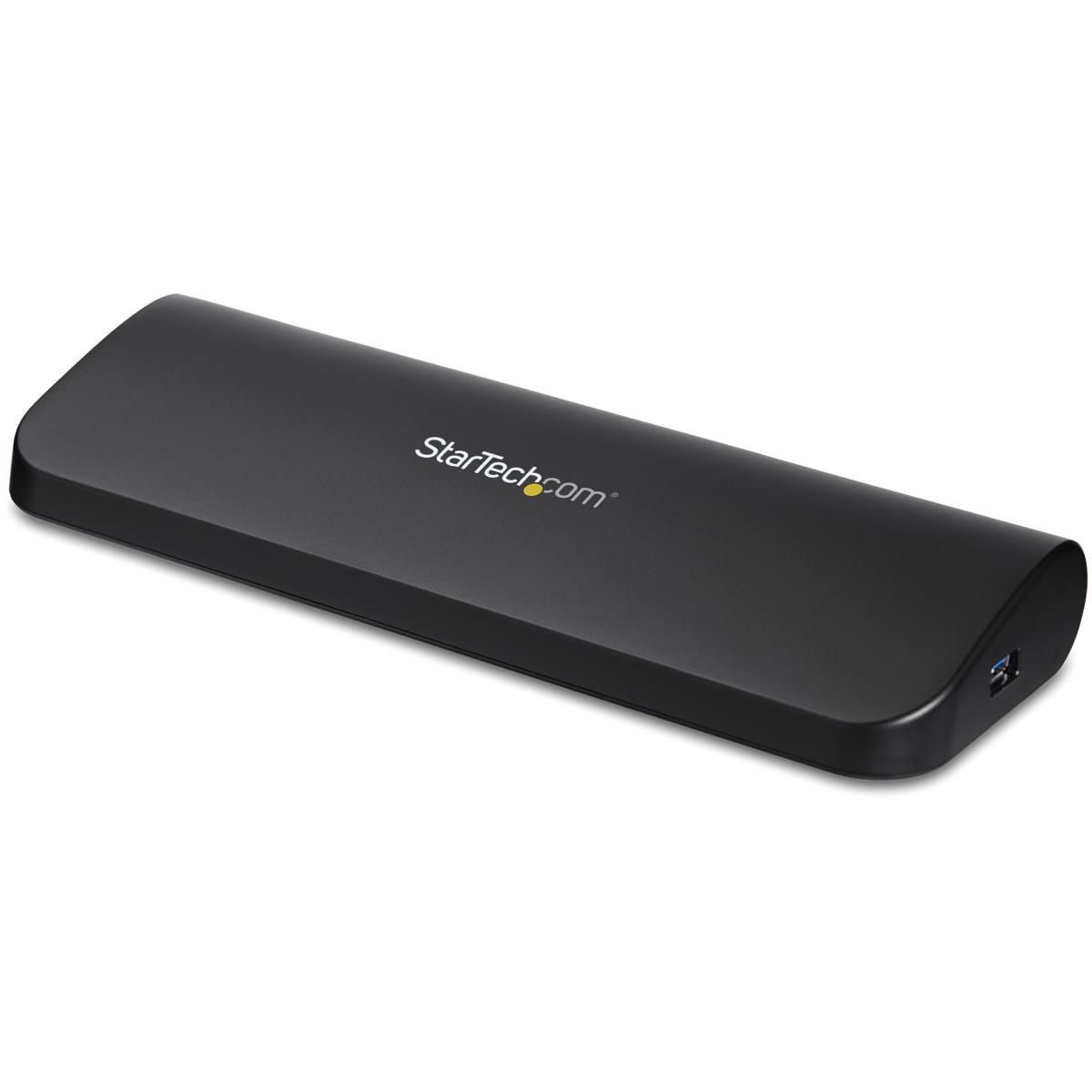

Laptop Docking Station | USB 3.0 | TAA Compliant | Mac & Windows
This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.
Display Adaptability

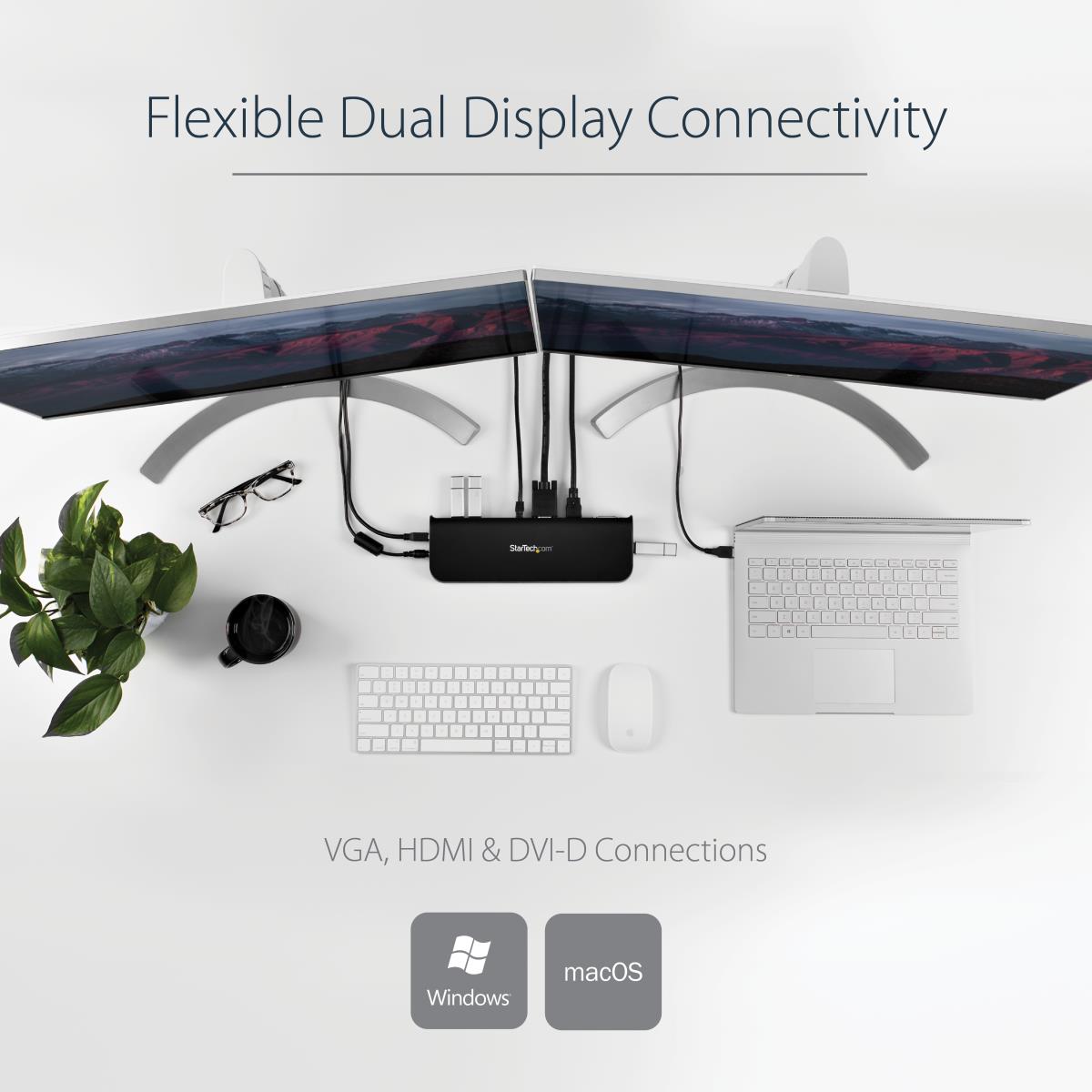

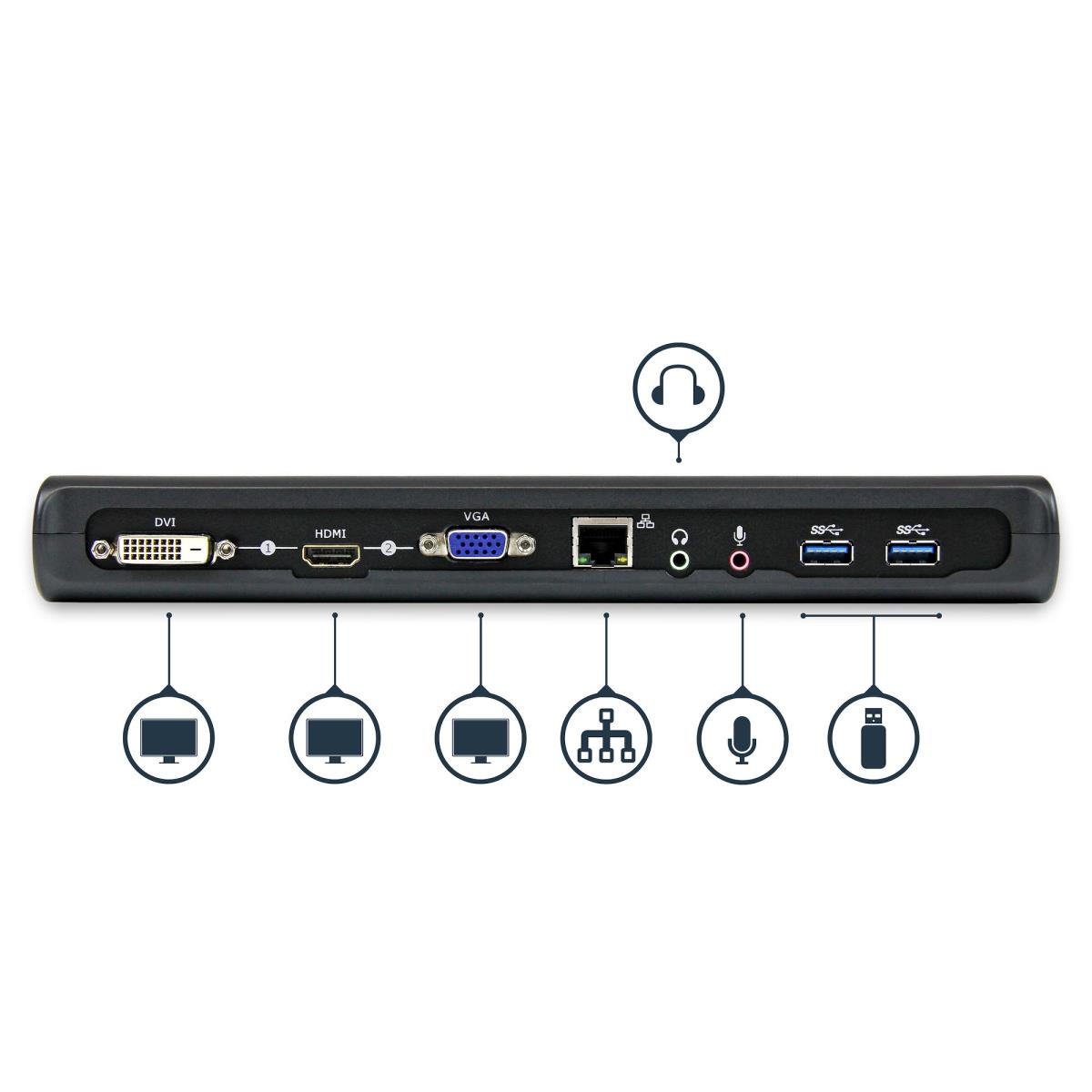

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.

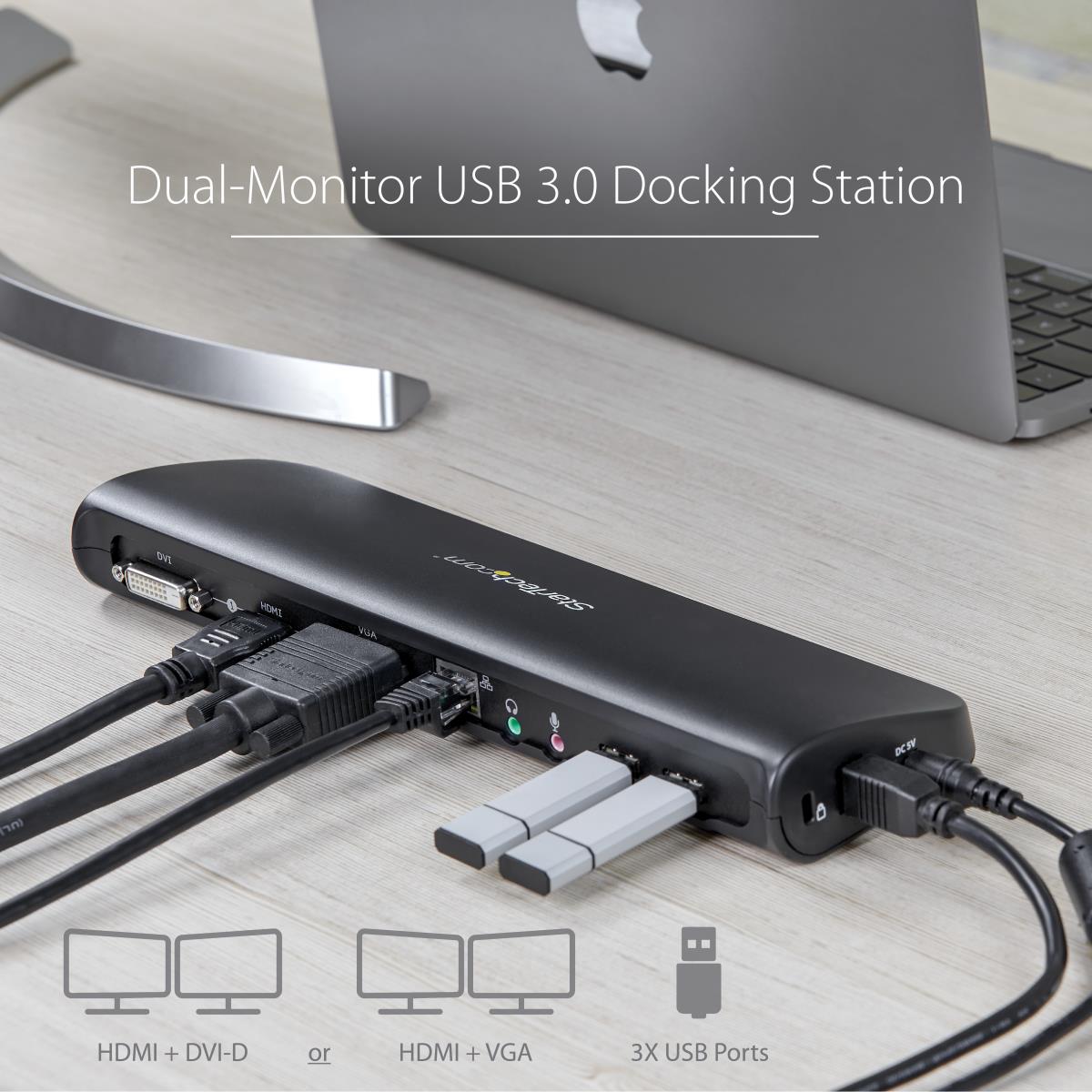

Available display combinations:
HDMI + VGA
HDMI + DVI
Integrated USB Hub

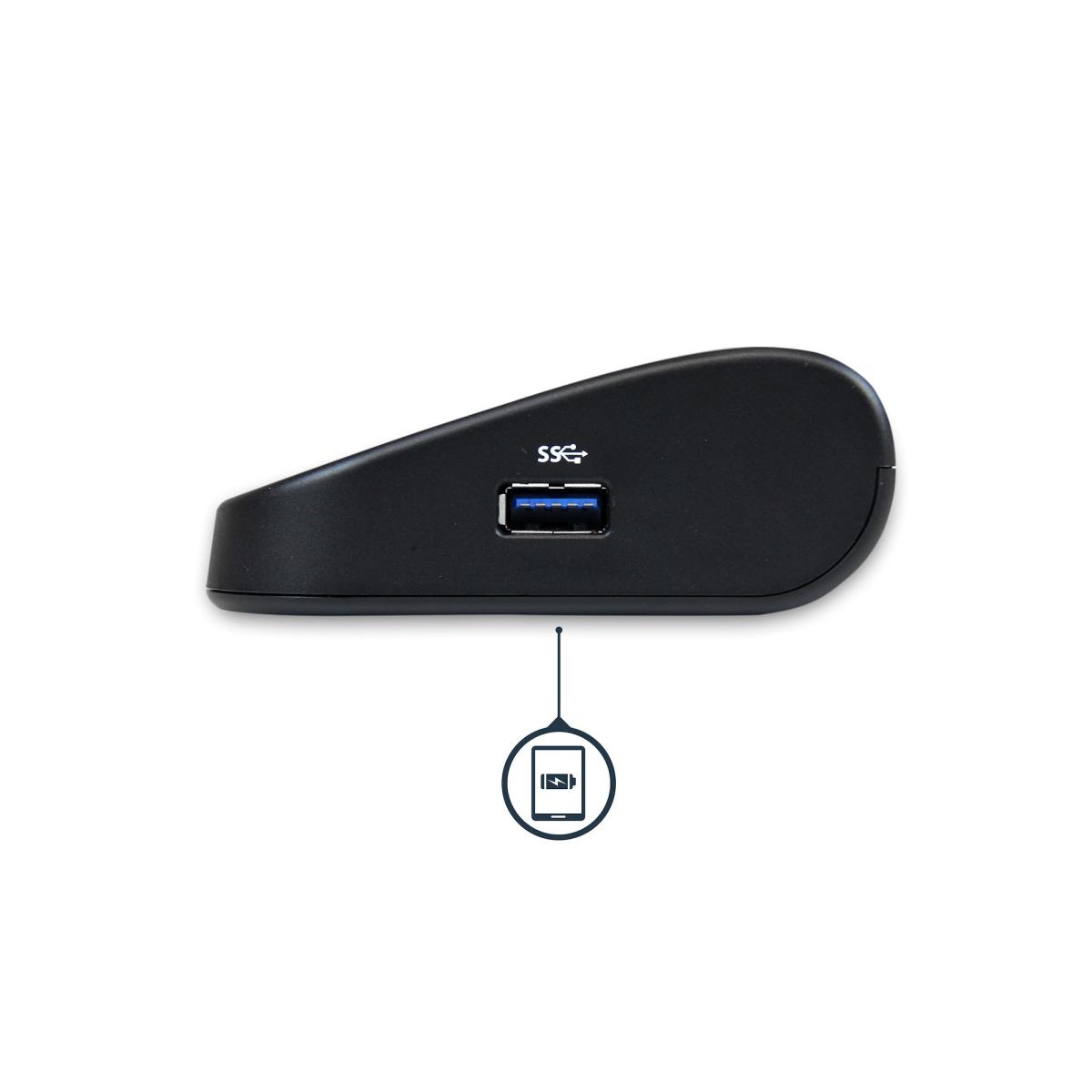

The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.
StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime Technical Support.
The StarTech.com Advantage
- Save time by connecting multiple peripherals through a single cable
- Increase available screen space with dual independent HD video outputs
- Expand connectivity with additional USB 3.0 ports

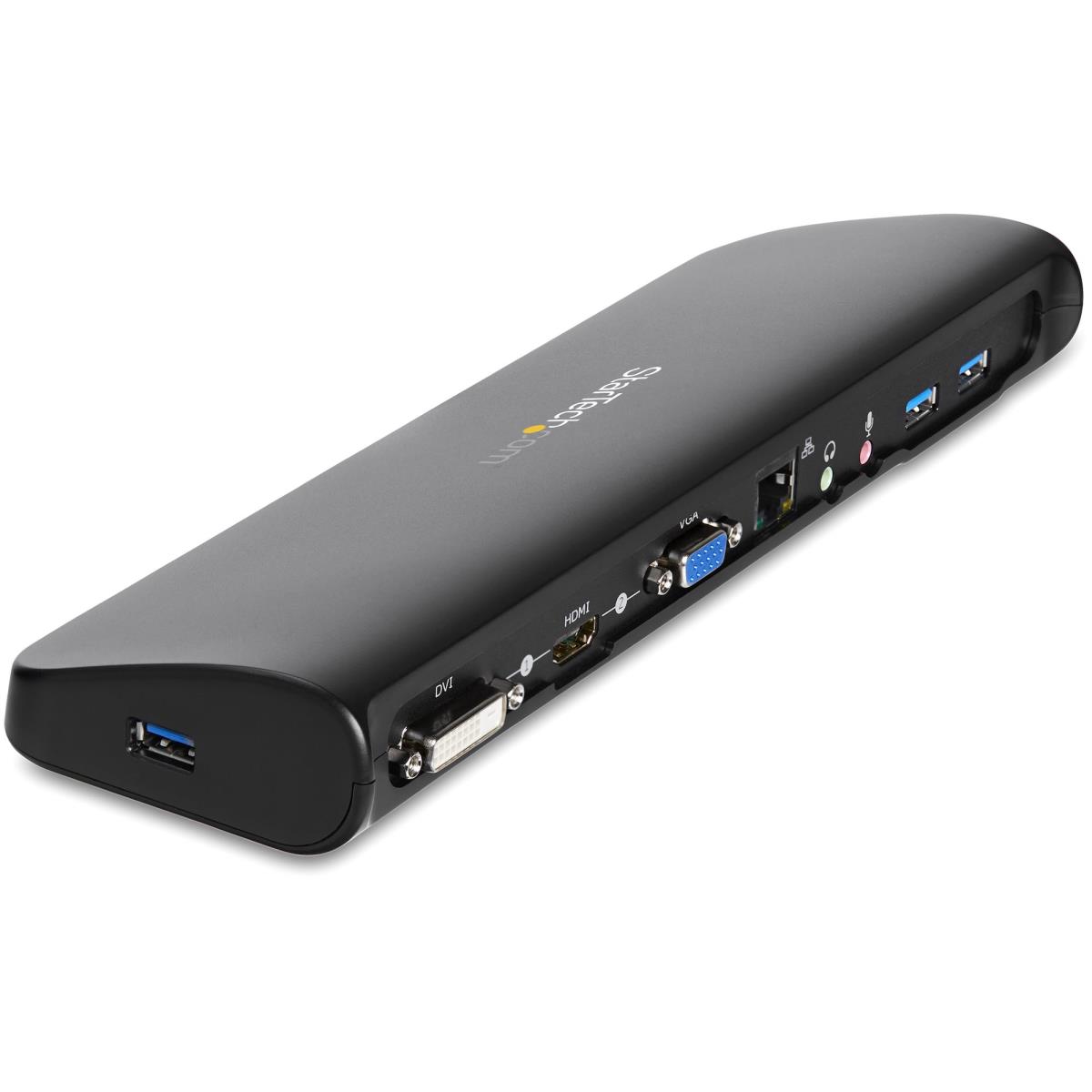

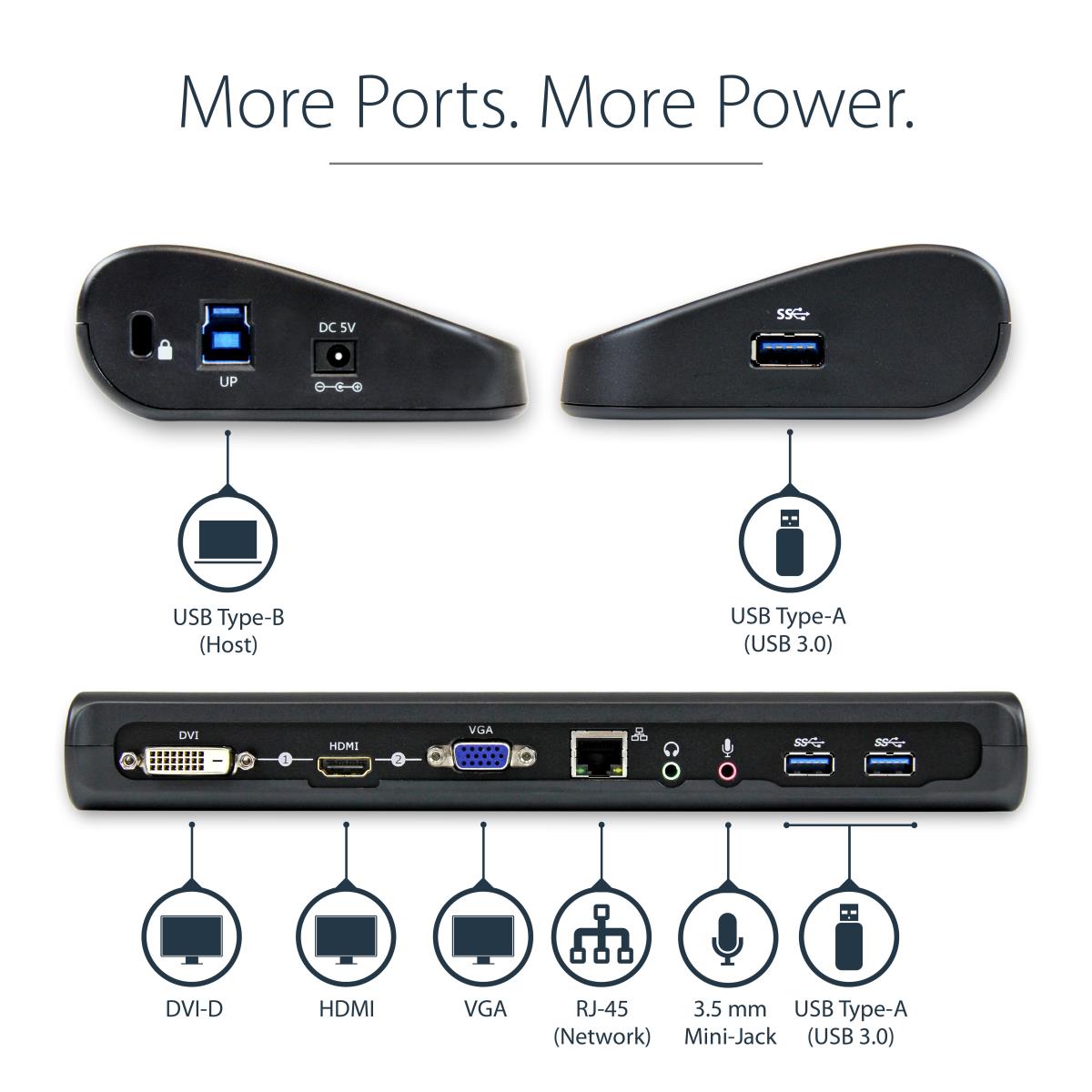

| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 1920 x 1200 pixels |
| Maximum analog resolution | 2048 x 1152 pixels |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Housing material | Plastic |
| Certification | FCC, CE, TAA, REACH |
| Power | |
| AC input voltage | 100-240 V |
| Input current | 0.9 A |
| Output voltage | 5 V |
| Output current | 4 A |
| Power consumption (typical) | 20 W |
| Power plug type | Type B |
| Compatible power plug types | AU, EU, UK, US |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -10 - 60 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |

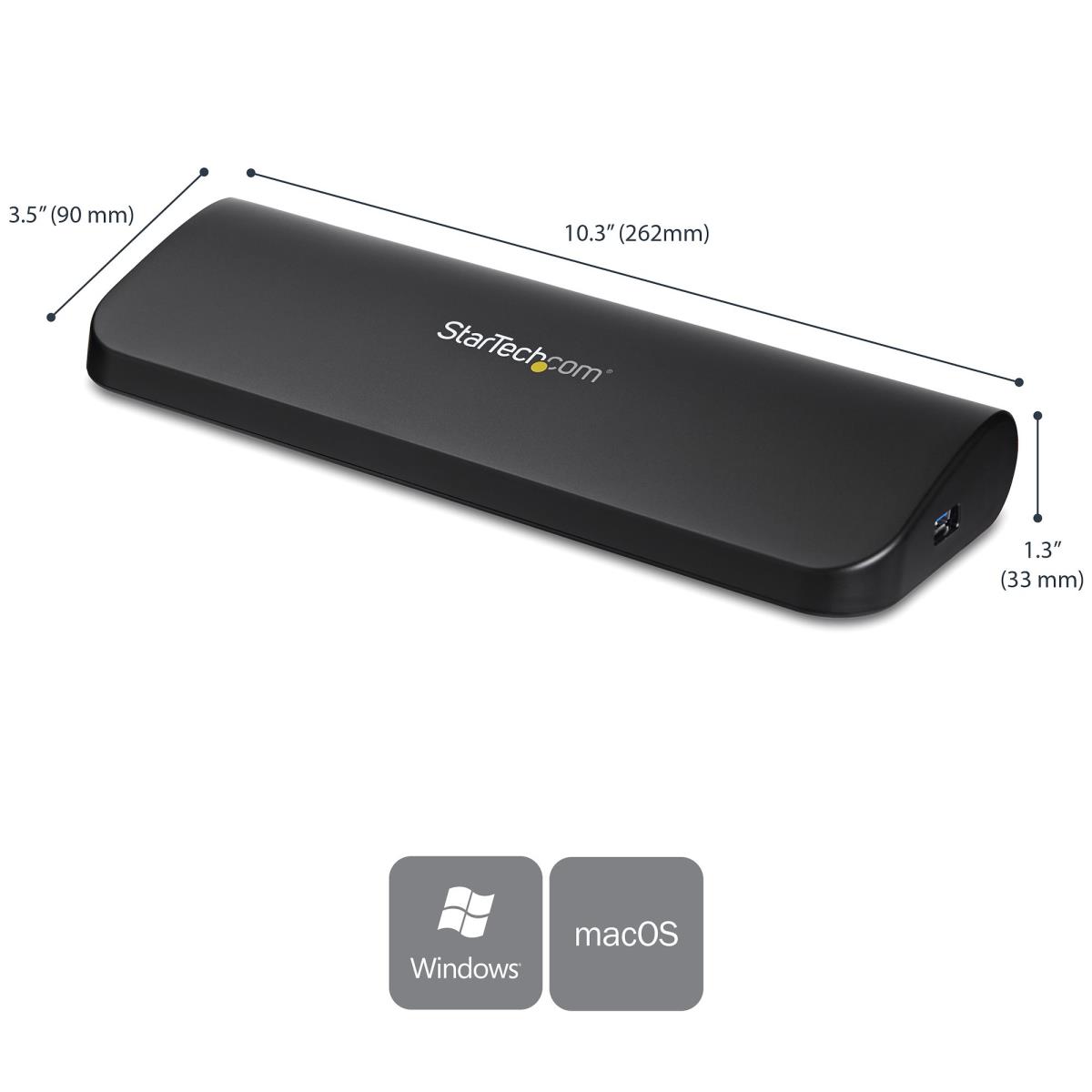

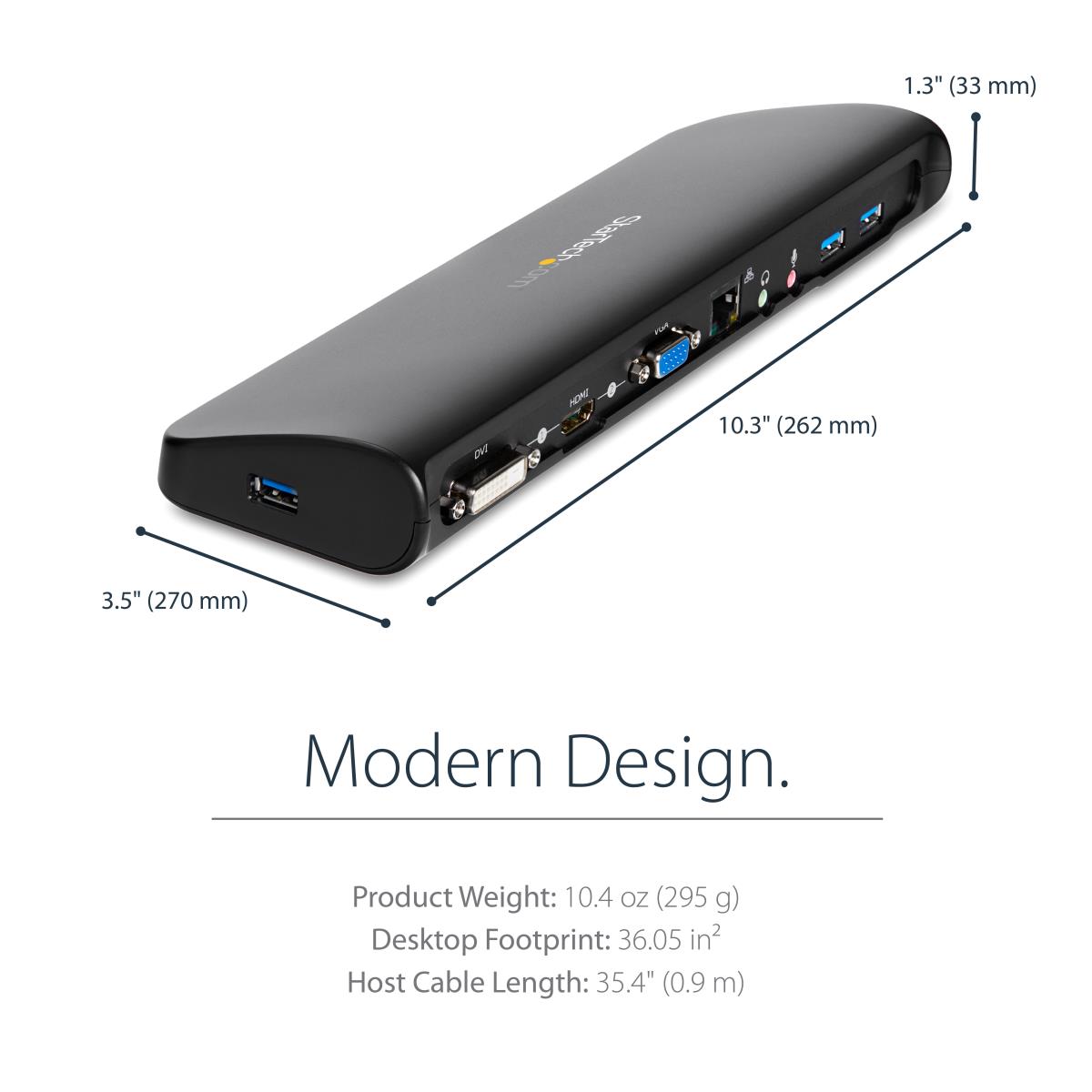

| Width | 178 mm |
| Depth | 304 mm |
| Height | 44 mm |
| Weight | 295 g |
| Packaging data | |
| Package width | 195 mm |
| Package depth | 296 mm |
| Package height | 66 mm |
| Package weight | 878 g |

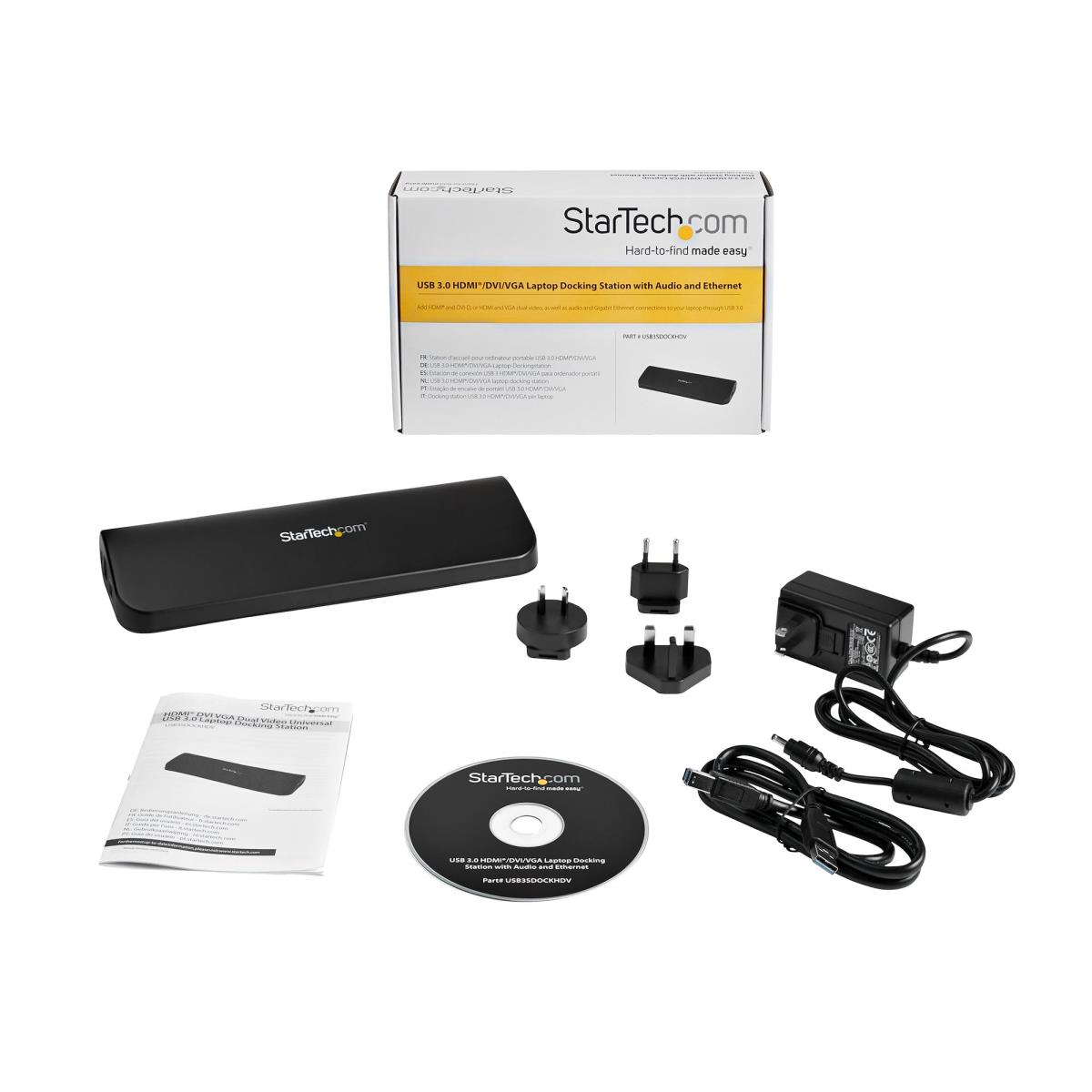

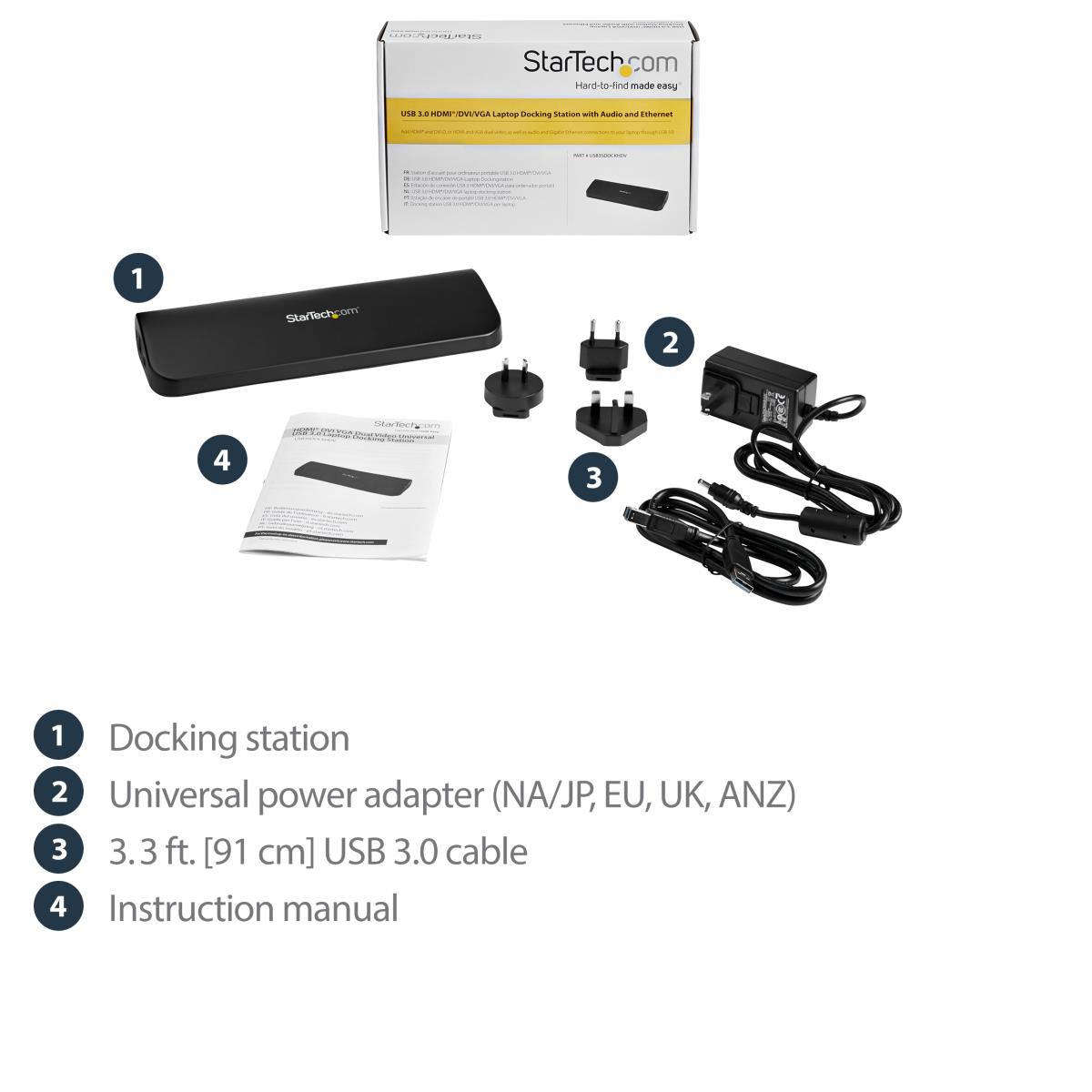

| Packaging content | |
| Cables included | USB |
| AC adapter included | Yes |
| Manual | Yes |
| Drivers included | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 215 mm |
| Master (outer) case length | 435 mm |
| Master (outer) case height | 345 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Chipset | DisplayLink - DL-3900, Genesys Logic - GL3520, Realtek - RTL8211E |
| USB data transfer rates | 12,480,5000 Mbit/s |
| Warranty | |
| Base Warranty | Non Non |
