1000base-bx Sfp Msa Compliant UPStream 100 Mbps Sm Lc 10 Km
ITCurry #: 75647452 | Article #: SFP1000BXDST-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

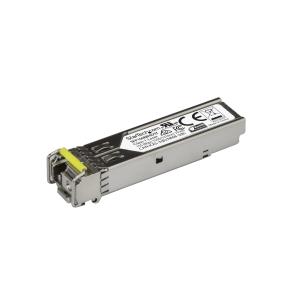

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime WarrantyThe SFP1000BXDST is an MSA compliant downstream fiber SFP transceiver which pairs with StarTech.com's SFP1000BXUST. They are designed, programmed and tested to work with 1000BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.Technical Specifications:• Wavelength: 1490nmTx/1310nmRx• Maximum Data Transfer Rate: 1.25 Gbps• Type: Single Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 10 km (6.2 mi)• Power Consumption: Less than 1 Watt• DDM: YesThis SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | BX |
| Maximum transfer distance | 10000 m |
| Tx power (min) | 1490 dBmW |
| Rx power (min) | 1310 dBmW |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength-division multiplexing (WDM) | Yes |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Certification | CE, FCC, UR |
| Power | |
| Power consumption (typical) | 1 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 57 mm |
| Height | 13 mm |
| Weight | 19 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 92 mm |
| Package depth | 116 mm |
| Package height | 34 mm |
| Package weight | 48 g |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 198 mm |
| Master (outer) case length | 304 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 164 mm |
| Products per master (outer) case | 20 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
