Msa Compliant Sfp+ Transceiver Module - 10gbase-bx (UPStream)
ITCurry #: 75648227 | Article #: SFP-10GB-BX-U-20-ST-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
10 Gbps | Single Mode Fiber | LC | 20 km (12.4 mi) | Lifetime Warranty

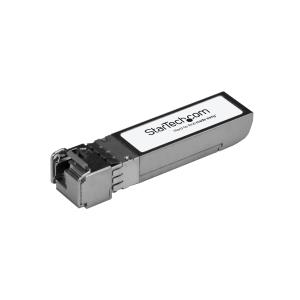

The SFP-10GB-BX-U-20-ST is a MSA Compliant upstream fiber SFP transceiver which pairs with StarTech.com's SFP-10GB-BX-D-20-ST. They are designed, programmed and tested to work with 10GBASE-BX compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 20 km (12.4 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1270nmTx/1330nmRx
• Maximum Data Transfer Rate: 10Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 20 km (12.4 mi)
• Power Consumption: Low power consumption
• DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | BX-U |
| Maximum transfer distance | 20000 m |
| Tx wavelength (max) | 1270 nm |
| Rx wavelength (max) | 1330 nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 646156559 h |
| Weight & dimensions | |
| Width | 58.4 mm |
| Depth | 13.9 mm |
| Height | 12.6 mm |
| Weight | 24 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 90 mm |
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
| Logistics data | |
| Master (outer) case width | 90 mm |
| Master (outer) case length | 115 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 31 mm |
| Products per master (outer) case | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
