Box-PC System BPCAL02-i5WA - i5 1235U - 8GB Ram - 250GB SSD - Win10 IoT
ITCurry #: 88702883 | Article #: BPCAL02-I5WAFlash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
1076.73
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information

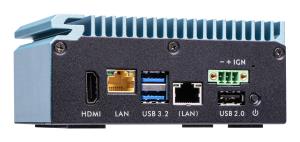

Shuttle BPCAL02-i5WA is a fully-configured fanless Box-PC with Intel Core-i5 processor of the 12th Generation (Alder Lake) and Windows 10 operation system in a ruggedized box design for high durability. This fixed configuration comes with a selection of pre-installed I/O extensions for a wide range of industrial applications.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© CoreT i5 |
| Processor generation | 12th gen Intel© CoreT i5 |
| Processor model | i5-1235U |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 4.4 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor base power | 15 W |
| Maximum turbo power | 55 W |
| Memory | |
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 4800 MHz |
| Storage | |
| Total storage capacity | 250 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 250 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 250 GB |
| SSD interface | PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| LAN controller | Intel I226-V |
| Wi-Fi | No |
| Ports & interfaces | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| Ethernet LAN (RJ-45) ports | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Serial ports quantity | 3 |
| Design | |
| Chassis type | USFF |
| Volume | 2.7 L |
| VESA mounting | Yes |
| Product colour | Black, Blue |
| Housing material | Aluminium, Steel |
| Performance | |
| Market positioning | Industry |
| Audio chip | Realtek ALC888S |
| Password protection | Yes |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Product type | Mini PC |
| Software | |
| Operating system installed | Windows 10 IoT Enterprise |
| Operating system architecture | 64-bit |
| Drivers included | Yes |
| Power | |
| Power supply | 90 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Certificates | |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus |
| Sustainability | |
| Sustainability certificates | ErP |
| Weight & dimensions | |
| Width | 245 mm |
| Depth | 169 mm |
| Height | 57 mm |
| Weight | 2.85 kg |
| Packaging content | |
| Display included | No |
| Logistics data | |
| Harmonized System (HS) code | 84714900 |
| Warranty | |
| Base Warranty | Non Non |
