Product Information
ROBUST INDUSTRY PC WITH VESA/DIN-RAIL MOUNT

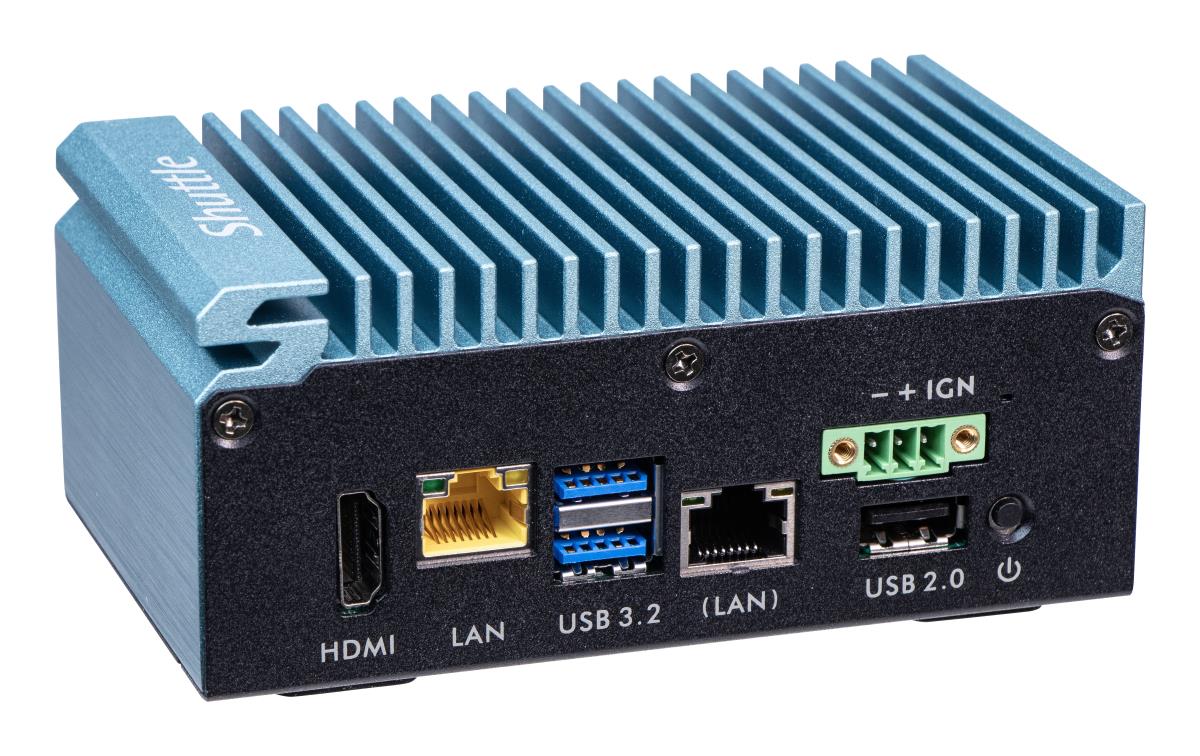

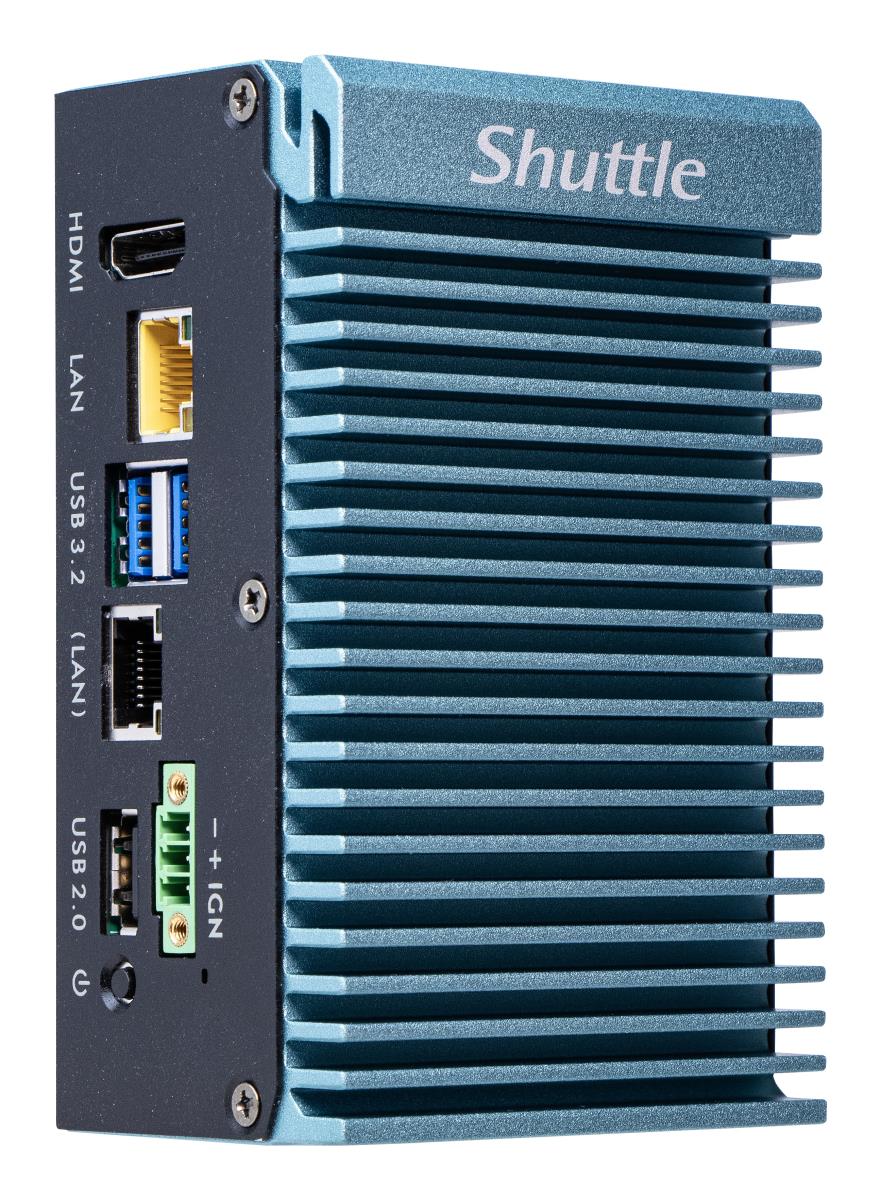

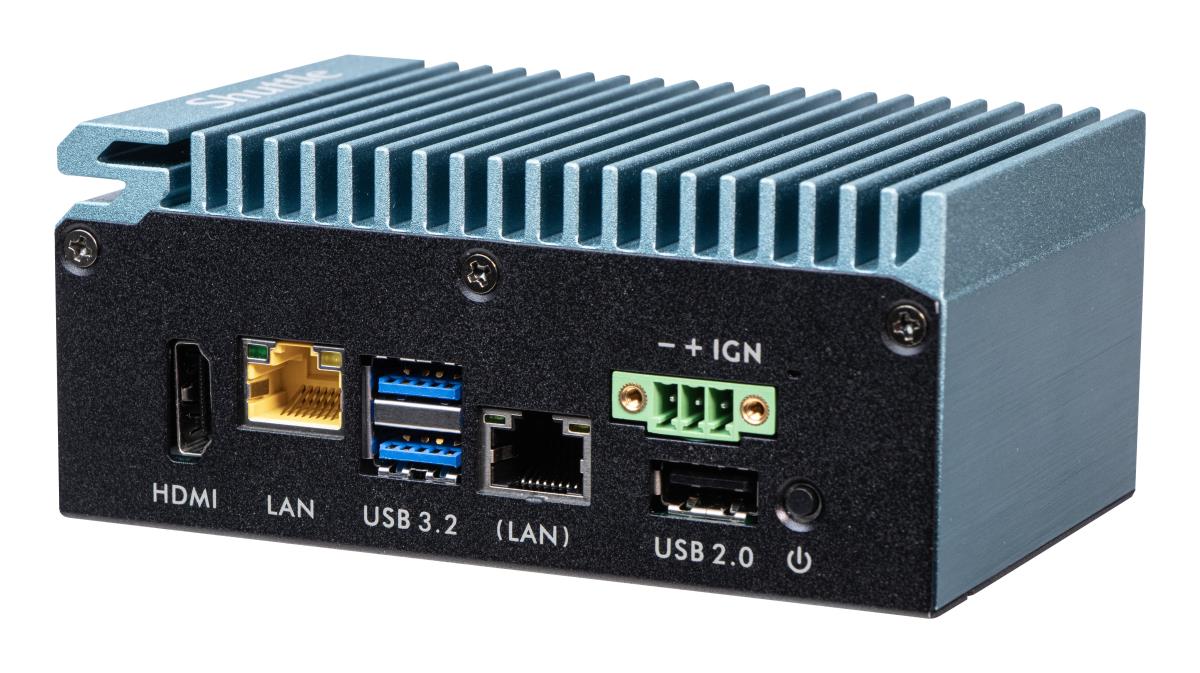

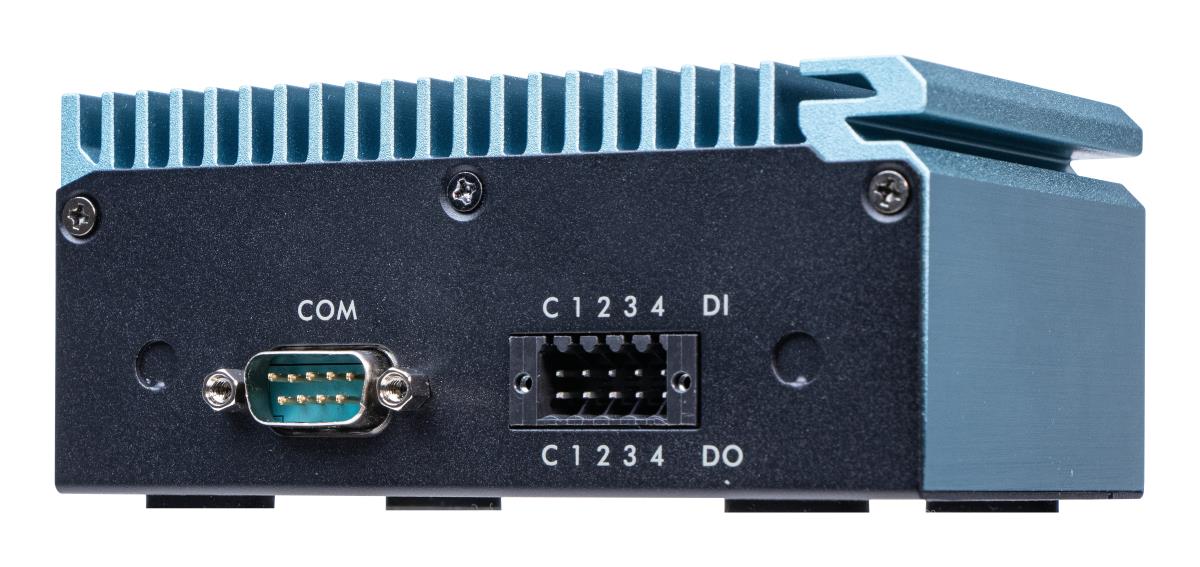

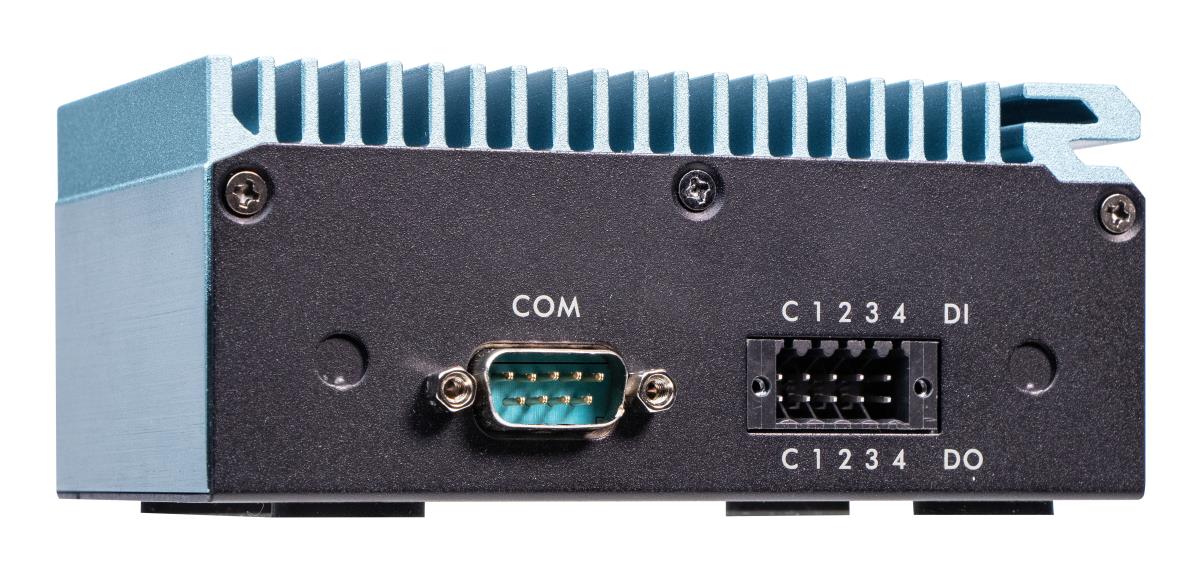

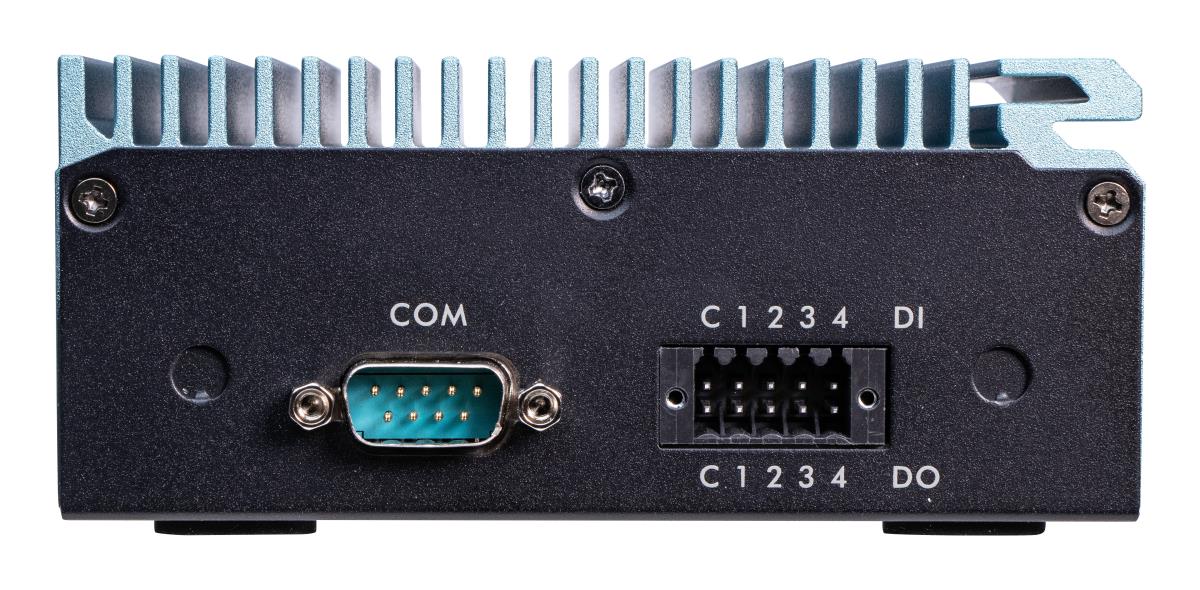

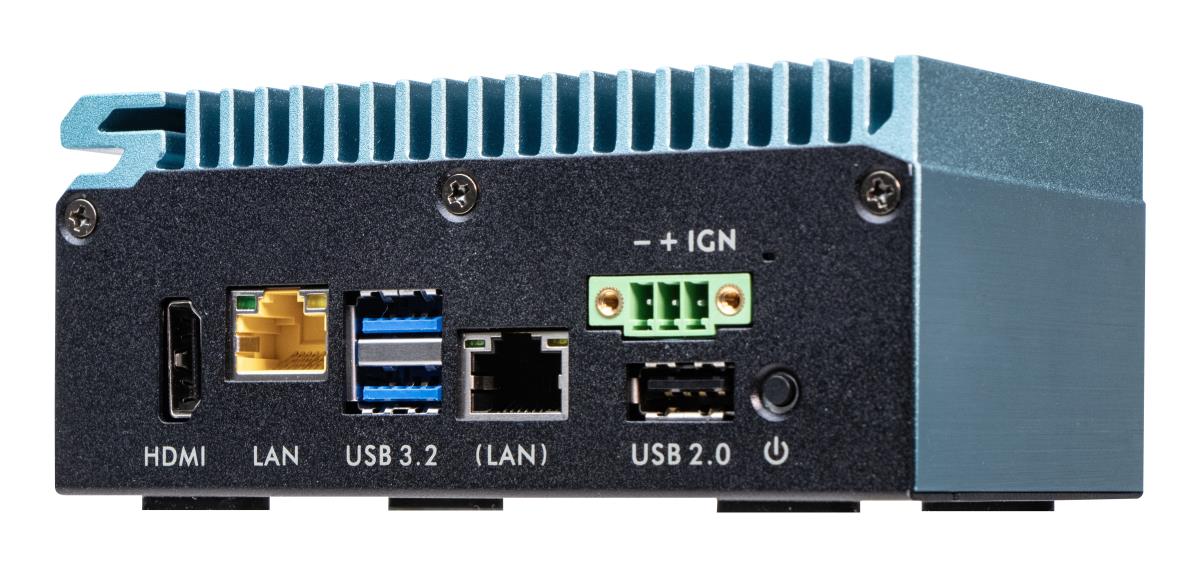

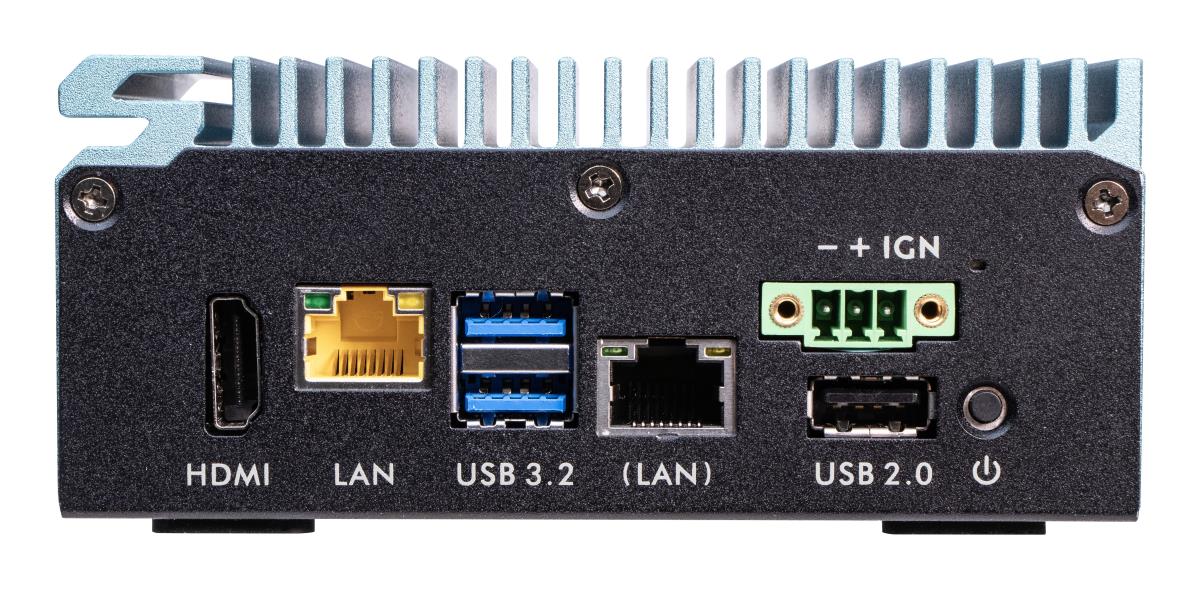

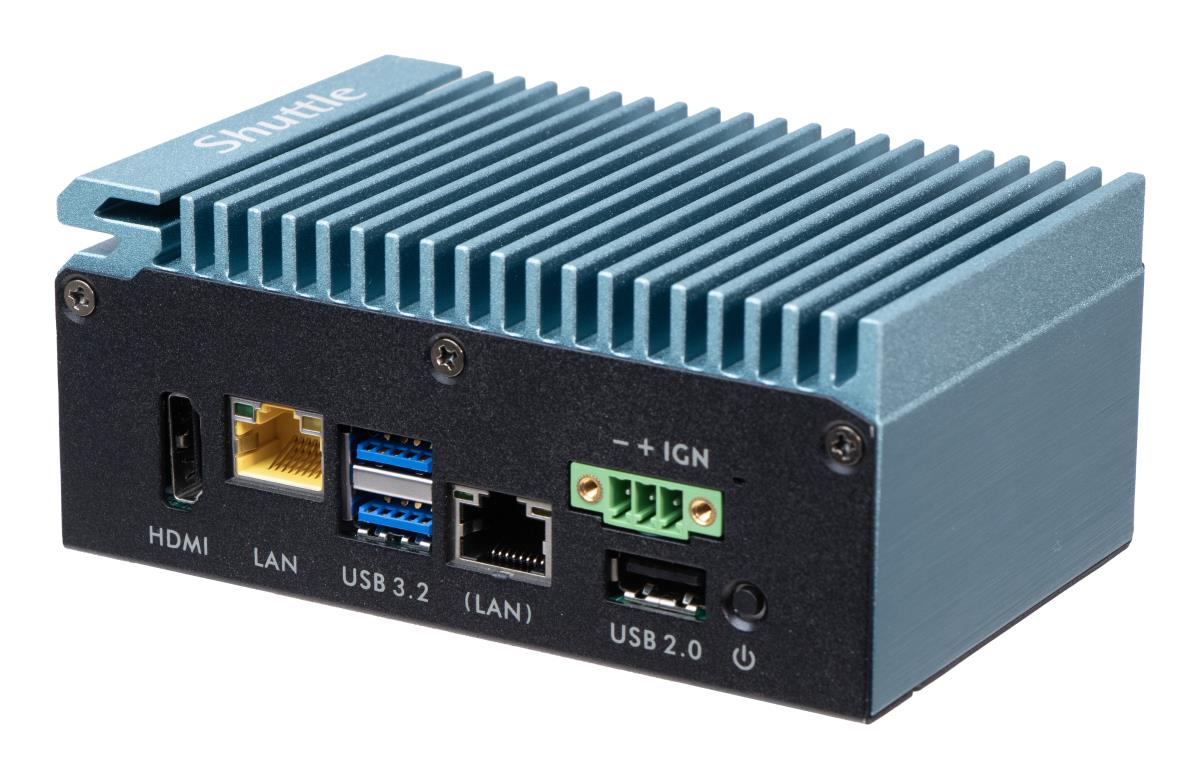

The Shuttle Edge PC SPCEL02WA System (based on SPCEL02) is a fanless IPC barebone in a robust 450 ml metal chassis and intended for DIN-Rail or VESA mounting. It is flexible in use and de-signed for maintenance-free 24/7 operation at ambient temperatures of up to 40°C. Inside there is an Intel Celeron "Elkhart Lake" processor with 8 GB RAM and 120 GB SSD and Windows 11 IoT operation system. The small housing offers an amazing variety of connections, including dual LAN, COM port and Digital I/O. This product is targeted at professional applications such as edge computing (IoT gateway), automation, digital signage, control, data logging and video surveillance.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Celeron J |
| Processor model | J6412 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2.6 GHz |
| Processor frequency | 2 GHz |
| Processor cache | 1.5 MB |
| Processor cache type | L2 |
| Number of processors installed | 1 |
| Memory | |
| Internal memory | 8 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 3200 MHz |
| Storage | |
| Total storage capacity | 120 GB |
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 120 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 120 GB |
| SSD interface | SATA |
| SSD form factor | M.2 |
| M.2 SSD size | 2242 (22 x 42 mm) |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel© UHD Graphics |
| On-board graphics card model | Intel© UHD Graphics |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| LAN controller | Intel I226-V |
| Wi-Fi | No |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Serial ports quantity | 1 |
| Design | |
| Chassis type | Mini PC |
| Volume | 0.46 L |
| Placement supported | Horizontal/Vertical |
| VESA mounting | Yes |
| Product colour | Black, Blue |
| Housing material | Aluminium |
| Performance | |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Product type | Mini PC |
| Software | |
| Operating system installed | Windows 10 IoT |
| Operating system architecture | 64-bit |
| Power | |
| Power supply | 90 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Certificates | |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), VCCI, cTUVus |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 75 mm |
| Height | 51 mm |
| Weight | 720 g |
| Package weight | 1.2 kg |
| Packaging content | |
| VESA mount included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84714900 |
| Display | |
| Display included | No |
| Other features | |
| Fanless | Yes |
| Warranty | |
| Base Warranty | Non Non |
