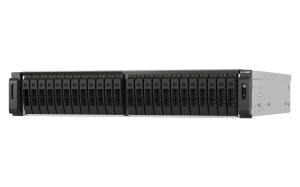

TS-h3077AFU-R5-32G 2U 30bay 2.5IN 32GB UDIMM DDR5 nonECC RPS
ITCurry #: N222A492 | Article #: TS-H3077AFU-R5-32G-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
High-density SATA all-flash array architecture
The TS-h3077AFU offers an affordable all-flash storage solution, combining ample storage capacity and robust I/O performance. It caters to budget-conscious businesses, providing all-flash storage infrastructure capable of efficiently handling a range of demanding, business-critical applications.
Powered by AMD Ryzen™ 7000 series processors
The TS-h3077AFU is armed with enterprise-class AMD Ryzen™ 7000 series processors. The first gen of CPUs on the new AMD Socket AM5 platform provides greater performance and power efficiency compared to similar-grade processors.
AMD Radeon™ Graphics
Integrated AMD Radeon™ Graphics on the TS-h3077AFU provides energy-efficient high-quality graphics performance, enabling processing high-resolution videos, photos, and simultaneously running multiple tasks.
DDR5 RAM
DDR5 RAM comes as standard on the TS-h3077AFU to accommodate the increased performance of CPUs. Up to 192 GB can be installed to tackle memory-intensive and complex multitasking workloads, and ECC memory is also supported (sold separately).
Designed for media production and enterprises
Expandability is a concept for the TS-h3077AFU. Let’s see how the all-flash TS-h3077AFU supercharges your organization in 4K/8K video workflows, storage centers, and virtualization applications.
Flexibly add petabyte-scale storage capacity
Use a TS-h3077AFU paired with multiple QNAP TL PCIe interface SATA JBOD expansion enclosures to achieve both breakthrough performance and massive capacity. The TS-h3077AFU supports up to eight 24-bay TL-R2400PES-RP JBOD enclosures, providing a storage capacity of 192 drives.
Upgrade up to 100 Gbps
The TS-h3077AFU empowers your organization with the bandwidth to tackle the most demanding applications, including storage centers, virtualization, massive file transfer, high-speed backup/restoration, and multimedia transmission. Utilizing Port Trunking (Link Aggregation) ensures network redundancy to improve fault tolerance.
Streamline post-production workflows
Store your projects on the super-fast TS-h3077AFU. NAS folders can be mounted on Windows® or Mac® via 25/10 GbE, allowing teams to save time and effort.
Backup business-critical data
The all-flash TS-h3077AFU delivers low latency and high IOPS performance. The ZFS-based QuTS hero operating system ensures data integrity and reliability while supporting multiple backup solutions.
Virtualization
With ultra-fast DDR5 memory which is optimized for large data processing, the TS-h3077AFU is ideal for server virtualization and virtual desktop infrastructure (VDI) usage.
Long-term and stable supply available
The TS-h3077AFU will be available until 2030. This long-term availability makes the TS-h3077AFU an ideal choice for organizations requiring matching NAS models for long-term projects.
Get a secondary backup to QNAP-hosted cloud storage
Back up NAS data to myQNAPcloud Storage, the perfect partner for QNAP’s backup/recovery solutions, including Hybrid Backup Sync. We only charge for storage space, with transmitting data being completely free.
Future-proof PCIe Gen 4 slots
The TS-h3077AFU has three PCIe Gen 4 slots for you to add additional functionality (such as 100 GbE connectivity) to meet growing workload and business requirements.
100/25 GbE network card
Enable lightning-fast throughput for bandwidth-demanding tasks such as 4K/8K production or virtualization.
QM2 cards
Adds M.2 SSD or extra 10/2.5 GbE connectivity to the NAS for optimized performance and bandwidth.
Graphics cards
Supercharge your video editing and transcoding or enable GPU passthrough to virtual machines.
Robust hardware to boost SSD performance
The TS-h3077AFU’s high-level hardware with an expandable architecture is designed to maximize SSD performance.
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
Inline data deduplication, compression, and compaction improve SSD endurance
QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h3077AFU optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era. All-flash solutions thus achieve higher cost efficiency while improving both random write performance and SSD lifespan.
Real-time SnapSync ensures minimal RPO with real-time disaster recovery
Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.
License-free VMware® and Hyper-V backup appliance
With Hyper Data Protector, the TS-h3077AFU becomes an agentless backup tool for VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.
Move business data to the cloud and enjoy low latency access to cloud-based data
The TS-h3077AFU perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible, and secure hybrid cloud applications.
Reliable, high-performance storage for virtualization
The TS-h3077AFU supports block-based iSCSI LUN as a reliable, high-performance, and affordable storage solution for mainstream virtualization environments. It supports VMware® VAAI and Microsoft® ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively.
| Storage | |
| Storage drive interface | Serial ATA III |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5" |
| RAID support | Yes |
| Hot-swap drive bays | Yes |
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 30 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Processor | |
| Processor manufacturer | AMD |
| Processor family | AMD RyzenT 5 |
| Processor boost frequency | 5.1 GHz |
| Processor cores | 6 |
| Processor threads | 12 |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR5 |
| Maximum RAM supported | 192 GB |
| Memory slots | 4 |
| Memory form factor | UDIMM |
| ECC | Yes |
| Flash memory | 5000 MB |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Jumbo frames support | Yes |
| Wake-on-LAN ready | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| Design | |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Black, Metallic |
| Number of fans | 3 fan(s) |
| Fan diameter | 6 cm |
| LED indicators | LAN, Power, SSD, Status |
| Performance | |
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Buzzer | Yes |
| Snapshot | Yes |
| Reset button | Yes |
| On/off switch | Yes |
| Built-in FTP server | Yes |
| Software | |
| Operating system installed | QuTS hero |
| Operating system version | h5.2.1 |
| Windows operating systems supported | Windows 10, Windows 8, Windows 7, Windows 11 |
| Linux operating systems supported | Ubuntu 14.04 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Other operating systems supported | IBM AIX 7.1, Solaris 10 |
| Power | |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 550 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 380.23 W |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
| Width | 482.1 mm |
| Depth | 549.7 mm |
| Height | 88.4 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 øC |
| Warranty | |
| Base Warranty | Non Non |
