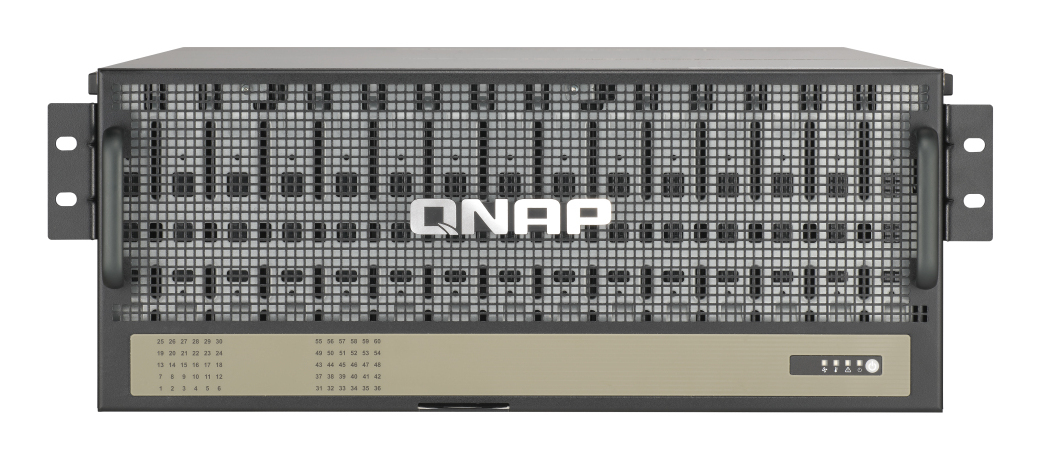

TL-R6020Sep-RP
4U 60-Bay SAS/SATA storage expansion solution supporting 1PB effective capacity in a single chassis
The TL-R6020Sep-RP SAS/SATA storage expansion enclosure in a 60-bay, 4U high-density chassis is the ideal petabyte-level storage expansion solution for QNAP NAS. It provides four high-speed Mini-SAS HD (SFF-8644) ports, supporting SAS 12Gbps transmission interfaces and Broadcom® SAS DataBolt™ bandwidth optimization technology. Its Mini-SAS dual-path redundancy design ensures system operation even if one expansion unit cable fails. Supporting daisy-chaining of up to four units, it's ideal for cold storage applications such as surveillance video archiving, big data storage, and multimedia image storage.
4U space for sixty hard drives
The TL-R6020Sep-RP provides sixty 3.5-inch SAS/SATA HDD slots, delivering petabyte-level massive storage in a single chassis. QNAP NAS allows flexible management of connected TL-R6020Sep-RP storage space through the Storage & Snapshot Manager app. Paired with QNAP-certified hard drives, the TL-R6020Sep-RP provides a highly stable and reliable storage solution.
Diverse JBOD connection methods improve overall performance
The TL-R6020Sep-RP is not limited to daisy chaining. By installing more SAS storage expansion cards in the NAS, you can reduce the number of single-cluster TL-R6020Sep-RP drives and improve overall performance. TL-R6020Sep-RP can also expand an existing QNAP TL SAS JBOD by adding two more, increasing the existing storage capacity to petabyte-level.
Monitor each hard drive from the front panel
The TL-R6020Sep-RP features sixty hard drive status indicators (blue and red) on the front panel, eliminating the need to pull the system from the rack and open the top cover to access the drive trays. A pull-out label also serves as a rack label, making it easy to identify and manage individual TL-R6020Sep-RP.
| Storage | |
| Number of storage drives supported | 60 |
| Storage drive size | 3.5" |
| Supported storage drive interfaces | SAS-3, Serial ATA III |
| RAID levels | JBOD |
| Ports & interfaces | |
| Interface | 4 x SFF-8644 |
| Design | |
| Product type | HDD enclosure |
| Product colour | Black, Grey |
| LED indicators | Yes |
| On/off switch | Yes |
| Rack mounting | Yes |
| Rack capacity | 4U |
| Number of fans | 6 fan(s) |
| Fan diameter | 12 cm |
| Performance | |
| Data transfer rate | 12 Gbit/s |
| Power | |
| Power source type | AC |
| AC adapter input voltage | 100 - 240 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 434 mm |
| Depth | 750 mm |
| Height | 176 mm |
| Weight | 25.2 kg |
| Package width | 595 mm |
| Package depth | 593 mm |
| Package height | 305 mm |
| Package weight | 58.2 kg |
| Packaging content | |
| Cables included | AC |
| Warranty | |
| Base Warranty | Non Non |
