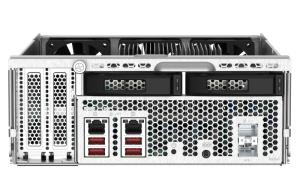

NAS Node - GM-1000 system NAS node TNS-h1083X Xeon E-2234 8GB DDR4
ITCurry #: N222E600 | Article #: TNS-H1083X-E2234-8G-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Designed as a NAS node for the GM-1000 storage system, the TNS-h1083X features a powerful Intel® Xeon® E processor, and provides multiple 10GbE / 2.5GbE ports and expandable I/O. Coupled with the built-in M.2 and U.2 SSD slots that allow for cache acceleration, the TNS-h1083X is ideal for business backup and virtualization applications. The TNS-h1083X runs the ZFS-based QuTS hero operating system, supporting block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and more business-oriented features to ensure reliable service-level agreement performance.
1. A NAS node for the GM-1000 system. Enables easier hardware upgrade and maintenance.
2. Dual 10GbE and dual 2.5GbE ports boost virtualization, cloud storage gateway, and data center applications.
3. M.2 and U.2 SSD slots enable cache acceleration to maximize network bandwidth potential.
4. Two PCIe slots support 10GbE/25GbE/40GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.
5. Supports virtualization storage for VMware®, Citrix®, Microsoft® Hyper-V®, Windows Server® 2019, and hosts virtual machines and containers.
6. QuTS hero combines ZFS advantages with the QTS App Center ecosystem to empower your business.
Storage | |
Storage drive interface | M.2 |
System drive sizes supported | 2.5" |
Number of M.2 (M & B) slots | 2 |
Storage drives installed | No |
Processor | |
Processor manufacturer | Intel |
Processor family | Intel© Xeon© |
Processor model | E-2234 |
Processor frequency | 4.8 GHz |
Processor cores | 4 |
CPU configuration (max) | 1 |
Memory | |
Internal memory | 8 GB |
Internal memory type | DDR4 |
Maximum RAM supported | 128 GB |
Memory slots | 4 |
Memory form factor | UDIMM |
Flash memory | 5120 MB |
Network | |
Ethernet LAN | Yes |
Ethernet LAN data rates | 100,1000 Mbit/s |
Jumbo frames support | Yes |
Ports & interfaces | |
USB port | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
PCI Express x4 (Gen 3.x) slots | 1 |
PCI Express x8 (Gen 3.x) slots | 1 |
Design | |
Product colour | Silver |
Number of fans | 3 fan(s) |
Fan diameter | 6 cm |
Performance | |
Type | NAS |
Backup function | No |
Power | |
Fan voltage | 12 V |
Weight & dimensions | |
Width | 86.9 mm |
Depth | 219.6 mm |
Height | 369.4 mm |
Processor special features | |
Embedded options available | No |
Enhanced Intel SpeedStep Technology | Yes |
Execute Disable Bit | Yes |
Idle States | Yes |
Intel 64 | Yes |
Intel Clear Video Technology | No |
Intel Trusted Execution Technology | Yes |
Intel TSX-NI | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Logistics data | |
Harmonized System (HS) code | 84714100 |
Warranty | |
Base Warranty | Non Non |
