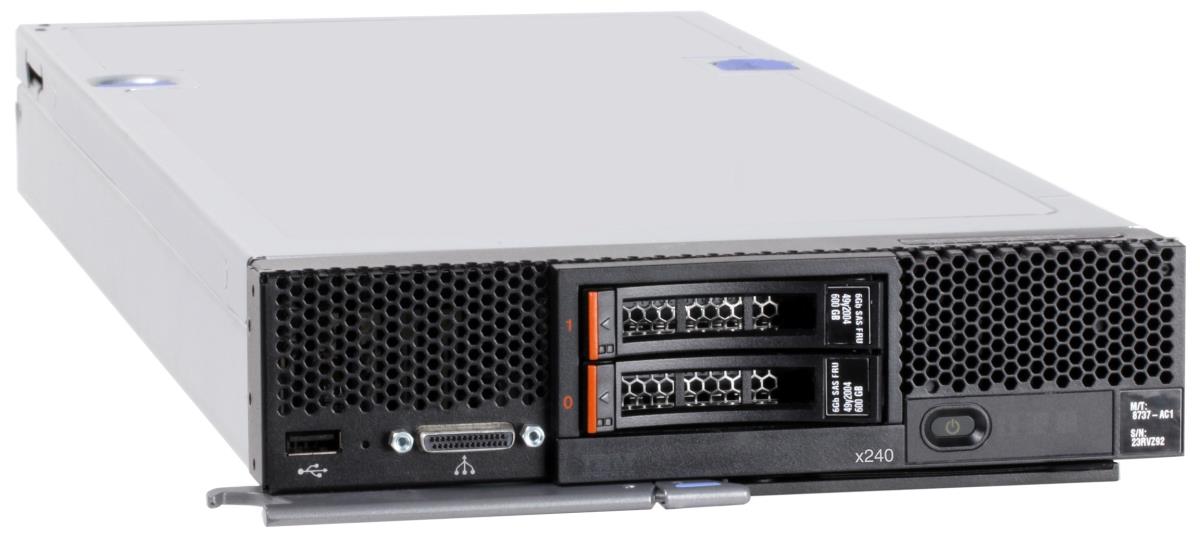

Flex System X240 Compute Node Xeon E5-2650v2 / 8GB O/bay 2.5in SAS
ITCurry #: 2550N219 | Article #: 873742G-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
- Optimized for virtualization, performance and highly scalable networking.
- Embedded IBM Virtual Fabric allows breakthrough I/O flexibility.
- Designed for simplified deployment and management.
To meet today’s complex and ever-changing business demands, the IBM® Flex System™ x240 compute node, an element of the IBM PureFlex™ System, is optimized for virtualization, performance and highly scalable I/O designed to run a wide variety of workloads. The Flex System x240 is available on either your PureFlex System or IBM Flex System solution.
Get the most out of your compute environment
The Flex System x240 compute node delivers maximum performance—up to 50 percent performance boost over previous generation servers. This enables businesses to get more out of their compute environment for a broad set of workloads. Features such as automated power management with onboard sensors give you more control over power and thermal levels across the system. These capabilities, combined with memory capacity up to 768 GB, help you get the most out of your compute environment.
- Optimized for virtualization, performance and highly scalable I/O.
- Designed for simplified deployment and management.
- Management of all resources from a single interface with IBM Flex System Manager™.
- Virtual networking with integrated virtual fabric and up to 32 virtual networking ports.
- Memory capacity up to 768 GB.
- Intel Xeon processor E5-2600 v2 product family.
- Automated power management with onboard sensors.
- Two 2.5-inch hot-swap disk slots.
- Integrated system management.
- Integrated RAID-0, -1 or optional ServeRAID M5115 (RAID-0, -1, -5, -6, -10, -50).
- Optional hypervisor.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© Xeon© E5 V2 Family |
| Processor model | E5-2650V2 |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 3.4 GHz |
| Processor cores | 8 |
| Processor cache | 20 MB |
| Motherboard chipset | Intel C600 |
| Memory channels supported by processor | Quad |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 95 W |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Maximum number of SMP processors | 2 |
| Processor socket | LGA 2011 (Socket R) |
| Processor lithography | 22 nm |
| Processor threads | 16 |
| Processor operating modes | 64-bit |
| FSB Parity | No |
| Bus type | QPI |
| Number of QPI links | 2 |
| Processor codename | Ivy Bridge EP |
| Tcase | 75 øC |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333,1600,1866 MHz |
| Memory bandwidth supported by processor (max) | 59.7 GB/s |
| ECC supported by processor | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Maximum number of PCI Express lanes | 40 |
| PCI Express configurations | x4, x8, x16 |
| Processor package size | 52.5 x 51 mm |
| Supported instruction sets | AVX |
| Scalability | 2S |
| Physical Address Extension (PAE) | 46 bit |
| Embedded options available | No |
| Processor series | Intel Xeon E5-2600 v2 |
| Conflict-Free processor | No |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 24x DIMM |
| ECC | Yes |
| Memory clock speed | 1600 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 768 GB |
| Storage | |
| Maximum storage capacity | 2 TB |
| Number of HDDs supported | 2 |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1 |
| Optical drive type | No |
| Supported storage drive interfaces | SAS |
| Network | |
| Ethernet LAN | No |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Software | |
| Compatible operating systems | Microsoft Windows Server, SUSE, RedHat Enterprise Linux, VMware |
| Processor special features | |
| CPU configuration (max) | 2 |
| Intel Rapid Storage Technology | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel© Identity Protection Technology (Intel© IPT) | No |
| Intel© Wireless Display (Intel© WiDi) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel© Anti-Theft Technology (Intel© AT) | No |
| Intel© Hyper Threading Technology (Intel© HT Technology) | Yes |
| Intel© My WiFi Technology (Intel© MWT) | No |
| Intel© Turbo Boost Technology | 2.0 |
| Intel© Quick Sync Video Technology | No |
| Intel© InTruT 3D Technology | No |
| Intel© Clear Video HD Technology (Intel© CVT HD) | No |
| Intel© InsiderT | No |
| Intel Flex Memory Access | No |
| Intel© AES New Instructions (Intel© AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Demand Based Switching | Yes |
| Intel© Secure Key | Yes |
| Intel TSX-NI | No |
| Intel© OS Guard | Yes |
| Intel Clear Video Technology | No |
| Intel© Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel 64 | Yes |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
| Intel Dual Display Capable Technology | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Processor ARK ID | 75269 |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Width | 215 mm |
| Depth | 493 mm |
| Height | 51 mm |
