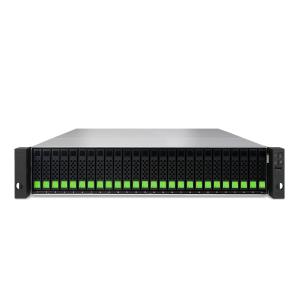

2u Single Ctrl San System 26 Bay 4-port 10gbe Base
ITCurry #: 9776C562 | Article #: XS3226SFlash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
7751.88
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information
QSAN XS3200 Series is the high performance, simple, secure, scalable and affordable SAN storage systems for enterprise and SMB. It is an ideal solution to the applications of virtualization integration, media, and entertainment, or large scale surveillance; and also backup and disaster recovery in the enterprise, SMB or ROBO (Remote Office/Branch Office) deployments.
| Storage | |
| Storage drive interface | Serial ATA III, Serial Attached SCSI (SAS), Near Line SAS (NL-SAS) |
| Storage drive size | 2.5/3.5" |
| Maximum supported storage capacity | 400 TB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 60, JBOD |
| Hot-swap drive bays | Yes |
| Storage drives installed | No |
| Number of storage drives supported | 26 |
| Installed storage drive type | No |
| Supported storage drive types | SSD |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© Xeon© |
| Processor model | D1517 |
| Processor frequency | 2.2 GHz |
| Processor cores | 4 |
| CPU configuration (max) | 1 |
| Conflict-Free processor | Yes |
| Memory | |
| Internal memory type | DDR4 |
| Maximum RAM supported | 128 GB |
| Memory slots | 4 |
| Internal memory | 4 GB |
| Memory form factor | RDIMM |
| Network | |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Design | |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Black, Metallic |
| Country of origin | Taiwan |
| Performance | |
| Type | SAN |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Software | |
| Operating system installed | QNAP Storage Manager |
| Operating system version | 3 |
| Power | |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 850 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 438 mm |
| Depth | 491 mm |
| Height | 88 mm |
| Weight | 16.3 kg |
| Processor special features | |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 50 øC |
| Storage relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Certification | CE, FCC, BSMI, VCCI, KCC |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Warranty | |
| Base Warranty | Non Non |
