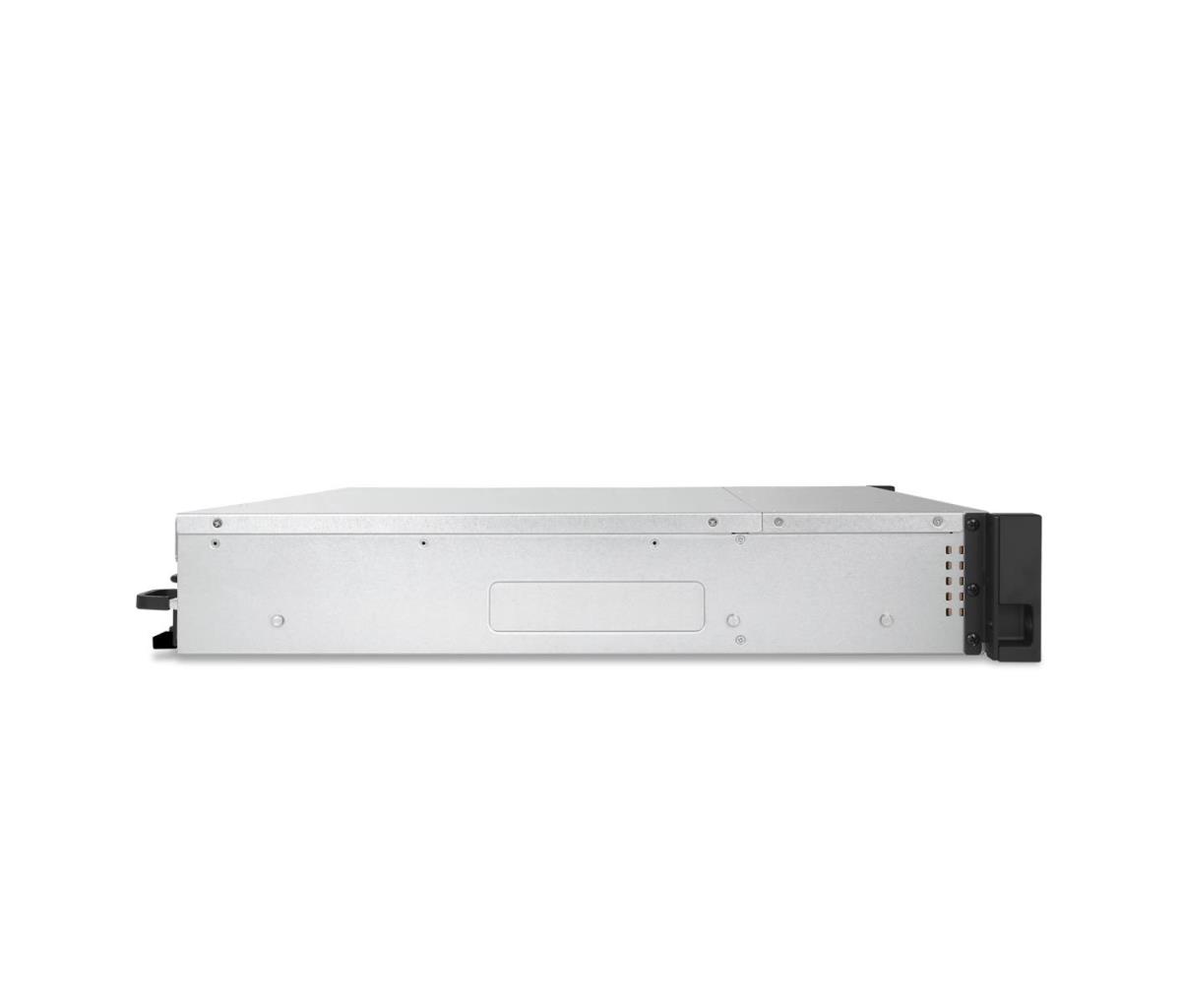

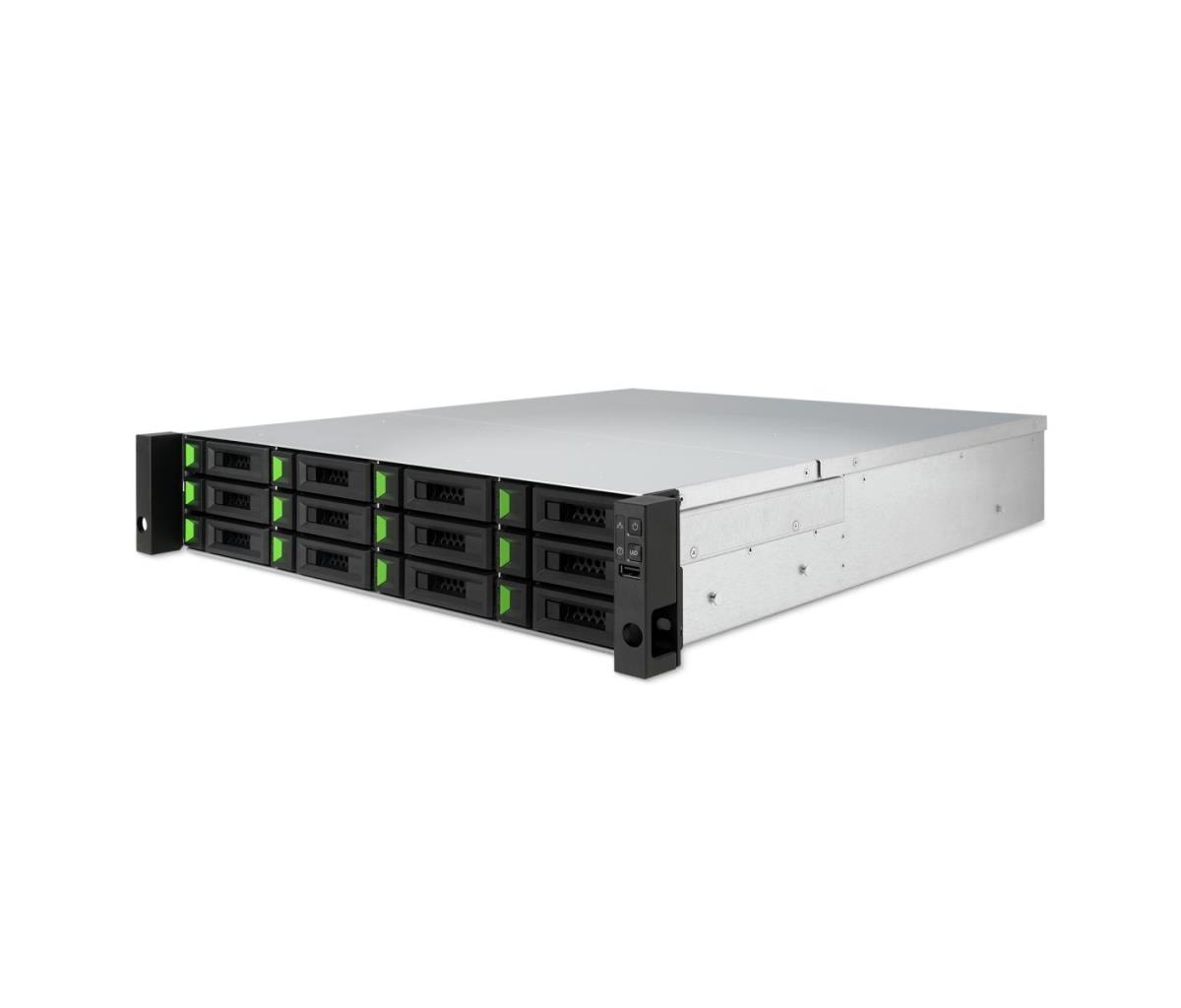

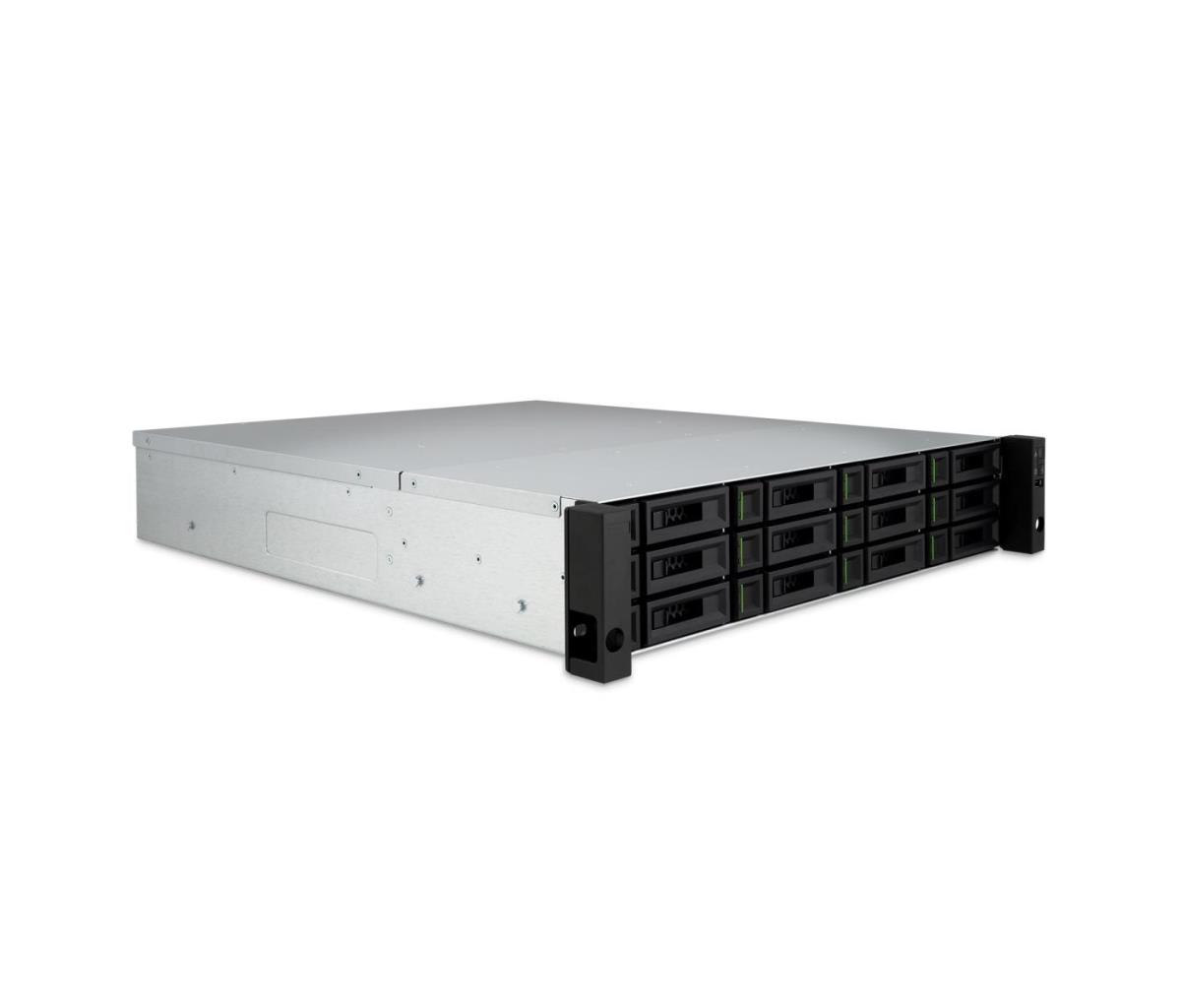

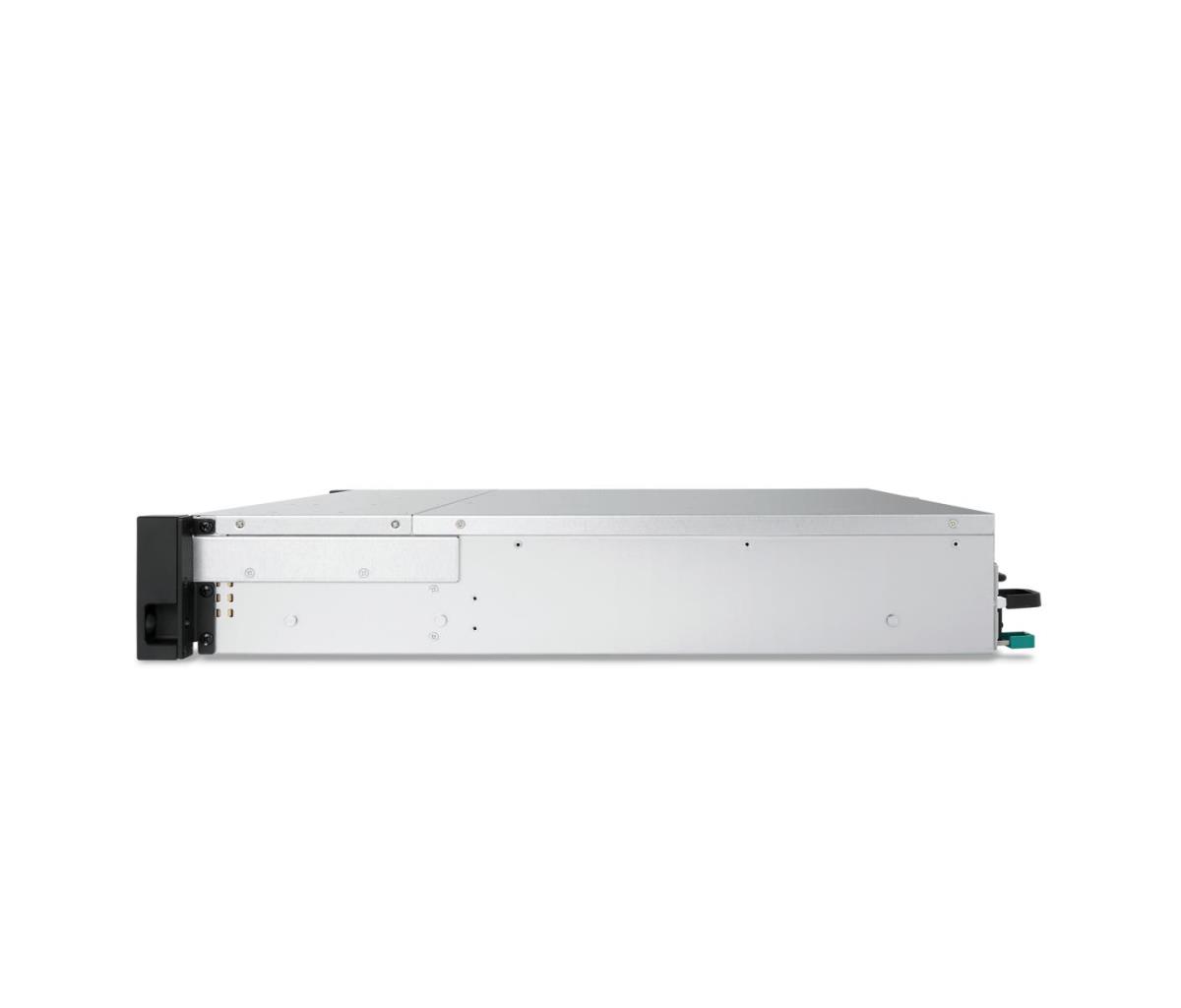

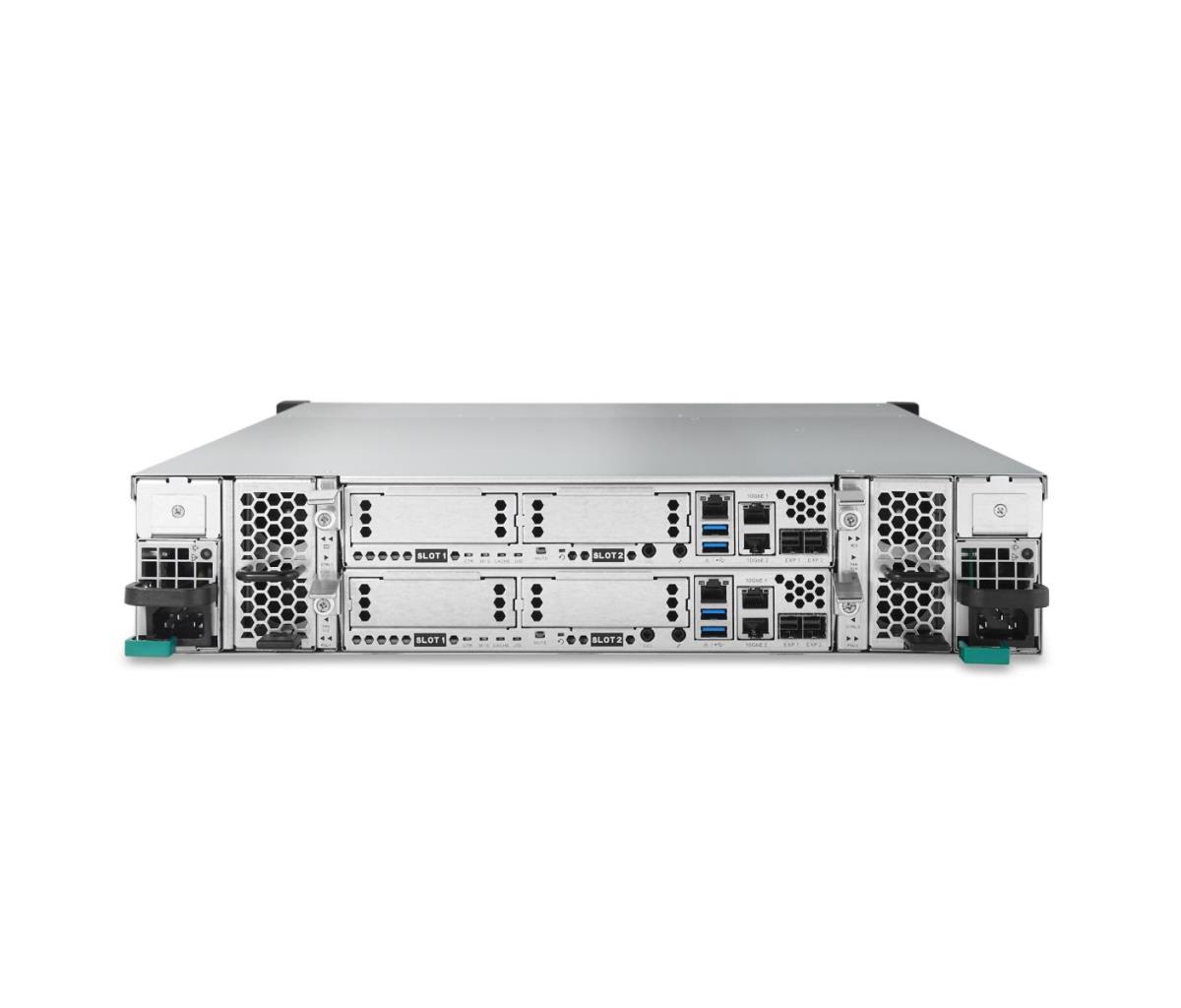

2u Single Ctrl San System 12 Bay 4-port 10gbe Base
ITCurry #: 9776C564 | Article #: XS5212S
slide 2 of 6
Price:
8788.48
Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Related products
slide 7 to 11 of 14
Product Information
The XCubeSAN XS5200 series is the newest generation of Dual-Active (Active-Active) SAN systems with high performance. It's simple, secure, scalable, and affordable for enterprises. It brings enterprise-level features such as thin provisioning, SSD read and write cache, auto-tiering, and snapshot to the SMBs. The XS5200 products are designed to be an ideal solution to the applications of mission-critical data centers, high-performance computing, virtualization integration, or media and entertainment environments.
| Storage | |
| Storage drive interface | Serial ATA III, Serial Attached SCSI (SAS), Near Line SAS (NL-SAS) |
| Storage drive size | 2.5/3.5" |
| Maximum supported storage capacity | 192 TB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 60, JBOD |
| Hot-swap drive bays | Yes |
| Storage drives installed | No |
| Number of storage drives supported | 12 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© Xeon© |
| Processor model | D-1527 |
| Processor frequency | 2.2 GHz |
| Processor cores | 4 |
| CPU configuration (max) | 1 |
| Conflict-Free processor | Yes |
| Memory | |
| Internal memory type | DDR4 |
| Maximum RAM supported | 128 GB |
| Memory slots | 4 |
| Internal memory | 8 GB |
| Memory form factor | RDIMM |
| Network | |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Design | |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Black, Metallic |
| Country of origin | Taiwan |
| Performance | |
| Type | SAN |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Software | |
| Operating system installed | QNAP Storage Manager |
| Operating system version | 3 |
| Power | |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 850 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 438 mm |
| Depth | 515 mm |
| Height | 88.5 mm |
| Weight | 16.4 kg |
| Processor special features | |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 50 øC |
| Storage relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Certification | CE, FCC, BSMI, VCCI, KCC |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Warranty | |
| Base Warranty | Non Non |
2u Single Ctrl San System 12 Bay 4-port 10gbe Base
8788.48
