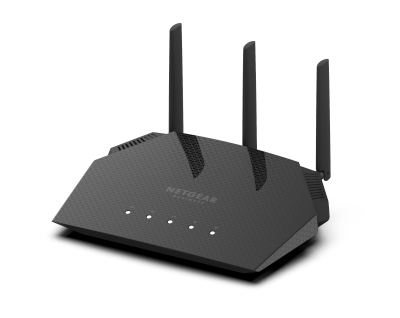

WAX204 Wireless Access Point Dual Band Wi-Fi 6 AX1800
ITCurry #: 20325328 | Article #: WAX204-100EUS
slide 3 of 2
Related products
slide 6 to 10 of 15
Product Information
WiFi 6 high performance wireless connectivity for Small Office and Home Office (SOHO) deployments
The NETGEAR WiFi 6 AX1800 Dual Band Wireless Access Point (AP) delivers 802.11ax high performance wireless connectivity for Small Office and Home Office (SOHO) deployments and supports dual band concurrent WiFi 6 operations at 2.4GHz and 5GHz with a combined throughput of 1.8Gbps (600Mbps at 2.4GHz and 1200Mbps at 5GHz). The WAX204 WiFi 6 Access Point provides standalone configuration with easy setup for a reliable, 802.11ax high performance,
and cost effective wireless solution.
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 600 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n |
| Number of users | 64 user(s) |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Security | |
| Security algorithms | WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| Number of SSID supported | 3 |
| Access Control List (ACL) | Yes |
| VPN support | VPN Pass-through |
| Management features | |
| Web-based management | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 5 |
| Power | |
| Power over Ethernet (PoE) | No |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power supply | 18 W |
| Design | |
| Placement | Table |
| Product colour | Black |
| Reset button | Yes |
| WPS push button | Yes |
| LED indicators | LAN, Link, Power, WLAN, WPS |
| Antenna | |
| Antenna type | External |
| Antennas quantity | 3 |
| Antenna gain level (max) | 3 dBi |
| Certificates | |
| Certification | CE (EN60950) |
| Weight & dimensions | |
| Width | 236 mm |
| Depth | 184 mm |
| Height | 57 mm |
| Weight | 490 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
