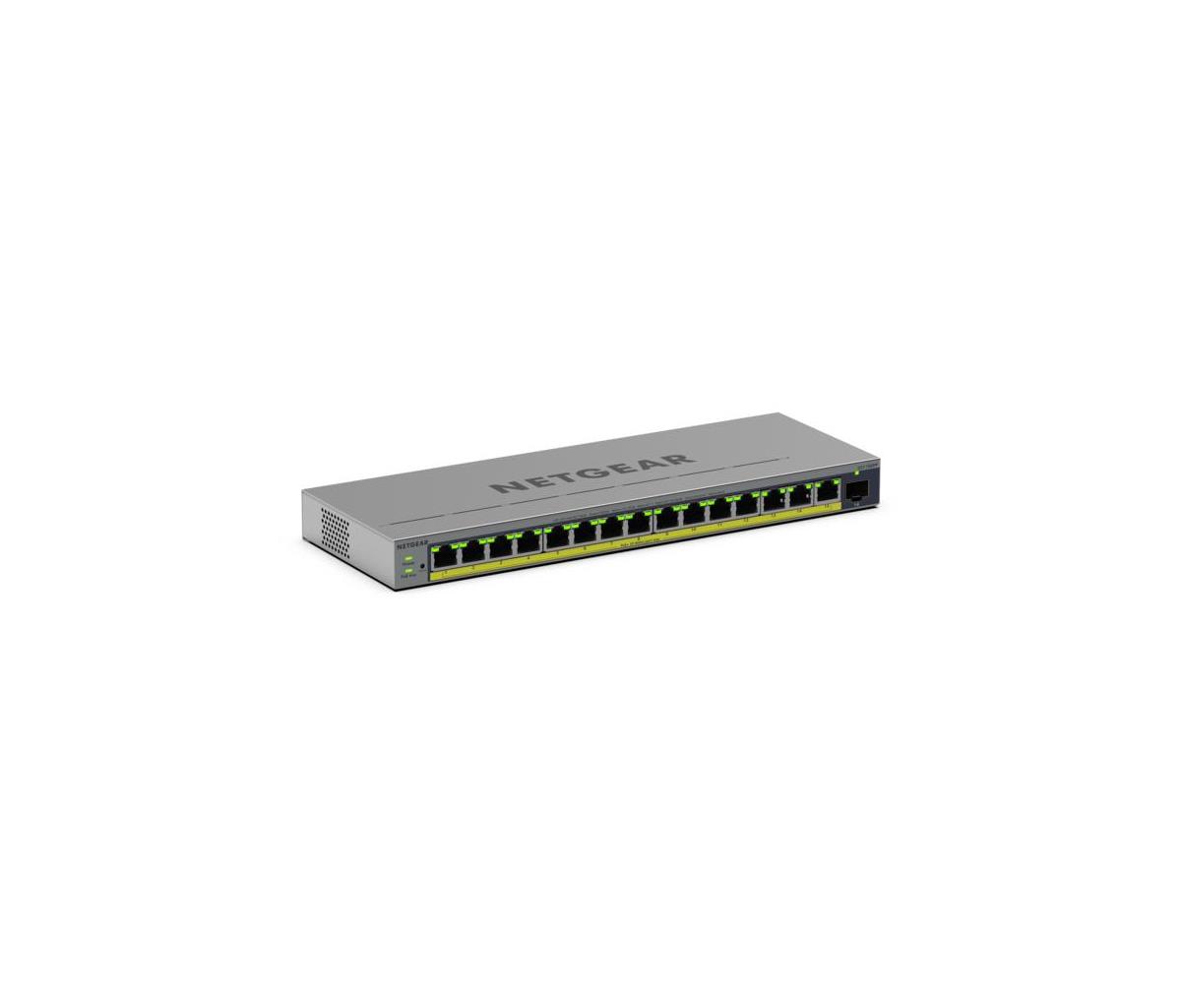

Gigabit Ethernet Easy Smart PoE+ Switch GS116EPP 16-Port with 1 Dedicated SFP port (231W)
ITCurry #: 20325570 | Article #: GS116EPP-100EUS-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
EASY POE CONTROLS
Manage PoE prioritization, PoE power limit per port, PoE scheduling and more for advanced control over all PoE-powered devices
GIGABIT ETHERNET AND FIBER
15 ports provide Gigabit Ethernet connectivity to your devices and 1 SFP fiber port for long distance connections
VLANS
Port-based and 802.1Q-based network separation into smaller groups for more secure and efficient use of network resources
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Place your switch on your desktop or mount it to your wall with the hardware provided in the box. Silent operation makes this switch perfect for noise-sensitive environments
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 1 |
| SFP module slots quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3az |
| Rate limiting | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 64 |
| Data transmission | |
| Switching capacity | 1 Gbit/s |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
| Security | |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support | Yes |
| Number of multicast groups filtered | 128 |
| Design | |
| Product colour | Grey |
| Housing material | Metal |
| Performance | |
| Mean time between failures (MTBF) | 5704358 h |
| Power | |
| Power source | AC/DC |
| Power consumption (max) | 250.6 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 15 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 231 W |
| Other features | |
| Bandwidth | 32 Gbit/s |
| Warranty period | 5 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 286 mm |
| Depth | 101 mm |
| Height | 27 mm |
| Weight | 830 g |
| Packaging content | |
| Quick start guide | Yes |
| Manual | Yes |
| Certificates | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), KC, VCCI |
| Warranty | |
| Base Warranty | Non Non |
