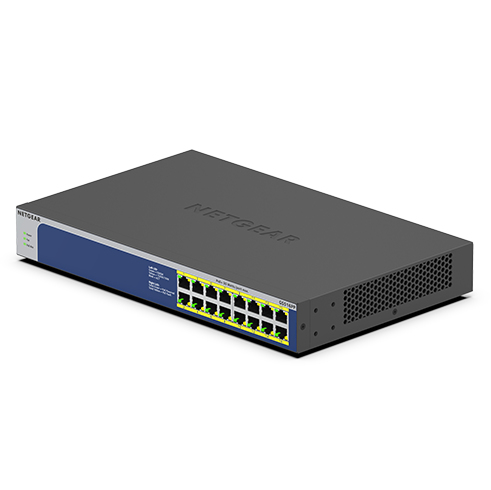

GS516PP Gigabit Unmanaged Switch 16-Port High-Power PoE+
ITCurry #: 20325318 | Article #: GS516PP-100EUS-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Instant Connectivity and Reliable Performance
The NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS516PP joins the series and offers 16 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 260W, deploy denser PoE+ devices to a single switch rather than multiple
The GS516PP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
Powerful and Energy Efficient
Ideal for powering and connecting VoIP phones, wireless access points, IP Cameras and IoT devices. Desktop or rackmount for flexible placement. The GS516PP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio.
NETGEAR Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected. It can further save energy when a short cable is used.
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-T, 1000BASE-T |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Switching capacity | 32 Gbit/s |
| MAC address table | 8000 entries |
| Latency (1 Gbps) | 12 æs |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Packet buffer memory | 0.192 MB |
| Security | |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Design | |
| Rack mounting | Yes |
| Product colour | Blue, Grey |
| Housing material | Metal |
| LED indicators | Activity, Fan fail, Link, PoE, Power, Speed |
| Number of fans | 2 fan(s) |
| Certification | FCC 47 CFR Part15B (Class A) ICES-003 Class A EN 55024/55032/55035 (Class A) AS/NZS CISPR 32 VCCI BSMI CNS13438 KCC UL 62368-1 CB_IEC 60950-1 + IEC 62368-1 Ed-3 LVD EN60950-1+EN62368-1 Ed-2 Rpt AS/NZS 62368.1 Ed-2 BSMI CNS14336-1 |
| Performance | |
| Mean time between failures (MTBF) | 2415333.9 h |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 316.1 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 260 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 330 mm |
| Depth | 207 mm |
| Height | 43 mm |
| Weight | 2.3 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
