Meticously Powerful Signage with Professional Protection

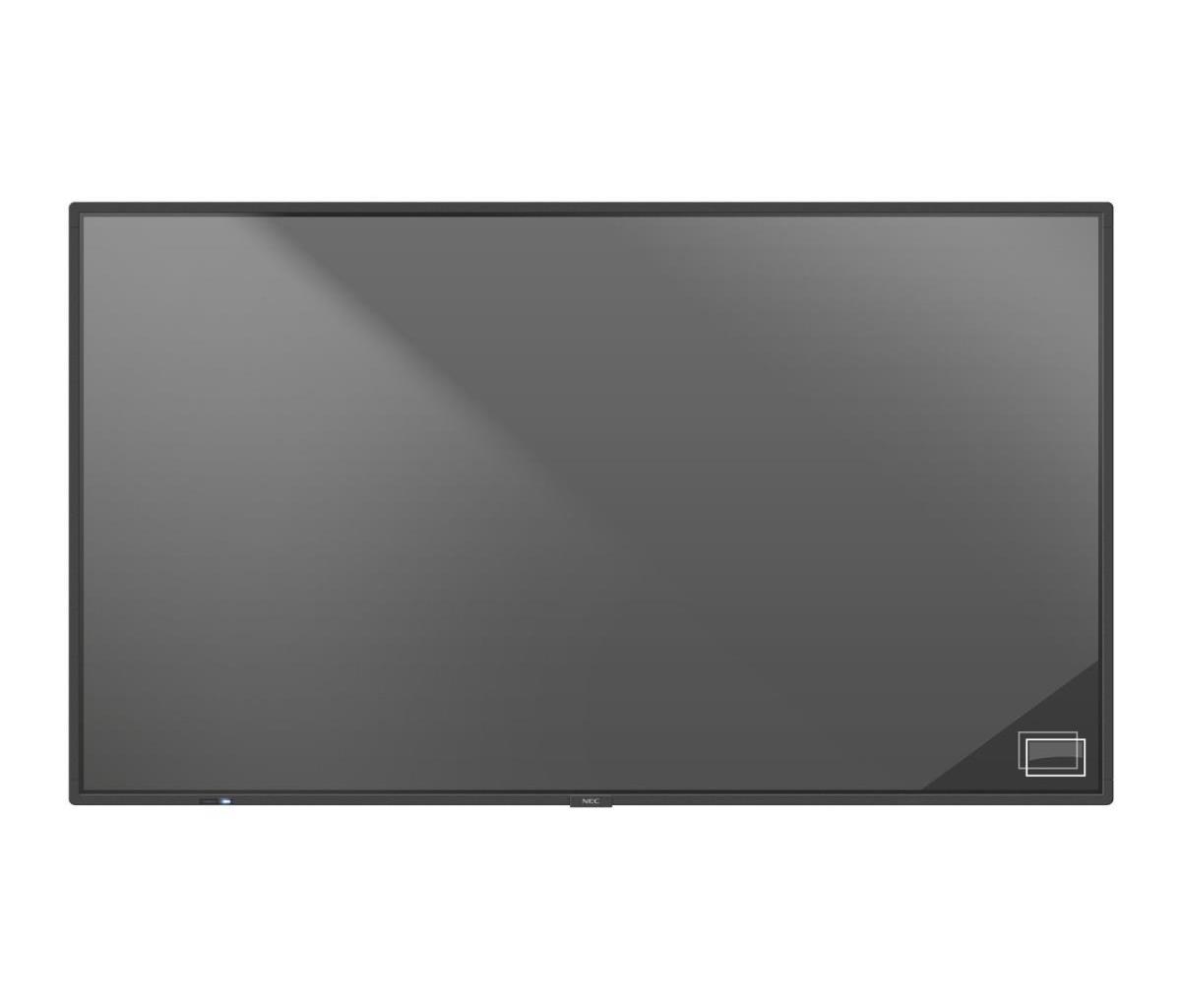

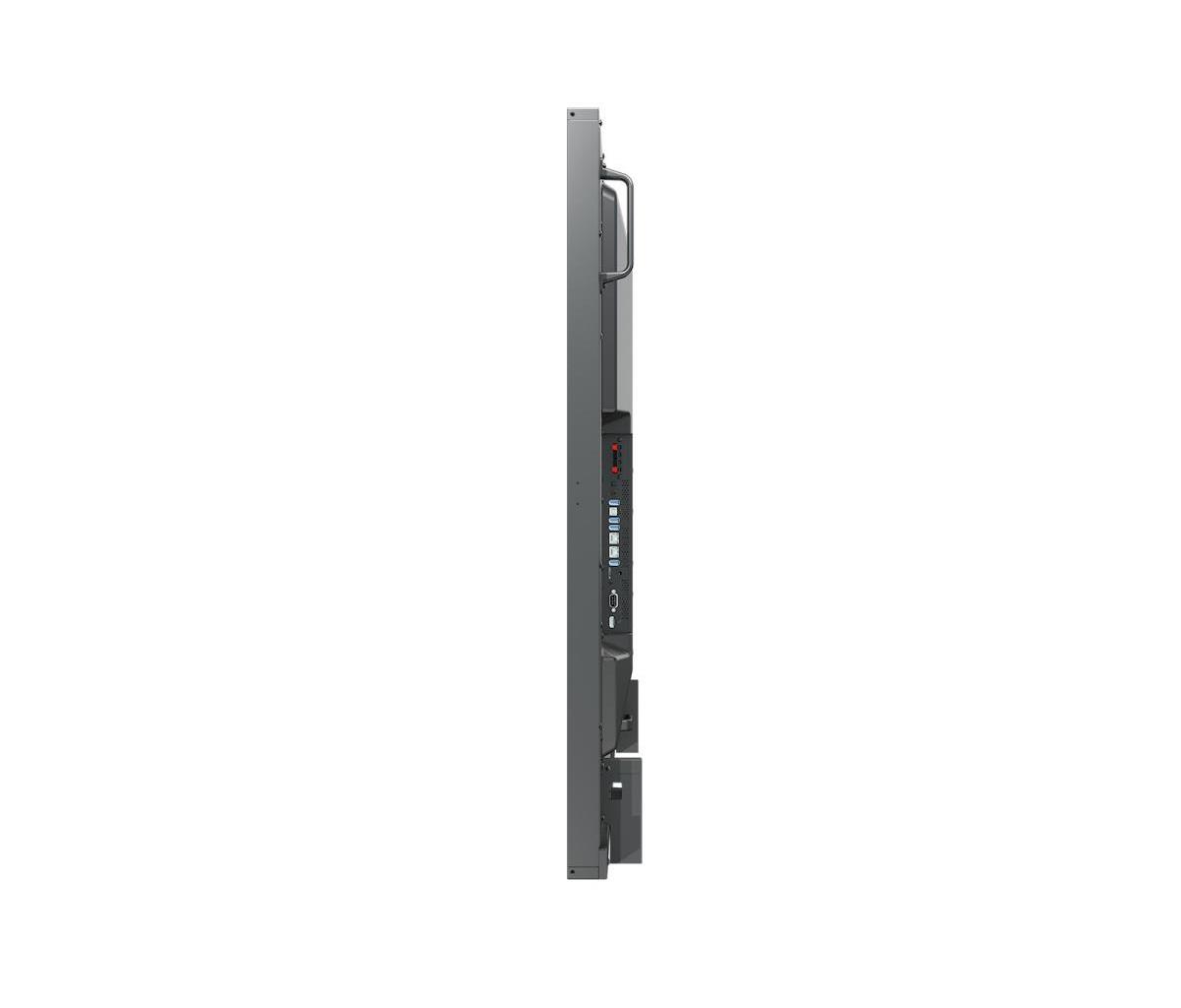

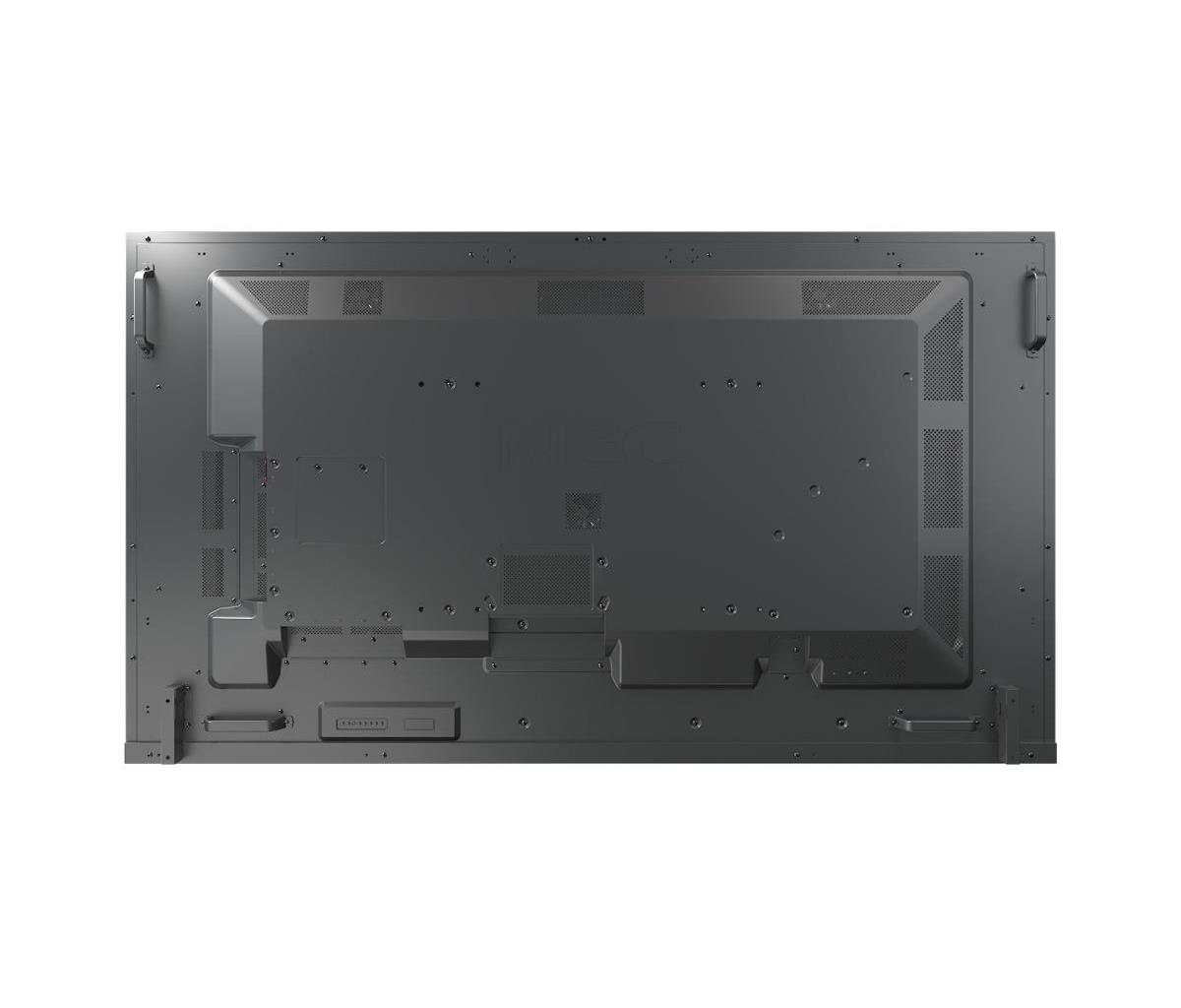

The NEC MultiSync® MA431 PG-2 combines professional protection of your investment with unparalleled display performance. Deliver your message with impact and seamless simplicity for the most convincing results.
Guaranteed reliability even under the toughest conditions is achieved with the super robust 4mm thick protective glass designed to withstanding external impacts. The anti-reflective glass surface combined with brightness levels of 500 cd/m² provides crisp and clear images and readability from different viewing angles and distances.
The MultiSync® MA431 PG-2 is the perfect choice for creating a big and durable impression in public spaces with high volumes of people such as for applications in transportation, retail, hospitality and digital out of home as well as for tough environments in industrial applications. Thanks to the Wide Colour Gamut panel, pictures look more appealing than any other display.
Display | |
Panel type | IPS |
LED backlight | Yes |
Display diagonal | 124.5 cm (49") |
Display technology | LED |
Display resolution | 3840 x 2160 pixels |
Display brightness | 700 cd/mý |
Touchscreen | No |
Native aspect ratio | 16:9 |
Response time | 8 ms |
Contrast ratio (typical) | 8000:1 |
Viewing angle, horizontal | 178ø |
Viewing angle, vertical | 178ø |
Display number of colours | 1.073 billion colours |
Horizontal scan range | 15 - 135 kHz |
Vertical scan range | 23 - 76 Hz |
Native refresh rate | 60 Hz |
Haze rate | 28% |
Ports & interfaces | |
HDMI ports quantity | 5 |
HDMI input ports quantity | 4 |
HDMI output ports quantity | 1 |
DVI port | No |
DisplayPorts quantity | 4 |
DisplayPorts in | 2 |
DisplayPorts out | 2 |
USB port | Yes |
USB ports quantity | 3 |
USB version | 2.0 |
USB connector type | USB Type-A, USB Type-B |
USB 2.0 Type-B ports quantity | 1 |
USB Power Delivery (USB PD) | Yes |
USB Power Delivery up to | 10 W |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 2 |
Ethernet LAN data rates | 100 Mbit/s |
Wi-Fi | No |
RS-232 interface | Yes |
Audio Return Channel (ARC) | Yes |
Audio | |
Built-in speaker(s) | No |
Design | |
Product design | Kiosk design |
Placement supported | Indoor |
Product colour | Black |
VESA mounting | Yes |
Panel mounting interface | 300 x 300 mm |
Bezel width (bottom) | 1.96 cm |
Bezel width (side) | 2.21 cm |
Bezel width (top) | 1.6 cm |
Performance | |
Purpose | Universal |
Operating hours (hours/days) | 24/7 |
HDCP | Yes |
International Protection (IP) code | IP5X, IP2X |
Power | |
Power consumption (typical) | 105 W |
Power consumption (standby) | 0.5 W |
Energy efficiency class (SDR) | G |
Energy consumption (SDR) per 1000 hours | 106 kWh |
AC input voltage | 100-240 V |
AC input frequency | 50/60 Hz |
Computer system | |
Computer system | Yes |
Built-in processor | Yes |
Processor manufacturer | Intel |
Weight & dimensions | |
Display width | 1122.6 mm |
Display depth | 69.8 mm |
Display height | 644.2 mm |
Display weight | 31.8 kg |
Packaging data | |
Package width | 1298 mm |
Package depth | 224 mm |
Package height | 860 mm |
Package weight | 38.7 kg |
Packaging content | |
Remote control included | Yes |
Batteries included | Yes |
Cables included | HDMI, Power |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 øC |
Operating relative humidity (H-H) | 20 - 80% |
Storage temperature (T-T) | -20 - 60 øC |
Storage relative humidity (H-H) | 10 - 90% |
Features | |
Base material | Metal |
Warranty | |
Base Warranty | Non Non |
