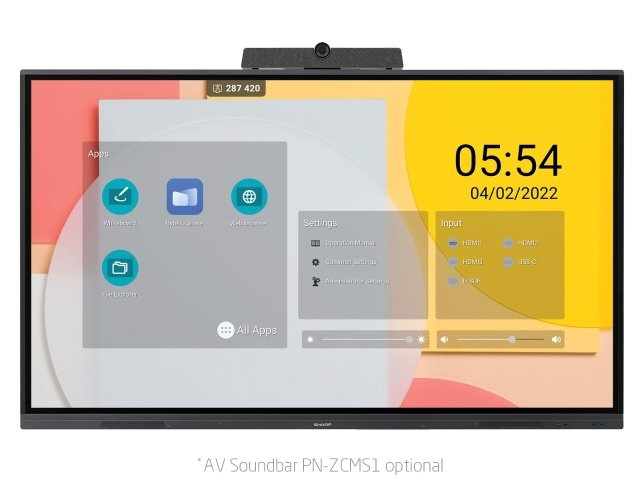

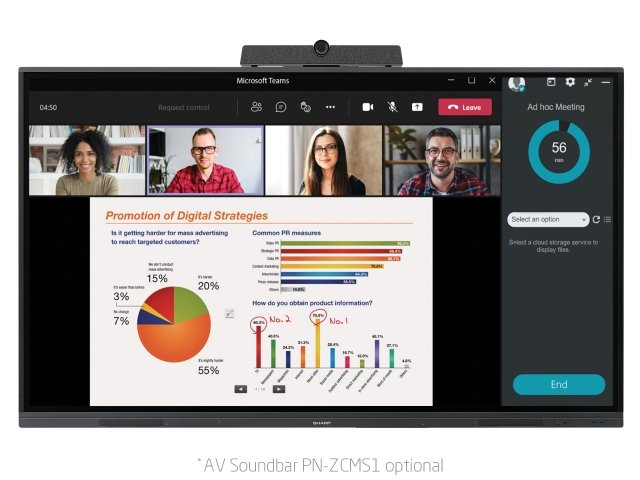

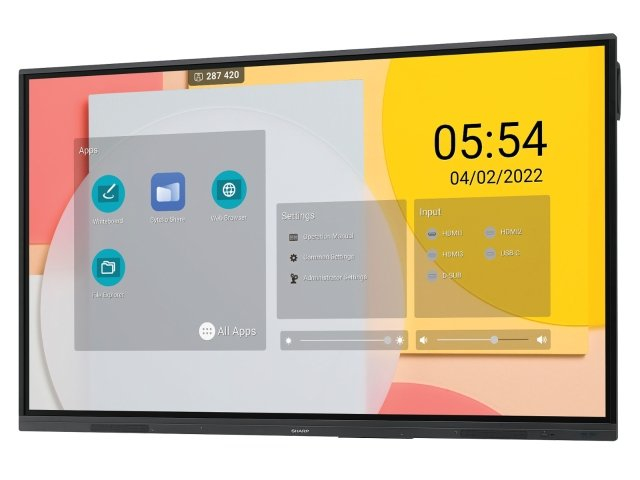

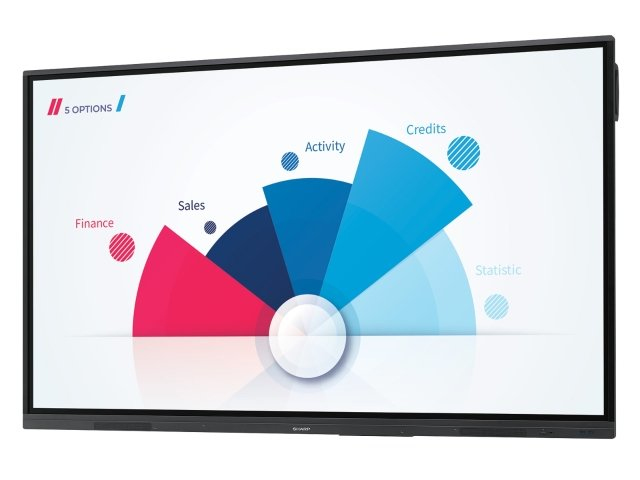

Large Format Display - Pn-l2b-series - 86in
ITCurry #: 50754479 | Article #: 60005559-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Enjoy a more natural way of working
The BIG PAD L2B range of smart interactive displays combines genuine ‘4K reading and writing’ and an intuitive ‘Pen-on-Paper’ user experience with Zero Bonding and Sharp’s PrecisionTouch technology. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The L2B series also features an integrated Android PC with whiteboard, overlay writing mode and wireless screen sharing functionality as well as graded security to help enhance your productivity.
The BIG PAD L2B series is the perfect choice for busy office environments, boardrooms, meeting rooms and training sessions that require quick responsive operation and smart integrated collaboration tools. It encourages effective group teamwork, promotes idea sharing and helps people deliver great presentations and achieve better meeting outcomes.
| Display | |
| Display diagonal | 2.18 m (86") |
| Display brightness | 350 cd/mý |
| Display resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Panel type | IPS |
| LED backlighting type | Direct-LED |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 1200:1 |
| Response time | 8 ms |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 20 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Screen glass thickness | 3.4 mm |
| Haze rate | 8% |
| Hardness | 8H |
| Computer system | |
| Operating system installed | Android |
| Operating system version | 9 |
| Built-in processor | Yes |
| Processor architecture | ARM Cortex-A73 |
| User memory | 32 GB |
| RAM capacity | 4 GB |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 20 W |
| Projector | |
| Built-in projector | No |
| Network | |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 3 |
| USB Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone connectivity | 3.5 mm |
| Audio output | 1 |
| RS-232 ports | 1 |
| Ergonomics | |
| Product colour | Black |
| Certification | CE; FCC; RCM; REACH; RoHS; UL/C-UL |
| Power | |
| Power consumption (max) | 470 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11, Windows 8.1 |
| Mac compatibility | Yes |
| Linux operating systems supported | Yes |
| Mobile operating systems supported | Android 9.0 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 1957 mm |
| Depth | 85.7 mm |
| Height | 1159.5 mm |
| Weight | 62.5 kg |
| Packaging data | |
| Package width | 2112 mm |
| Package depth | 280 mm |
| Package height | 1283 mm |
| Package weight | 84 kg |
| Packaging content | |
| Manual | Yes |
| Cables included | AC, HDMI, USB |
| Remote control included | Yes |
| Batteries included | Yes |
| Stylus included | Yes |
| Number of stylus pens | 2 |
| Open Pluggable Specification (OPS) included | Yes |
| Warranty | |
| Base Warranty | Non Non |
