Maevex 6100 encoder quad mini-HDMI in 1GB Ethernet Pci-e x16
ITCurry #: 34002582 | Article #: MVX-E6100X16-4-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Experience Flexible 4K Streaming & Recording
Leveraging ever-expanding IP networks to push and pull content, networked technologies make it easier than ever to meet the growing demand for increased capacity and any-to-any connectivity. Compressed H.264 technology meets almost every need and requirement for quality, low bit rate streaming and recording—including 4K—and allows for multiple streams of almost every type of content to be delivered over standard 1 Gigabit Ethernet networks.

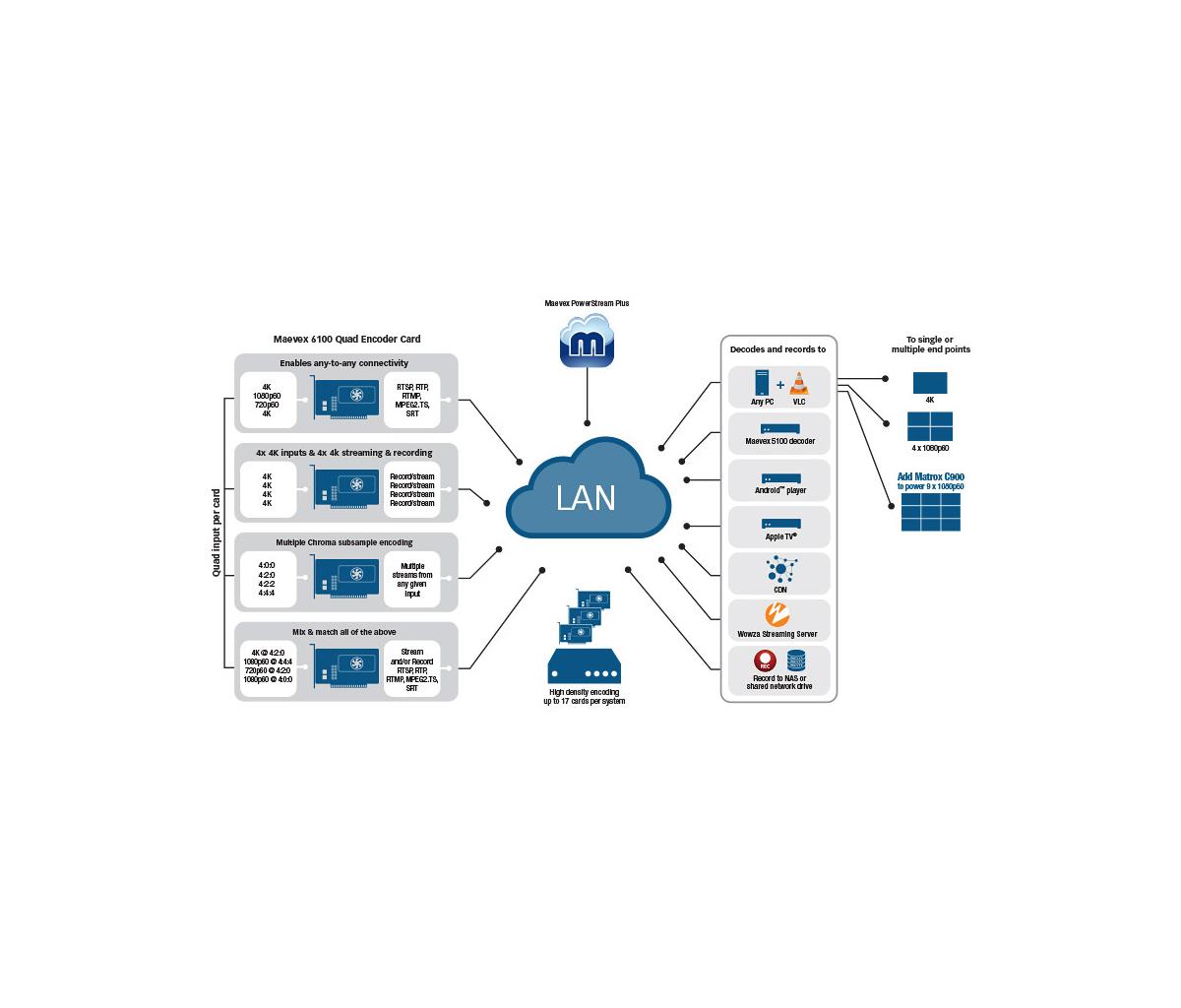

The Matrox Maevex 6100 Series is the next generation in Matrox’s AV-over-IP portfolio—the world’s first to deliver quad 4K input capture and encode for real-time streaming and/or recording four or more 4K/UHD and Full HD channels simultaneously. Ideally suited for process control, digital signage, military, healthcare, government, education, and other applications, the Maevex 6100 Series is available in two convenient form factors—Maevex 6100, a single-slot, high-density quad encoder card and Maevex 6150, a system-independent, standalone quad encoder appliance with zero-latency pass-through for each input.

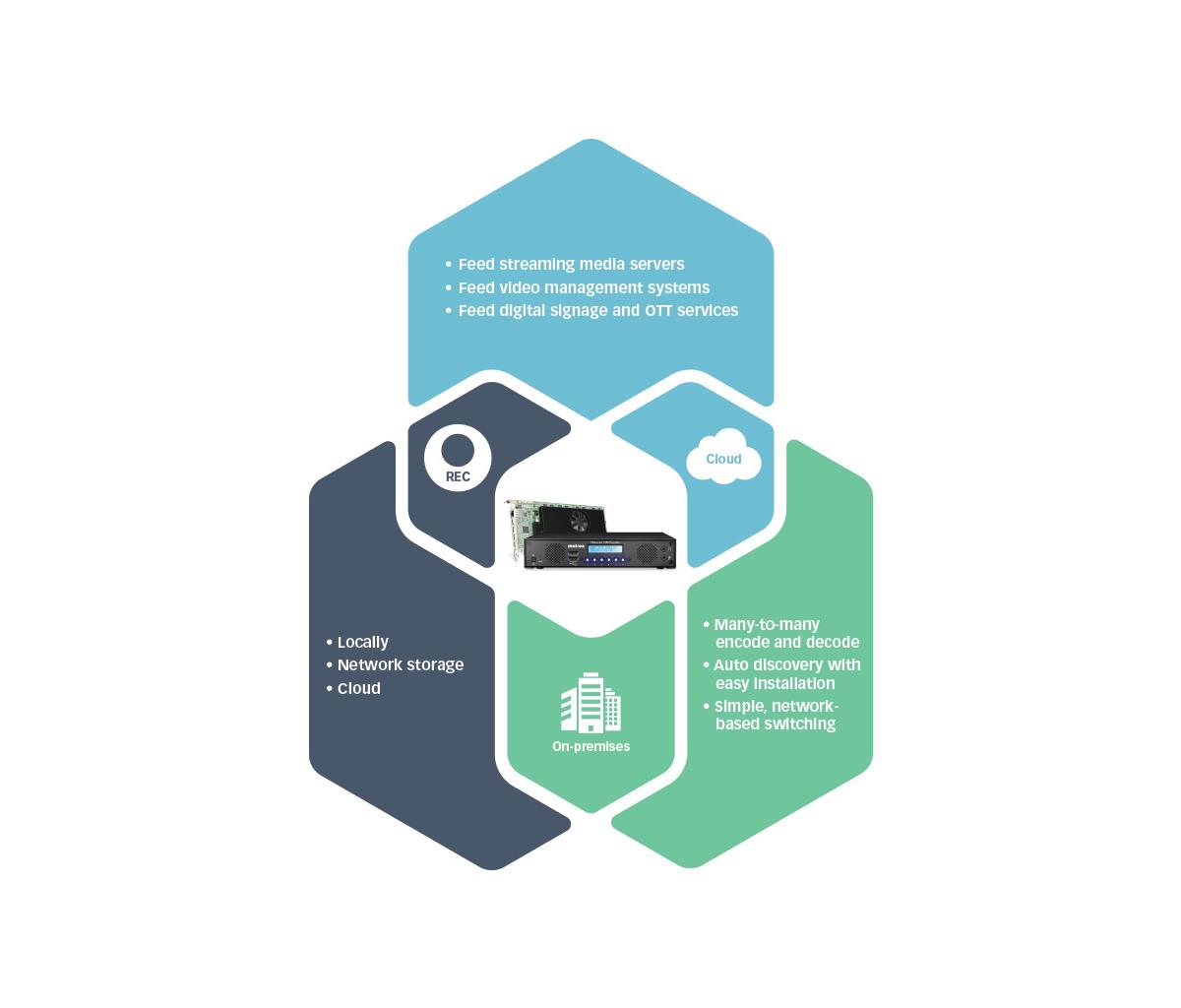

Built on H.264, Maevex 6100 Series plug-and-play solutions fit seamlessly into existing infrastructures and interoperate with virtually any H.264 decode device, ensuring high-density content distribution and system scalability. Robust Matrox PowerStream Plus software—the market’s most advanced AV-over-IP software tool—completes the solution and provides flexible management of local or remote data across the entire network.
| Video | |
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 60 fps |
| Video compression formats | H.264 |
| Performance | |
| Firmware upgradeable | Yes |
| Network | |
| Copper ethernet cabling technology | 100BASE-T, 1000BASE-T |
| Ports & interfaces | |
| HDMI input ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (typical) | 35 W |
| System requirements | |
| Minimum system requirements | Bus Interface: PCIe x8 (elec.), PCIe x8/16 (mech.) Form Factor: Full height, Single slot Bracket (Mounted): ATX |
| Weight & dimensions | |
| Dimensions (WxDxH) | 229 x 111 x 19 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Warranty | |
| Base Warranty | Non Non |
