Digital Signage - 65um5n-h - 65in - 3840 X 2160 (uhd)
ITCurry #: 3182A110 | Article #: 65UM5N-H.AEU-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
UHD Signage Display with LG webOS Platform and Advanced Security
High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Convenient webOS Platform
The UM5N-H is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Durability that Provides Reliability
Optimized for business environments, the UM5N-H is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.
Design for Space Utilization

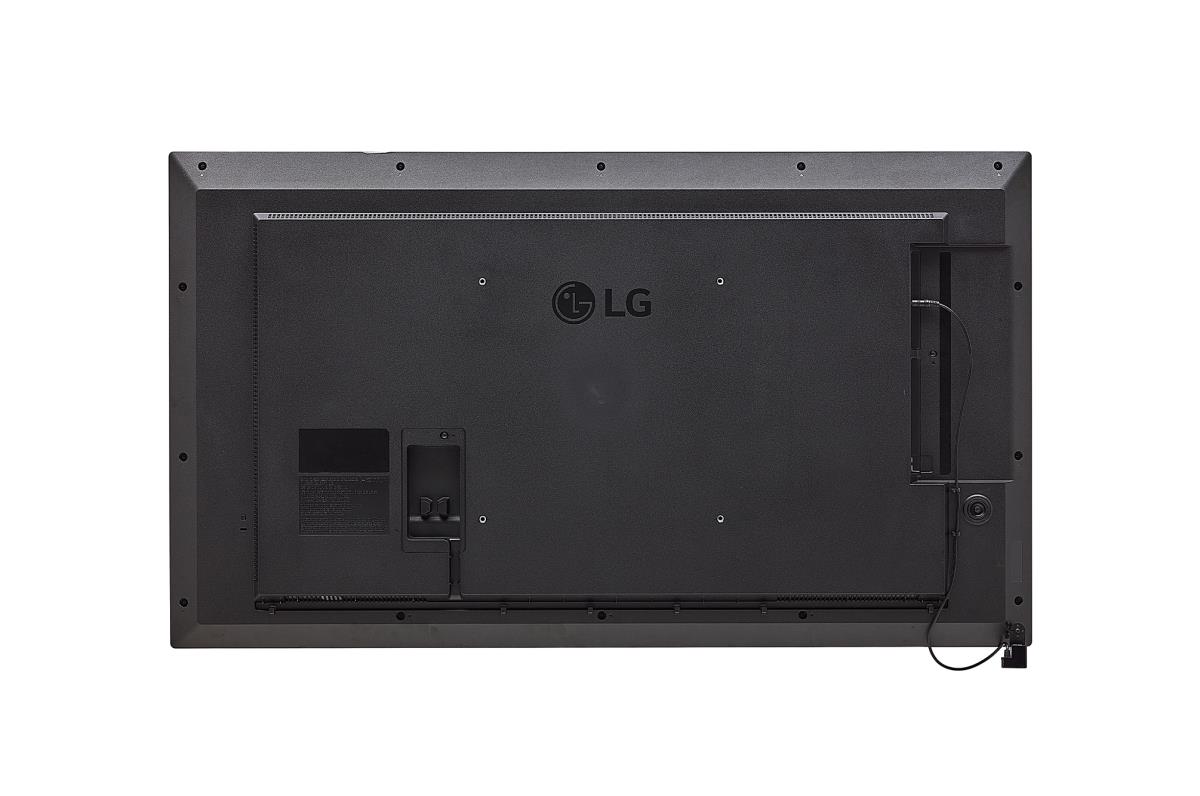

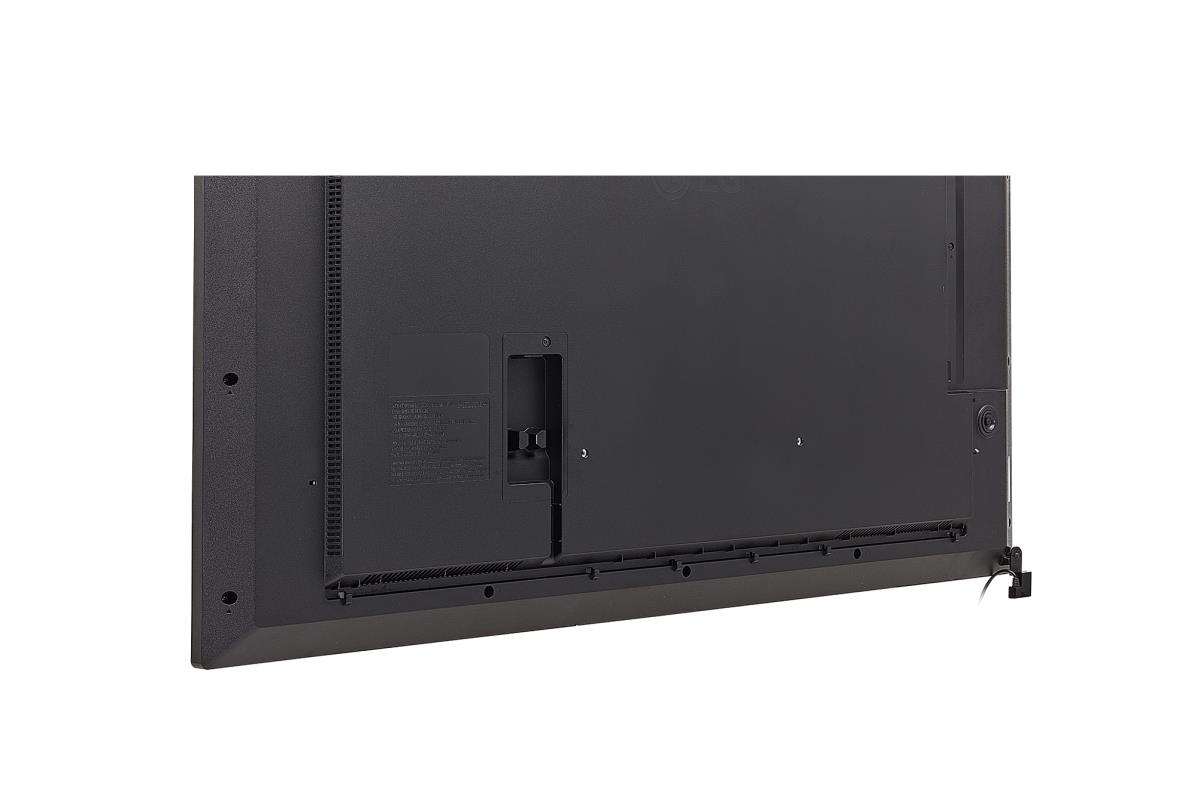

Designed with thin bezels and simple cable management, the UM5N-H saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.
Enhanced Security Features
The UM5N-H provides security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
Sustainability
With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
| Display | |
| Panel type | IPS |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display diagonal | 165.1 cm (65") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/mý |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 1000000:1 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 1.07 billion colours |
| Panel life | 50000 h |
| Colour depth | 10 bit |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| Colour gamut | 95% |
| Ports & interfaces | |
| HDMI ports quantity | 4 |
| HDMI input ports quantity | 3 |
| HDMI output ports quantity | 1 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB connector type | USB Type-A |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Audio | |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 300 x 300 mm |
| Bezel width (bottom) | 1.24 cm |
| Bezel width (side) | 1.24 cm |
| Bezel width (top) | 1.24 cm |
| Performance | |
| Purpose | Universal |
| Picture-in-Picture | Yes |
| On Screen Display (OSD) | Yes |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| Automatic brightness control | Yes |
| International Protection (IP) code | IP5X |
| HDCP version | 1.4/2.2/2.3 |
| Power | |
| Power consumption (typical) | 145 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 200 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Computer system | |
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Internal memory | 16 GB |
| Operating system installed | Web OS |
| Operating system version | 6.0 |
| Weight & dimensions | |
| Display width | 1458 mm |
| Display depth | 57.7 mm |
| Display height | 833 mm |
| Display weight | 21.6 kg |
| Packaging data | |
| Package width | 1600 mm |
| Package depth | 179 mm |
| Package height | 970 mm |
| Package weight | 28.4 kg |
| Packaging content | |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, Phone |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 10 - 80% |
| Technical details | |
| Real Time Clock (RTC) | Yes |
| Other features | |
| Audio output | 1 |
| Power consumption (PowerSave) | 101.5 W |
| Plug and Play | Yes |
| Warranty | |
| Base Warranty | Non Non |
