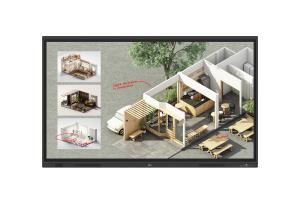

Digital Signage - 65tr3pj-b - 65in - 3840 X 2160 (uhd) - Ir-type Touch Interactive Digital Board
ITCurry #: 31829676 | Article #: 65TR3PJ-B.AEUQ-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Multi Touch
The TR3DJ series can simultaneously use up to 20 points of multi touch. This function offers a lifelike board touch experience and makes collaboration much easier.
Enhanced Visibility with Low Parallax
With 1mm gap between the screen and tempered glass, which supports low parallax, The TR3DJ series can offer precise touch and excellent writing experience.
Dual Pen & Dual Color
The stylus pen comes in two different colors and with two different tip sizes of 3mm and 8mm. The dual pens enable users to write or draw simultaneously.
Easy Writing Experience
The TR3DJ series allows you to write and annotate on sources, so your writing experience can be easy and satisfying.
Air Class
Air Class supports connecting up to 30 students and offers interactive meetings for mobile devices on the same network, providing a variety of tools such as voting, answering, and sharing project texts. Air Class is easily accessible from the TR3DJ's main toolbar.
Built-in OPS Slot
The TR3DJ series supports OPS* slots, allowing you to easily and conveniently mount an OPS* device at the back of the digital board without the hassle of connecting to an external desktop, offering you more expanded functions.
ScreenShare Pro
ScreenShare Pro enables you to show up to six shared screens or a file on a screen in real-time, and it has enhanced usability by allowing users to share Chromecast and Apple device mirroring on the same network without any additional application.
Bluetooth Connectivity
TR3DJ supports Bluetooth wireless connections to various devices such as speaker, mouse, keyboard, etc. This is optimal for building a hybrid environment so that online and offline meetings and classes can proceed smoothly
Web Browser
The TR3DJ series supports an embedded Android web browser, so you can search the web easily and quickly, without connecting to an external tablet or computer.
Toolbar
The Toolbar allows you to easily find and run the tool you need. The annotation feature works on virtually all file types, and you can highlight the section you wish to emphasize using the Spotlight function. The countdown and stopwatch features help you manage class time effectively.
Audio Experience
The TR3DJ series supports built-in speakers in both sides of the front bezel which deliver clear audio experience.
USB Block
USB Block Mode is a security measure that helps prevent data from being copied to unauthorized devices, which is essential for being used in spaces where security is critical.
| Display | |
| Panel type | IPS |
| LED backlighting type | Direct-LED |
| Display diagonal | 165.1 cm (65") |
| Display technology | LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 390 cd/mý |
| HD type | UHD+ |
| Touchscreen | Yes |
| Multi-touch | Yes |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 1.07 billion colours |
| Rated lifetime | 30000 h |
| Native refresh rate | 60 Hz |
| Surface hardness | 7H |
| RGB colour space | NTSC |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI version | 2.2/1.4 |
| USB port | Yes |
| USB ports quantity | 6 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| RS-232C | Yes |
| OPS module slot | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| Bezel width (bottom) | 4.57 cm |
| Bezel width (side) | 1.89 cm |
| Bezel width (top) | 1.89 cm |
| Anti-glare screen | Yes |
| Performance | |
| Purpose | Universal |
| On Screen Display (OSD) | Yes |
| Operating hours (hours/days) | 16/7 |
| Open Pluggable Specification (OPS) | Yes |
| Power | |
| Power consumption (typical) | 180 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Computer system | |
| Computer system | Yes |
| Internal memory | 32 GB |
| Operating system installed | Android 8.0 |
| Weight & dimensions | |
| Width | 1489 mm |
| Depth | 87 mm |
| Height | 897 mm |
| Weight | 38.8 kg |
| Packaging data | |
| Package width | 1628 mm |
| Package depth | 208 mm |
| Package height | 1005 mm |
| Package weight | 48.5 kg |
| Packaging content | |
| Remote control included | Yes |
| Batteries included | Yes |
| Stylus pen | Yes |
| Number of stylus pens | 2 |
| Cables included | AC, HDMI, USB Type-A to USB Type-B |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 10 - 80% |
| Certificates | |
| Certification | CB / NRTL FCC Class "A" / CE |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Technical details | |
| Sustainability certificates | ErP |
| Warranty | |
| Base Warranty | Non Non |
