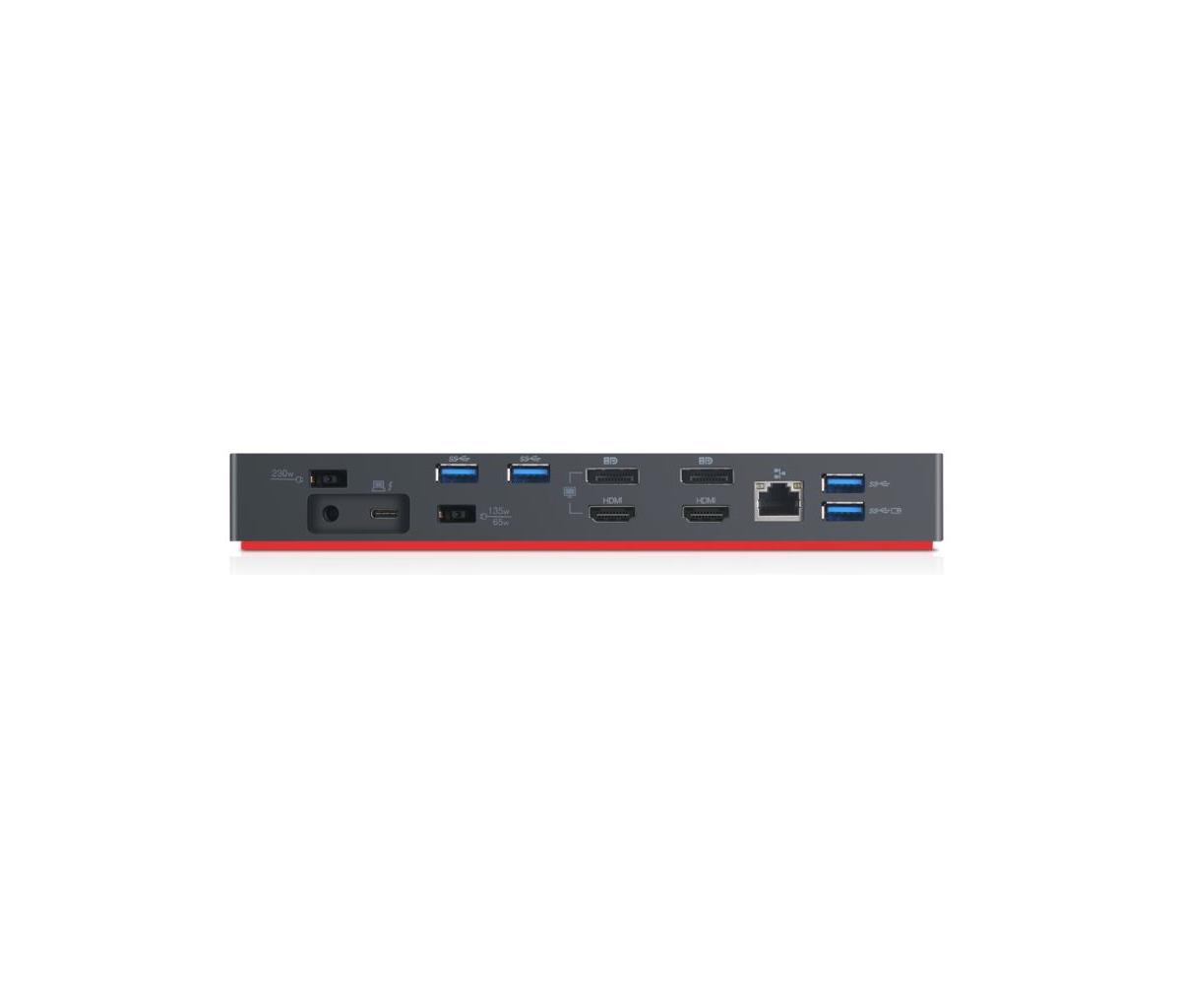

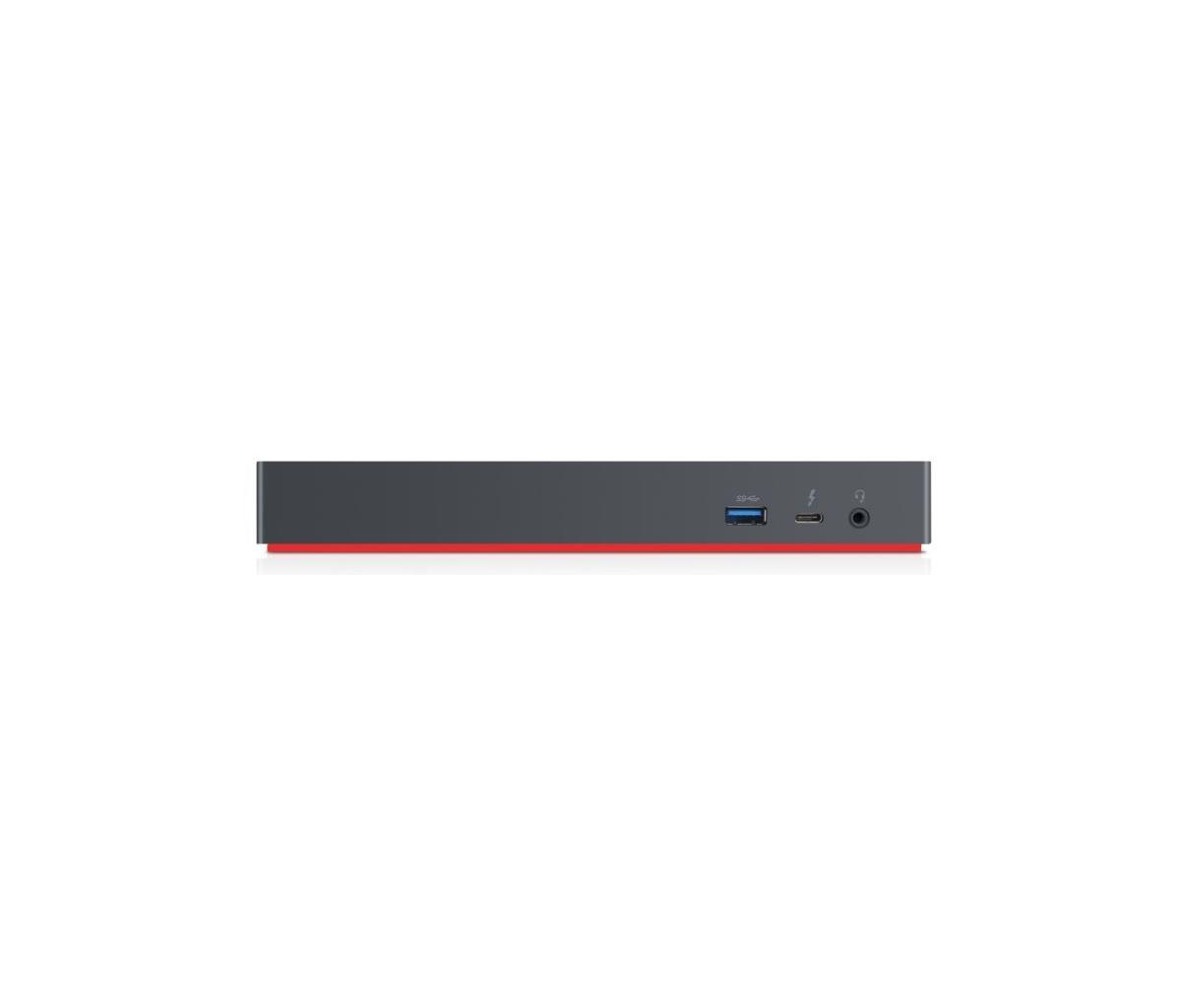

Docking Station ThinkPad Thunderbolt 3 Gen 2 - 5x USB-3.1 / 2x HDMI / 2x Thunderbolt 3 / 1x Gbe / 2x DP / 1x 3.5mm - 135W AC Adapter UK / Hong kong
ITCurry #: M852KD64 | Article #: 40AN0135UK
Related products
Product Information
Maximize Your Productivity with a Thunderbolt 3 Dock. Powerful, versatile and incredibly fast! This Intel Thunderbolt™ Chipset powered Thunderbolt Dock Gen 2 invented to boost productivity with extended compatibility on both USB-C and Thunderbolt enabled laptop. Expand your horizons with multiple 4K displays, and transfer files at record speed.It’s everything you need to enhance your creativity and efficiency today.
Expand compatibility on USB-C and Thunderbolt systems: Dual UHD Displays provide the best video experience. Enhanced performance with professional video solutions and exclusive network manageability. The ThinkPad Thunderbolt 3 Dock Gen 2 is supported on the following Lenovo systems: ThinkPad X1 Yoga 2nd Gen (Machine Types: 20JD, 20JE, 20JF, 20JG); ThinkPad X1 Yoga 3rd Gen (Machine Types: 20LD, 20LE); ThinkPad T570 (Machine Types: 20H9, 20HA, 20JW, 20JX); ThinkPad P51s (Machine Types: 20HB, 20HC, 20JY, 20K0); ThinkPad T580 (Machine Types: 20L9, 20LA); ThinkPad P52s (Machine Types: 20LB, 20LC).
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated | No |
| Maximum digital resolution | 3840 x 2160 pixels |
| Cable lock slot | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Plug and Play | Yes |
| Charging function | Yes |
| Brand compatibility | Lenovo |
| Compatibility | ThinkPad X1 Yoga 2nd Gen, ThinkPad X1 Yoga 3rd Gen, Thinkpad T570 (20H9,20HA), Thinkpad T570 (20JW,20JX), Thinkpad P51s (20HB,20HC), Thinkpad P51s (20JY,20K0), Thinkpad T580 (20L9,20LA), ThinkPad P52s (20LB,20LC) |
| Power | |
| Power supply | 135 W |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 80 mm |
| Height | 30 mm |
| Weight | 525 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 270 mm |
| Package depth | 164 mm |
| Package height | 75 mm |
| Package weight | 1.4 kg |
| Packaging content | |
| Cables included | Thunderbolt |
| AC adapter included | Yes |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Warranty | |
| Base Warranty | Non Non |
