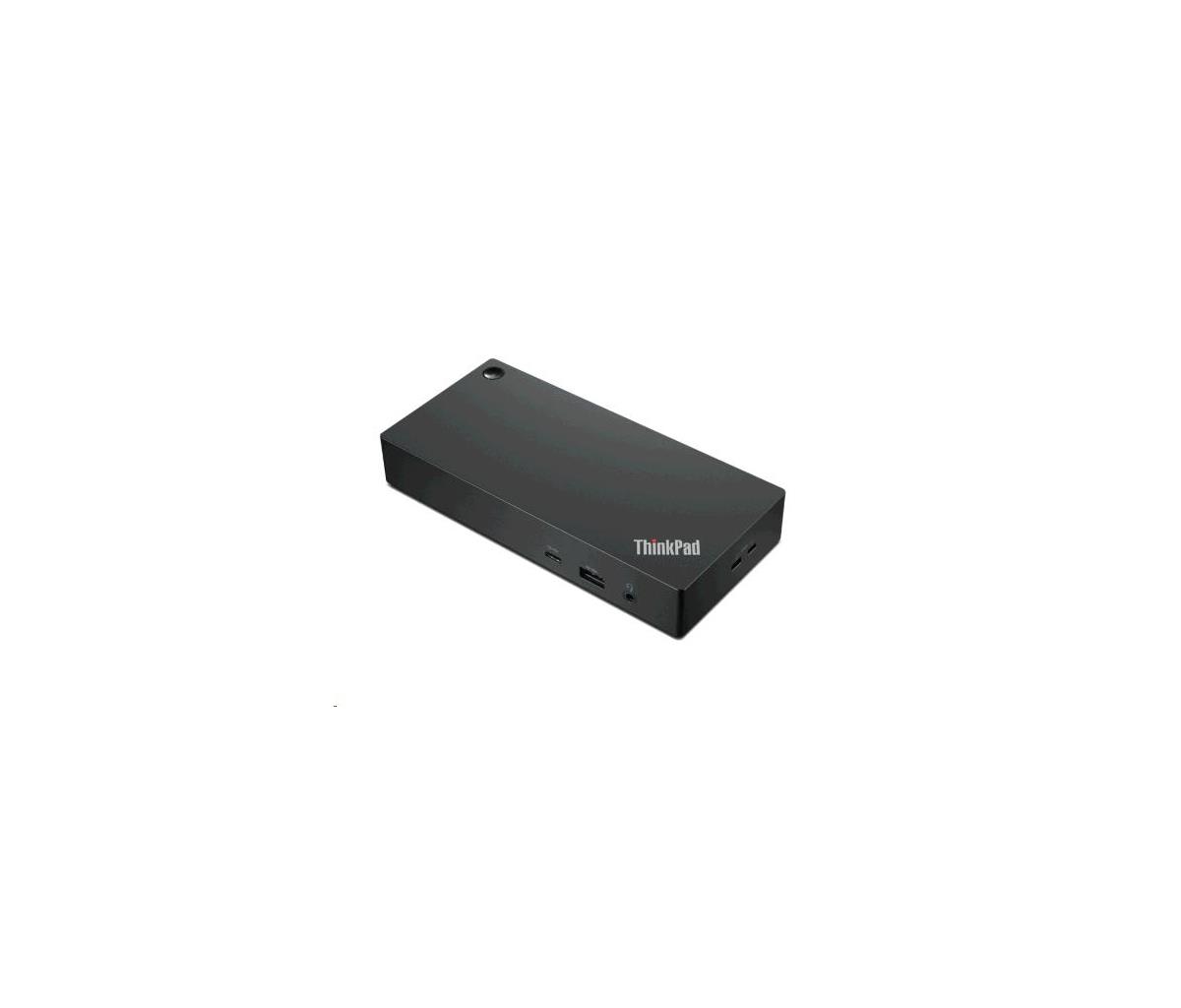

ThinkPad Universal USB-C Dock w/ Power Adapter - USB-C / 3x USB 3.2 Gen 2 / 2x USB 2.0 / Audio Jack / 2x DP / HDMI / GbE - 135W Power Delivery - IT
ITCurry #: M852WV84 | Article #: 40AY0135IT-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The ThinkPad Universal USB-C Dock is a welcome innovation in docking that takes users beyond tradition and into the realm of limitless potential. Experience universal compatibility with dynamic power charging max as 100W to notebooks, automated firmware updates and next-level plug-and-play. Everything you'd want from the future of docking is here. It's perfect for mixed PC environments too, giving users the freedom to connect any PC that supports industry standards of USB-C connectivity. Lenovo USB-C & Thunderbolt Docks function with notebooks that support industry standard USB-C Alt-Mode or Thunderbolt protocols through their Type C port. Lenovo USB-C and Thunderbolt Docks support additional features, such as MAC address passthrough, WOL and mirrored power button, on most Lenovo ThinkPad notebooks, but such features may not be available on certain other Lenovo notebooks or non-Lenovo branded notebook systems.
| Bus Type | |
| USB-C | Yes |
| Connector Type(s) | |
| RJ-45 | 1 x Gigabit Ethernet |
| DisplayPort | 2 x Display Port |
| Security Lock | 2 x Security lock slot |
| HDMI | 1 x HDMI Port |
| USB 3.0 A | 3 x USB-A 3.2 Gen 2 2 x USB 2.0 1 x USB-C 3.2 Gen 2 |
| Audio | 1 x Combo Audio Jack |
| General | |
| Maximum Resolutions | 2 x 3840x2160 @60Hz 1 x 3840x2160 @30Hz |
| Power | |
| Output Current | 65W with 90W power adapter connected 100W with 135W power adapter connected |
| Input Current | 135W |
| Warranty | |
| Base Warranty | Non Non |
