128GB Ddr5-6400mt/s ECC Reg Cl52 DIMM 2rx4 Micron B
ITCurry #: 2935H736 | Article #: KSM64R52BD4-128MB
slide 2 of 3
Related products
slide 7 to 11 of 14
Product Information

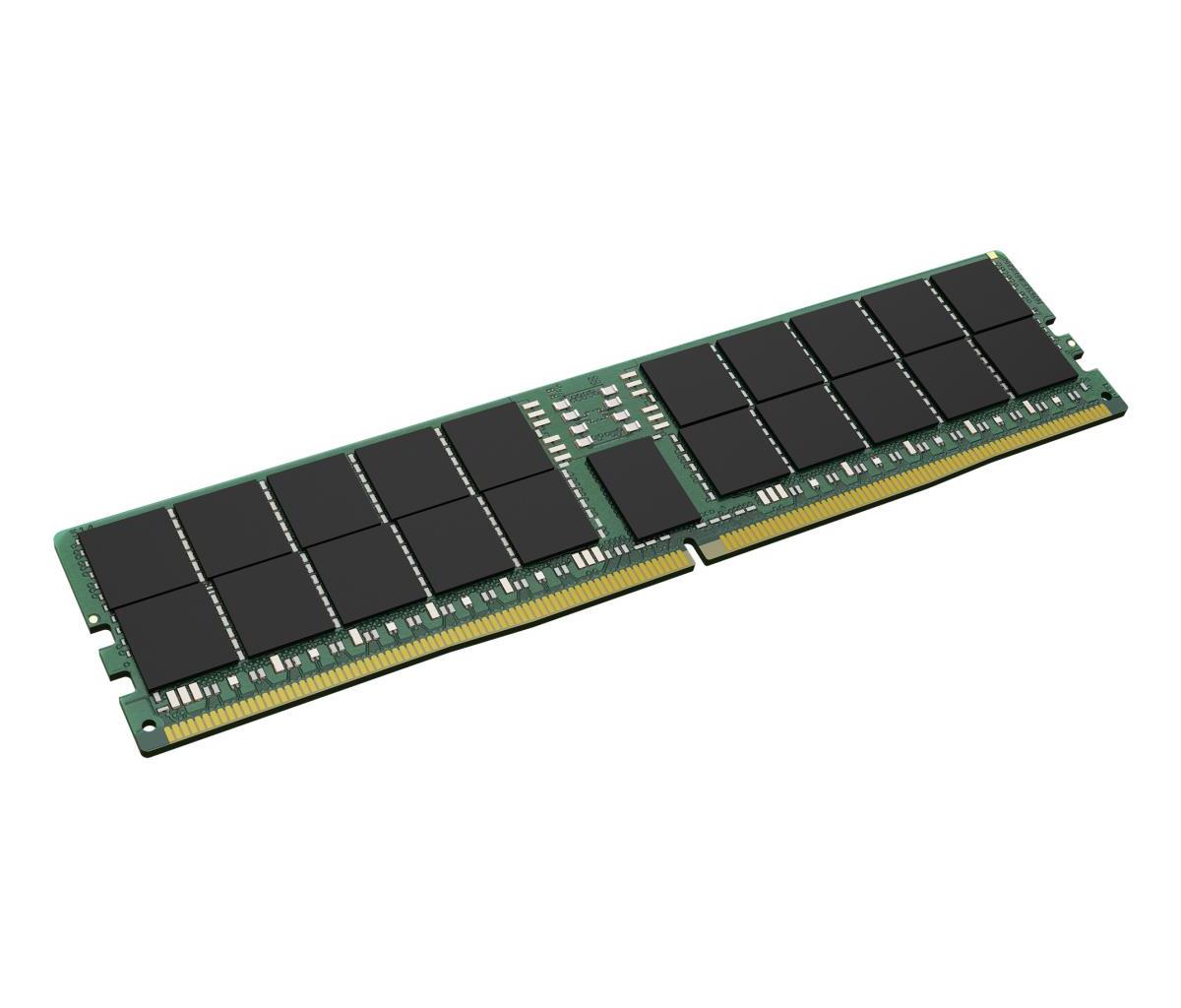

Kingston's KSM64R52BD4-128MB is a 16G x 80-bit (128GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 8G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
| Features | |
| Buffered memory type | Registered (buffered) |
| On-Die ECC | Yes |
| CAS latency | 52 |
| Internal memory | 128 GB |
| Memory layout (modules x size) | 1 x 128 GB |
| Internal memory type | DDR5 |
| Memory data transfer rate | 6400 MT/s |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| ECC | No |
| Memory ranking | 2 |
| Memory voltage | 1.1 V |
| Module configuration | 16384M x 80 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| SPD profile | Yes |
| Programming power voltage (VPP) | 1.8 V |
| Lead plating | Gold |
| JEDEC standard | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 95 øC |
| Storage temperature (T-T) | -55 - 100 øC |
| Technical details | |
| Compliance certificates | RoHS |
| Sustainability | |
| Doesn't contain | Halogen |
| Weight & dimensions | |
| Width | 133.3 mm |
| Height | 31.2 mm |
| Warranty | |
| Base Warranty | Non Non |
