Wi-Fi 7 Be1750 I - Network Adapter - M.2 2230 (cnvio3) - Wi-Fi 6e Wi-Fi 7 Bluetooth
ITCurry #: 2730E018 | Article #: BE201.NGWG.NVX-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

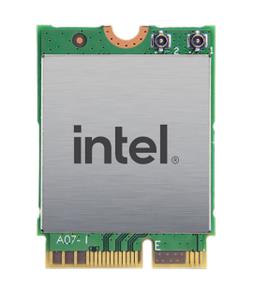

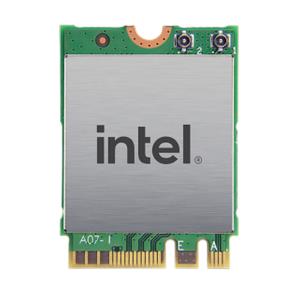

The Intel® Wi-Fi 7 BE201, a CRF (Companion RF) adapter, is designed to support the upcoming IEEE 802.11be standard – Wi-Fi 7 technology and the Wi-Fi Alliance Wi-Fi 7 certification. This Wi-Fi/ Bluetooth® module supports dual-stream Wi-Fi in the 2.4GHz, 5GHz and 6GHz bands as well as Bluetooth® 5.4. These new features maximize the benefits of Wi-Fi 7, including up to 5 Gigabit speed, ultra-low latencies, and enhanced reliability across new radio frequencies exclusive to Wi-Fi 7 devices, and deliver a significant improvement in user experience in dense deployments, as well as extended operating range for Bluetooth® connected devices, and support for Bluetooth® LE audio. Combined with Intel® Core™ processors and exceptional Intel® wireless innovations, the Intel® Wi-Fi 7 BE201 module can dramatically improve your connected experience at home, work, or on the go.
| Ports & interfaces | |
| Connectivity technology | Wireless |
| Host interface | M.2 |
| Interface | WLAN / Bluetooth |
| Network | |
| Maximum data transfer rate | 5800 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11az, IEEE 802.11b, IEEE 802.11be, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w |
| Wi-Fi | Yes |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Security algorithms | 128-bit AES, 256-bit AES, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WPA2, WPA3-Enterprise, WPA3-Personal |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Design | |
| Component for | Laptop |
| Internal | Yes |
| Antenna type | 2x2 |
| Form factor | M.2 2230 |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 22 mm |
| Depth | 30 mm |
| Height | 2.42 mm |
| Weight | 3.06 g |
| Other features | |
| Bluetooth Low Energy (BLE) | Yes |
| Launch date | Q2'24 |
| Status | Launched |
| Ethernet adapter ARK ID | 230083 |
| Export Control Classification Number (ECCN) | 5A991.B |
| Warranty | |
| Base Warranty | Non Non |
