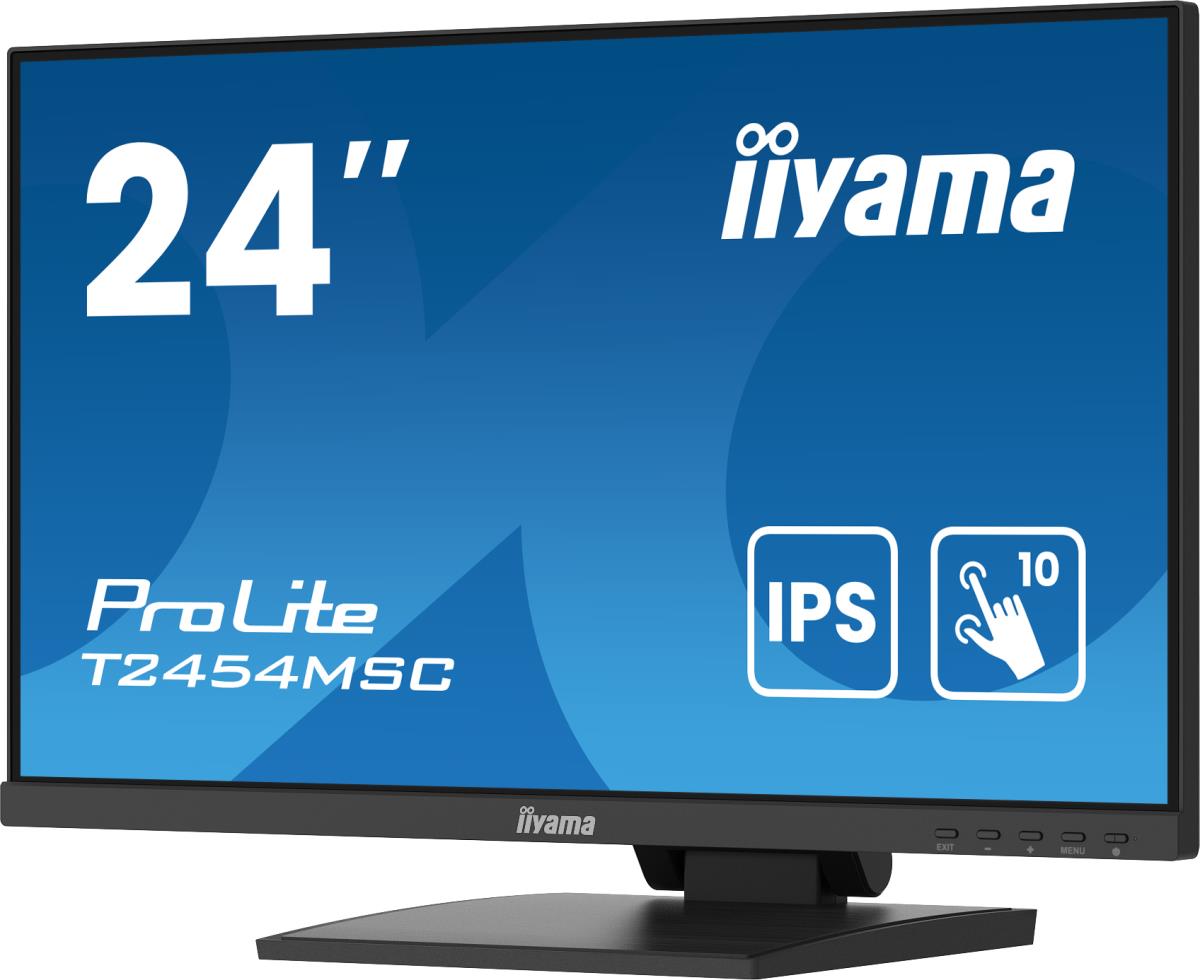

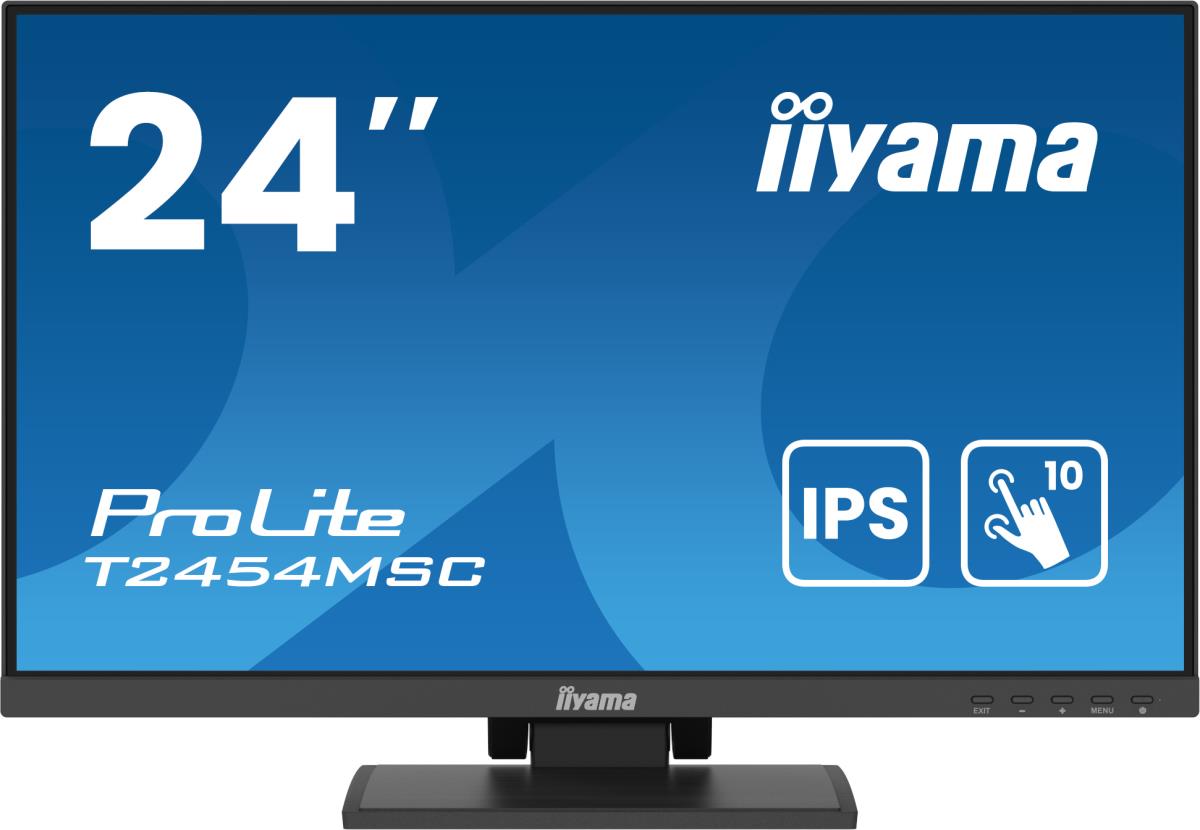

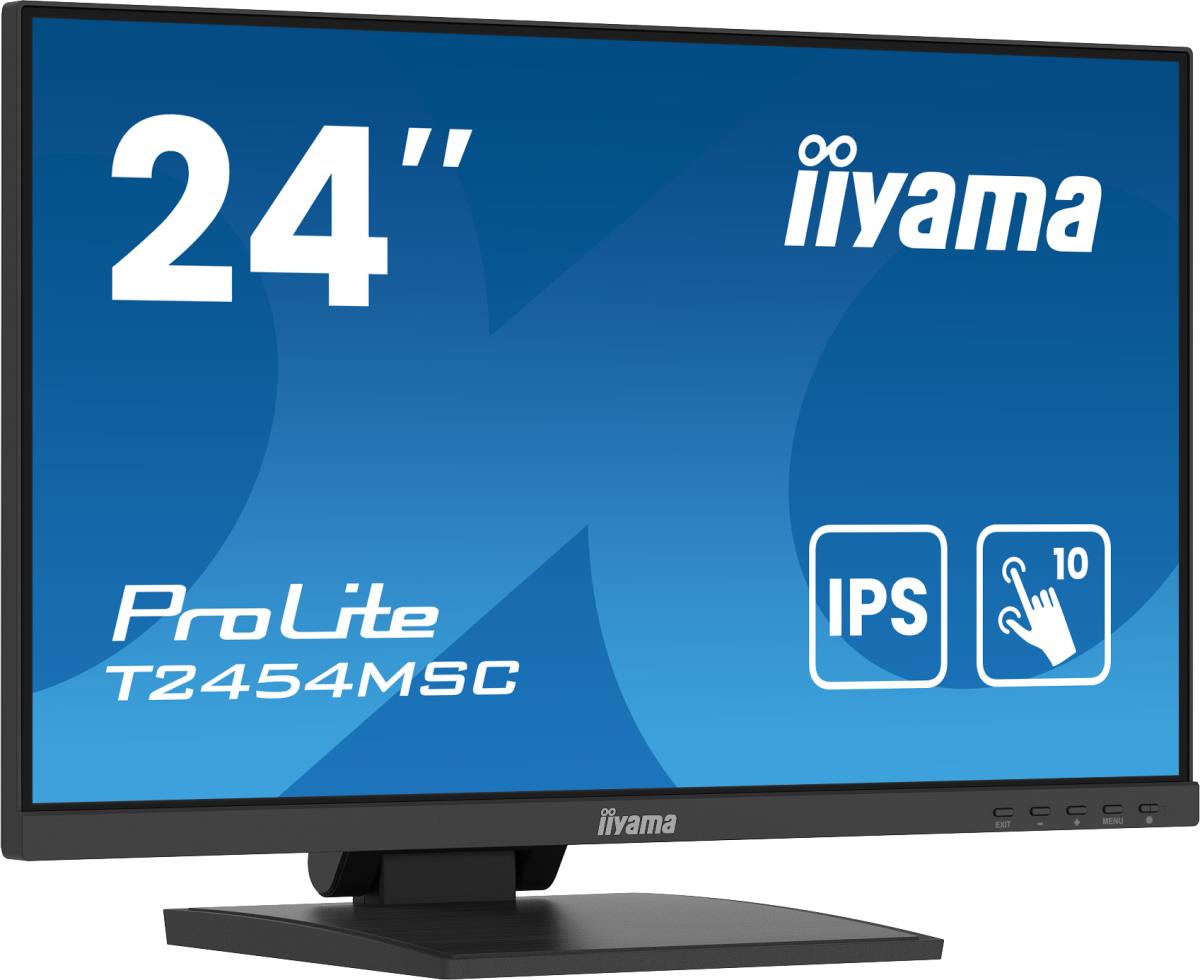

Touch Monitor - ProLite T2454MSC-B2AG - 24in - 1920x1080 (FHD) - Black
ITCurry #: 89303474 | Article #: T2454MSC-B2AG-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

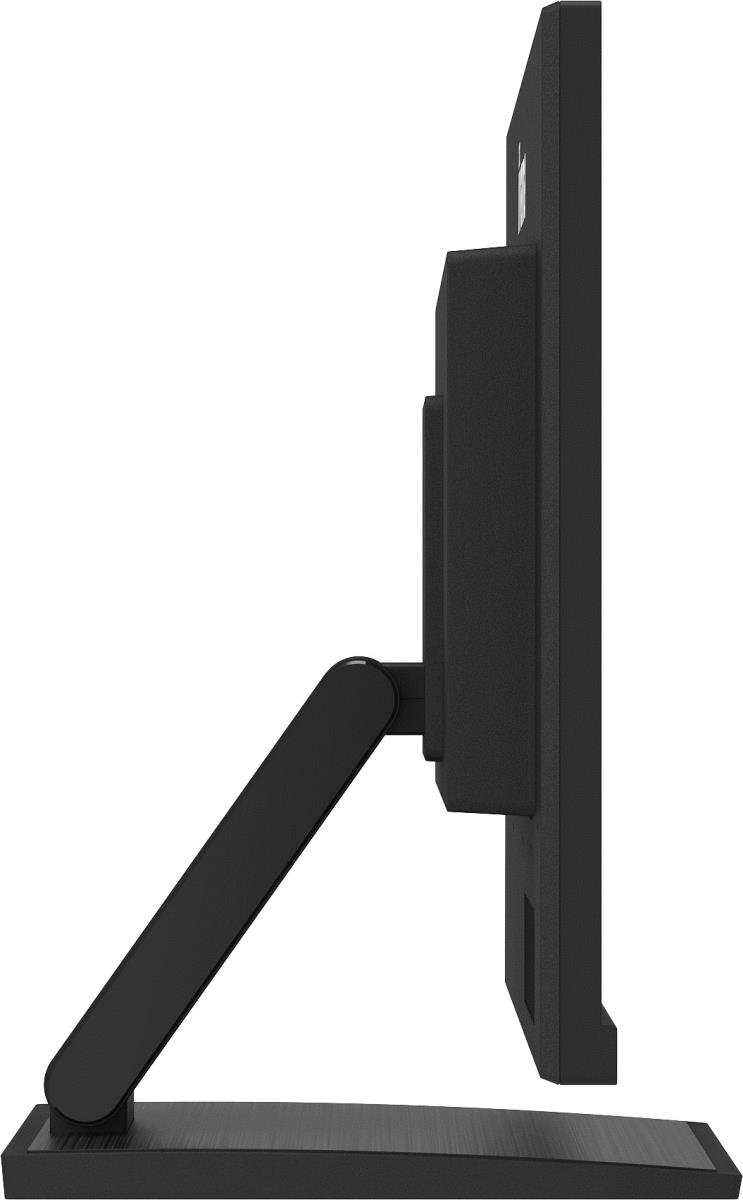

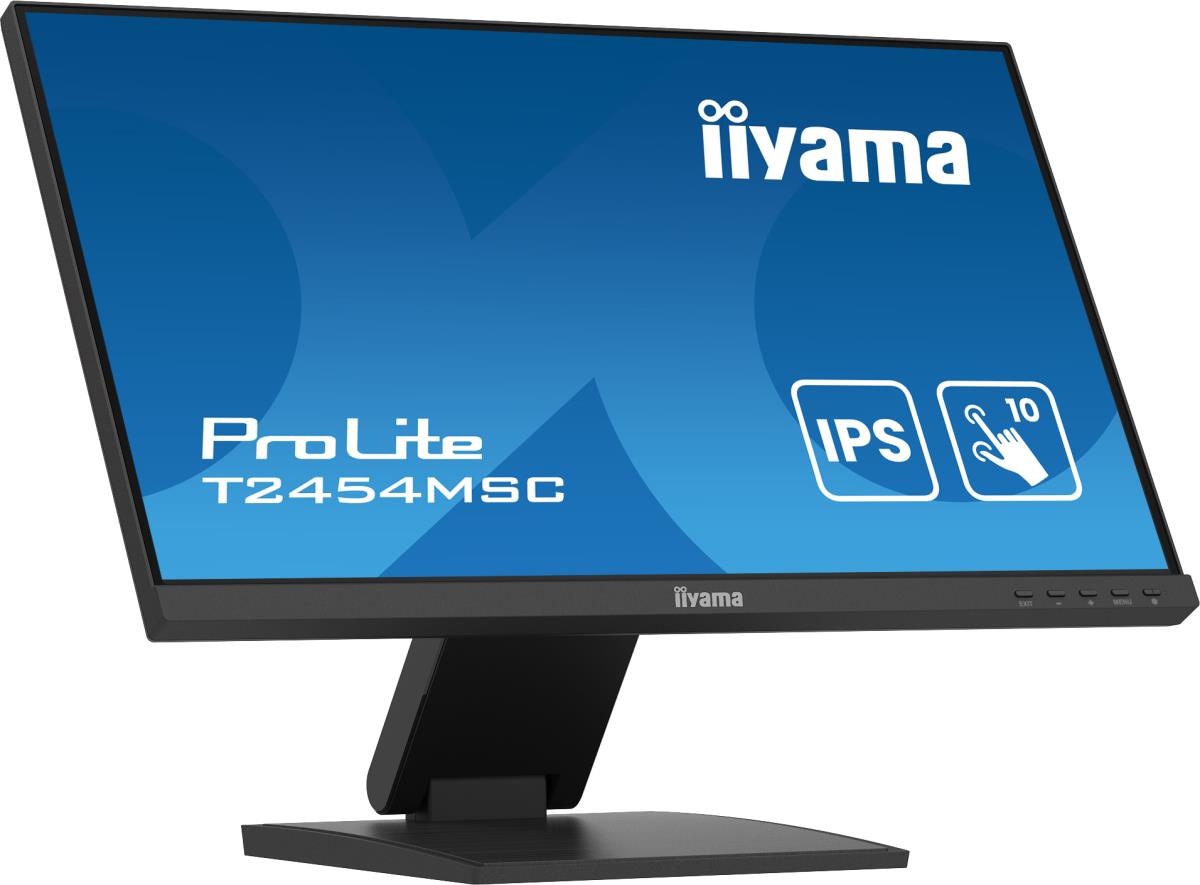

With its Full HD (1920x1080) resolution and accurate In-cell Projective Capacitive 10 point touch technology, the ProLite T2454MSC-B2AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2454MSC-B2AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
Display | |
Display diagonal | 60.5 cm (23.8") |
Display resolution | 1920 x 1080 pixels |
HD type | Full HD |
Native aspect ratio | 16:9 |
Display technology | LED |
Panel type | IPS |
LED backlight | Yes |
Touchscreen | Yes |
Touchscreen type | Multi-user |
Touchscreen technology | Projected capacitive system |
Touch technology | Multi-touch |
Number of simultaneous touchpoints | 10 |
Display brightness (typical) | 300 cd/mý |
Display brightness | 250 cd/mý |
Response time | 4 ms |
Response time measurement type | GTG (Gray to Gray) |
Anti-glare screen | Yes |
Screen shape | Flat |
Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
Aspect ratio | 16:9 |
Contrast ratio (typical) | 1000:1 |
Contrast ratio (dynamic) | 5000000:1 |
Maximum refresh rate | 75 Hz |
Viewing angle, horizontal | 178ø |
Viewing angle, vertical | 178ø |
Display number of colours | 16.7 million colours |
Pixel pitch | 0.274 x 0.274 mm |
Horizontal scan range | 30 - 83 kHz |
Vertical scan range | 56 - 75 Hz |
Viewable size, horizontal | 52.7 cm |
Viewable size, vertical | 29.6 cm |
Display diagonal (metric) | 60.5 cm |
Colour depth | 8 bit |
Performance | |
NVIDIA G-SYNC | No |
AMD FreeSync | No |
Low Blue Light technology | Yes |
Windows operating systems supported | Yes |
Linux operating systems supported | Yes |
OmniTapps Multitouch compatibility | No |
Multimedia | |
Number of speakers | 2 |
RMS rated power | 4 W |
Built-in speaker(s) | Yes |
Megapixel (approx.) | 2.1 MP |
Built-in microphone | No |
Built-in camera | No |
Design | |
Product colour | Black |
Front bezel colour | Black |

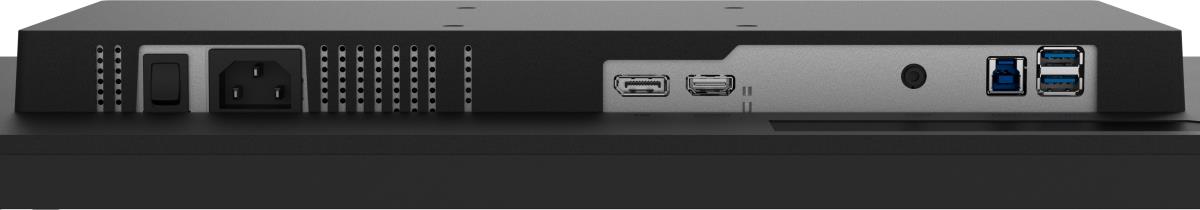

Ports & interfaces | |
Built-in USB hub | Yes |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Number of upstream ports | 1 |
USB Type-A downstream ports quantity | 1 |
USB Touch port | Yes |
VGA (D-Sub) ports quantity | 1 |
HDMI | Yes |
HDMI ports quantity | 1 |
DisplayPorts quantity | 1 |
HDCP | Yes |
Ergonomics | |

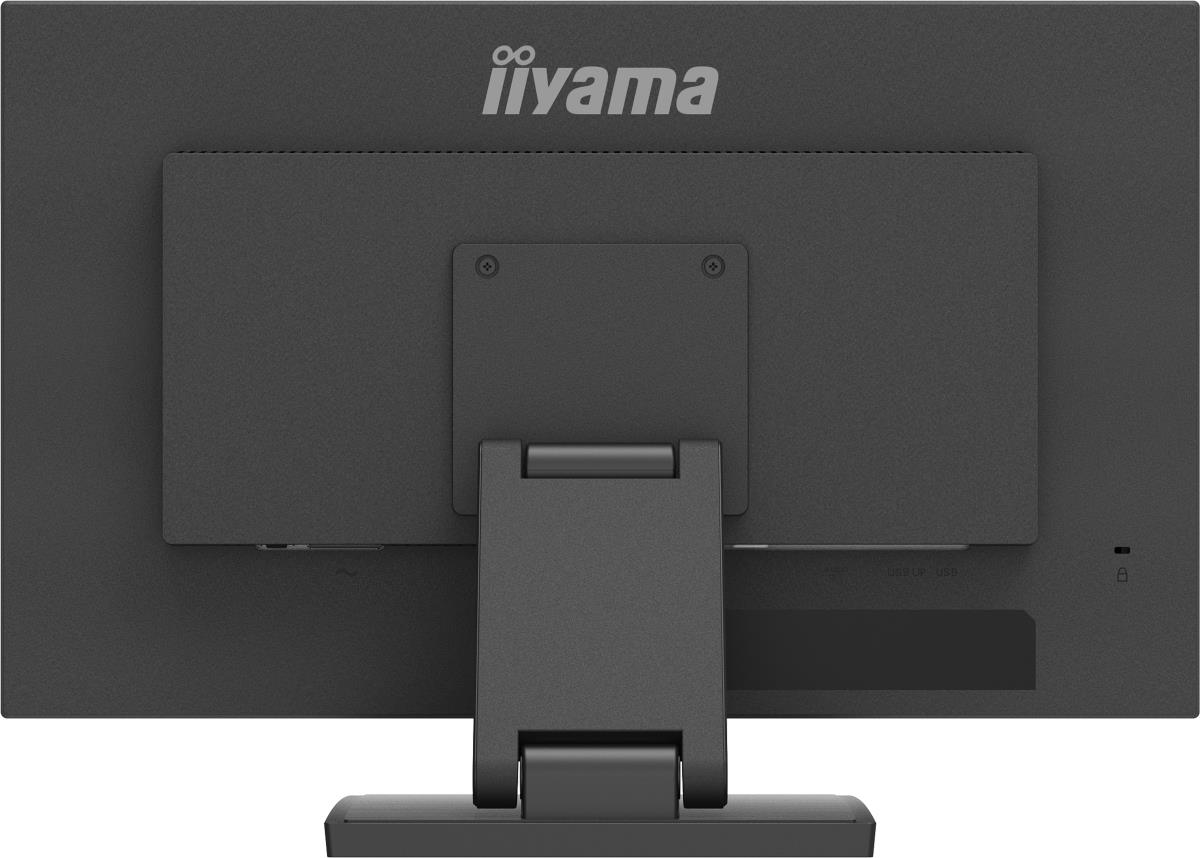

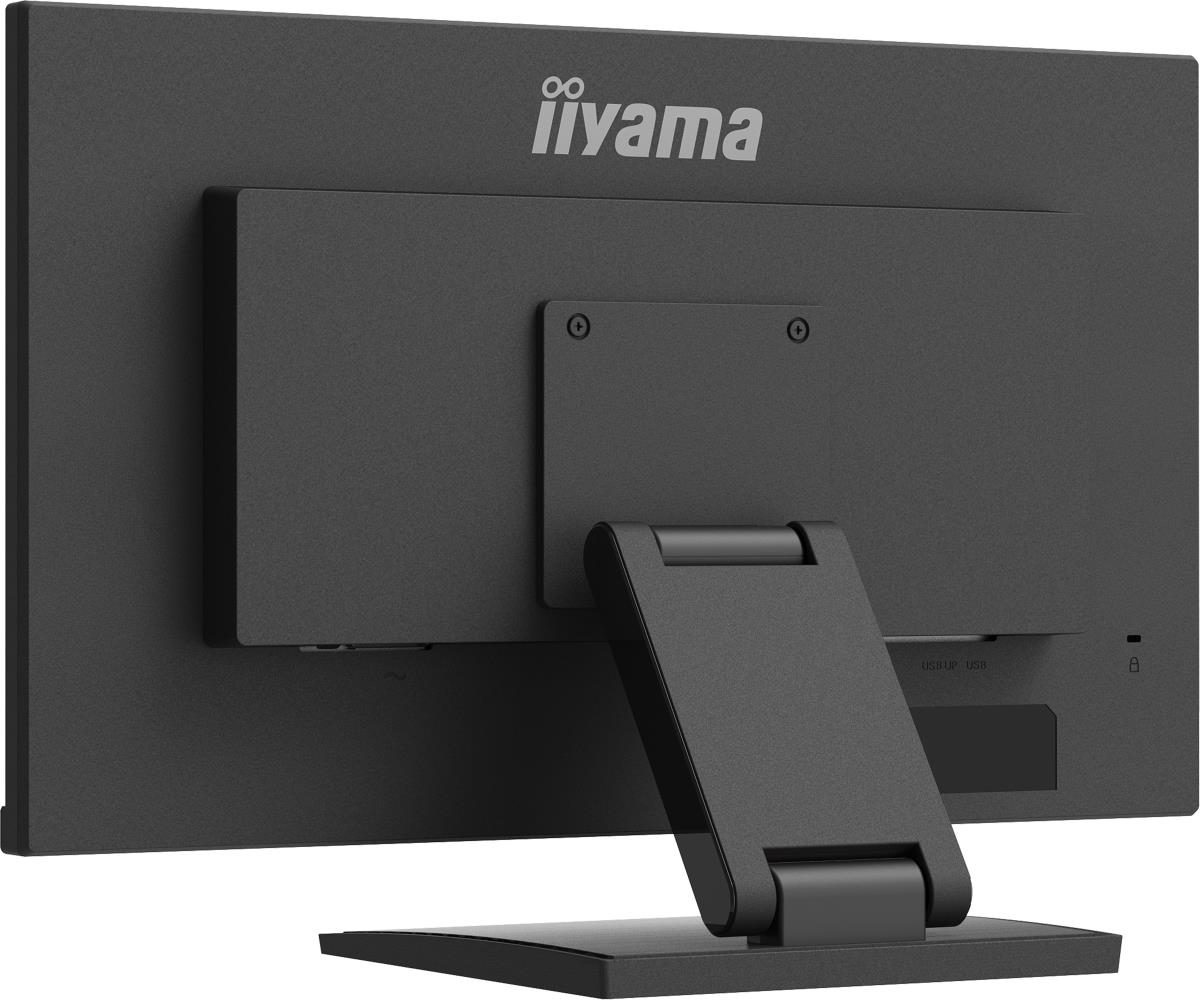

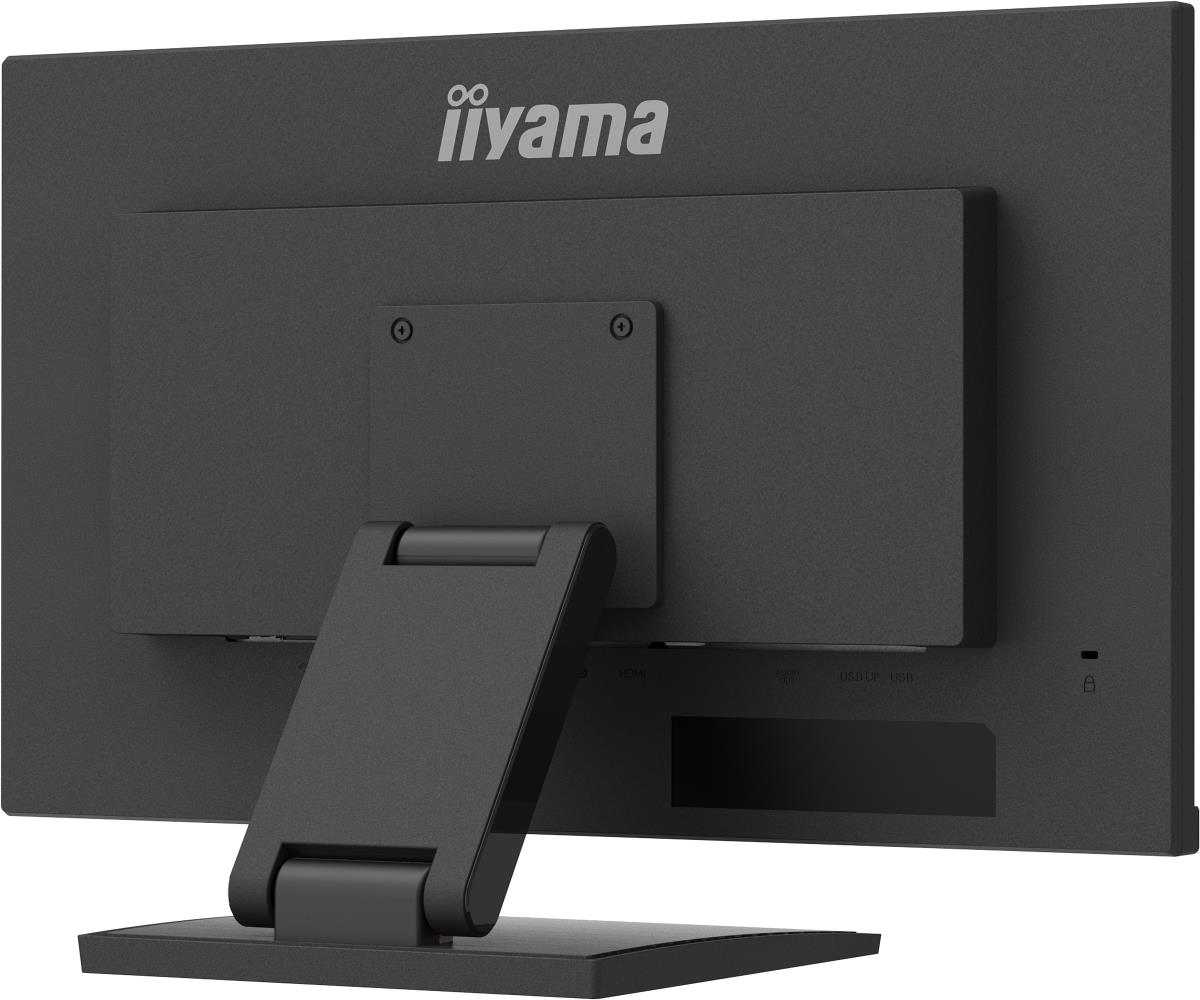

VESA mounting | Yes |
Panel mounting interface | 100 x 100 mm |
Wall mountable | Yes |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
Height adjustment | Yes |
Adjustable height (max) | 11 cm |

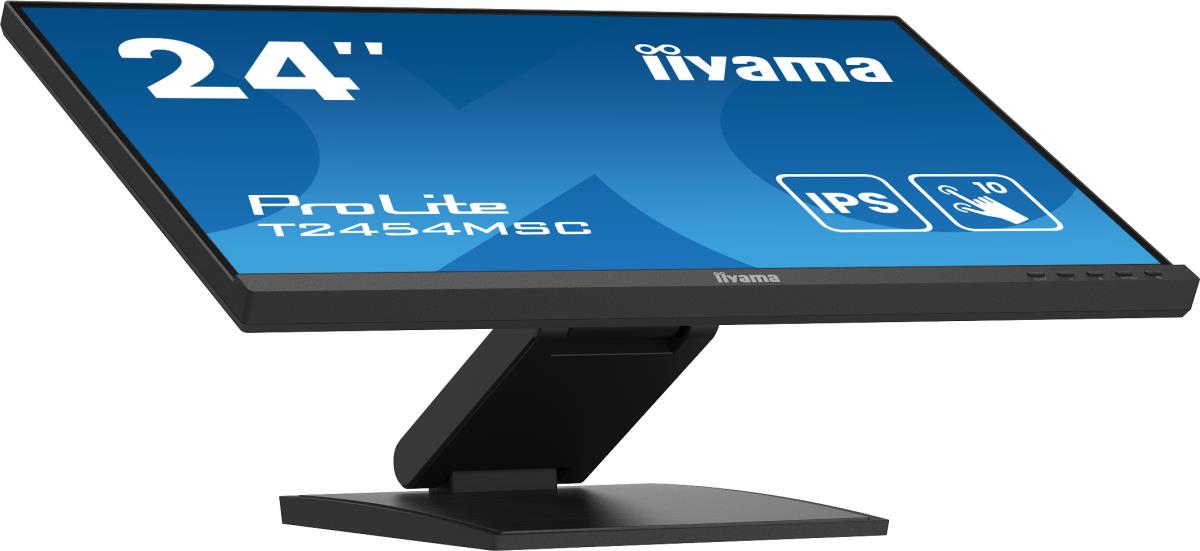

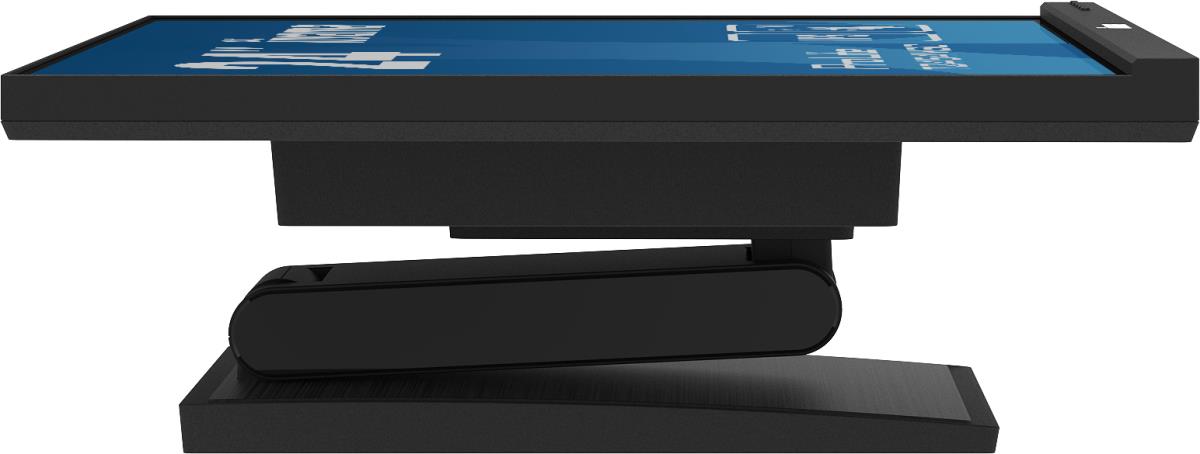

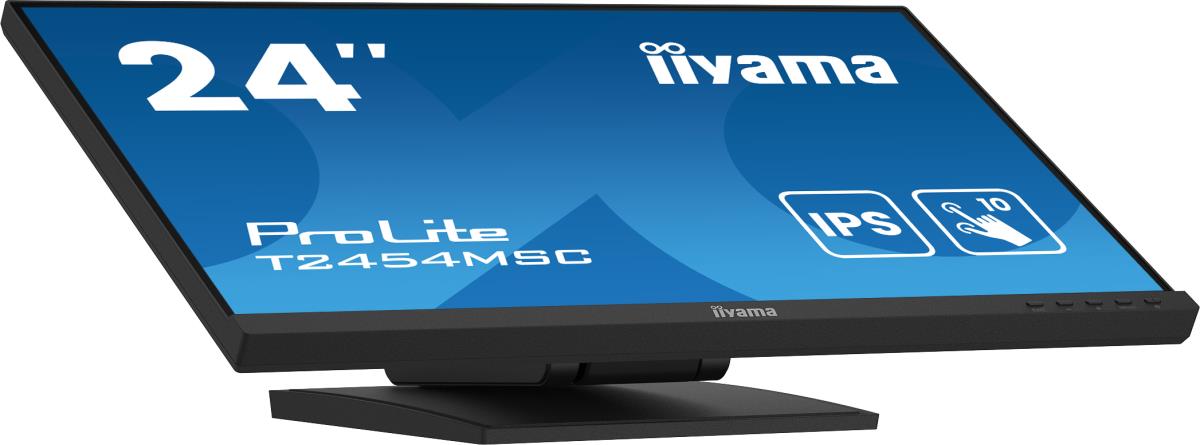

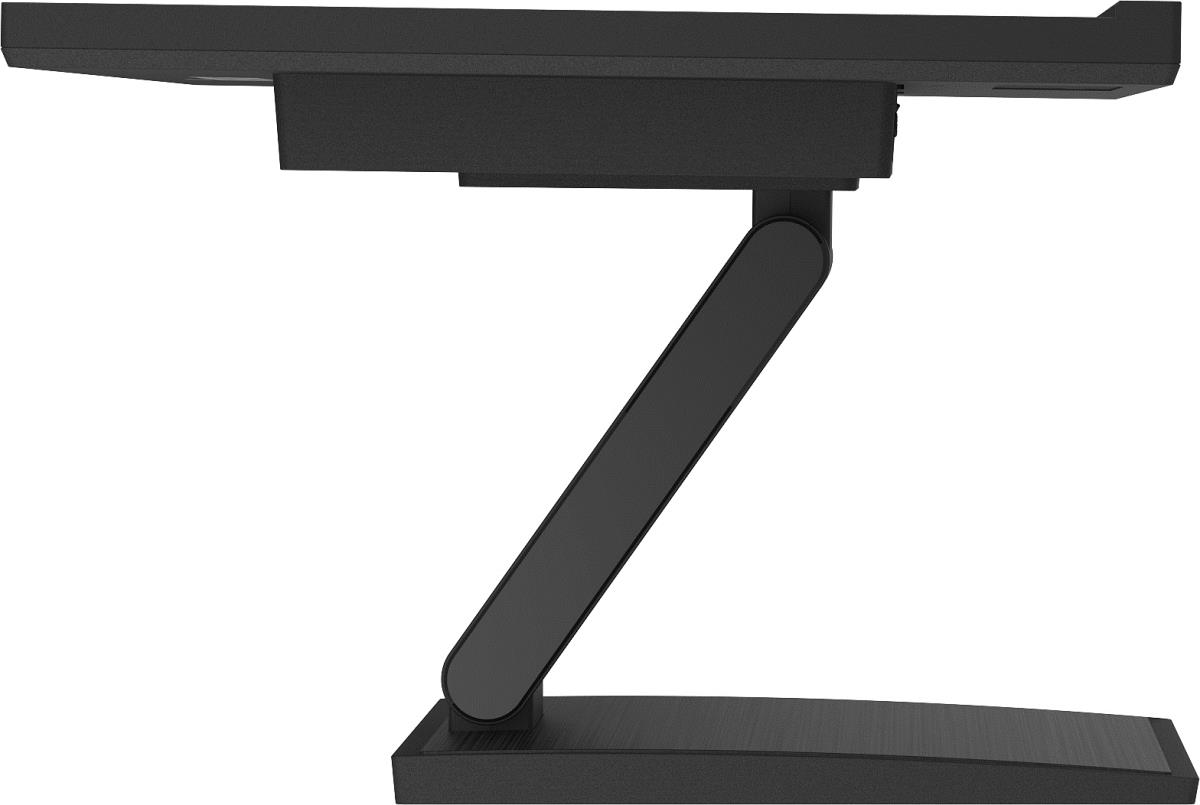

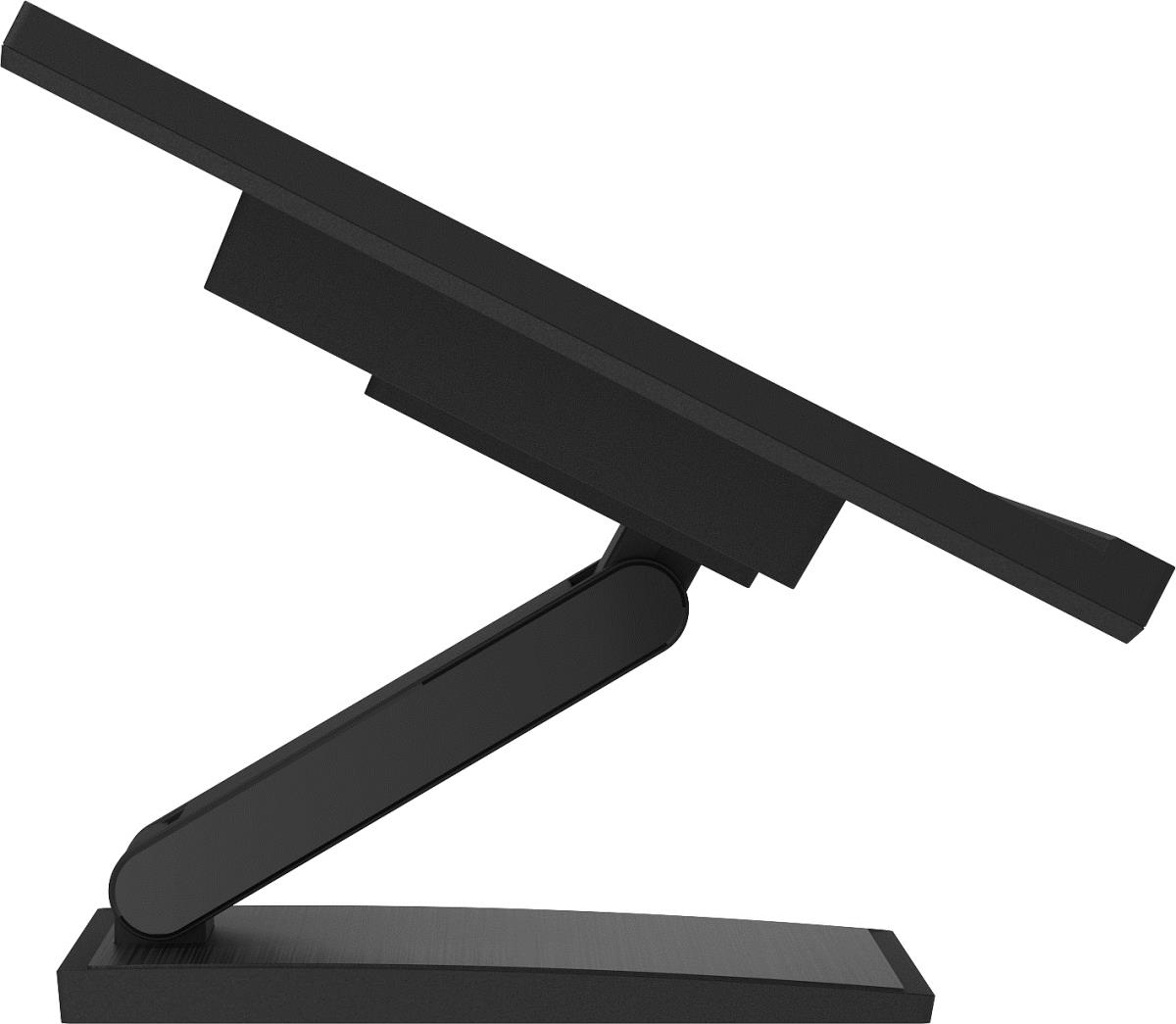

Tilt adjustment | Yes |
Tilt angle range | -5 - 90ø |

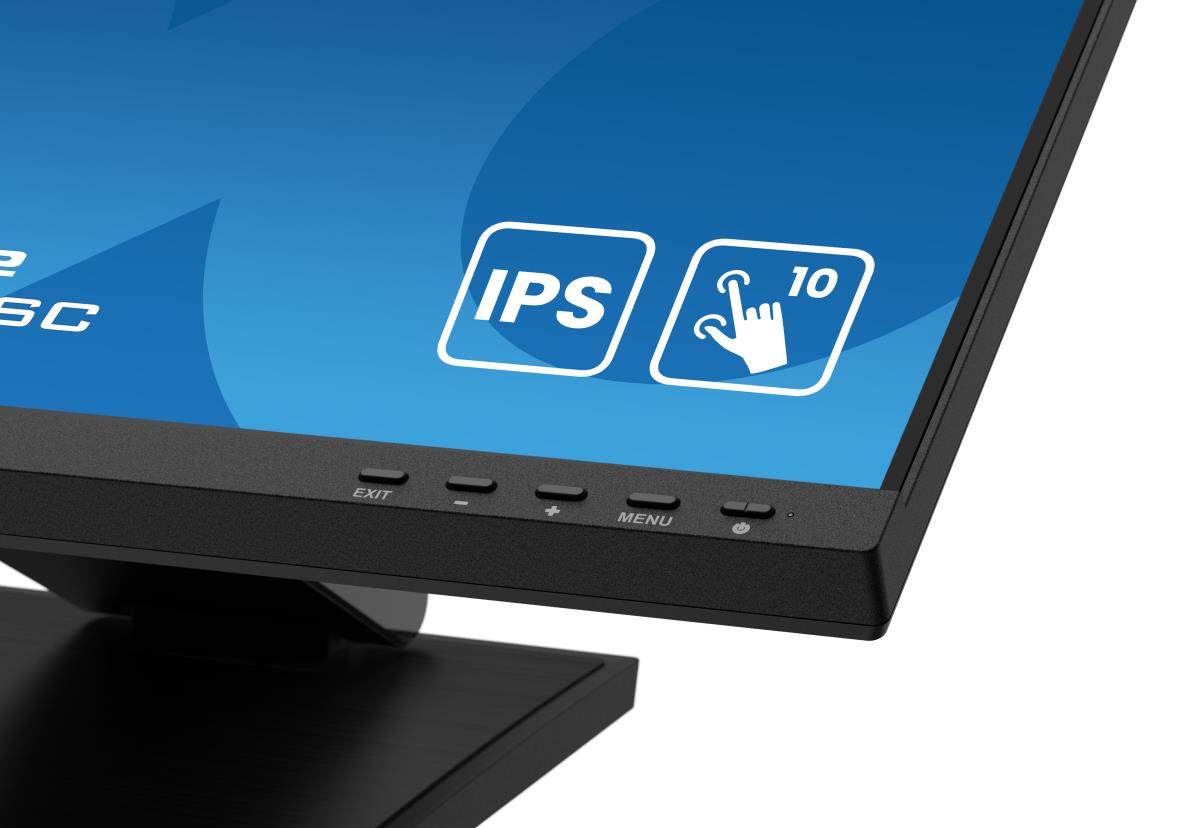

On Screen Display (OSD) languages | German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
Number of OSD languages | 10 |
Plug and Play | Yes |
Power | |
Energy efficiency class (SDR) | E |
Energy consumption (SDR) per 1000 hours | 20 kWh |
Power consumption (typical) | 17 W |
Power consumption (standby) | 1.5 W |
Power consumption (off) | 0.3 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Power supply type | Internal |
Energy efficiency scale | A to G |
European Product Registry for Energy Labelling (EPREL) code | 366281 |
Operational conditions | |
Operating temperature (T-T) | 5 - 35 øC |
Storage temperature (T-T) | -20 - 60 øC |
Operating relative humidity (H-H) | 20 - 80% |
Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
Width (with stand) | 540 mm |
Depth (with stand) | 238.5 mm |
Height (with stand) | 371 mm |
Weight (with stand) | 5.6 kg |
Width (without stand) | 540.5 mm |
Depth (without stand) | 46.5 mm |
Height (without stand) | 322.5 mm |
Packaging data | |
Package width | 615 mm |
Package depth | 615 mm |
Package height | 410 mm |
Package weight | 8.3 kg |
Packaging content | |
Cables included | AC, HDMI, USB, VGA |
Quick start guide | Yes |
Other features | |
International Protection (IP) code | IPX1 |
Dimensions (W x D x H) with stand | 540.5 x 128 x 388 mm |
Display viewable area (HxV) | 527.04 x 296.46 mm |
Placement supported | Horizontal/Vertical |
Full HD | Yes |
Compliance certificates | RoHS |
Mean time between failures (MTBF) | 30000 h |
Certification | CE, TšV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB |
Logistics data | |
Harmonized System (HS) code | 85285210 |
Warranty | |
Base Warranty | Non Non |
