Touch Monitor - ProLite T2755MSC-B1 - 27in - 1920x1080 (FHD) - Black
ITCurry #: 89303263 | Article #: T2755MSC-B1-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

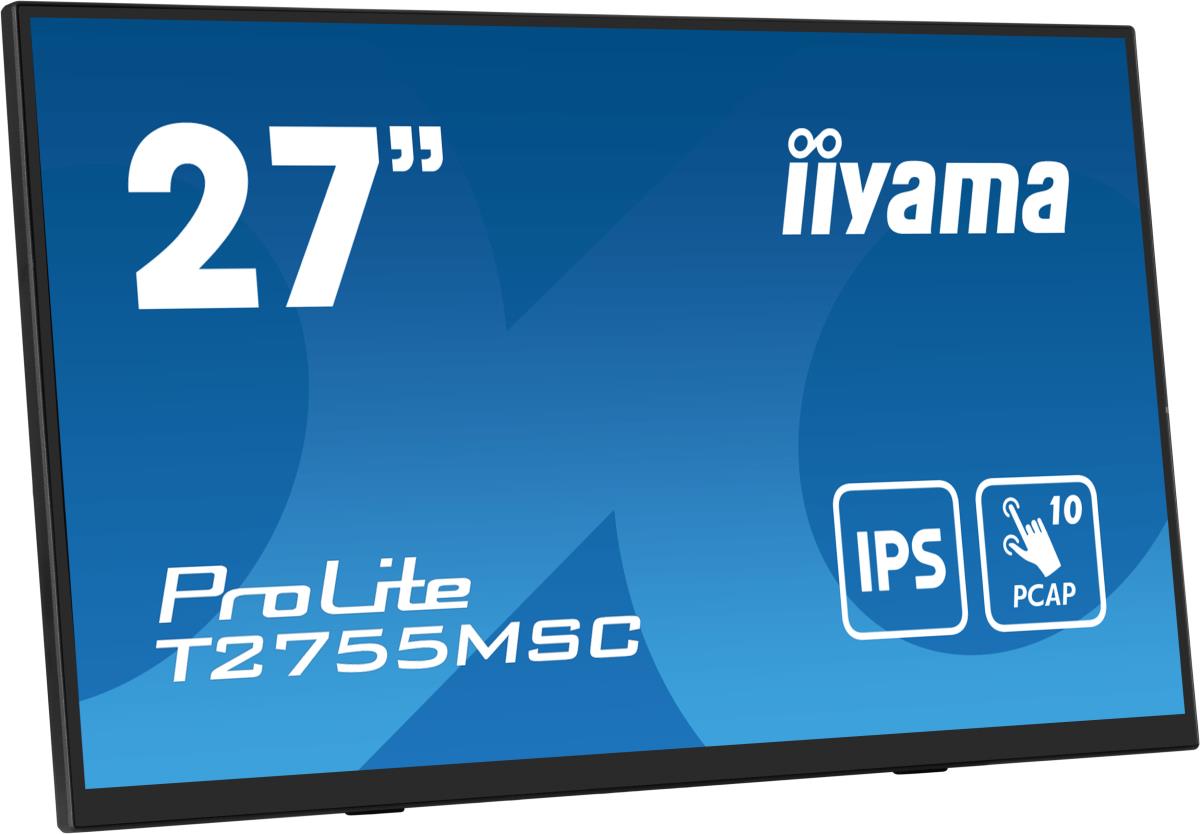

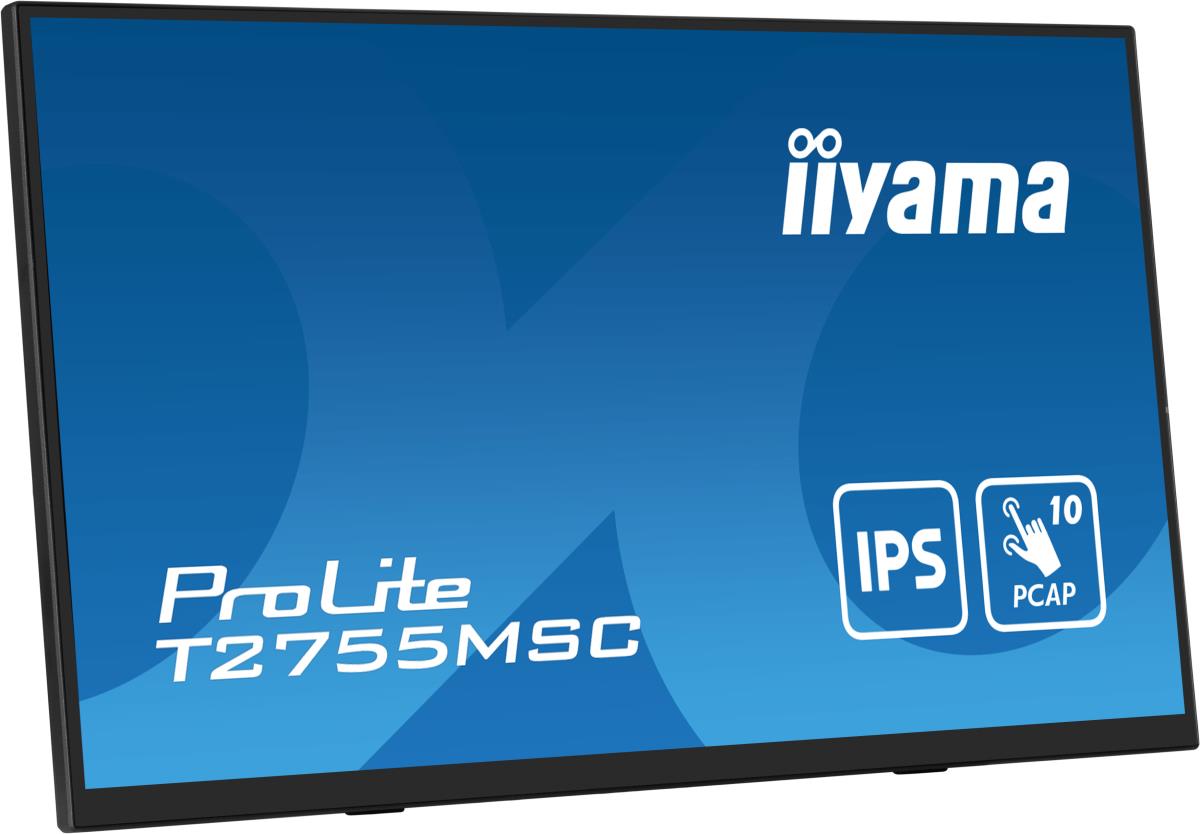

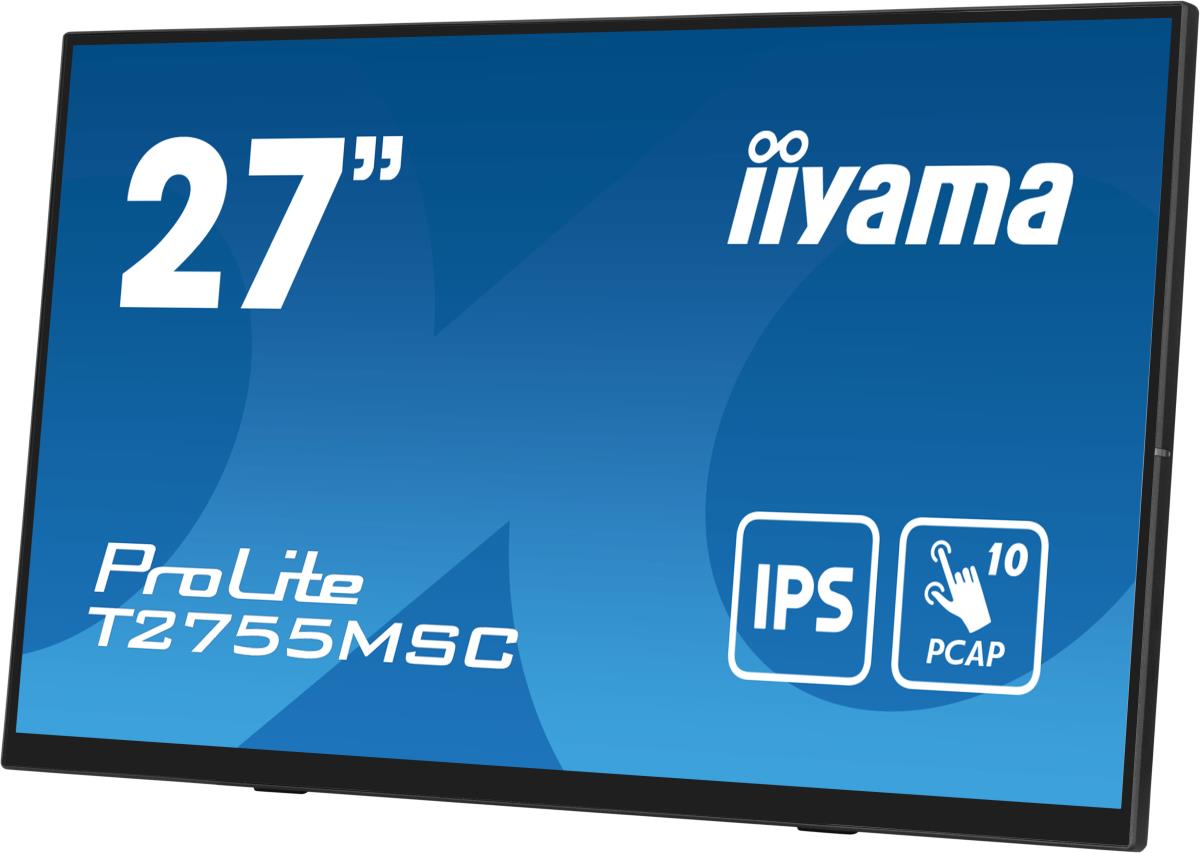

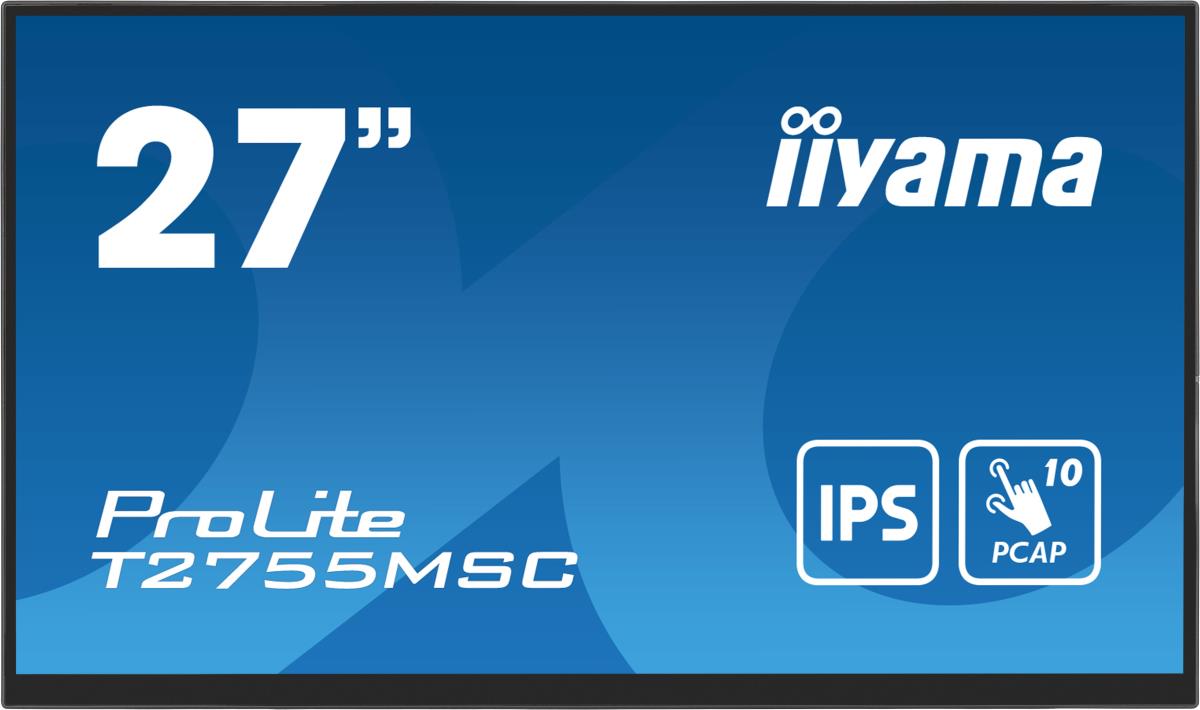

27” Optical Bonded PCAP 10pt touchscreen monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and a flexible stand

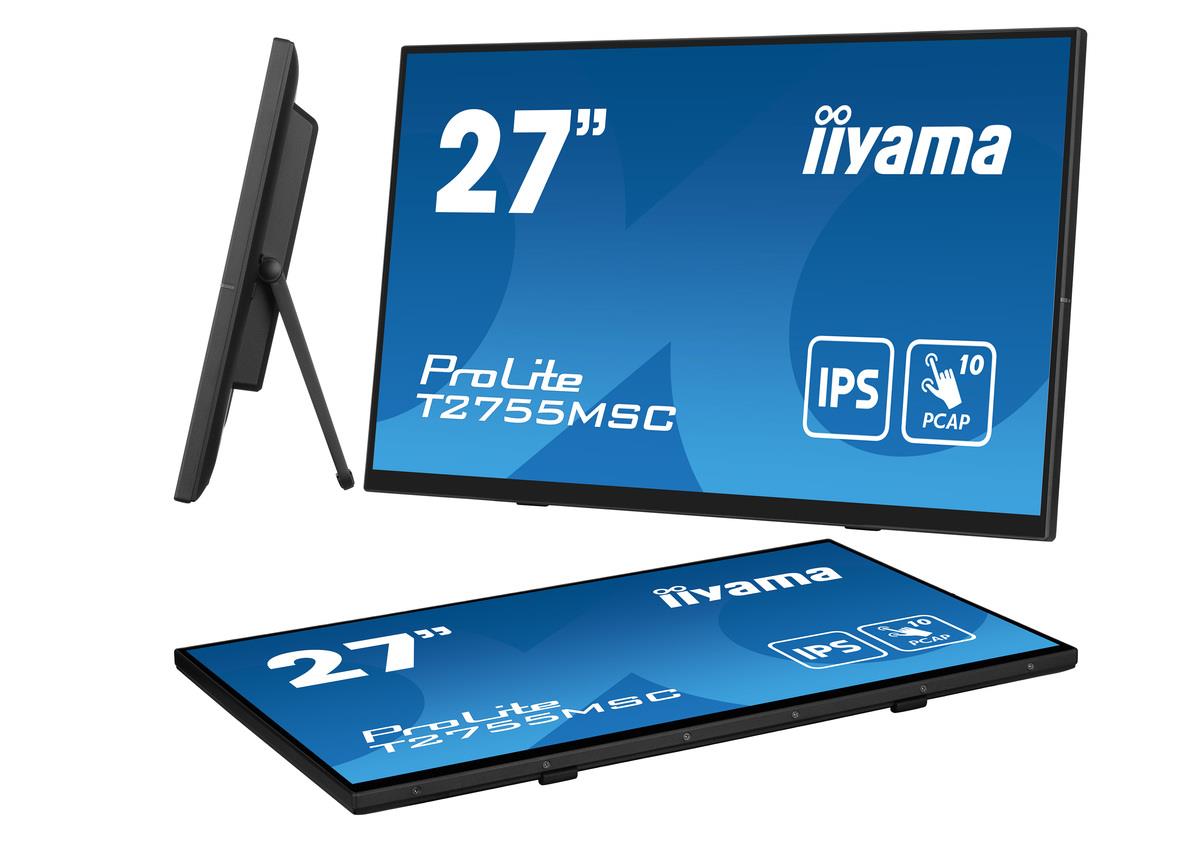

The ProLite T2755MSC with its Full HD (1920x1080) resolution and with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust and fingerprints. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. A perfect choice for a vast array of applications.
OPTICAL BONDED PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.
IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
SPEAKERS AND HEADPHONES
Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.
| Display | |
| Display diagonal | 68.6 cm (27") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| Backlight type | LED |
| Touchscreen | Yes |

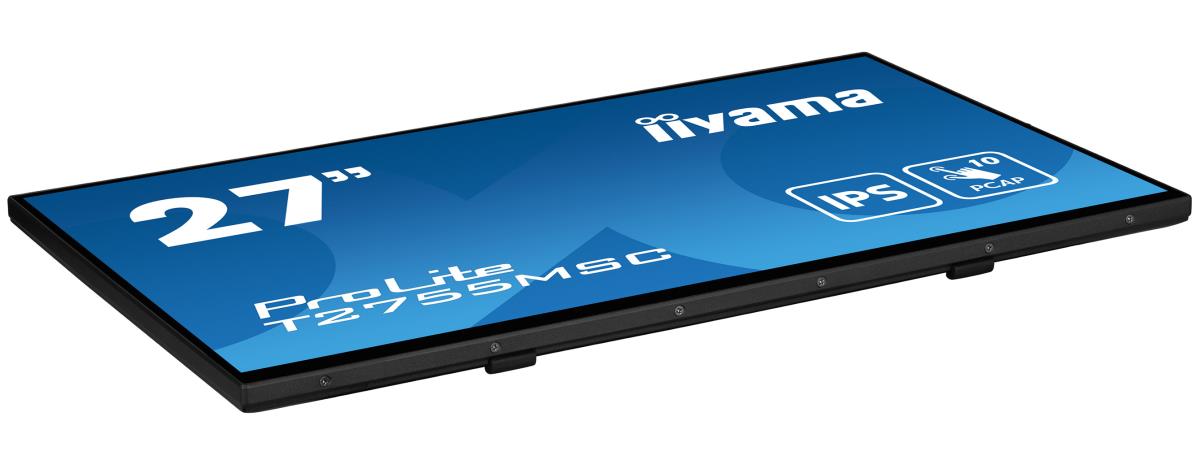

| Touchscreen type | Tabletop |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 400 cd/mý |
| Display brightness (typical) | 360 cd/mý |
| Response time | 5 ms |
| Display surface | Matt |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.311 x 0.311 mm |
| Horizontal scan range | 30 - 80 kHz |
| Viewable size, horizontal | 33.6 cm |
| Viewable size, vertical | 59.7 cm |
| Display diagonal (metric) | 68.6 cm |
| DDC/CI | Yes |
| Colour depth | 8 bit |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Feet colour | Black |

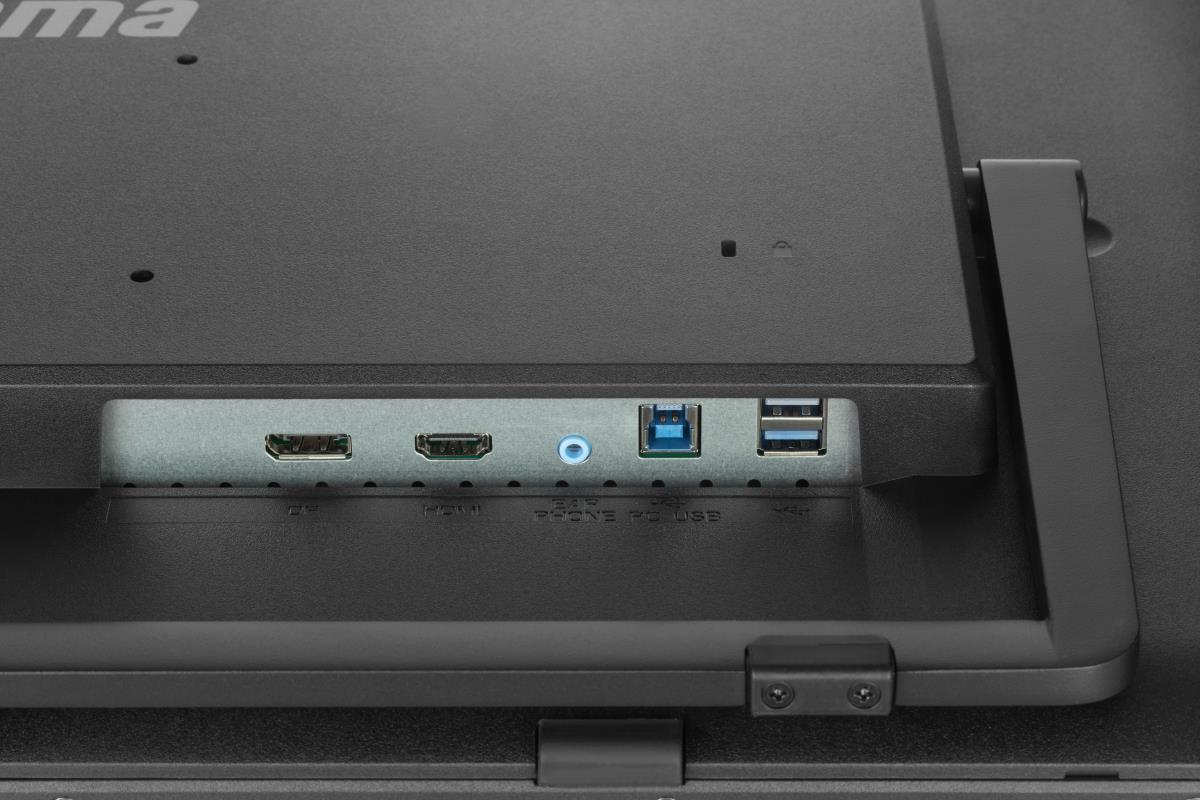

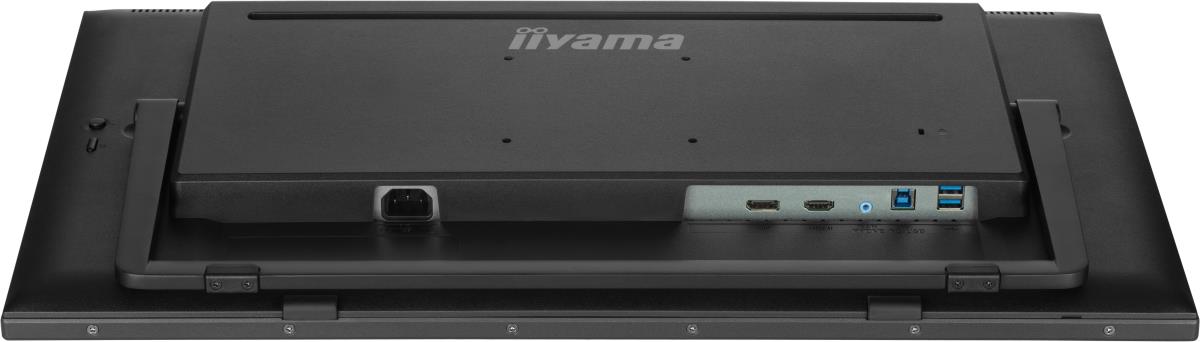

| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 2 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Audio output | Yes |
| Headphone out | Yes |
| Headphone outputs | 1 |
| HDCP | Yes |
| DC-in jack | Yes |
| Ergonomics | |

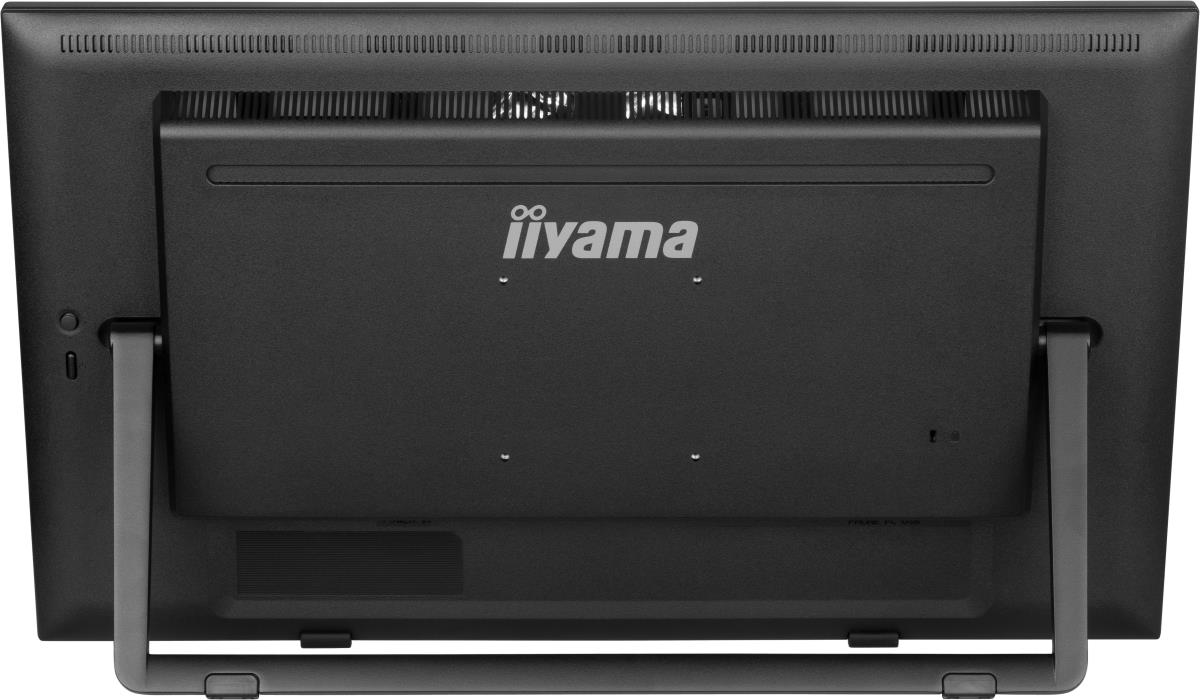

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |

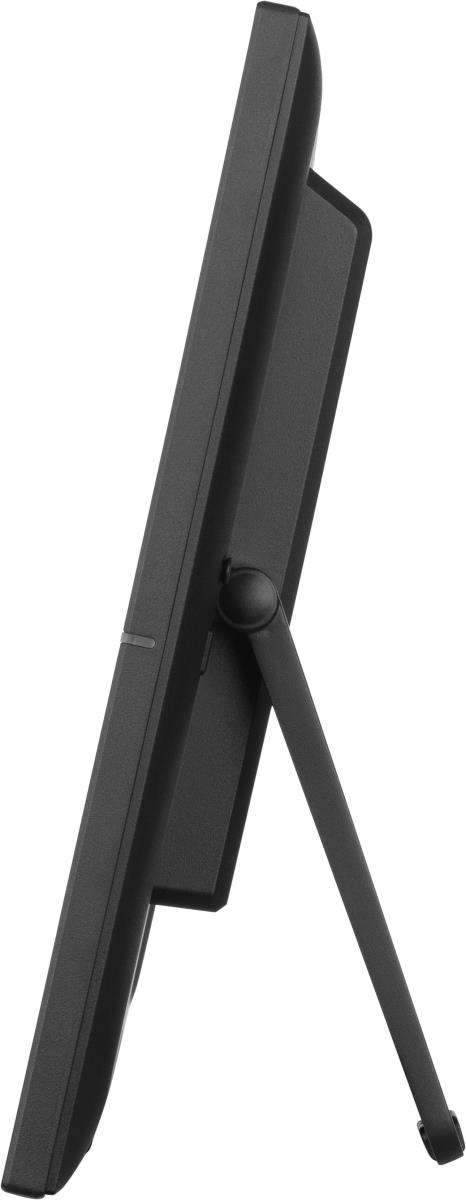

| Tilt adjustment | Yes |
| Tilt angle range | 5 - 90ø |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 21 kWh |
| Power consumption (typical) | 30 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Packaging content | |
| Stand included | Yes |

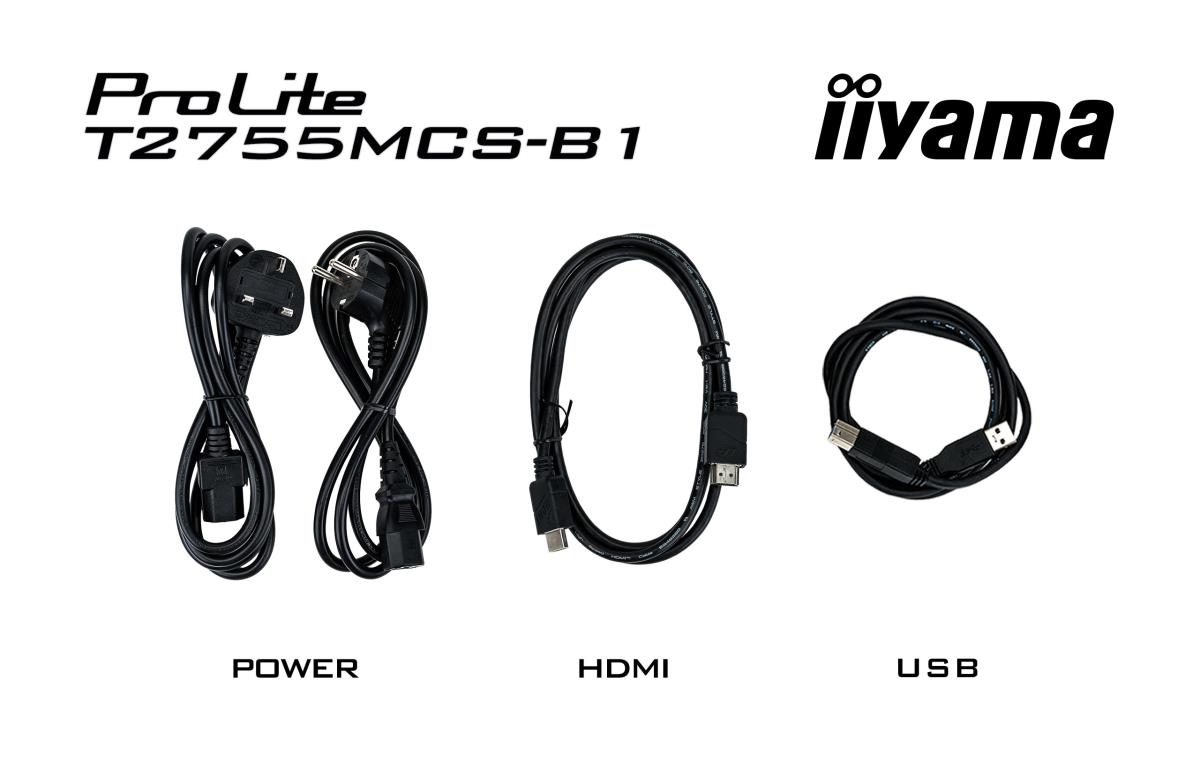

| Cables included | Audio, DisplayPort, HDMI, Power, USB |
| Power adapter included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Weight & dimensions | |
| Width (with stand) | 614 mm |
| Depth (with stand) | 49 mm |
| Height (with stand) | 364.5 mm |
| Weight (with stand) | 5.8 kg |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
| European Product Registry for Energy Labelling (EPREL) code | 1750964 |
| Technical details | |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE, cUL |
| Warranty | |
| Base Warranty | Non Non |
