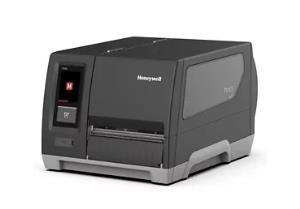

Industrial Label Printer Pm43 - 203dpi Thermal Transfer AbgnWi-Fi Bt Tt203 Us
ITCurry #: M8855966 | Article #: PM43A14000000201-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Programmable PM series smart printers offer you reliable performance for uptime assurance, quick deployment and integration, and the fastest throughput in their class – no PC required. The PM43/43c (101.6 mm/4 in) printers and the PM23c (50.8 mm/2 in) model are available in a variety of enclosure sizes and door types to fit your exact application.
Ready
Fast to deploy and easy to integrate, PM series printers fit into virtually any environment.
Reliable
Now on their third generation, the PM43, PM43c, and PM23c printers are members of the well-proven family of PM series mid-range industrial printers.
Fast
Rapid 304 mm/s (12 ips) print speed and consistent barcode printing quality with pin-point accuracy.
Smart
Run apps right inside the printer, control peripherals, and eliminate the need for a connected PC, using either C# for Printers or Fingerprint.
Connected
Flexible conectivity options, plus every PM series printer features a multilingual web interface for simple remote device management.
Vibrant
Avaiable with a large, color, multilingual, tamper-proof touchscreen or intuitive icon user interface.
Flexible
Available with three different enclosure sizes, all with multiple door configurations, to fit your needs plus a wide range of accessories for maximum media compatibility.
RFID Capable
Available in RFID-enabled configurations capable of simultaneously encoding and printing frequency-agile RFID tags.
The PM43/PM43c (101.6 mm/4 in) and PM23c (50.8 mm/2 in) Mid-Range Industrial Printers deliver proven reliability, fast drop-in deployment and integration, and advanced connectivity to maximize your uptime. They're ideal for applications in distribution centers, warehouses, manufacturing operations, and transportation centers.
The PM series was designed for easy integration and fast deployment.
Minimize workforce training and device support needs with intuitive features like a vibrant color touchscreen or intuitive icon user interface. Notifications are displayed right on screen, and the interface can be locked down to eliminate tampering.
And with the broadest connectivity options in their class – including Wi-Fi and Cisco CCX certifications, plus additional Bluetooth® connectivity – PM series quickly interface with virtually any IPv4 or IPv6 network.
PM printers offer outstanding performance in harsh environments thanks to a rugged metal enclosure and the top print speed in their class at 304 mm/s (12 ips). Beyond the productivity of speed, PM printers also enable you to work smarter by reducing labeling errors and increasing process efficiency.
Plus, in-printer apps can directly control other devices such as scanners, scales, keyboard and other peripherals – without the need for an attached computer.
| Printing | |
| Print technology | Thermal transfer |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 300 mm/sec |
| Maximum printing width | 10.8 cm |
| Paper handling | |
| Maximum label width | 11.4 cm |
| Maximum label length | 4.8 m |
| Maximum roll diameter | 8 cm |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Performance | |
| Page description languages | DPL, IPL, XML, ZPL II |
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Built-in barcodes | 1D, 2D, EAN128, POSTNET |
| Built-in RFID module | Yes |
| RFID frequency range | 865 - 928 MHz |
| Image formats supported | BMP, GIF, PCX, PNG |
| Security algorithms | EAP-FAST, LEAP, PEAP, TTLS, WEP, WPA, WPA2, WPA2-AES, WPA2-CCMP |
| Design | |
| Product colour | Black, Grey |
| Built-in display | Yes |
| Display | LCD |
| Touchscreen | Yes |
| Colour display | Yes |
| Control type | Touch |
| Power | |
| Power consumption (standby) | 9 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 45 - 65 Hz |
| System requirements | |
| Windows operating systems supported | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 5 - 40 øC |
| Storage temperature (T-T) | 20 - 70 øC |
| Weight & dimensions | |
| Width | 284 mm |
| Depth | 483 mm |
| Height | 295 mm |
| Weight | 15.8 kg |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
| Technical details | |
| PC connection | RS-232/USB |
| Warranty | |
| Base Warranty | Non Non |
