Industrial Label Printer Pm65a - Thermal Transfer - 203dpi - 6in - Lan Fixed Hanger Rtc - Us/ Eu Power Cord
ITCurry #: M8816837 | Article #: PM65A00000000200-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

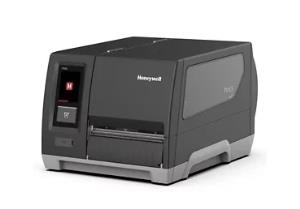

The Honeywell PM45 and PM65 series industrial printers are designed for high quality label printing in harsh industrial environments. The WWAN connective printer enables 24/7 data communication and real-time visibility of critical data from a wide range of locations.
Enterprises today are facing increasing production flexibility, inventory turnover, and cost control challenges. The PM45 and PM65 industrial printers offer high-precision and high-volume printing along with remote configuration and diagnostics functionalities that increase production efficiency and supply chain transparency in food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.
Efficiency and reliability of printing operations are essential for successful workflows. Honeywell Printer Edge provides centralized management and real-time monitoring of your printer network and may help reduce printer downtime and improve the speed and accuracy of printer operations. With effortless integration, a user-friendly interface, enhanced security, and a single software toolkit, you can keep your operations running smoothly while helping reduce costs and maximize productivity.
The PM45 and PM65 support printer remote control, so you can see and control the printers from a remote computer and provide real-time diagnosis and technical support. Print Set MC application enables you to quickly connect and configure the printers from your preferred Android or iOS device, and optional Honeywell Operational Intelligence enables the printers with the capability of remote management for issues diagnostics and output performance tracking.
The PM45 printer can deliver print registration of up to +/-0.5 mm, ensuring high print quality of barcodes, texts, and images, even on small electronic component and pharmaceutical labels. The PM45 and PM65 include WWAN connectivity to enable deployment with minimal limitation from site network topology. These printers are also scalable to incorporate RFID, parallel, industrial, and applicator interfaces to address your unpredictable business needs in the future.
The PM45 and PM65 can support a wide range of media – including ink-in and ink-out ribbons with one-inch core size – enhancing the time between media resupply. The PM45 and PM65 printers are easy replacements for existing Honeywell or mixed printers. Rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement, help minimize downtime and maintenance needs.
| Printing | |
| Print technology | Thermal transfer |
| Colour | No |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 300 mm/sec |
| Maximum printing width | 16.7 cm |
| Minimum print length | 4.8 m |
| Paper handling | |
| Maximum label width | 17.8 cm |
| Maximum roll diameter | 21.3 cm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| RS-232 ports | 1 |
| Performance | |
| Page description languages | DPL, IPL, PDF, XML, ZPL II |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Built-in barcodes | 1D, 2D |
| Image formats supported | BMP, GIF, PCX, PNG |
| Certification | RoHS Compliant, CE (EN55032 Class B), FCC Class B, Energy Star 3.0 |
| Design | |
| Product colour | Black |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 15.2 cm (6") |
| Control type | Buttons |
| Power | |
| Power consumption (standby) | 9.6 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| System requirements | |
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 5 - 40 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Weight & dimensions | |
| Width | 350 mm |
| Depth | 484 mm |
| Height | 292 mm |
| Weight | 13.7 kg |
| Warranty | |
| Base Warranty | Non Non |
