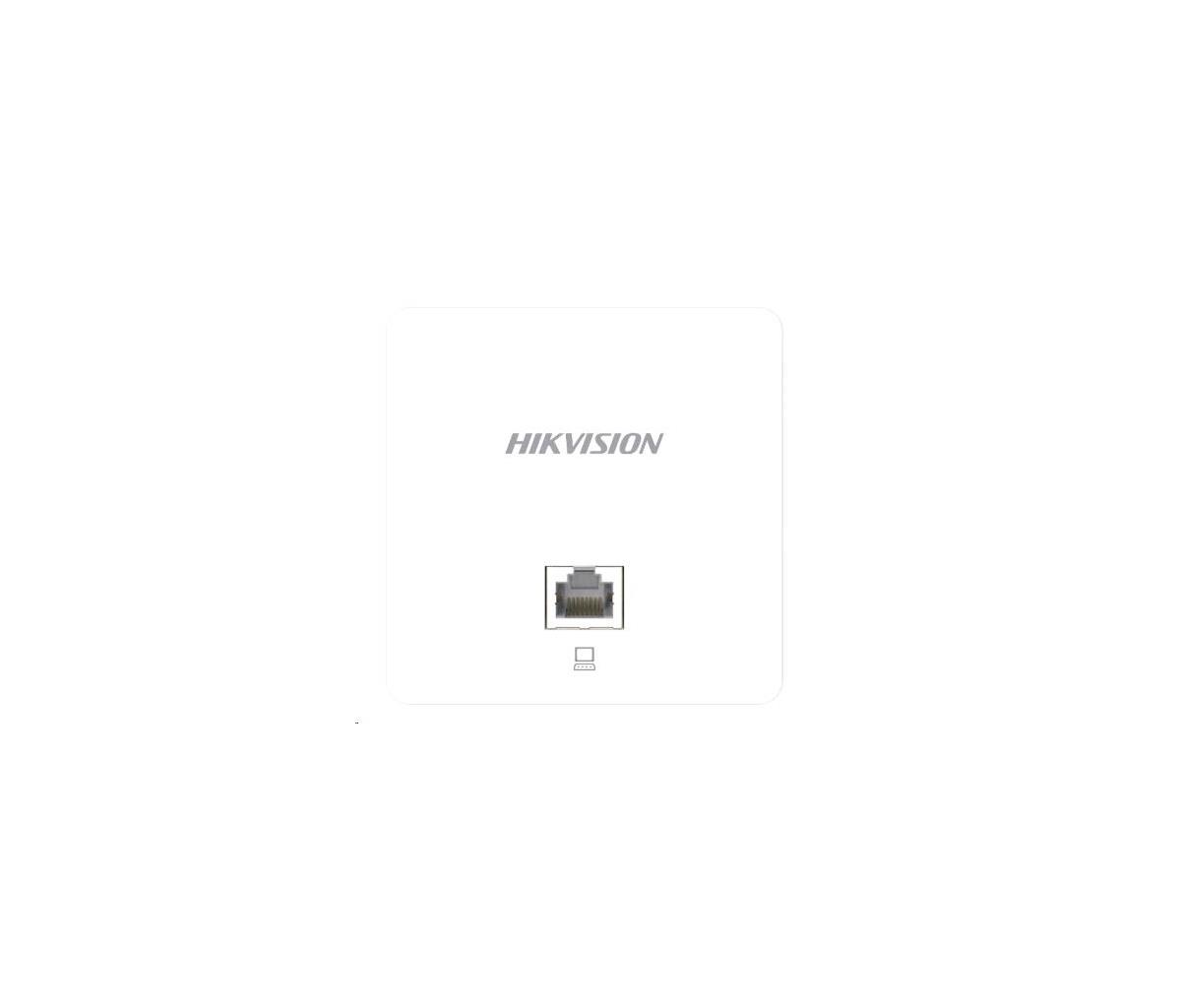

Ds-3wap521-si

• 2 Gigabit LAN Ports with 1 PoE Input
• 802.11ac Wave 2 1167 Mbps
• 86 mm Wall Junction Box for Easy Installation
• 50+ Concurrent User Connections
• Auto RF Optimization
• Support Intelligent Fast Roaming

General

• Weight : 0.2 kg (0.44 lb)
• Installation Mode : In-Wall Mounting
• Working Temperature : 0 °C to 40 °C (32 °F to 104 °F)
• Working Humidity : 5% to 95% (no condensation)
• Storage Temperature : -40 °C to 70 °C (-40 °F to 158 °F)
• Storage Humidity : 5% to 95% (no condensation)
• Product Dimensions (W × H × D) : 86 mm × 86 mm × 35 mm (3.38'' × 3.38'' × 1.37'')
• Packing List : 1200 M Access Point ×1,Screw Pack × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
• Power Consumption : Max. 8 W

WLAN Parameters

• Maximum Number of Clients : 128
• Recommended Number of Clients : 50
• Maximum Number of SSIDs : 8
• Working Frequency Band : radio 1: 5G(11a/n/ac), radio 2: 2.4G(11b/g/n)
• Wi-Fi Standards : Wi-Fi 5
• Wi-Fi Speed : 2.4 G: 300 Mbps,5 G: 867 Mbps
• Spatial Streams : 2.4 GHz, 2 × 2 , MU-MIMO, 5 GHz, 2 ×2 , MU-MIMO
• Channel Width : 2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/ MHz
• Number of Antennas : 2.4GHz:2;5GHz:2
• Antenna Type : Built-in omnidirectional antennas
• Antenna Gain : 2.4 GHz: 3 dBi,5 GHz: 3 dBi
• Transmit Power : 20 dBm
• Modulation Technology : OFDM: BPSK@6/9Mbp, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps; DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps; MIMO-OFDM (11n): MCS 0-15; MIMO-OFDM (11ac): MCS 0-9

Software Specifications

• WLAN Security : WAP-PSK,WAP2-PSK,WPA-WAP2-PSK,Blocklist & Allowlist,Support Multiple encryption key triggered dynamic unicast/multicast key update,Support Open system/shared key authentication,Support wireless endpoint access,Support 802.11i,Support SSID and VLAN binding
• Management & Maintenance : Centralized AC management
• Version Upgrade : upgrade on Web

Hardware Specifications

• Interface : 1 × Gigabit RJ45 uplink port, 1 × Gigabit RJ45 port
• Power Supply : IEEE 802.3af/at POE
• LED Indicator : Yellow/green/blue for different working states, flashing mode
• Reset Button : Hardware Resetting Button

Approval

• EMC : CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
• Safety : CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1)
• Chemistry : CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
• Radio : EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
