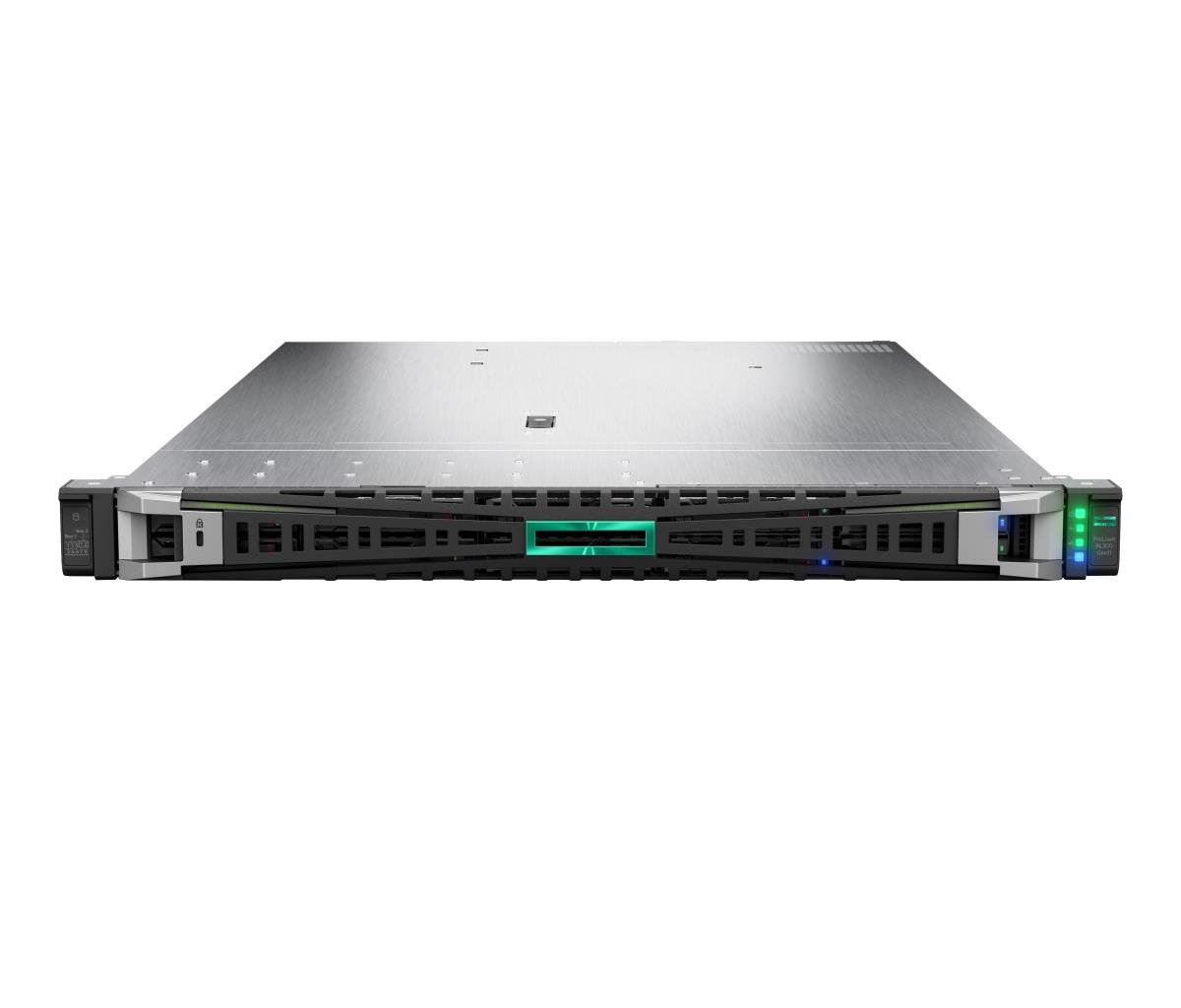

ProLiant RL300 Gen11 - 1p M128-30 - 128GB-R -8SFF 1x480GB M.2 SSD - 800W PS
ITCurry #: 1171AQP2 | Article #: P76339-B21-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Do you need compute that delivers high power efficiency along with high performance? Building on HPE ProLiant as the legendary foundation, the HPE ProLiant RL300 Gen11 server delivers next-generation compute performance and power efficiency for a wide range of emerging cloud-native applications and use cases. The HPE ProLiant RL300 Gen11 server offers Ampere Altra and Ampere Altra Max processors with an industry-leading core count of up to 128 cores in a single-socket, 1U design. The HPE ProLiant RL300 Gen11 server is ideal for cloud providers, digital service providers, and digital-first enterprises running scale-out, cloud-native workloads, and who are offering digital services, media streaming, social platforms, e-commerce, financial, or online services, along with cloud-based services such as IaaS, PaaS and SaaS.
| Processor | |
| Processor manufacturer | Ampere |
| Processor family | Altra Max |
| Processor model | M128-30 |
| Processor frequency | 3 GHz |
| Processor cores | 128 |
| Processor cache | 16 MB |
| Number of processors installed | 1 |
| Processor cache type | L3 |
| Memory | |
| Internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 16x DIMM |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 4 x 32 GB |
| Maximum internal memory | 4 TB |
| Storage | |
| Total storage capacity | 480 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| SSD interface | PCI Express 4.0 |
| SSD size | 2.5" |
| Supported SSD sizes | M.2 |
| Number of SSDs supported | 8 |
| Supported RAID controllers | Storage controllers not supported |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 25 Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Expansion slots | 2 PCIe Gen4 x16 slots, 2 PCIe Gen4 OCP 3.0 slots |
| VGA (D-Sub) ports quantity | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP28 |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 2 |
| Design | |
| Chassis type | Rack (1U) |
| Performance | |
| Management platform | Included - HPE iLO Standard and Advanced features, OneView Monitor Mode only |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Power | |
| Power supply type | 1x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit |
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Number of main power supplies | 1 |
| Weight & dimensions | |
| Width | 482.6 mm |
| Depth | 713 mm |
| Height | 42.9 mm |
| Weight | 15.8 kg |
| Other features | |
| Standard fans | 7 performance Hot-swappable fans |
| Dimensions (W x D x H) (imperial) | 482.6 x 713 x 42.9 mm (19 x 28.1 x 1.69") |
| Storage drive type | None ship standard, 8 SFF supported |
| Security features | TPM 2.0, Silicon Root of Trust, Secure Boot, lockable bezel |
| Weight (imperial) | 15.8 kg (34.9 lbs) |
| Number of processors supported | 1 |
| Warranty | |
| Base Warranty | Non Non |
