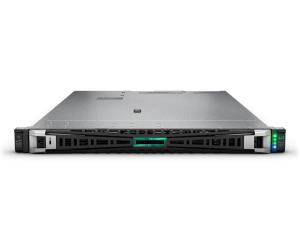

ProLiant DL320 Gen11 - 1p 6530 - 128GB-R - 10SFF MR416i-o 3x2.4TB HDD - 2x1000W PS - EU
ITCurry #: 1171ALT1 | Article #: P78088-425-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Are you looking to run edge AI workloads like Computer Vision that need GPU accelerators or distributed data solutions that require expandable storage? The HPE ProLiant DL320 Gen11 is a 1U 1P server with a unique compact design and workload-driven modular design that is purpose-built for edge computing delivering exceptional performance at 1P economics and an excellent choice for both virtualized and containerized workloads. Powered by 4th and 5th Gen Intel Xeon Scalable Processors with up to 60 cores, 270W, increased memory capability (up to 2 TB 5600 MT/s), and high-speed PCIe Gen5 supporting up to four single-wide GPUs (or two double-wide), the HPE ProLiant DL320 Gen11 server is a perfect low-cost, 1U 1P, performance solution. The HPE ProLiant Gen11 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
What is new supporting point:
Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and 1 OCP3.0 slots.
Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
Supports hot-pluggable or internal, high-availability RAID1 NVMe M.2 boot options.
Support for up to 4 Single Wide or 2 Double Wide GPUs in the front cage with the GPU CTO server.
Powered by the 4th and 5th Gen Intel Xeon Scalable Processors with next-generation 5nm technology that supports up to 60 cores at 270W and 16 DIMMs of DDR5 memory up to 5600 MT/s.
16 DIMMs per processor for up to 2 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© Xeon© Gold |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 4 GHz |
| Processor cores | 32 |
| Processor cache | 160 MB |
| Number of processors installed | 1 |
| Processor cache type | L3 |
| Memory | |
| Internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Memory layout (slots x size) | 2 x 64 GB |
| Storage | |
| Total storage capacity | 3.84 TB |
| Number of HDDs installed | 3 |
| HDD capacity | 2.4 TB |
| HDD interface | SATA III, Serial Attached SCSI (SAS) |
| Number of SSDs installed | 2 |
| SSD capacity | 1.92 TB |
| SSD interface | SATA III |
| RAID support | Yes |
| Supported RAID controllers | HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller |
| Optical drive type | No |
| Network | |
| LAN controller | Broadcom 5720 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | Maximum, 2 PCIe Gen5 & 1 OCP 3.0 PCIe Gen5, for detail descriptions please refer to the QuickSpecs. |
| Design | |
| Chassis type | Rack (1U) |
| Rack mounting | Yes |
| Performance | |
| Management platform | Included - HPE Compute Ops Management, HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional - HPE iLO Advanced, and HPE OneView Advanced. |
| Trusted Platform Module (TPM) | Yes |
| Power | |
| Power supply type | 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1000 W |
| Number of redundant power supplies installed | 1 |
| Number of main power supplies | 2 |
| Other features | |
| Standard fans | 7x High Performance Fans |
| Storage drive type | 3x HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD 2x HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD |
| Security features | UEFI Secure Boot and Secure Start support. Intel Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits. |
| Number of processors supported | 1 |
| Warranty | |
| Base Warranty | Non Non |
