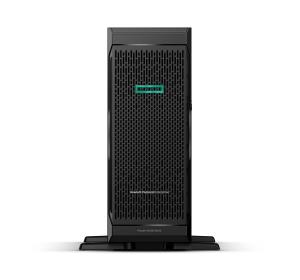

ProLiant ML350 Gen10 - 1p 4208 - 16GB-R - P408I-A 8SFF - 1X800 W RPS
ITCurry #: 1171XX32 | Article #: P22094-421-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Do you need a robust server for your SMB and remote offices? HPE ProLiant ML350 Gen10 Server delivers a secure dual-socket tower server with performance, expandability, and proven reliability making it the choice for expanding SMBs, remote offices of larger businesses, and enterprise data centers. HPE ML350 Gen10 Server leverages the Intel® Xeon® Scalable processors with up to 71% performance gain and 27% increase in cores, along with the 2666 MT/s HPE DDR4 SmartMemory supports up to 3.0 TB and 11% faster than 2400 MT/s. The shorter re-designed rackable chassis with multiple upgrade options provides flexibility that can expand as your business needs grow. It supports 12 Gb/s SAS, NVMe SSD, embedded 4x1GbE NIC with a broad range of graphics and compute options. Supported by the HPE Pointnext industry-leading service organization and ease of deployment, HPE ML350 Gen10 Server helps you transform to a digital business with more agility and all within your limited IT budget.
Features
Perform with Unmatched Versatility
- HPE ProLiant ML350 Gen10 Server supports up to two Intel Xeon Scalable processors, starting from Bronze through Platinum, 4 cores expanding up to 28 core processors offering unparalleled performance.
- Up to 24 DIMM slots to support the 2600 MT/s HPE DDR4 SmartMemory, reducing data loss and downtime with the HPE Gen10 technology licensed Fast Fault Tolerance feature while increasing workload performance and power efficiency.
- It supports a wide range of solutions from Azure to Docker to ClearOS along with the traditional operating systems.
- GPU expansion supports up to four units to accelerate performance in VDI applications and machine learning for financial services, surveillance and security, educational and scientific research, as well as retail and medical imaging.
- With the new addition of NVIDIA Tesla T4 and NVIDIA Quadro RTX8000/6000/4000 GPU option support, it transforms into a even more powerful AI Tower server with high-speed GPU connection, ray-tracing and AI.
Expand When Your Business Needs Grow
- HPE ProLiant ML350 Gen10 Server delivers expandability with a wide range of drive upgrade options. Supporting 8 to 24 SFF or 16 SFF when mixed with optional 8 NVMe PCIe solid state drives, 4 to 12 LFF hot plug or non-hot plug drive options protecting your IT investment in hybrid environment.
- Large expansion capacity with (8) PCIe slots, (6) USB ports, 5U rack conversion, and power supply options.
- Embedded 4x1GbE and the choice of PCIe standup 1GbE, 10GbE or 25GbE adapters provide you the flexibility of networking bandwidth and fabric so you can scale and adapt to different needs as your business grows.
Security Innovations
- HPE Integrated Lights Out 5 (iLO 5) enables the world's most secure industry standard servers with HPE Silicon Root of Trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.
- iLO 5 security features include Server Configuration Lock to ensure secure transit, iLO Security Dashboard helps detect and address possible security vulnerabilities in server setup. Workload Performance Advisor provides server tuning recommendations for better server performance.
- With Runtime Firmware Verification the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware. Secure Recovery allows server firmware to rollback to the to last known good state or factory settings after detection of compromised code.
- Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to the server and reliably store artifacts used to authenticate the server.
- HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
Industry Leading Services and Ease of Deployment
- The HPE ProLiant ML350 Gen10 Server comes with a complete set of HPE Pointnext services, delivering confidence, reducing risk, and helping customers realize agility and stability.
- Services from HPE Pointnext simplify all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an effective solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.
- Services provided under Operational Services include: HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage.
- HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 2nd Generation Intel© Xeon© Scalable |
| Processor model | 4208 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 8 |
| Processor cache | 11 MB |
| Motherboard chipset | Intel C622 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Maximum number of SMP processors | 2 |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Processor threads | 16 |
| Processor operating modes | 64-bit |
| Processor codename | Cascade Lake |
| Tcase | 78 øC |
| Maximum internal memory supported by processor | 1.02 TB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Execute Disable Bit | Yes |
| Maximum number of PCI Express lanes | 48 |
| Processor package size | 76.0 x 56.5 mm |
| Supported instruction sets | AVX-512 |
| Scalability | 2S |
| Embedded options available | No |
| Memory | |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 24x DIMM |
| Memory clock speed | 2933 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Maximum internal memory | 1.54 TB |
| Storage | |
| Maximum storage capacity | 48 TB |
| Total storage capacity | 0 GB |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Number of HDDs supported | 8 |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 1 ADM, 5, 6, 10 ADM, 10, 50, 60 |
| Hot-Plug support | Yes |
| Optical drive type | No |
| Graphics | |
| On-board graphics card | Yes |
| On-board graphics card model | Not available |
| Maximum graphics card memory | 16 MB |
| Network | |
| LAN controller | ?Intel© 369i |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Design | |
| Chassis type | Tower (4U) |
| Product colour | Black |
| Performance | |
| Remote administration | iLO 5 ASIC |
| Trusted Platform Module (TPM) | No |
| Software | |
| Operating system installed | No |
| Compatible operating systems | Windows Server 2012 R2 Windows Server 2016 LTSC Windows Server 2019 LTSC Microsoft Hyper-V Server 2012 R2, 2016 & 2019 VMware vSphere 6.0 U3, 6.5 U2 & 6.7 U1 Red Hat Enterprise Linux (RHEL) 7.6 with Kbase (includes KVM) SUSE Linux Enterprise Server (SLES) 12 SP3, 12 SP4, 15, (includes KVM) ClearOS/ClearVM 7.6, 8.0 |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel© Hyper Threading Technology (Intel© HT Technology) | Yes |
| Intel© Turbo Boost Technology | 2.0 |
| Intel© AES New Instructions (Intel© AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 193390 |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 174 mm |
| Depth | 648 mm |
| Height | 462.5 mm |
| Weight | 21 kg |
| Warranty | |
| Base Warranty | Non Non |
