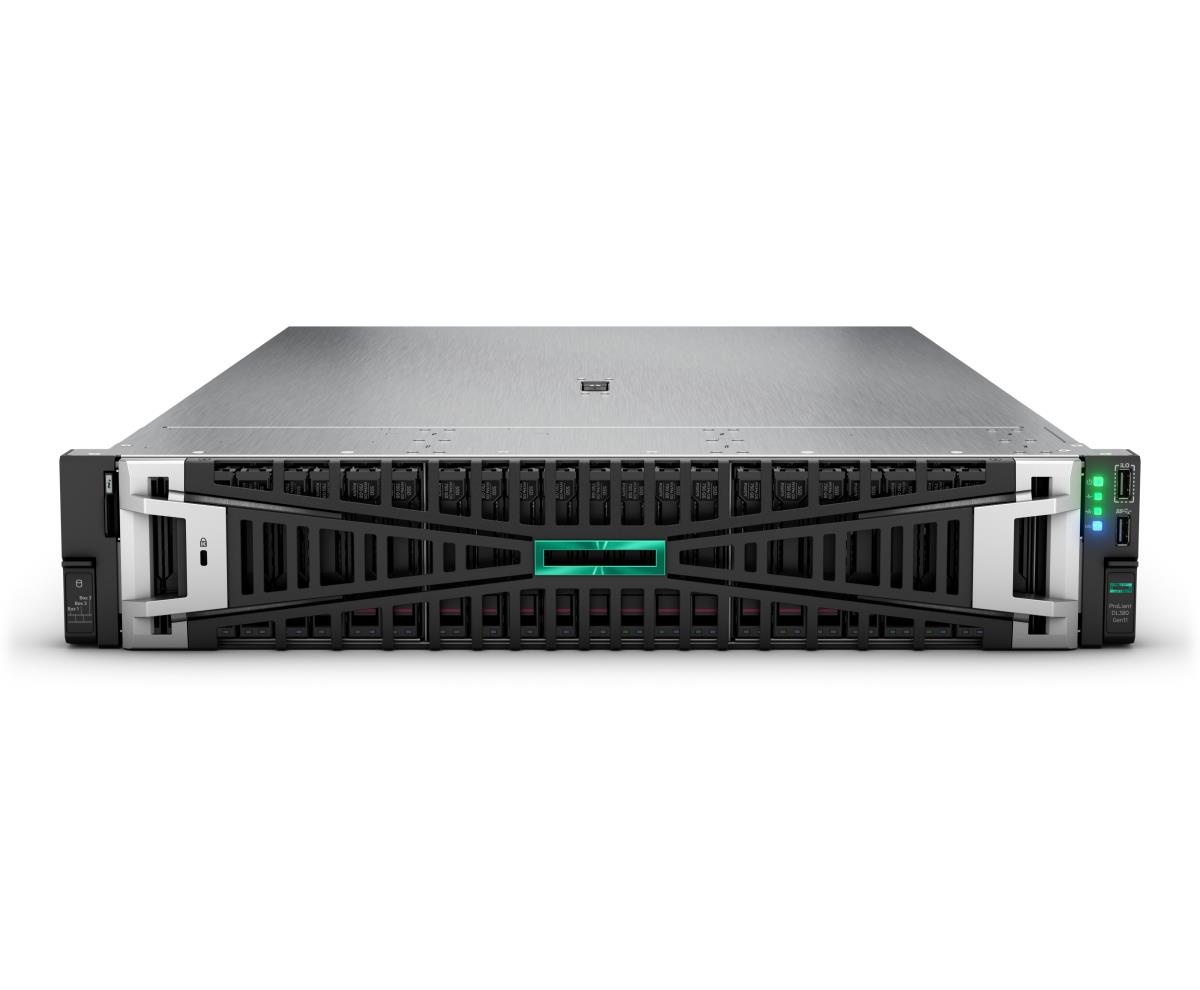

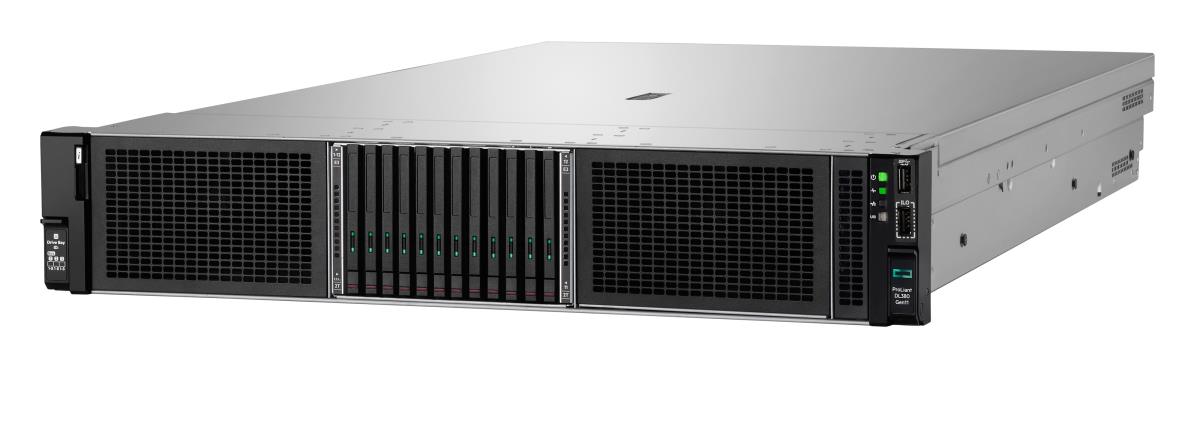

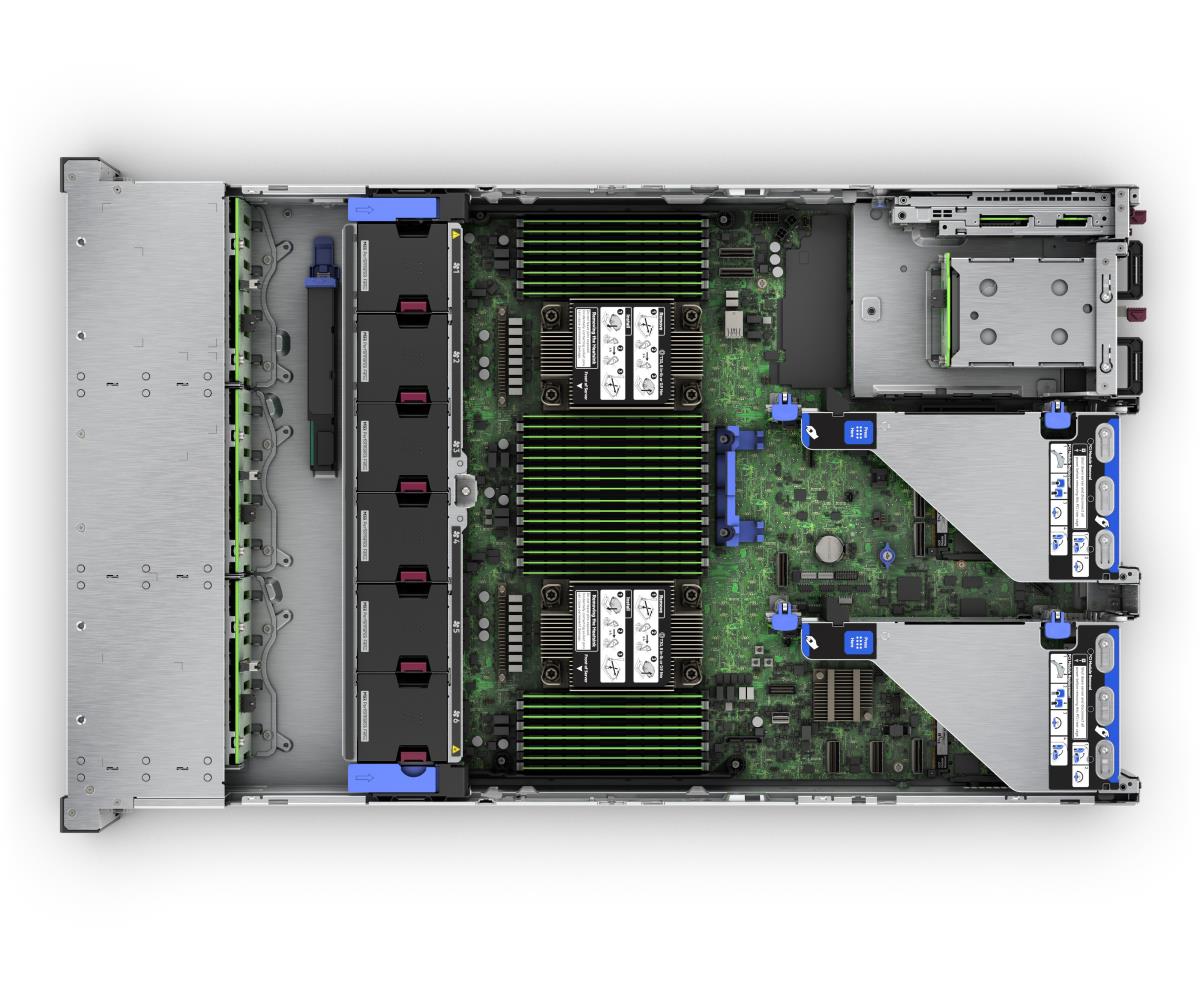

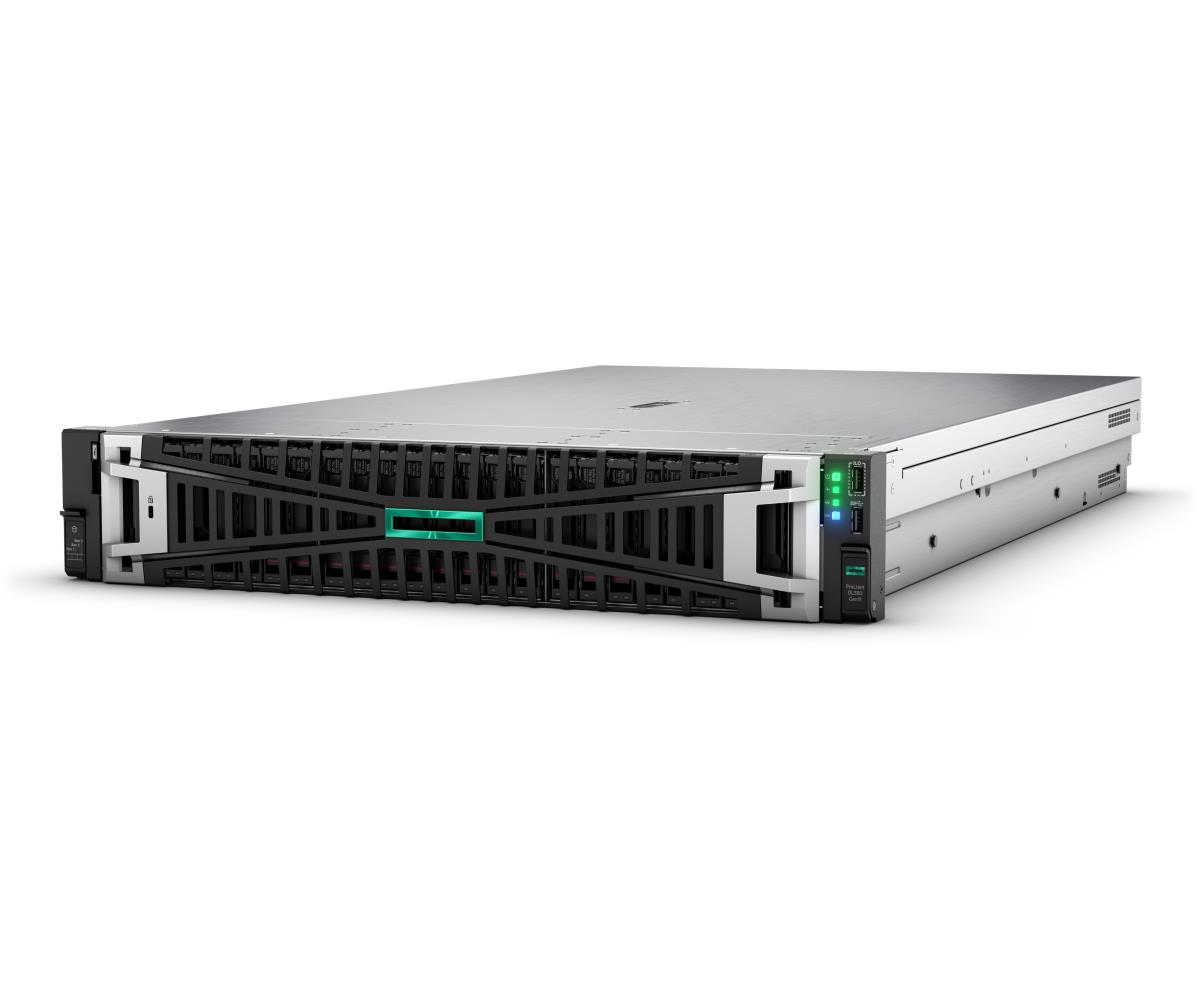

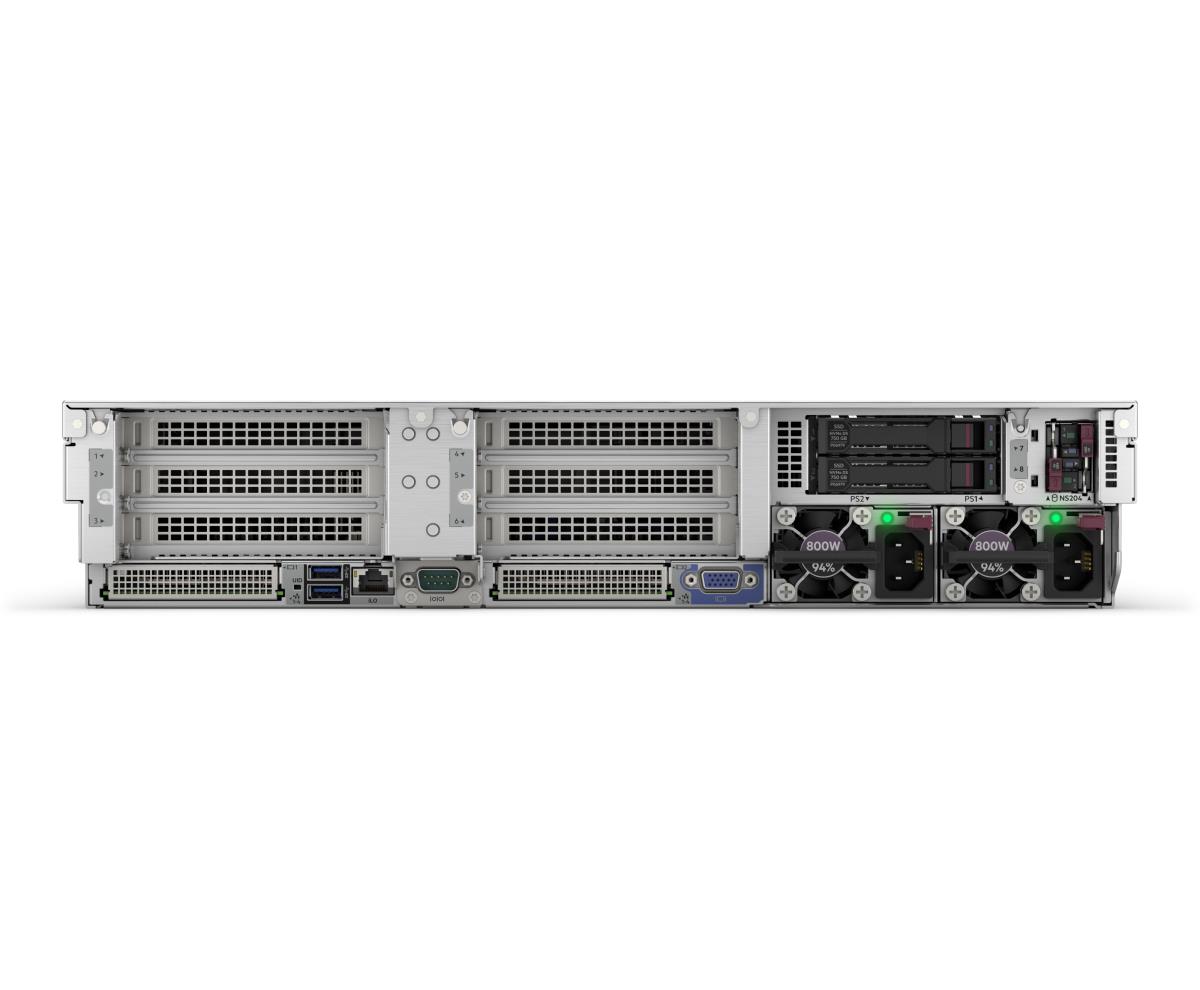

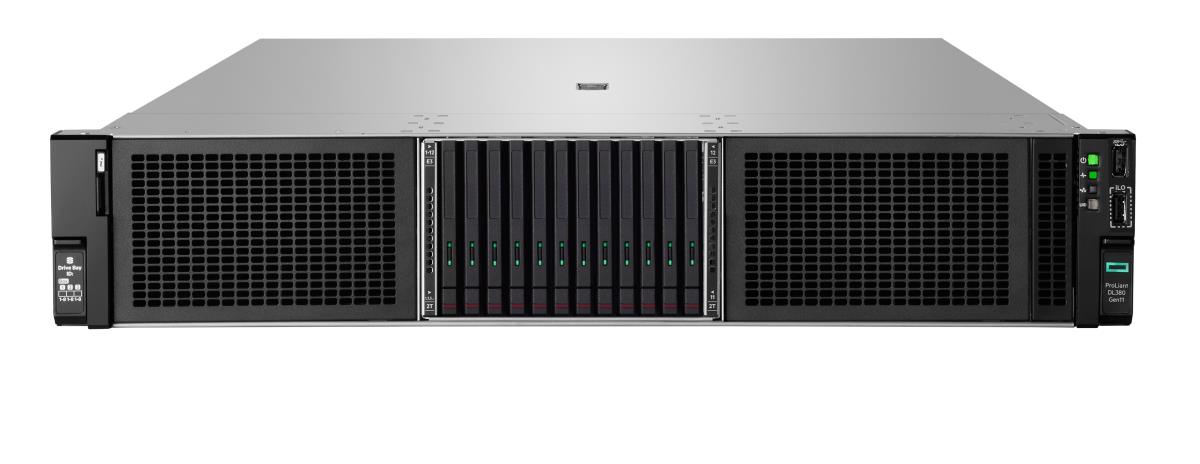

ProLiant DL380 Gen11 - 1p 6530 - 2x32GB-R 8SFF MR416i-o 2x480GB SSD - 2x1000W PS - EU
ITCurry #: 1171APL4 | Article #: P81787-425-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Are you looking for a dual-socket scalable server solution to power data analytics or hybrid cloud workloads? The HPE ProLiant DL380 Gen11 server is a scalable 2U 2P solution that delivers exceptional compute performance, memory density with scalability and high-speed data transfer rate to run your most demanding applications. Powered by 4th and 5th Gen Intel Xeon Scalable Processors with up to 64 cores, 8 TB of memory, and 20 EDSFF drive as well as increased memory bandwidth and high-speed PCIe Gen5 I/O, the HPE ProLiant DL380 Gen11 server is a perfect solution for software-defined storage, video transcoding, and virtualized apps. The HPE ProLiant DL380 Gen11 server is engineered to optimize IT with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
What is new supporting point:
Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
Supports hot-pluggable, high-availability RAID M.2 boot options.
Supports up to 8 single wide (SW) or 3 double wide (DW) GPUs to accelerate graphic intense workloads.
Powered by the 4th and 5th Gen Intel Xeon Scalable Processors with next-generation technology that support up to 64 cores at 350W and 16 DIMMs for DDR5 memory at speeds up to 5600 MHz.
Support for up to 8 TB total DDR5 memory with 16 DIMM channels per processor delivers increased performance, lower power requirements, and High Bandwidth Memory (HBM) support.
Support for PCIe Gen5, resulting in improved bandwidth, advanced data transfer rates, and higher network speeds from the PCIe Gen5 serial expansion bus.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© Xeon© Gold |
| Processor model | 6530 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 4 GHz |
| Processor cores | 32 |
| Processor cache | 160 MB |
| Number of processors installed | 1 |
| Memory | |
| Internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 32x DIMM |
| Memory clock speed | 5600 MHz |
| Memory layout (slots x size) | 2 x 32 GB |
| Maximum internal memory | 8 TB |
| Storage | |
| Total storage capacity | 960 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | PCI Express 4.0 |
| SSD size | 2.5" |
| Number of SSDs supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Supported RAID controllers | None |
| Optical drive type | No |
| Network | |
| LAN controller | Broadcom BCM57414 |
| Ethernet LAN | Yes |
| Ethernet interface type | 25 Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Fiber optic connector | SFP28 |
| Design | |
| Chassis type | Rack (2U) |
| Product colour | Black, Silver |
| Rack mounting | Yes |
| Performance | |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | No |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1000 W |
| Number of redundant power supplies installed | 1 |
| Number of main power supplies | 2 |
| Weight & dimensions | |
| Width | 600 mm |
| Depth | 998 mm |
| Height | 273 mm |
| Weight | 41.3 kg |
| Warranty | |
| Base Warranty | Non Non |
